DIGITAL FOREHEAD AND EAR THERMOMETER
CTD711Forehead/Ear
- *Please refer to the support & download page for other language manuals.
Features
- 4 measurement mode ( Ear/ Forehead / Surface / Temperature )
- Approx.1 second measurement
- No probe covers needed
- Fever alert
- 9 memory record
- Auto power off
- Remaining battery level
- Easy to replace battery
- ℃/℉ switching

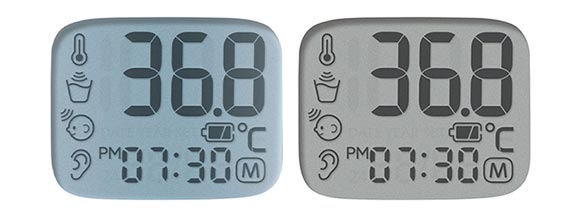

- With back light
4 measurement mode
Notify measurement mode by flashing icon.
Temperature mode
Measurement range: +10℃～ +40℃
Surface mode
Measurement time: Approx. 1 second
Measurement range: -22℃～ +80℃
Forehead mode
Measurement time: Approx. 1 second
Measurement range: +34℃～ +42.2℃
Ear mode
Measurement time: Approx. 1 second
Measurement range: +34℃～ +42.2℃
Design concept

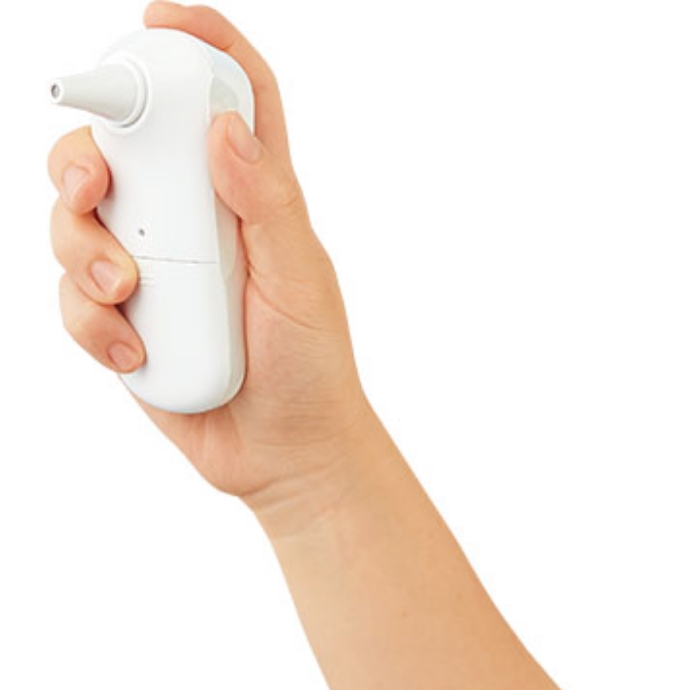

This device is designed to be held with ease. The scan button is on the top of the device so that it is easy to control the angle while taking measurement.

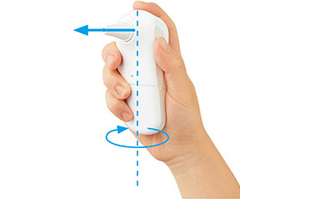

Performing proper measurements
For accurate measurement, it is important to straighten the ear canal and direct the tip of the probe straight toward the eardrum.
Specifications
| Measurement method | Infrared |
|---|---|
| Region whose temperature is detected | Inside the ear, forehead |
| Measurement range | Ear and forehead measurement mode: 34.0 ℃ ~ 42.2 ℃ (93.2 ℉ ~ 108℉) Surface temperature measurement mode: -22℃ ~ 80℃ (-7.6 ℉ ~ 176℉) Room temperature measurement mode: 10 ℃ ~ 40 ℃ ( 50 ℉ ~ 104℉) |
| Maximum permissible error | Ear and forehead measurement mode; ±0.2℃ (0.4 ℉) within 35.0℃ ~ 42.0℃ ( 95 ℉ ~ 107.6℉) ±0.3℃ ( 0.5℉ ) for other than above measument range Suface temperature measurement mode; ±0.3℃( 0.5℉)within 22℃ ~ 42.2℃ ( 71.6 ℉ ~ 108℉) ±4% or ±2℃ (4 ℉) whichever is larger (other than above measurement range) Room temperature measurement mode:±1℃ (2℉) |
| Battery | DC3V (:Direct Current), CR2032 x 1 |
| Battery life | Approx. 2,800 times |
| Dimensions | Approx. W45 × H106 × D61.2 mm |
| Weight | Approx. 63g (including battery) |
