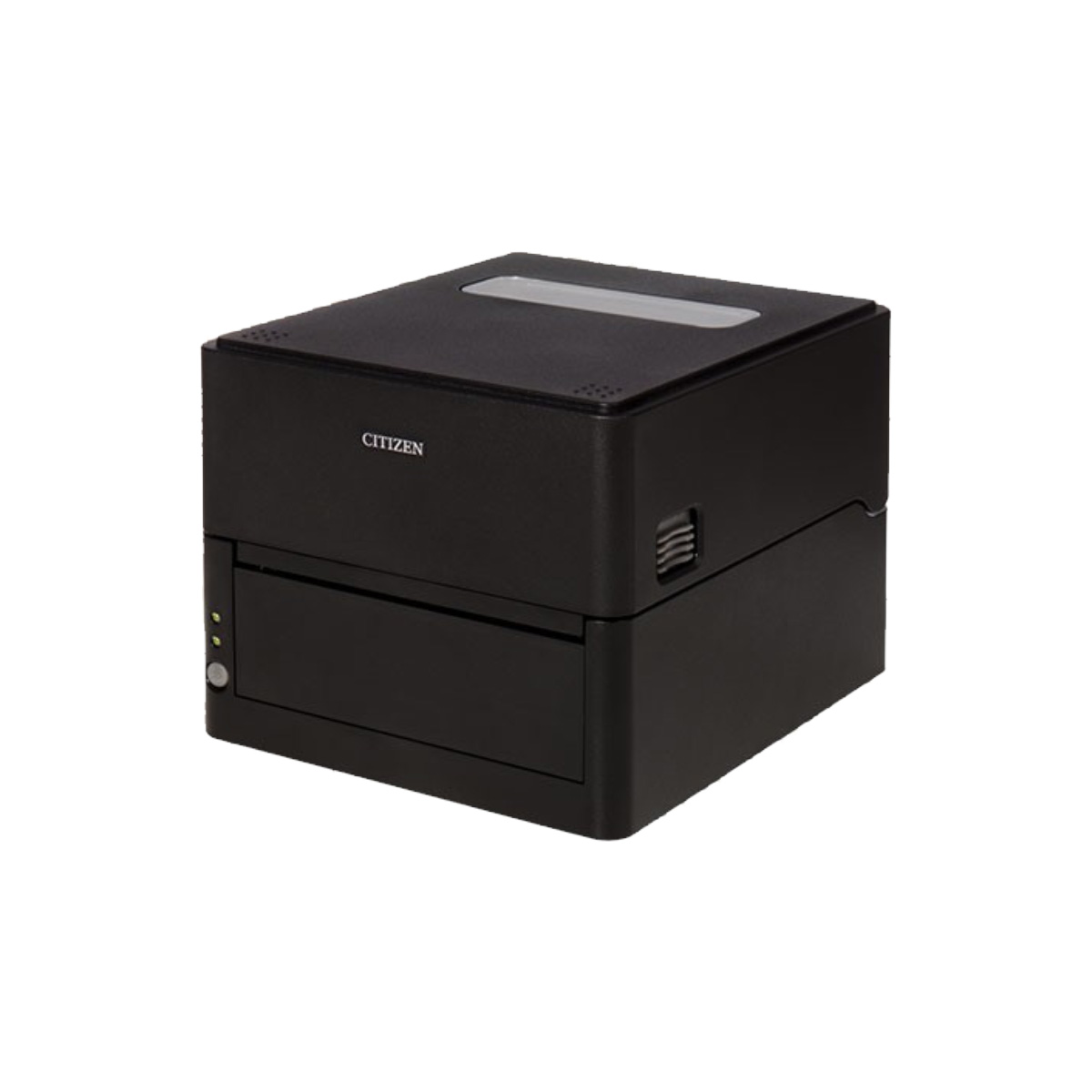

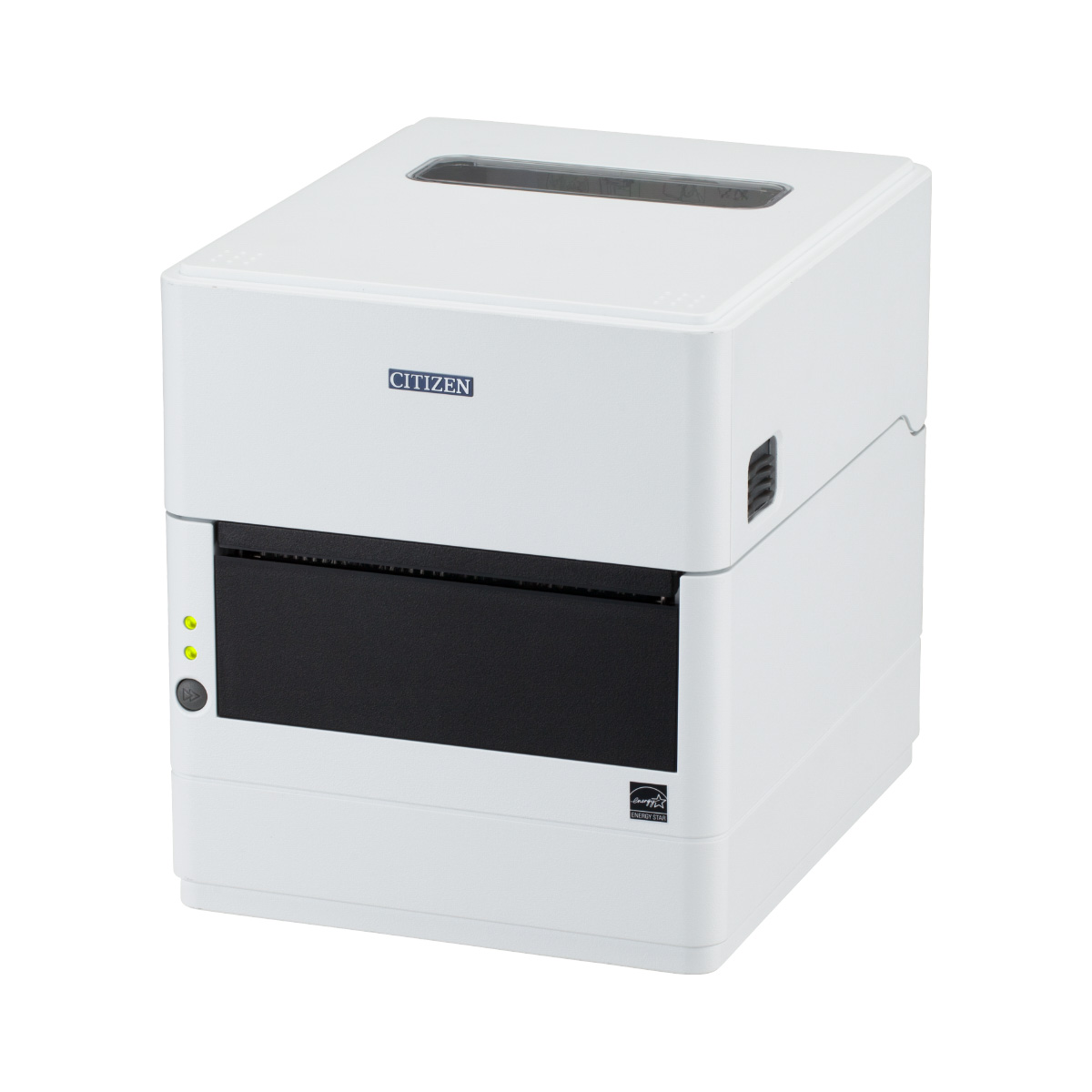

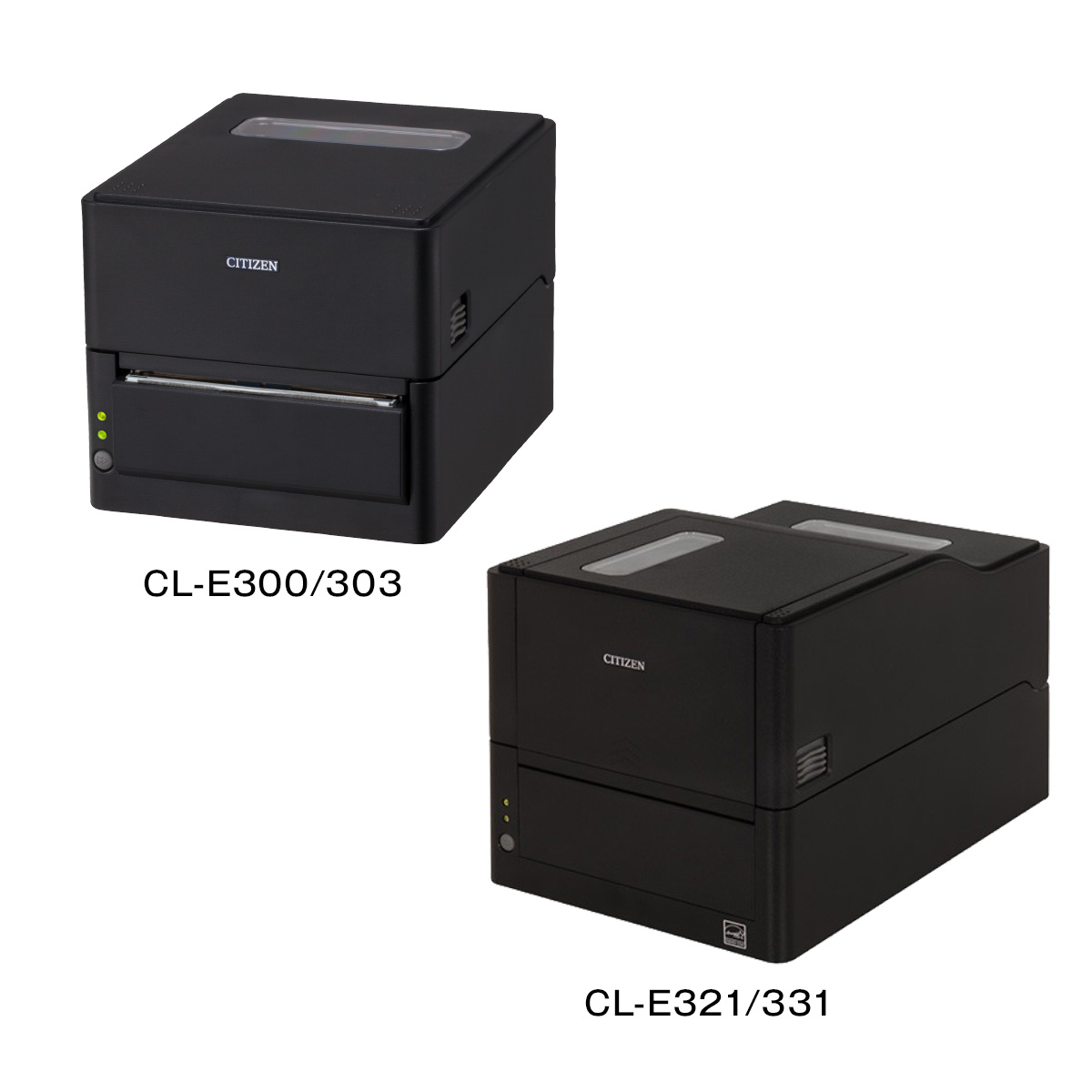

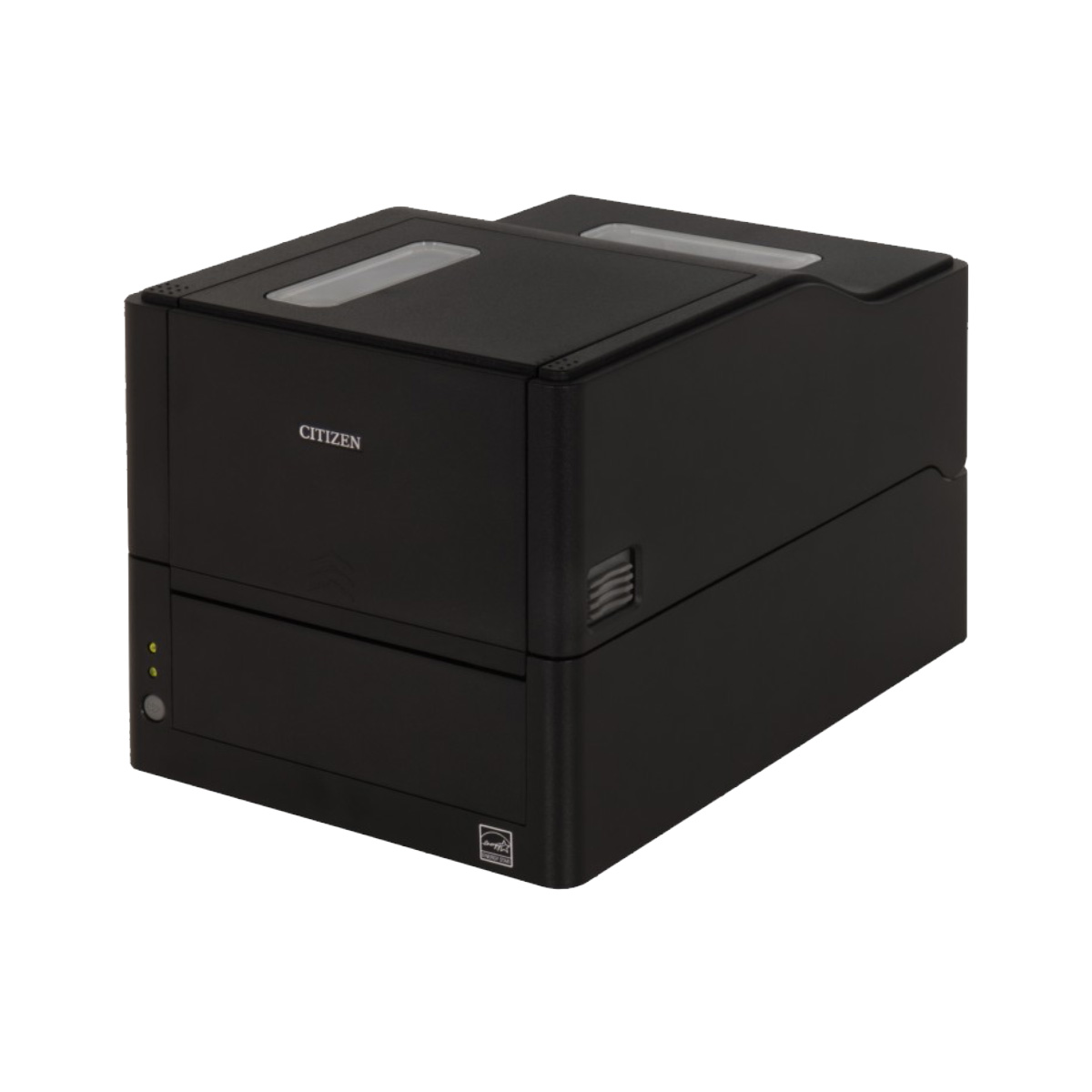

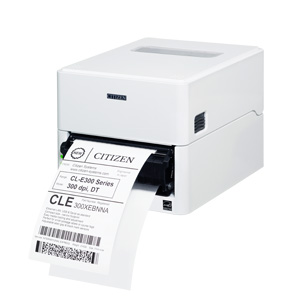

Label PrinterCL-E300/CL-E303/CL-E321/CL-E331

A 200/300 dpi model providing extremely good value for high performance. It’s easy to set up and can blend in to many customer environments with sophisticated appearance.

  • ENERGY STAR
Paper Width
25.4 to 118mm
Print Method
CL-E300/303: Thermal CL-E321/331: Thermal/Thermal Transfer Method
Functions
  • Metal Chassis
  • Thermal Transfer
  • Thermal
Applications
  • Tickets
  • Barcodes
  • 2D Barcodes
  • Labels
  • Fanfold Paper

Features

  • Compact Size

    One of the industry’s smallest 4-inch label printers.

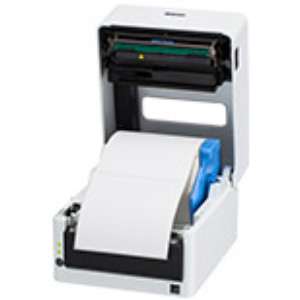

  • Easy Paper Loading

  • Minimal Design

    Features a stylish design that doesn’t affect a store’s atmosphere and fits right in even when it’s installed in an apparel shop, general store, or beauty shop, not just in a distribution warehouse or factory.

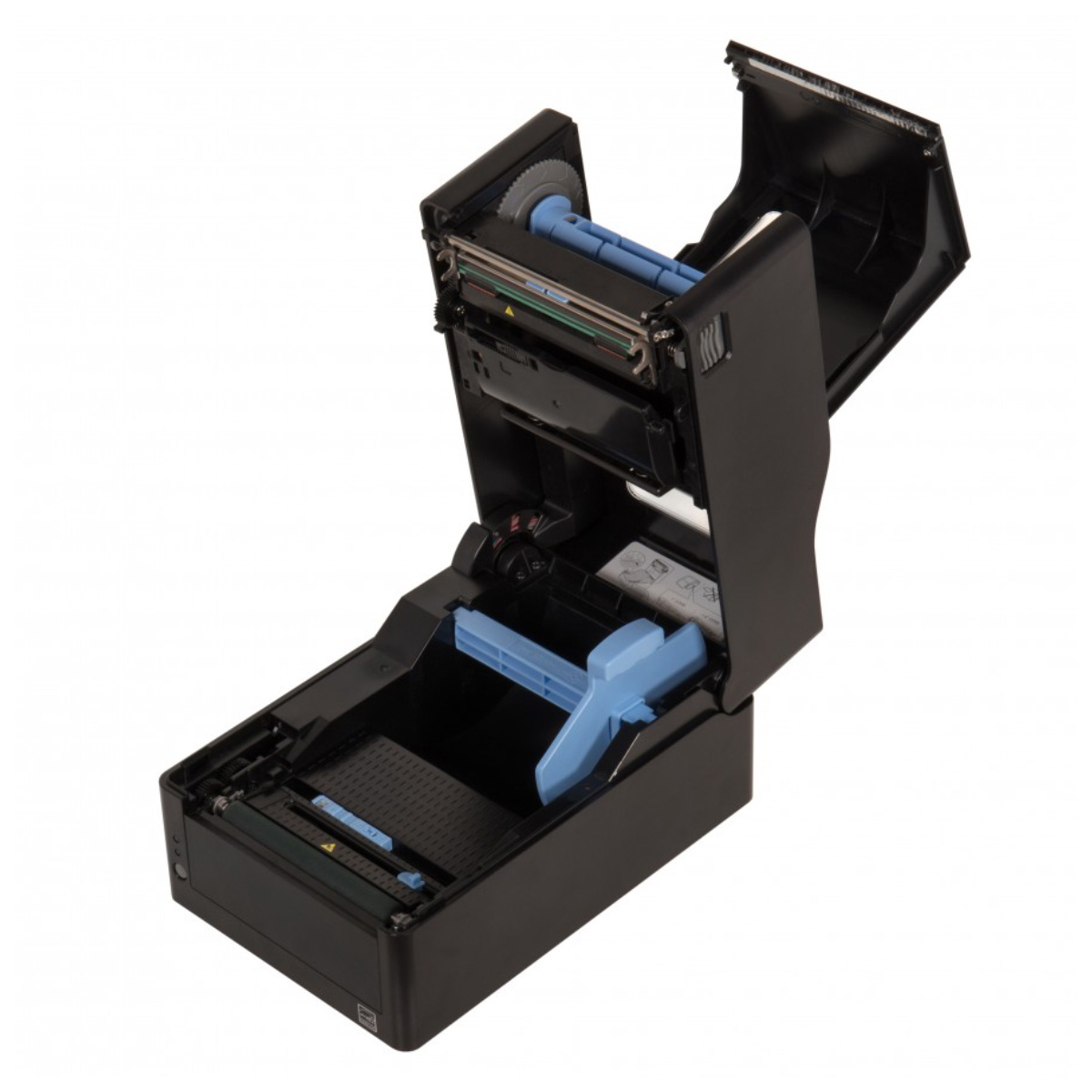

  • Supports large diameter ink ribbon

    Capable of using a low-maintenance 300m roll of ink ribbon.
    (CL-E321/331 only)

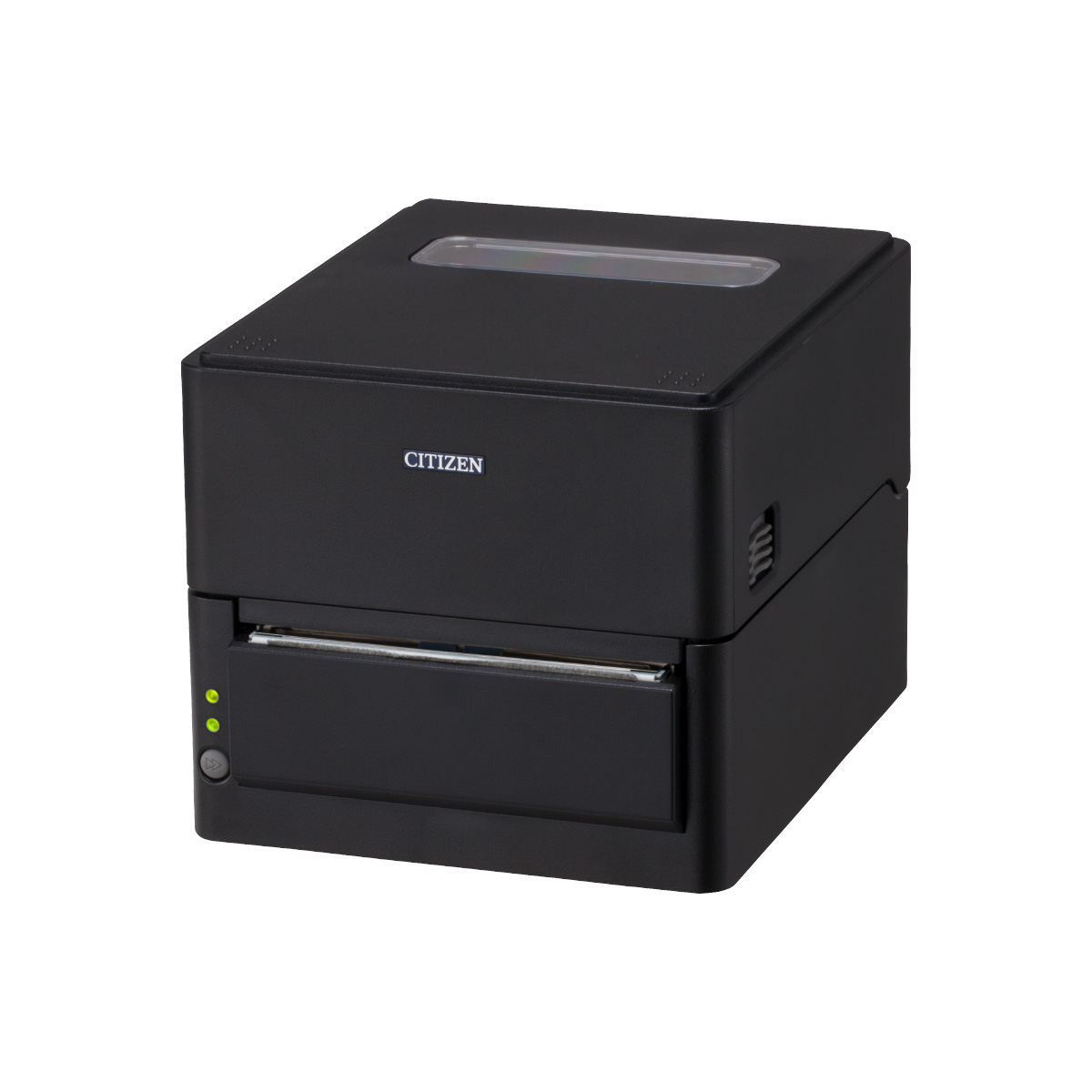

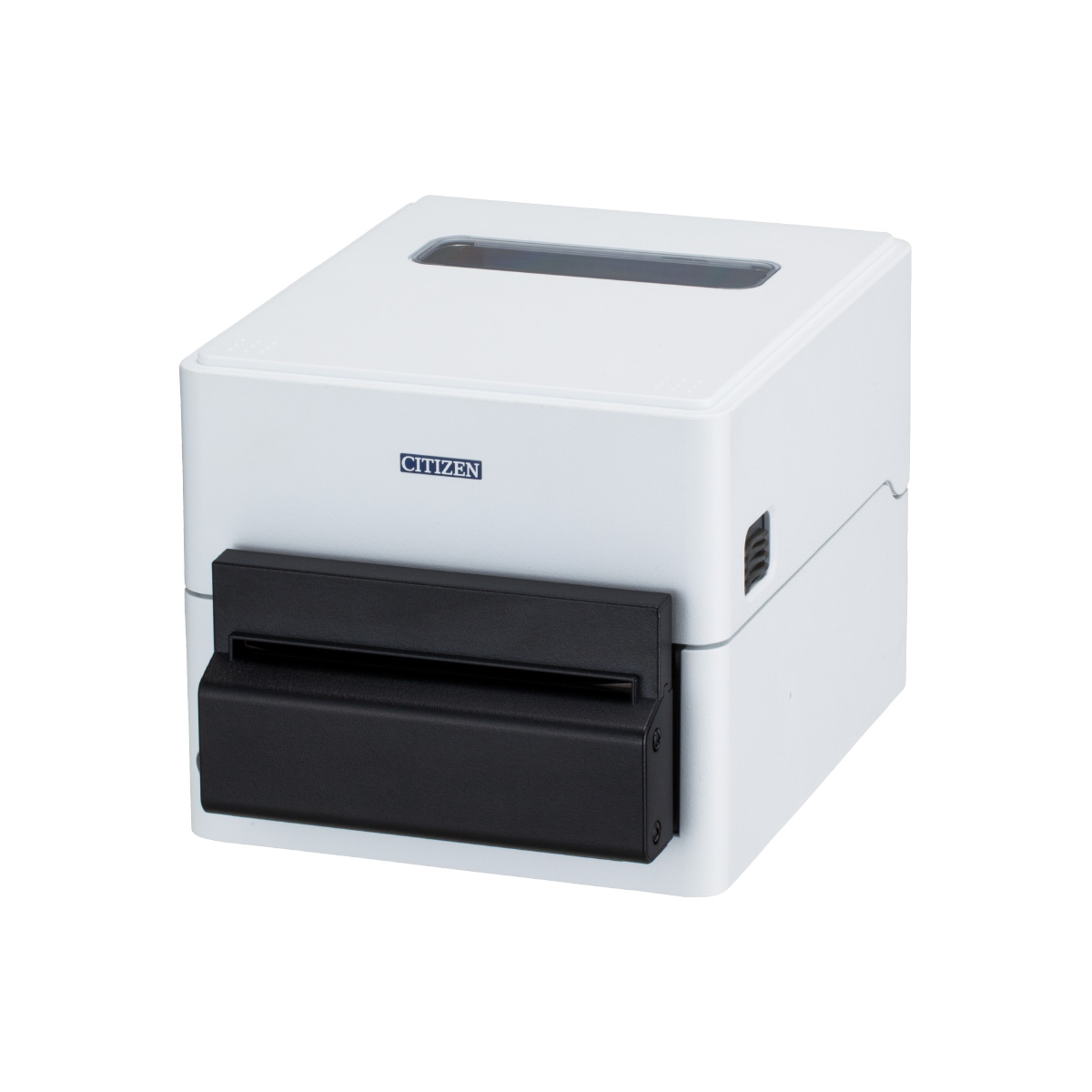

  • Selectable Cutter

    Two cutter-equipped models to select from according to application. Choice of an integrated cutter model or a separate cutter model (CL-E300/303 only).

  • Equipped as standard with USB + Wired LAN + Serial Interfaces

  • Acquired VCCI Class B

Main Applications

  • Tickets

  • Labels

  • Barcode Printing

Used in the following industries

  • Manufacturing

  • Food

  • Distribution

  • Logistics

Basic Functions

Features
  • Auto Cutter
  • Thermal Transfer
  • Thermal
  • Internal Power Supply (with extended base option)
Supported Interfaces
  • USB
  • Serial
  • Wired LAN
Available Drivers
  • Windows
  • Linux (CUPS)
Supported Platform by SDKs
  • Windows
  • Windows CE
  • Android

Consumables/Options

Factory pre-shipment options

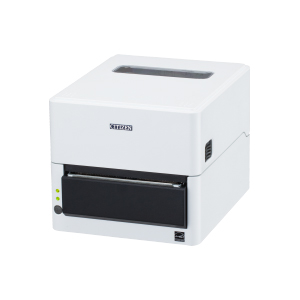

  • AC Adapter Storage Model
    (CL-E300/303)
  • Interchanged Cutter Model
    (CL-E300/303)
  • Interchangeable Cutter Model
    (CL-E300/303)
  • Peeler Model
    (CL-E300/303)
    (CL-E321/331)

Specifications

Model Name CL-E300 CL-E303 CL-E321 CL-E331
Print Method Thermal Printing Thermal Transfer + Direct Thermal Printing
Printing Speed 200mm/sec. 152mm/sec. 200mm/sec. 152mm/sec.
Resolution 203dpi 300dpi 203dpi 300dpi
Paper Width 25.4 to 118mm (Effective printing width: up to 105mm)
Paper Pitch 8.89 to 1270mm
Paper Diameter Outer Diameter: up to 127mm, Paper Tube Inside Diameter: 25.4 or 38.1mm
[CL-E300/321] Inside Diameter: 125mm, Core size: 25mm
Paper Thickness [CL-E300] up to 0.15mm
Standard model and integrated cutter model: 0.0635 to 0.19mm
Separate cutter model: 0.0635 to 0.15mm
Paper Sensor Moving Type (Transmission/Reflection)
Barcodes UCC/EAN, Composit Symb, GS1-Databar, QR Code, PDF 417, CODABAR(NW-7), CODE128, CODE93, CODE39, Codabar, ITF, EAN-8(JAN-8), EAN-13 (JAN-13), UPC-E, UPC-A, Code3of9 One Dimensional:
Code39/93/128, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, HIBC (Code 39 using Modulus43), CODABAR (NW-7), Int 2 of 5 (Interleaved 2 of 5 using Modulus10), Plessey, CASE CODE, UPC2DIG ADD, UPC5DIG ADD, Telepen, ITF14, ITF16, Industrial 2 of 5, COOP 2 of 5
Two Dimensional:
UPS Maxi Code, PDF-417, Data Matrix, QR code, GS1*1
UCC/EAN, Composit Symb, GS1-Databar, QR Code, PDF 417, CODABAR(NW-7), CODE128, CODE93, CODE39, Codabar, ITF, EAN-8(JAN-8), EAN-13 (JAN-13), UPC-E, UPC-A, Code3of9 One Dimensional:
Code39/93/128, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, HIBC (Code 39 using Modulus43), CODABAR (NW-7), Int 2 of 5 (Interleaved 2 of 5 using Modulus10), Plessey, CASE CODE, UPC2DIG ADD, UPC5DIG ADD, Telepen, ITF14, ITF16, Industrial 2 of 5, COOP 2 of 5
Two Dimensional:
UPS Maxi Code, PDF-417, Data Matrix, QR code, GS1*1
Equipped Font Fixed Pitch Font, OCR Font, Proportional Font, TrueTypeTM rasterizer, Kanji Font
[CL-E300/321] Fixed Pitch Font, OCR Font, Proportional Font, TrueTypeTM rasterizer
Kanji Font Gothic (16x16, 24x24, 32x32, 48x48 dots)
Command Datamax Emulation, Zebra Emulation, Eltron Emulation
Interfaces Triple interface USB 2.0, RS-232 and 10/100 Ethernet USB, Wired LAN, Serial Triple interface USB 2.0, RS-232 and 10/100 Ethernet USB, Wired LAN, Serial
Power Supply Voltage AC100V/240V, 50/60Hz
Mass Standard Model: Approx. 2.0kg
Interchanged Cutter Model: Approx. 2.3kg
Interchangeable Cutter Model: Approx. 2.2kg
Standard Model: Approx. 2.0kg
Interchanged Cutter Model: Approx. 2.3kg
Interchangeable Cutter Model: Approx. 2.2kg
Standard Model: Approx. 2.6 Kg
Model with Cutter: Approx. 2.9kg Model with AC Adapter strage case: Approx. 3.3kg
Standard Model: Approx. 2.6kg
Interchanged Cutter Model: Approx. 2.9kg
External Dimensions 170 (W) × 207 (D) × 151 (H) mm Standard Model: 170 (W) × 207 (D) × 151.3 (H) mm
Interchangeable Cutter Model: 170 (W) × 216.2 (D) × 151.3 (H) mm
Interchanged Cutter Model: 170 (W) × 236.8 (D) × 151.3 (H) mm
AC Adapter Storage Model: 170 (W) × 207 (D) × 193.3 (H) mm
178 (W) × 266 (D) × 173 (H) mm Standard Model: 178 (W) × 266 (D) × 172.8 (H) mm
Cutter Model: 178 (W) × 293.8 (D) × 172.8 (H) mm
AC Adapter Storage Model: 178 (W) x 266 (D) x 214.8 (H) mm
Reliability MCBF:500km or 5years(Recommended media), Print head life:50km(Recommended media), Platen life:100km(Recommended media)
Safety Standards UL, CSA, VCCI: Class B, FCC: Class B
Accessories Paper Shaft Guide
Paper Shaft
Quick Start Guide
Head Cleaner
AC Adaptor
AC Cord
USB Cable
Ribbon Winding Core (CL-E321/331 only)
Ribbon Shaft (CL-E321/331 only)
*1
Please contact us for details regarding GS1.

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

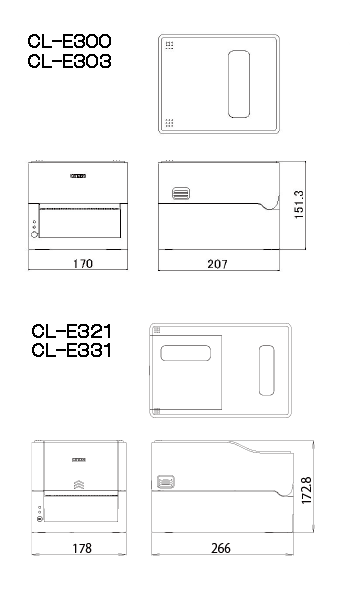

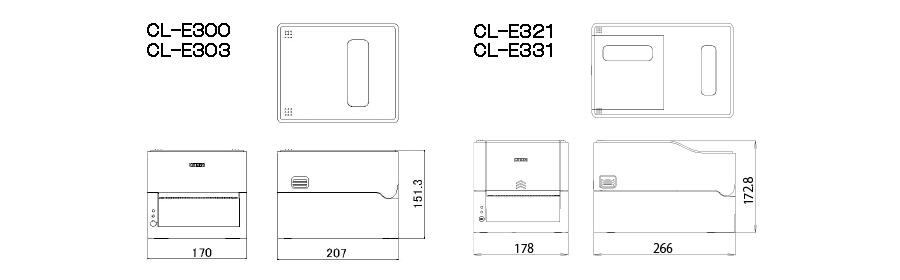

Dimensions

DimensionsDimensions

(Unit: mm)

Interfaces

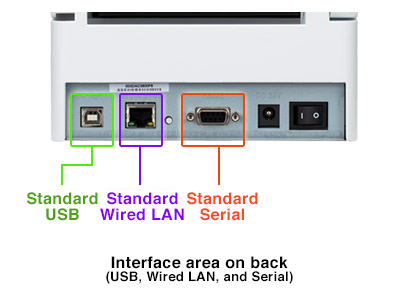

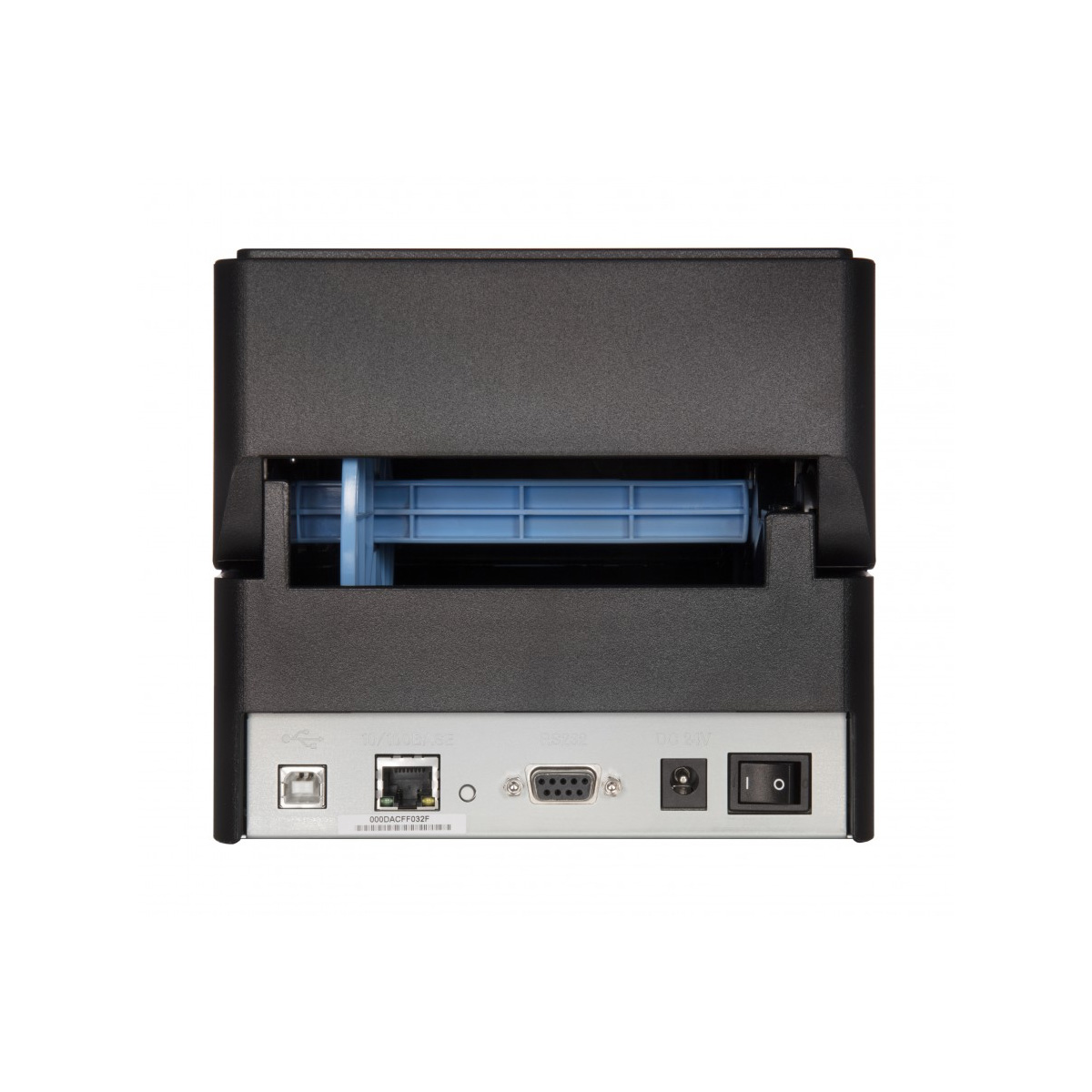

Interface area on back(USB, Wired LAN, and Serial)

Equipped as Standard

  • USB
  • Serial
  • Wired LAN

* Company names and product names are trademarks or registered trademarks of their respective companies.
