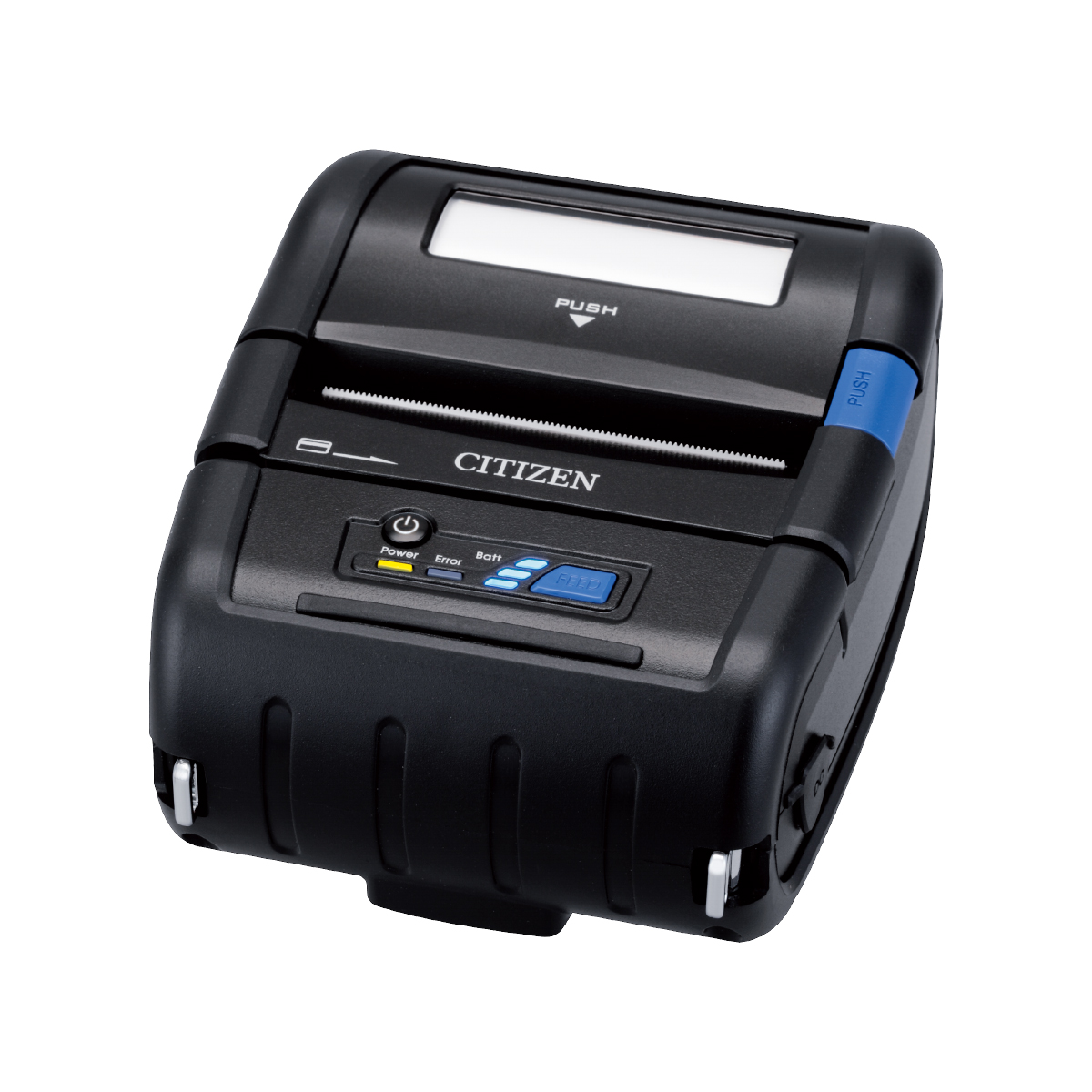

Mobile PrinterCMP-30Ⅱ

Can be operated with smartphones and tablets.
Compatible with 80mm paper width and can also print labels.

Paper Width
80mm
Print Method
Direct Thermal Printing
Functions
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading
  • Battery
Applications
  • Receipts
  • Tickets
  • Barcodes
  • 2D Barcodes
  • Mobile

Features

  • Wireless Compatible Model

    Can be operated with a smartphone or tablet (using Bluetooth), for doing business in wider areas and more places.

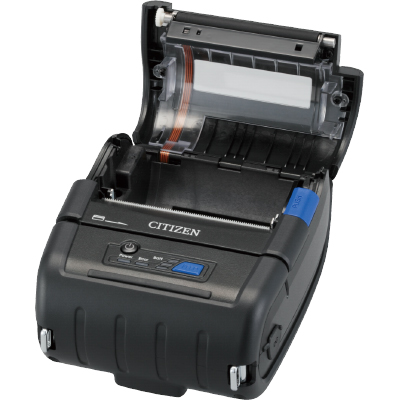

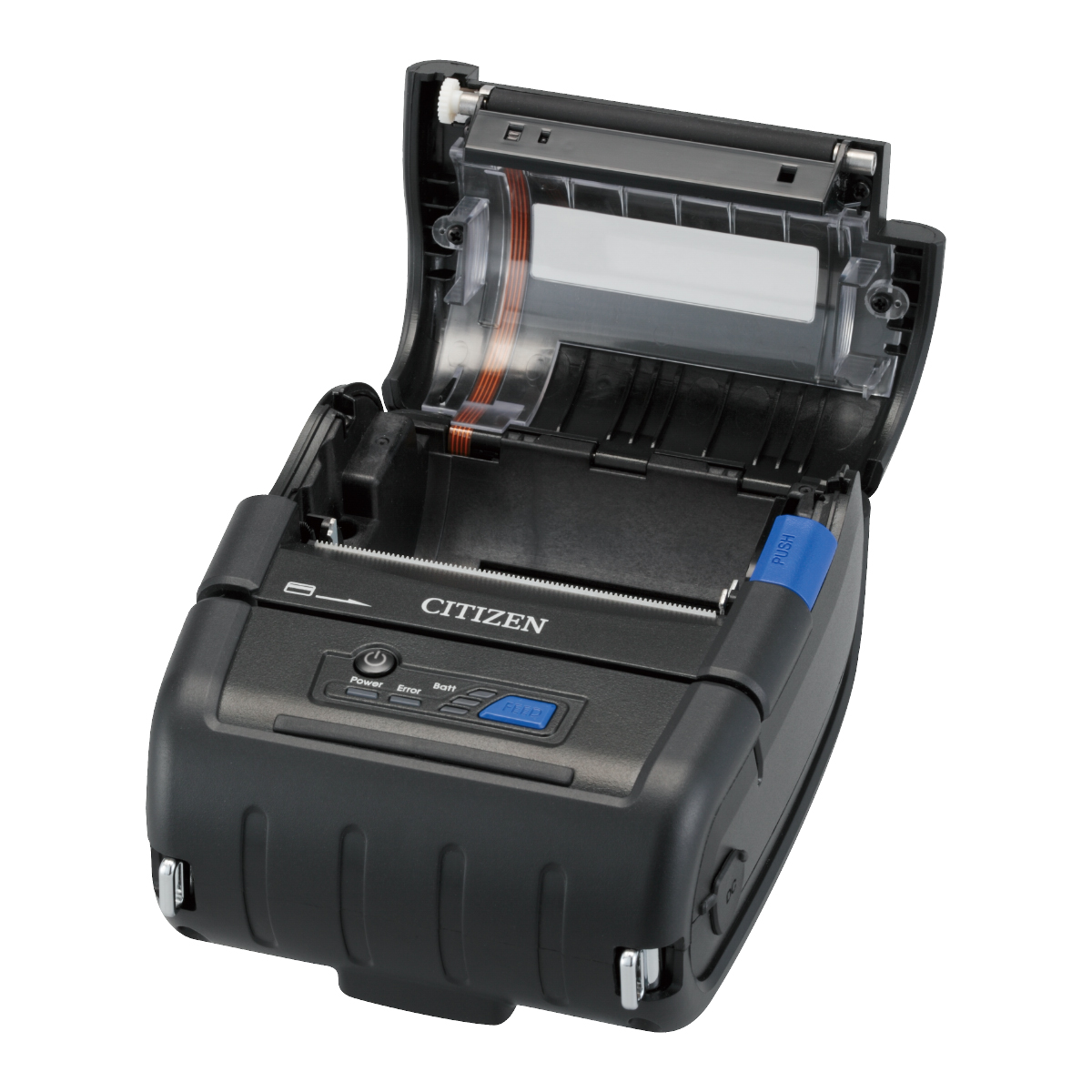

  • Easy to open

    Easy maintenance of head and cutter.

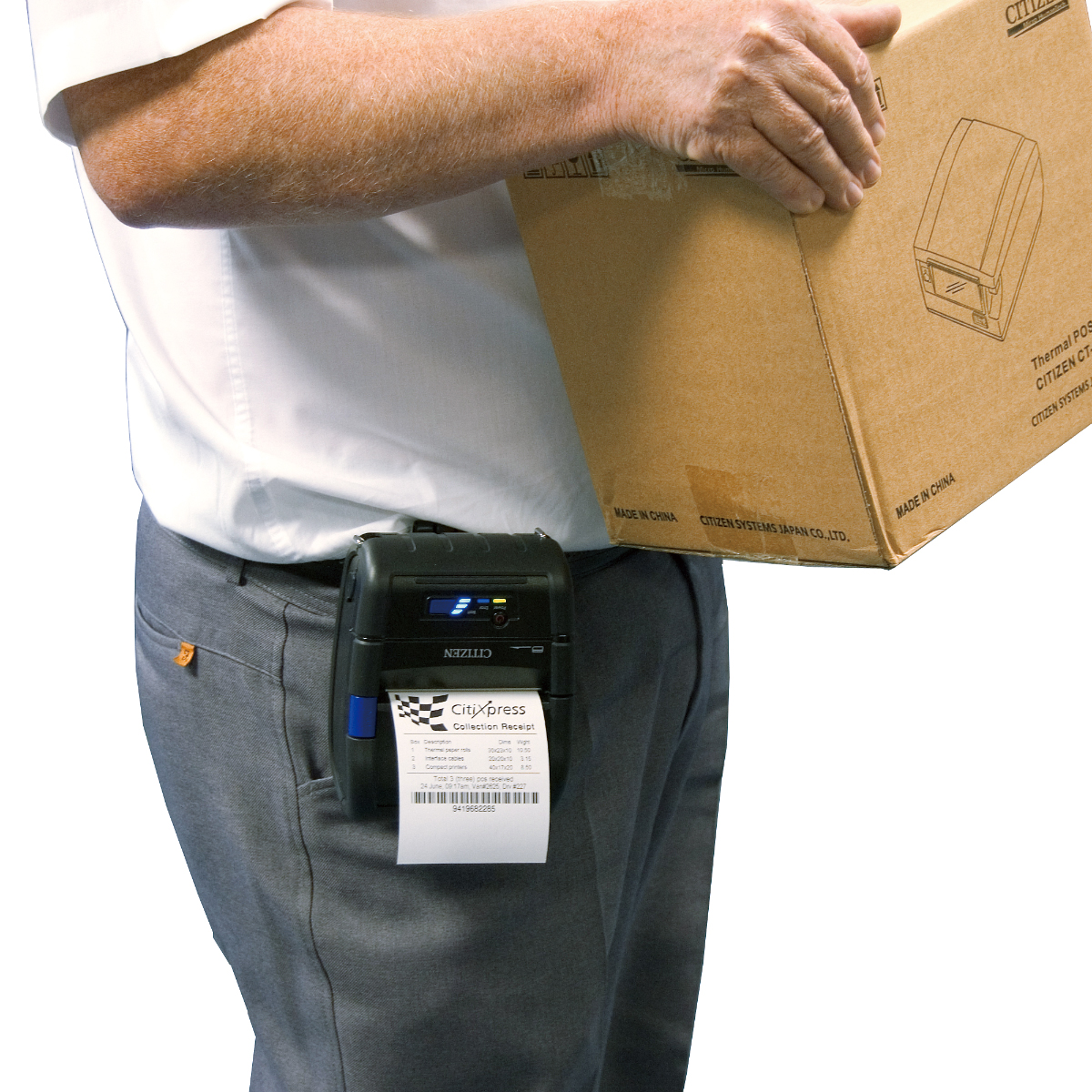

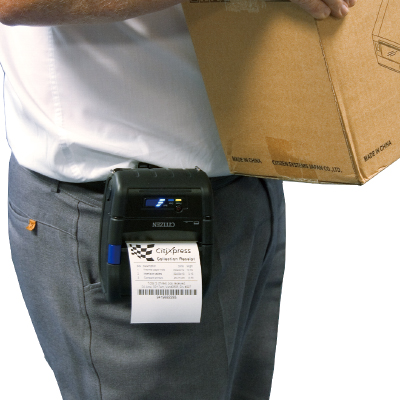

  • Belt clip available for easy attachment to a belt.

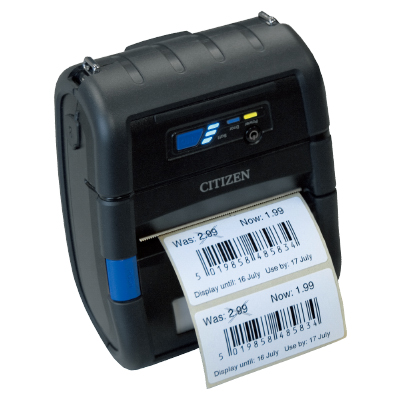

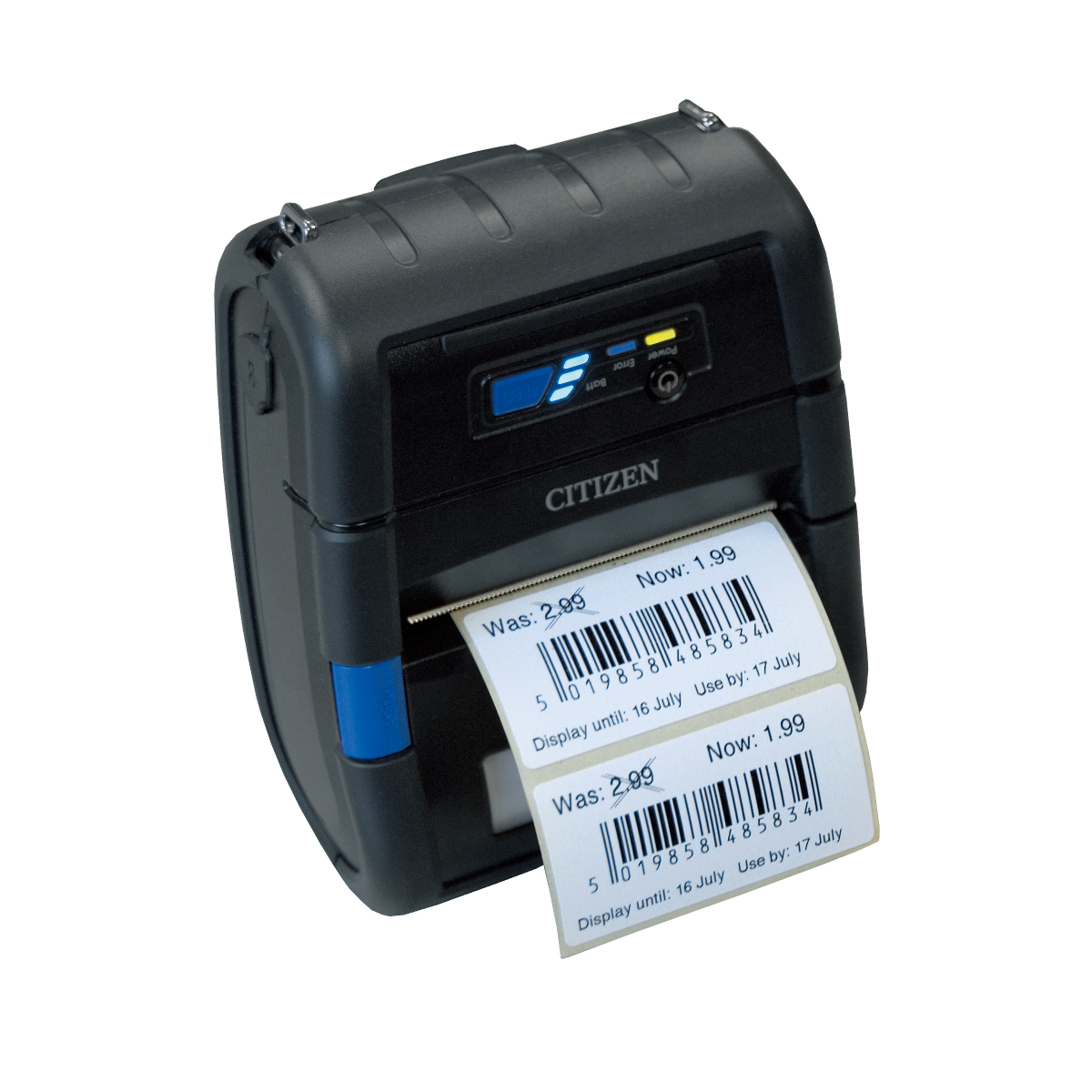

  • Also prints labels.

  • iOS Compatible (Acquired MFi Certification)

  • Software development kits (SDKs) for major platforms such as Android and iOS are available.

  • Features a drop-in paper loading mechanism for easy loading.

  • Large-capacity lithium-ion battery allows long hours of operation.

  • Features a power-saving mode and a 4-level LED battery indicator.

Main Applications

  • Healthcare/Clinical

  • Accounting

  • Distribution

  • Logistics

Used in the following industries

  • Financial

  • Retail

  • Food

  • Hospitality

  • Restaurants

Basic Functions

Features
  • Buzzer
  • Drop-in Paper Loading
  • Battery Drive
  • Thermal
Supported Interfaces
  • USB
  • Serial
  • Bluetooth
Available Drivers
  • Windows
Supported Platform by SDKs
  • Windows CE
  • Windows Mobile
  • Android
  • iOS
Smartphone/Tablet Compatibility
  • AndroidBluetoothUSB
  • iOSBluetooth

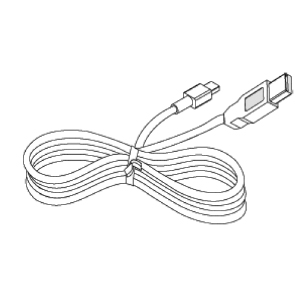

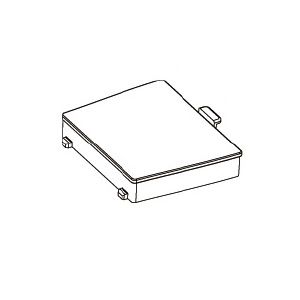

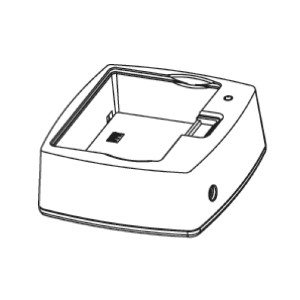

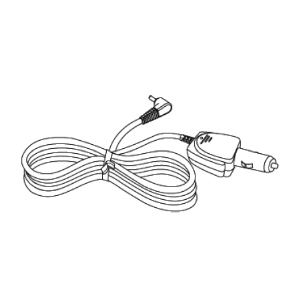

Consumables/Options

Specifications

Model Name CMP-30Ⅱ
Print Method Direct Thermal Printing
Resolution 203dpi(8mm/dots)
Printing Speed Up to 100mm/sec.
Paper Roll Outer Diameter 56mm
Printing Width 72mm
Paper Width 80mm
Paper Thickness 60~160μm
Font Font A (12x24 dots), Font B (9x17 dots), Kanji (24x24 dots)
Number of Columns Printable 48 (FontA), 64 (FontB), 24 (Kanji)
Emulation ESC/POS, CPCL
Character Types ASCII, Katakana, Kanji
1D Barcodes EAN-8, EAN-13, Code39, ITF, UPC-A/E, Codabar, Code93, Code128
2D Barcodes QR Codes, PDF417
CPCL:Maxicode, Datamatrix
Interfaces Serial (RS-232C)/USB 2.0 (Full Speed)/Bluetooth (4.2)
OS Compatibility Drivers: Windows, CUPS
SDK:Windows CE 4.2/5.0/6.0, Windows Mobile 5.0/6.x , Android,iOS
Label Printing Yes
External Dimensions 120(W)×152(D)×70(H) mm
Mass Approx. 640g
Battery 2600mA, 7.4V (recharges in 220 min.)
PowerSave Mode Power Save Mode, Auto Power Off Mode
Dust, drip, and fall proof IP42 equivalent, 1.2m fall resistance (against concrete)
Environmental Conditions Temperature and Humidity During Operation: -10 to 50°C, 30 to 80%
Temperature and Humidity in Storage: -20 to 60°C, 10 to 85%
Head Life 50Km
Acquired Standards VCCI Class B

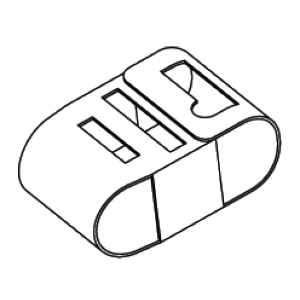

Accessories Battery

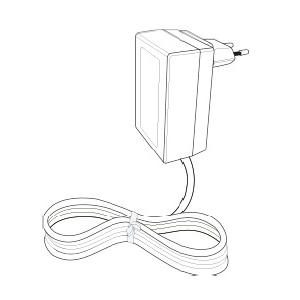

Battery Charger
Belt Clip

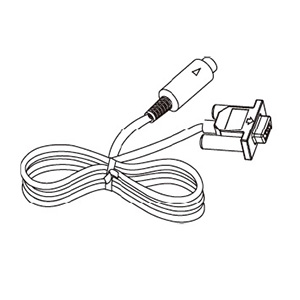

Dedicated Serial Cable
Quick Start Guide

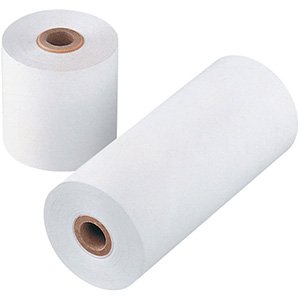

Sample Paper

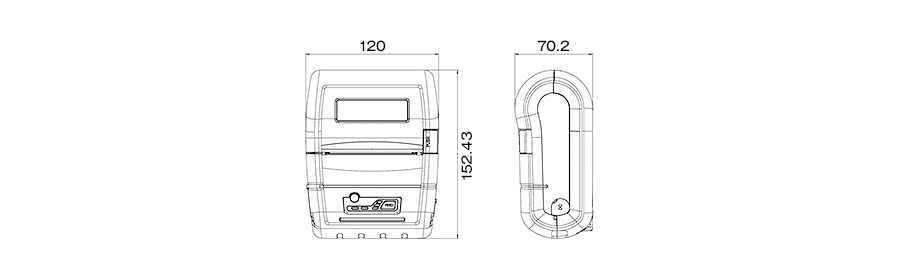

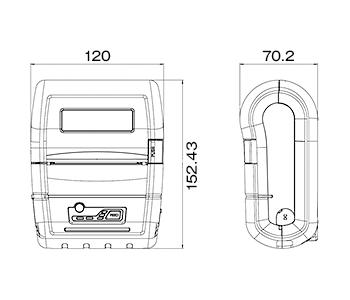

Dimensions

DimensionsDimensions

(Unit: mm)

Interfaces

Equipped as standard with USB, Serial, and Bluetooth interfaces.

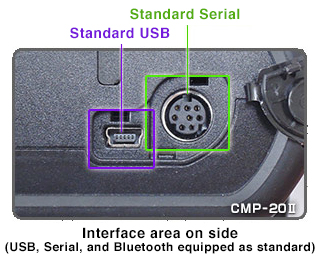

Interface area on side (standard-equipped USB, Serial, and Bluetooth)

Equipped as Standard

  • USB
  • Serial
  • Bluetooth
