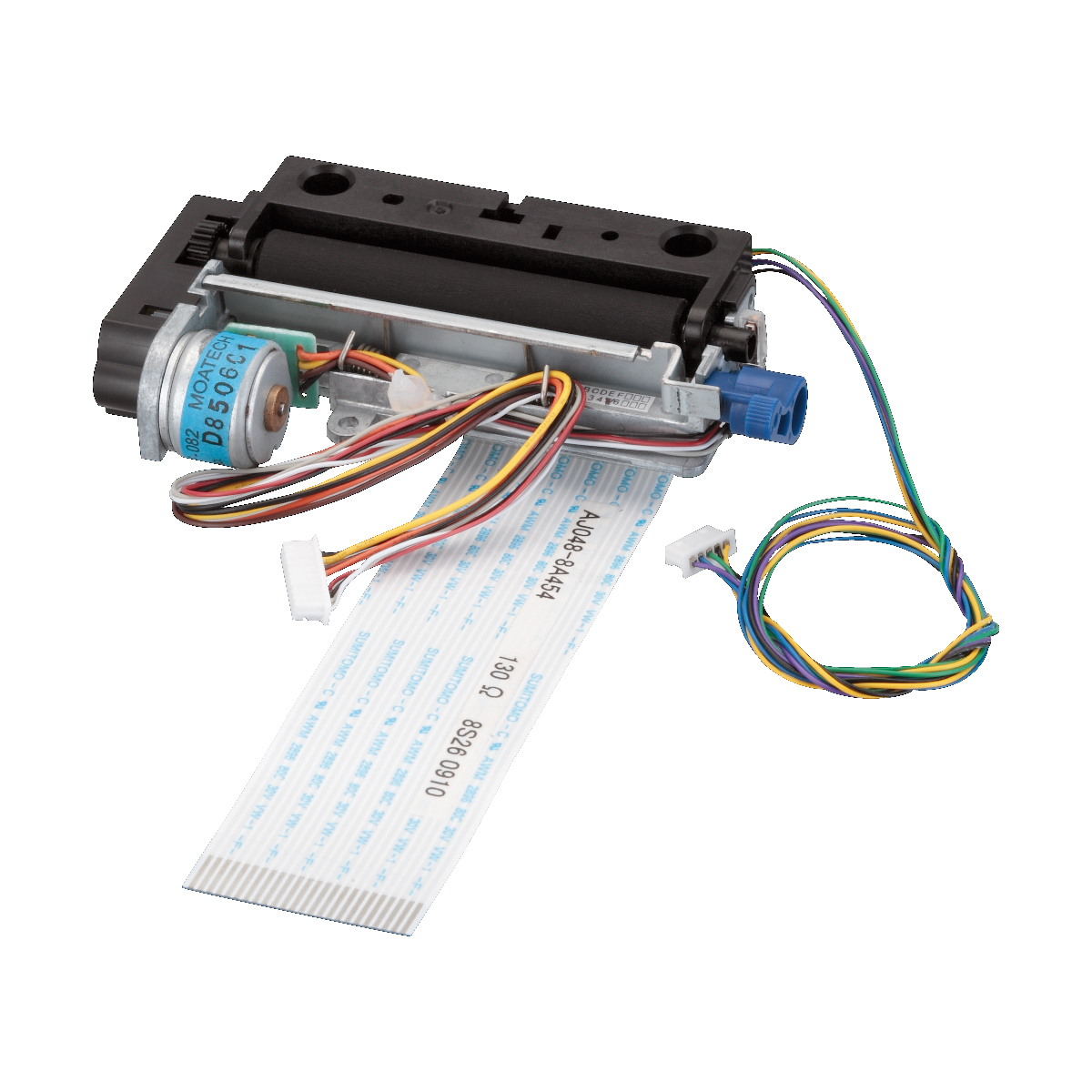

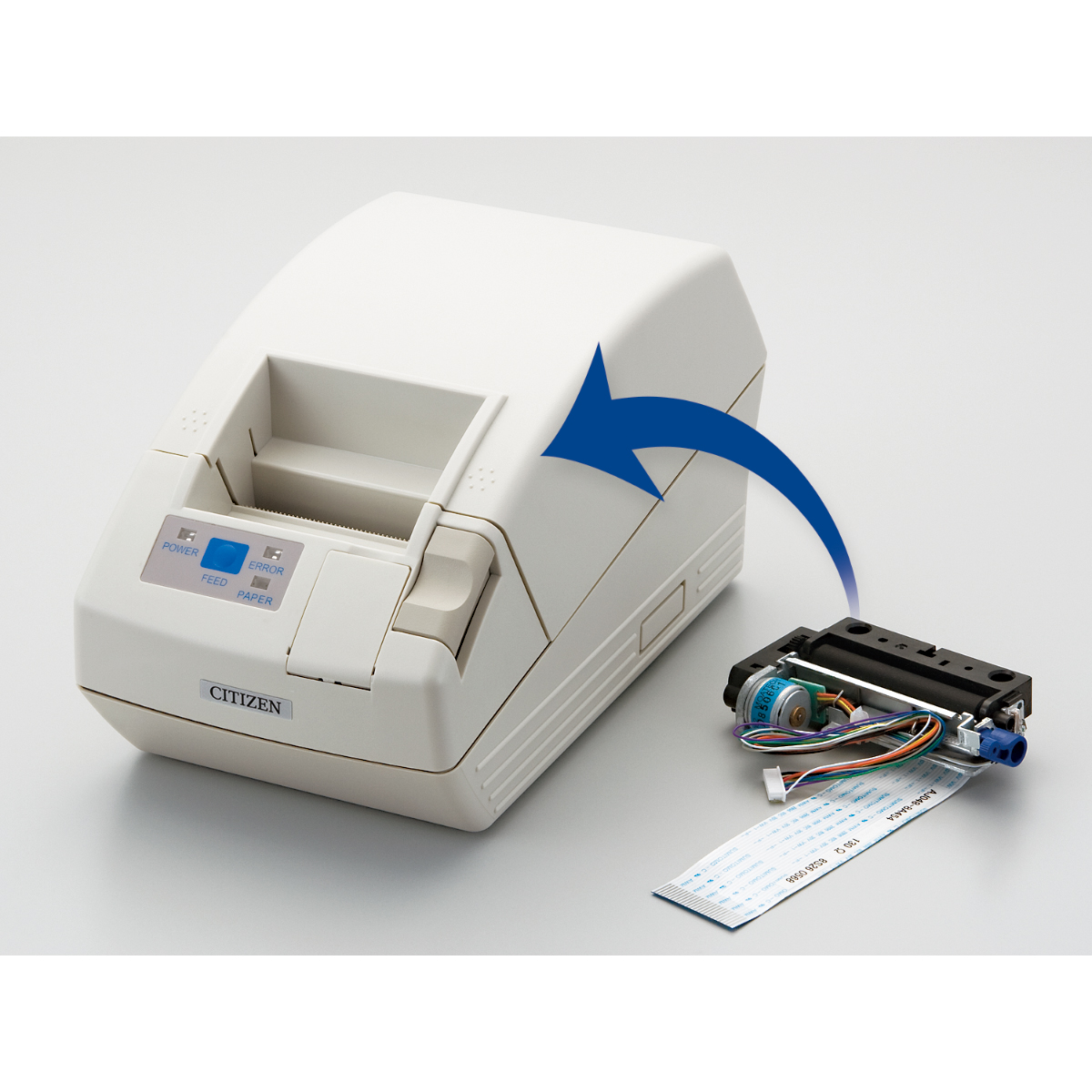

Kiosk PrinterMLT4280

Features an easy-to-use detachable platen system and label sensor.

Paper Width
58mm
Print Method
Direct Thermal Printing
Functions
  • Dedicated Control Board
Applications
  • Labels

Features

  • Ultra-compact design

  • Zinc diecast frame for high reliability

  • Detachable platen mechanism for one-touch paper loading

  • Printing speed: up to 80mm/sec. (60mm/sec. when printing labels)

  • Can be equipped with a label/black mark sensor

Main Applications

  • POS/ECR Equipment

  • Measuring equipment/medical equipment

  • Printing from various instruments, terminals and machines

  • KIOSK Terminal Equipment

  • Various Bank Terminals (ATM, etc.)

Specifications

Model Name MLT4280KS-P1 MLT4280KS-LM1
Print Method Direct Thermal Dot Printing
Printing Width (Total Dot Number) 48mm(384dots)
Dot Density 8dots/mm(203dpi)
Paper Paper Width: 58mm/ Paper Thickness: 62 to 95μm
Maximum Printing Speed 80mm/sec.
(DC8.5V within 64 dots)
80mm/sec.
* Label Printing: 60mm/sec.
(DC8.5V within 64 dots)
Paper Feed Pitch Minimum 0.125mm
Detection Functions Head Temperature Detection
Platen Presence Detection
Paper End Detection
-
-
Head Temperature Detection
Platen Presence Detection
-
Label Detection
Black Mark Detection
Drive System Power Supply Voltage DC4.2 to 8.5V
*Label Printing Assurance: DC6.0V to 8.5V
Logic System Power Supply Voltage DC3.0 to 5.5V
Current Consumption Head (VH) Up to approximately 3.7A (DC8.5V 64 dots)
Print Motor Constant current chopper drive
Current Setting: Approx. 0.5A/phase
Head Life Pulse Resistance: 100 million pulses or more (12.5% print rate)
Wear Resistance: 50km or more (room temperature, room humidity, specified recommended paper)
Operating Temperature/Humidity Temperature: 0 to 45℃, Humidity: 35 to 85%RH (no condensation)
*Printing Assurance Temperatures: 5 to 40℃
Storage Temperature/Humidity Temperature: -20 to 60℃, Humidity: 10 to 90% RH (no condensation)
External Dimensions 73.0 (W) × 45.0 (D) ×16.0 (H) mm (MLT4280KS-LM1/excluding motor and lever)
Mass Approx. 50g Approx. 52g

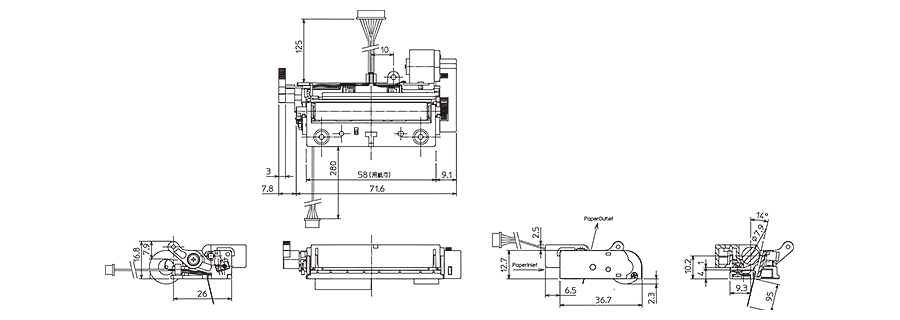

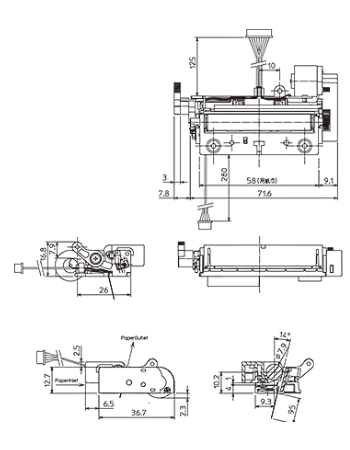

Dimensions

DimensionsDimensions

(Unit: mm)
