LINE THERMAL PRINTER

MODEL CT-E651
User’s Manual
WEEE MARK
If you want to dispose of this product, do not mix it with general household waste. There is a separate collection systems for used electronics products in accordance with legislation under the WEEE Directive and is effective only within European Union.
Wenn Sie dieses Produkt entsorgen wollen, dann tun Sie dies bitte nicht zusammen mit dem Haushaltsmüll. Es gibt im Rahmen der WEEE-Direktive innerhalb der Europäischen Union gesetzliche Bestimmungen für separate Sammelsysteme für gebrauchte elektronische Geräte und Produkte.
Si vous souhaitez vous débarrasser de cet appareil, ne le mettez pas à la poubelle avec vos ordures ménagères. Il existe un système de récupération distinct pour les vieux appareils électroniques conformément à la législation WEEE sur le recyclage des déchets des équipements électriques et électroniques qui est uniquement valable dans les pays de l’Union européenne.
Les appareils et les machines électriques et électroniques contiennent souvent des matières dangereuses pour l’homme et l’environnement si vous les utilisez et vous vous en débarrassez de façon inappropriée.
Si desea deshacerse de este producto, no lo mezcle con residuos domésticos de carácter general. Existe un sistema de recogida selectiva de aparatos electrónicos usados, según establece la legislación prevista por la sobre residuos de aparatos eléctricos y electrónicos (RAEE), vigente únicamente en la Unión Europea.
Se desiderate gettare via questo prodotto, non mescolatelo ai rifiuti generici di casa. Esiste un sistema di raccolta separato per i prodotti elettronici usati in conformità alla legislazione RAEE, valida solo all’interno dell’Unione Europea.
Deponeer dit product niet bij het gewone huishoudelijk afval wanneer u het wilt verwijderen. Er bestaat ingevolge de WEEE-richtlijn een speciaal wettelijk voorgeschreven verzamelsysteem voor gebruikte elektronische producten, welk alleen geldt binnen de Europese Unie.
Hvis du vil skille dig af med dette produkt, må du ikke smide det ud sammen med dit almindelige husholdningsaffald. Der findes et separat indsamlingssystem for udtjente elektroniske produkter i overensstemmelse med lovgivningen under WEEE-direktivet, som kun er gældende i den Europæiske Union.
Se quiser deitar fora este produto, não o misture com o lixo comum. De acordo com a legislação que decorre da Directiva REEE – Resíduos de Equipamentos Eléctricos e Electrónicos, existe um sistema de recolha separado para os equipamentos electrónicos fora de uso, em vigor apenas na União Europeia.
Jeżeli zamierzasz pozbyć się tego produktu, nie wyrzucaj go razem ze zwykłymi domowymi odpadkami. Według dyrektywy WEEE obowiązującej w Unii Europejskiej dla używanych produktów elektronicznych należy stosować oddzielne sposoby utylizacji.
Compliance Statement for European Users
CE marking shows conformity to the following criteria and provisions:
Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), and RoHS directive (2011/65/EU)
Full text of the EU declaration of conformity is available at the following internet
address:
http://www.citizen-systems.co.jp/en/printer/download/eu_doc.html
IMPORTANT: This equipment generates, uses, and can radiate radio frequencyenergy and if not installed and used in accordance with the instruction manual, maycause interference to radio communications. It has been tested and found to complywith the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCCRules, which are designed to provide reasonable protection against such interferencewhen operated in a commercial environment. Operation of this equipment in aresidential area is likely to cause interference, in which case the user at his ownexpense will be required to take whatever measures may be necessary to correct theinterference.
CAUTION: Use shielded cable for this equipment.
Sicherheitshinweis
Die Steckdose zum Anschluß dieses Druckers muß nahe dem Gerät angebracht und leicht zugänglich sein.
For Uses in Canada
This Class A Information Technology Equipment (ITE) complies with Canadian CAN ICES-3(A)/NMB-3(A).
This Information Technology Equipment (ITE) does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
Pour L’utilisateurs Canadiens
Cet Equipements informatiques (EI) de la classe A est conforme a la norme CAN ICES-3(A)/NMB-3(A) du Canada.
Le present Equipements informatiques (EI) n’emet pas de bruite radio electriques depassant les limites applicables aux appareils numeriques de la classe A prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada.
GENERAL PRECAUTIONS
  • Before using this product, be sure to read through this manual. After having read this manual, keep it in a safe, readily accessible place for future reference.
  • The information contained herein is subject to change without prior notice.
  • Reproduction or transfer of part or all of this document in any means is prohibited without permission from Citizen Systems.
  • Note that Citizen Systems is not responsible for any operation results regardless of omissions, errors, or misprints in this manual.
  • Note that Citizen Systems is not responsible for any trouble caused as a result of using options or consumables that are not specified in this manual.
  • Except explained elsewhere in this manual, do not attempt to service, disassemble, or repair this product.
  • Note that Citizen Systems is not responsible for any damage attributable to incorrect operation/handling or improper operating environments that are not specified in this manual.
  • Data is basically for temporary use and not stored for an extended period of time or permanently. Please note that Citizen Systems is not responsible for damage or lost profit resulting from the loss of data caused by accidents, repairs, tests or other occurrences.
  • If you find omissions, errors, or have questions, please contact your Citizen Systems dealer.
  • If you find any pages missing or out of order, contact your Citizen Systems dealer for a replacement.
Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with an Apple product may affect wireless performance.
  • Apple, Apple TV, Apple Watch, iPad, iPad Air, iPad Pro, iPhone, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries. tvOS is a trademark of Apple Inc. The trademark “iPhone” is used in Japan with a license from Aiphone K.K.
  • EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
  • QR Code is a registered trademark of DENSO WAVE INCORPORATED.
  • Ethernet is a registered trademark of Fuji Xerox Corporation.
  • Bluetooth® is a registered trademark of Bluetooth-SIG Inc.
  • CITIZEN is a registered trademark of Citizen Watch Co., Ltd.
  • All other trademarks are the property of their respective owners.
  • Citizen Systems use these trademarks in accordance with the license of relevant owners.
Copyright© CITIZEN SYSTEMS JAPAN CO., LTD. 2018
SAFETY PRECAUTIONS...WHICH SHOULD BE STRICTLY OBSERVED
Before using this product for the first time, carefully read these SAFETY PRECAUTIONS. Improper handling may result in accidents (fire, electric shock or injury).
In order to prevent injury to operators, third parties, or damage to property, special warning symbols are used in the User’s Manual to indicate important items to be strictly observed.
  • After having read this Manual, keep it in a safe, readily accessible place for future reference.
  • Some of the descriptions contained in this manual may not be relevant to some printer models.
The following describes the degree of hazard and damage that could occur if the printer is improperly operated by ignoring the instructions indicated by the warning symbols. Be sure to read this information carefully.
WARNING
  • Neglecting precautions indicated by this symbol may result in fatal or serious injury.
CAUTION
  • Neglecting precautions indicated by this symbol may result in injury or damage to property.
This symbol is used to alert your attention to important items.
This symbol is used to alert you to the danger of electric shock or electrostatic damage.
This symbol denotes a request to unplug the printer from the wall outlet.
This symbol is used to indicate that the power supply must be grounded.
This symbol is used to indicate useful information, such as procedures, instructions or the like.
This symbol is used to indicate prohibited actions.
PRECAUTIONS ON PRINTER INSTALLATION
WARNING
  • Do not use or store this product in a place where it will be exposed to:
    • Flames or moist air.
    • Direct sunlight.
    • Hot airflow or radiation from a heating device.
    • Salty air or corrosive gases.
    • Ill-ventilated atmosphere.
    • Chemical reactions in a laboratory.
    • Airborne oil, steel particles, or dust.
    • Static electricity or strong magnetic fields.
    • These locations create the risk of printer damage, as well as product failure, overheating, emission of smoke, fire, or electric shock.
      They can also result in fire or electric shocks and so should always be avoided.
  • Do not drop any foreign object nor spill liquid into the printer. Do not place any object on the printer either.
  • Do not drop any metallic object such as paper clips, pins or screws into the printer.
  • Do not place a flower vase, pot, or anything containing water on the printer.
  • Do not spill coffee, soft drinks, or any other liquid into the printer.
  • Do not spray insecticide or any other chemical liquid over the printer.
    • Dropping a metallic foreign object into the printer, may cause printer failure, fire, or electric shock.
      Should it occur, immediately turn the printer off, unplug it from the supply outlet, and call your local Citizen Systems dealer.
  • Do not handle the printer in the following ways:
  • Do not subject the printer to strong impacts or hard jolts (e.g., being stepped on, dropped or struck).
  • Never attempt to disassemble or modify the printer.
    • These actions create the risk of printer damage, as well as product failure, overheating, emission of smoke, fire, or electric shock.
      They can also result in fire or electric shocks and so should always be avoided.
  • This device is not appropriate to be used where a child may be present. Install, store, or use the device where it cannot be reached by a child.
    • Electric appliances could cause an unexpected injury or accident if they are handled or used improperly.
    • Keep the power cord and signal cables out of the reach of children. Also children should not be allowed to gain access to any internal part of the printer.
    • The plastic bag the printer came in must be disposed of properly or kept away from children. Wearing it over the head may lead to suffocation.
CAUTION
  • Do not use the printer under the following conditions.
  • Avoid locations subject to vibration or instability.
  • Avoid locations where the printer is not level.
    • The printer may fall and cause an injury.
    • The quality of printing may deteriorate.
  • Do not obstruct the printer’s air vents.
  • Do not place anything on the printer.
  • Do not cover or wrap the printer in cloth or blankets.
    • Doing so could cause heat to build up and deform the case or start a fire.
  • Avoid using the printer near a radio or TV set or from supplying it from the same electric outlet as these appliances.
  • Avoid using the printer interconnected with a cable or cord that has no protection against noise.
    (For interconnections, use shielded or a twisted pair of cables and ferrite cores, or other anti-noise devices.)
  • Avoid using the printer with a device that is a strong source of noise.
    • The printer may have an adverse effect on nearby radio or TV transmissions. There may also be cases when nearby electrical appliances adversely influence the printer, causing data errors or malfunction.
  • Installed in any orientation other than those specified.
    • Malfunction, failure, or electric shock may result.
  • Connect the printer to a ground.
    • Electric leakage may cause an electric shock.
  • Do not connect the printer’s ground to any of the following:
      • A gas explosion could result.
    • Gas piping
    • Telephone line ground
    • Lightning rod
      • If lightning strikes a large surge of current may cause fire or shock.
    • Water pipes
      • Plastic water pipes should not be used for grounding. (Those approved by a Waterworks Department may be used.)
  • Before connecting or disconnecting the grounding lead to or from the printer, always unplug it from the electric outlet.
PRECAUTIONS IN HANDLING THE PRINTER
WARNING
  • Please observe the following precautions for power source and power cord:
  • Do not plug or unplug the power cord with a wet hand.
  • Use the printer only at the specified supply voltage and frequency.
  • Use only the specified AC adapter with the printer.
  • Use only the power cord that comes with the printer, and never use the supplied power cord with another device.
  • Check to make sure that the supply outlet from which the printer is powered has a sufficient capacity.
  • Do not supply the printer from a power strip or current tap shared with other appliances.
  • Do not plug the power cord into an electric outlet with dust or debris left on the plug.
  • Do not use a deformed or damaged power cord.
  • Do not move the printer while its power is on.
    • Neglecting to handle it properly may result in printer failure, emission of smoke, fire, or electric shock.
    • An overload may cause the power cord to overheat, catch fire, or the circuit breaker to trip.
  • Do not allow anything to rest on the power cord. Do not place the printer where the power cord may be stepped on.
  • Do not subject the power cord to severe bending, twisting, or pulling. Do not carry the product while it is in this state either.
  • Do not attempt to modify the power cord unnecessarily.
  • Do not place the power cord near any heating device.
    • Neglecting these cautions may cause wires or insulation to break, which could result in electric leakage, electric shock, or printer failure.
      If the power cord sustains damage, contact your Citizen Systems dealer.
  • Do not leave things around the electric outlet.
  • Supply power to the printer from a convenient electric outlet, readily accessible in an emergency.
    • Pull the plug to immediately shut it down in an emergency.
  • Insert the power plug fully into the outlet.
  • If the printer will not be used for a long time, disconnect it from its electric outlet.
  • Hold the plug and connector when plugging or unplugging the power cord or signal cable after turning off the printer and the appliance connected to it.
CAUTION

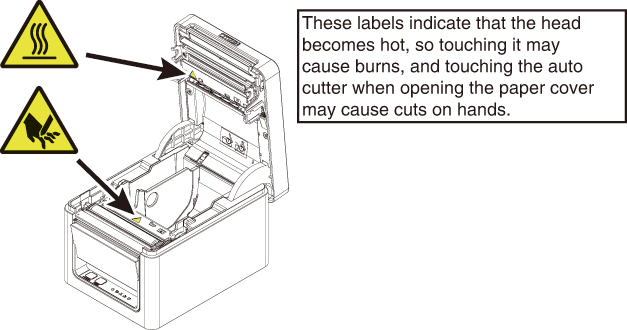

  • Caution label is attached in the position shown in the following figure. Carefully read the handling precautions before using the printer.
  • Do not transport this printer with the paper roll inside.
    • Printer failure or damage may occur.
  • To prevent possible malfunction or failure observe the following.
  • Do not open the paper cover during printing.
  • Avoid operating the printer without paper properly loaded.
  • Avoid the use of paper not complying with specifications.
    • May result in poor print quality.
  • Avoid using torn pieces of paper or paper spliced with plastic adhesive tape.
  • Avoid forcibly pulling already loaded paper by hand.
  • Avoid using a sharp pointed device to operate panel buttons.
  • Be sure to firmly insert the cable plugs into their mating sockets.
    • A cross connection may damage the printer’s internal electronics or the host system’s hardware.
  • Only use the printer with devices that have designated solenoid specifications for the cash drawer interface connector.
    • Neglecting this caution may result in malfunction or failure.
  • To prevent injury and printer failures from worsening, observe the following:
  • Do not touch the printing surface of the thermal head.
  • Do not touch any of the moving parts (e.g., paper cutter, gears, active electric parts) while the printer is working.
  • In case of trouble do not attempt to repair the printer. Ask Citizen Systems service for repair.
  • Be careful that the covers do not pinch your hands or fingers.
  • Be careful of the sharp edges on the printer. Do not allow them to injure you or damage property.
    • May result in electric shock, burn, or injury.
DAILY MAINTENANCE
  • Observe the following precautions for daily maintenance.
  • When cleaning the printer, always turn it off and unplug it from the electric outlet.
  • Use a soft, dry cloth for cleaning the surface of the printer case.
    For severe stains, use a soft cloth slightly dampened with water.
    Never use organic cleaning solvent such as alcohol, paint thinner, trichloroethylene, benzene, or ketone. Never use a chemically processed cleaning cloth.
  • To remove paper dust, use a soft brush.
CAUTION
  • The thermal head is at a dangerously high temperature immediately after printing.
    Allow it to cool off before starting maintenance work.
GENERAL OUTLINE
The CT-E651 line thermal printer series is designed for use with a broad array of terminal equipment including data, POS, and kitchen terminals.
These printers have extensive features so they can be used in a wide range of applications.
EXPLANATION OF PRINTER PARTS
SETUP
MAINTENANCE AND TROUBLESHOOTING
OTHER
Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with an Apple product may affect wireless performance.
  • iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc.
  • EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
  • QR Code is a registered trademark of DENSO WAVE INCORPORATED.
  • Ethernet is a registered trademark of Fuji Xerox Corporation.
  • Bluetooth® is a registered trademark of Bluetooth-SIG Inc.
  • CITIZEN is a registered trademark of Citizen Watch Co., Ltd.
  • All other trademarks are the property of their respective owners.
  • Citizen Systems use these trademarks in accordance with the license of relevant owners.
Copyright© CITIZEN SYSTEMS JAPAN CO., LTD. 2018
Features
  • High-speed printing at up to 300 mm/sec possible
  • Stylish design
  • Compact size with the lowest possible height
  • The front paper eject structure enables use where the height is restricted
  • Compliant with IPX1 for drip-proof capabilities *
  • Support for paper widths of 80 mm and 58 mm
  • Some models support label paper and/or black mark paper
  • High-speed cutter employed

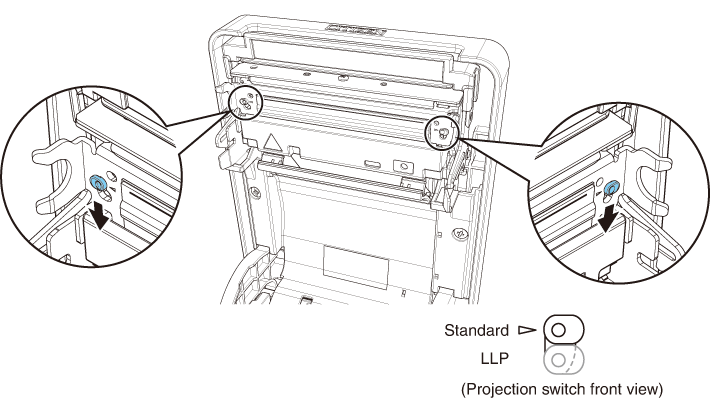

  • Long Life Printing (LLP) function to increase the head life available
  • USB interface included as standard
  • Interchangeable interface board
  • XML/Web print function included (wired LAN or wireless LAN model)
  • A USB host function that can control peripheral devices is provided for the wired LAN interface, Bluetooth interface and Lightning interface
  • The Lightning model can transmit data even during fast charging of Apple devices
  • Printer status and errors indicated by five LEDs
  • Built-in drawer kick interface
  • USB-linked power OFF function available
  • 16 level greyscale and clear printing
  • Paper saving function available
  • Support for the JIS X0213 third and fourth level Kanji character sets
  • Support for the simplified and traditional Chinese character sets and Hangul character set
  • Support for UTF-8 using commands
  • Various customizations using the memory switches possible
  • User created characters and logos can be saved in the user memory
  • Support for barcodes including 2D barcodes
  • Apple MFi certified Bluetooth and USB (Lightning) communication support (Bluetooth model, Lightning model)
*: The product has been checked to determine that vertically falling drops of water will have no harmful effect, but the product is not guaranteed to be completely drip-proof.
Unpacking
Make sure the following items are included with your printer.
NAME QUANTITY ILLUSTRATION
Printer 1
AC Adapter (37AD5) 1
AC power cord 1
Quick Start Guide 2

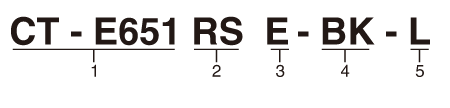

Model Classification
Model numbers indicate printer features according to the following system.
  • 1.Model name
  • 2.Interface
  • RS: Serial RS-232C+USB
  • ET: Ethernet+USB
  • HET: Ethernet (USB host function) + USB
  • BT: Bluetooth+USB
  • HBT: Bluetooth (USB host function) + USB
  • WX: Wireless LAN+Ethernet+USB
  • LT: Lightning (USB host function) + USB
  • NN: USB
  • 3.Market
  • U: North America
  • E: Europe
  • 4.Body case color
  • WH: Pure white
  • BK: Black
  • 5.Paper sensor
  • : Disable
  • L: Enable
Basic Specifications
Item Specifications
Model CT-E651
Print method Line thermal dot print method
Print widths 72 mm/576 dots, 68.25 mm/546 dots, 64 mm/512 dots, 52.5 mm/420 dots, 48.75 mm/390 dots, 48 mm/384 dots, 45 mm/360 dots, factory default 72 mm
Dot density 8 × 8 dots/mm (203 dpi)
Print Speed 300 mm/sec (maximum speed, print density level 100%, 2400 dot lines/sec)
200 mm/sec (1600 dot lines/sec) (when using label paper)
Number of print columns *1 Font Maximum number of characters (columns) / 80mm Maximum number of characters (columns) / 58mm Dot configuration
(dots)
Font A 48 35 12 × 24
Font B 64 46 9 × 24
Font C 72 52 8 × 16
Character size *2 Font A:1.50×3.00 mm, Font B:1.13×3.00 mm, Font C:1.00×2.00 mm
Character type Alphanumeric characters, international characters, PC437/737/850/852/857/858/860/862/863/864/865/866, WPC1251/1252/1253/1255/1258, Katakana, ThaiCode 11/18 (1Pass/3Pass), TCVN-3, Kanji (JIS first, second, third, and fourth level), Kana, extended characters, JIS X0213, GB18030, BIG5, KS Hangul, EUC Hangul
User memory 384 KB (capable of storing user-defined characters and logos)
Bar code types UPC-A/E, JAN(EAN) 13 digits/8 digits, ITF, CODE39, CODE128, CODABAR (NW-7), CODE93, PDF417, QR Code, GS1-DataBar
Line spacing 4.25 mm (1/6 inch) (Variable by command)
Paper roll Roll paper: 80 mm x max. ø83 mm
Paper thickness: 53 to 85 μm (paper roll inner diameter 12 mm / outer diameter 18 mm)
65 to 85 μm (paper roll inner diameter 25.4 mm / outer diameter 32 mm: only support for label paper)
Interface Serial (RS-232C standard), USB, Bluetooth+USB, LAN, wireless LAN+LAN, LAN (USB host function) (USB 2 port)), Bluetooth (USB host function) (USB 2 port)), Lightning (USB host function (USB3 port))
Ethernet 100BASE-TX/10BASE-T
Wireless LAN IEEE802.11n, IEEE802.11a, IEEE802.11g, IEEE802.11b
Bluetooth Version: Bluetooth 3.0 + EDR
Profile: SPP (Serial Port Protocol), iAP (iPod Accessory Protocol)
Power class: Class2
Bluetooth (USB host function) Version: Bluetooth 4.2 + EDR
Profile: SPP (Serial Port Protocol), iAP2 (iPod Accessory Protocol)
Power class: Class2

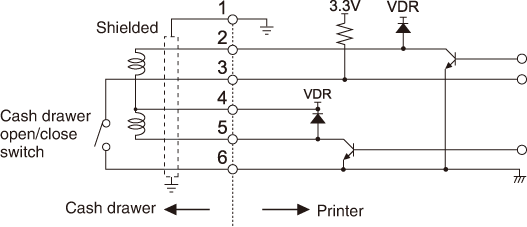

Cash drawer kick-out Supports 2 cash drawers
Input buffer 4 K bytes/45 bytes
Supply voltage DC 24 V ±5%
Power consumption Approximately 50 W (average), 2 W or less (standby), 0.2 W or less (USB-linked power OFF state)
AC Adapter
(37AD5) 		Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC 24 V, 2.1 A
Weight Approximately 1.3 kg

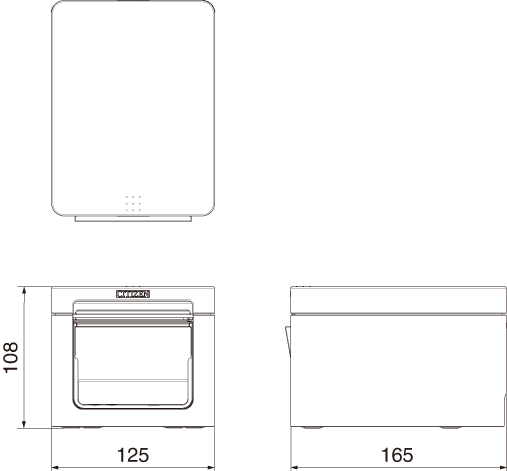

Outside dimensions 125 (W) × 165 (D) × 108 (H) mm
Operating temperature and humidity Thermal roll paper: 5 to 45℃, 10 to 90% RH (no condensation)
Label paper: 5 to 45℃, 10 to 80% RH (no condensation)
Storage temperature and humidity -20 to 60°C, 10 to 90% RH (no condensation)
Reliability Thermal roll paper
Print head life: 200 km, 200 million pulses (room temperature, room humidity, specified recommended paper, specified paper thickness), Auto cutter life: 2 million cuts (3-inch), 1.5 million cuts (2-inch) (room temperature, room humidity, specified recommended paper, specified paper thickness)
Label media
Print head life: 80 km, 100 million pulses (room temperature, room humidity, specified recommended paper, specified paper thickness), Auto cutter life: 1 million cuts (2-inch, 3-inch) (room temperature, room humidity, specified recommended paper, specified paper thickness)
Safety standard *3 UL, cUL, FCC, IC, CE, UKCA *4
Notes:
*1: The number of printable columns is selected using a memory switch.
The numbers of columns noted in this table refer to typical models. The number of columns varies depending on specifications.
*2: Characters appear small because the dimensions include a blank area surrounding each character.
*3: This standard applies when our AC Adapter (37AD5) is used.
*4: Please contact us for information on other regions and the latest status such as standardnumbers.

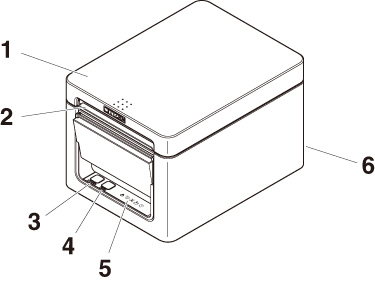

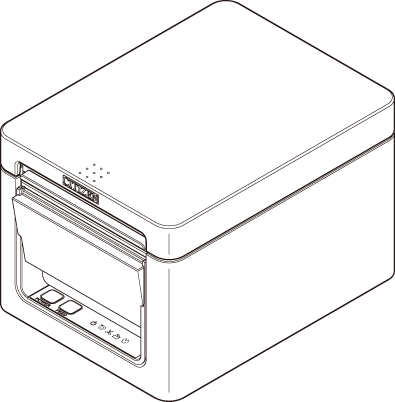

Printer Appearance
Names of parts
  • 1.Paper cover
  • Open to load paper.
    Also open to clear a cutter error.
    * The paper cover cannot be used for manual cutting.
    • Refer to Clearing a Cutter Error

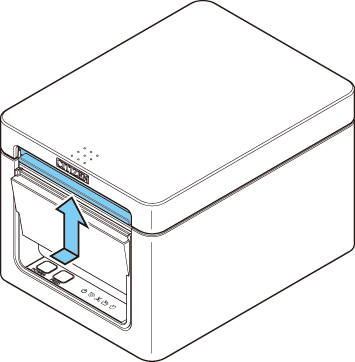

  • 2.Cover open lever
  • Use to open the paper cover.
  • 3.POWER button
  • Hold down two or three seconds to switch power on or off.
  • 4.FEED button
  • Press this button to feed paper.
    In case of a cutter error, press the FEED button with the paper cover closed after removing the cause.
    The printer enters the mode for setting memory switches and running self test.
    • Refer to Self Test
    Refer to Manual Setting of Memory Switches
  • 5.Operation panel
  • 6.Rear connectors
Operation panel
The operation panel has five LEDs and two buttons.
LED name Color Description
POWER LED Green Lights when the power is on, turns off when the power is off.
PAPER LED Green Lights or flashes when no paper or low paper is detected.
May also light or flash when other abnormalities are detected.
CUTTER LED Green Flashes when a cutter error is detected.
May also light or flash when other abnormalities are detected.
COVER LED Green Lights or flashes when an open paper cover is detected.
May also light or flash when other abnormalities are detected.
SERVICE LED Orange Flashes when an unrecoverable printer abnormality is detected.
Refer to Error Indications
Rear connectors (serial interface example)
  • 1.Interface connector (serial, USB, etc.)
  • Connect to the interface cable.

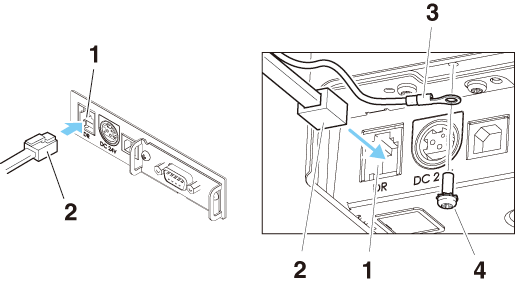

  • 2.Cash drawer kick-out connector
  • Connect to the cable from the cash drawer.
  • 3.Power connector
  • Connect to the AC adapter cable.
  • 4.USB connector

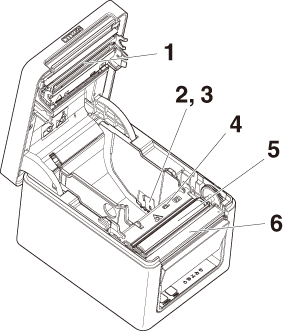

Inside the Paper Cover
  • 1.Print head (thermal)
  • Prints characters and graphic data on paper (paper rolls).

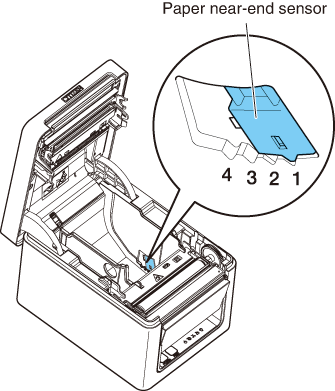

  • 2.Paper near-end (PNE) sensor
  • Detects when the paper is near the end of the roll. Adjust the position of the sensor to determine when it detects the end of the paper is near.
  • 3.Button to change paper near-end sensor
  • Change the position of the paper near-end sensor to match the paper being used.
    • Refer to Adjusting the Paper Near-end Sensor
  • 4.Paper end (PE) sensor
  • Detects when there is no paper. Printing stops when this sensor detects there is no paper.
  • 5.Platen
  • Feeds the paper.
    Do not remove the platen except to do maintenance.
  • 6.Auto cutter
  • Cuts the paper.
    • Refer to Manual Setting of Memory Switches

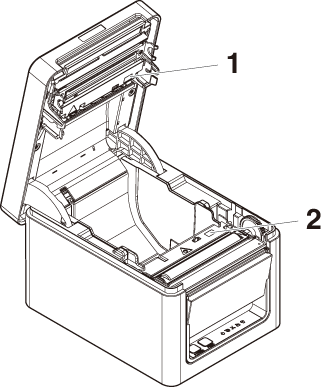

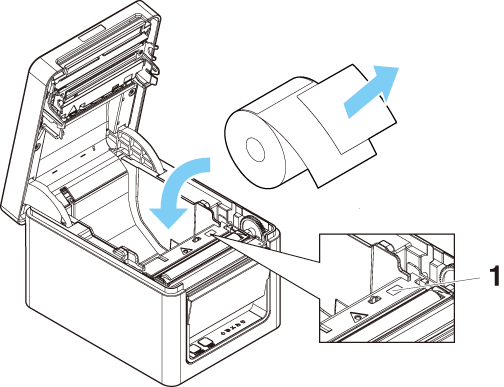

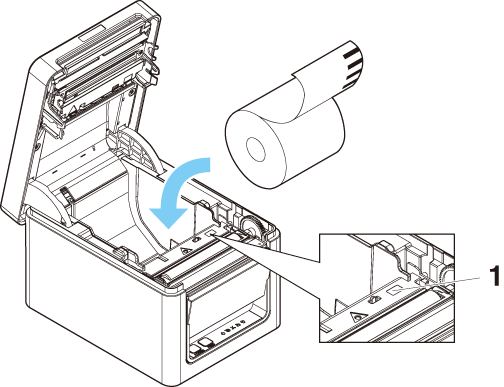

The following figure shows parts used for label specifications and black mark specifications only.
  • 1.Upper sensor
  • Detects label paper gap and label sections.
  • 2.Bottom sensor
  • Detects black marks on black mark paper.
Other Built-in Functions
  • Buzzer
  • Buzzes when errors occur or when operations or command operations are performed.
    • Refer to Error Indications
  • User memory
  • You can save user-defined logo and character data in this memory. Data remains stored in this memory even if the printer is turned off. For information on how to save data, refer to the Command Reference.
  • Memory switch
  • Setting of various kinds of functions can be stored in memory. Settings remain stored in the memory even if the printer is turned off.
  • USB-linked power OFF (When MSW6-3 of memory switch is set to ON)
  • When the printer is connected to PC by USB, the printer becomes the state of USB-linked power OFF after 3 seconds when PC power off or USB connection lost.
    This mode is canceled when the PC is turned back on or when a USB connection is established.
CAUTION
  • Since the POWER LED is unlit when the state of USB-linked power OFF, it cannot be identified from the power OFF.
  • Pressing the POWER button while the state of USB-linked power OFF turns on power normally.
  • Paper saving functions
  • Memory switches MSW8-3 through MSW8-4 can be used to configure the settings below, which save paper.
    • Top margin suppression
    • The printer back feeds the paper before printing which reduces the blank space at the top edge of the paper.
      The back feed amount can be specified.
    • Line gap reduce
    • Automatically compresses the linefeed amount between lines. The compression ratio can be specified.
CAUTION
  • Remove the partially cut paper before performing back feed for starting printing.
    The cut paper may be torn off in the next printing process, which may cause a problem.
  • Auto side shift (MSW8-6)
  • This function dissipates heat load during frequent heat generation by a vertical ruled line or other specific head heating element.
  • If no data is received within 15 seconds after each cut or print, the print position is automatically slid N* dots to the right. The original print position is returned to at the next slide timing.
  • * N is the MSW8-6 setting value.
CAUTION
  • If the right margin is too narrow, this may result in some print characters being cut off.
  • This function is disabled under initial settings.
  • To enable this function, use MSW8-6 to specify an appropriate value for the maximum slide amount.
Connecting the AC Power Cord
  • 1.Turn off the power.
  • 2.Connect the power connector to the AC adapter cable connector.
    Next, connect the AC power cord to the AC inlet, and insert the plug into an electric outlet.
  • 1.Cable connector
  • 2.Power connector
  • 3.AC adapter
  • 4.AC inlet
  • 5.AC power cord
CAUTION
  • Use only the specified AC adapter.
  • Always hold the AC adapter’s cable connector by the connector when removing or inserting it.
  • Use an AC power source that does not also supply power to equipment that generates electromagnetic noise.
  • Pulling on the AC power cord may damage it, cause a fire, electric shock, or break a wire.
  • If a lightning storm is approaching, unplug the AC power cord from the electric outlet. A lightning strike may cause a fire or electric shock.
  • Keep the AC power cord away from heat generating appliances. The insulation on the AC power cord may melt and cause a fire or electric shock.
  • If the printer is not going to be used for a long time, unplug the AC power cord from the electric outlet.
  • Place the AC power cord so that people do not trip on it.
  • Be sure to unplug the AC power cord when connecting the cable connector to the power connector.If the AC power cord is left plugged into the electric outlet, the 24 V and GND terminals of the cable connector may come into contact with the screw head or other metal parts and cause a short circuit, resulting in malfunction of the AC adapter.

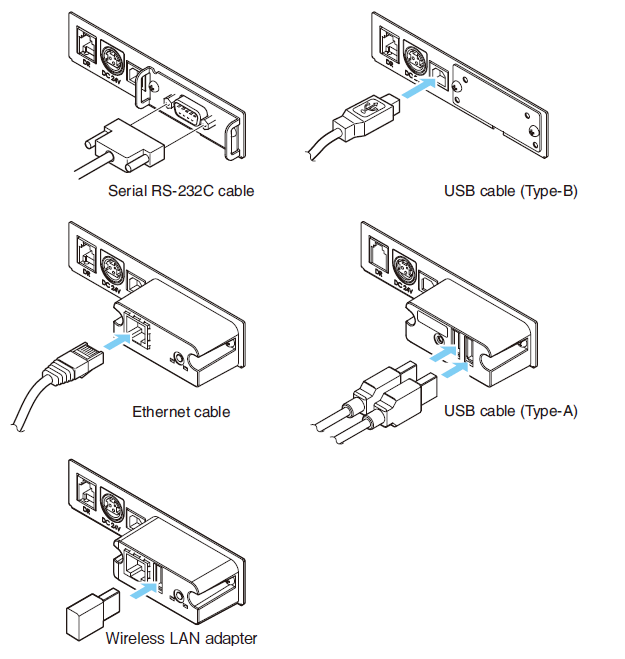

Connecting Cables
  • 1.Turn off the power.
  • 2.Orient the cable correctly and insert it into the connector.
CAUTION
  • When disconnecting the cable, always hold the connector.
  • Be careful not to insert the USB cable into the cash drawer kick-out connector.
  • To connect more than one printer to a single computer by USB, you must change the serial number of the USB interface.
  • Hold the connector of the LAN cable perpendicular and straight when connecting or disconnecting it. Doing it at an angle may cause the connector to misconnect.
  • Do not connect multiple interfaces at the same time.
Use a serial cable with the connection layout shown below.
9-pin (female) - 9-pin (female) cable
CAUTION
  • Place the interface cable so that people do not trip on it.
Bluetooth Interface Board

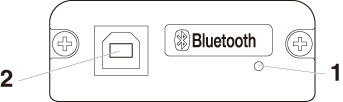

Names of parts
  • 1.Status LED
  • LEDs indicate communication/connection/error status for this interface board.
  • 2.USB connector
  • Receive data from the host computer via USB communication.
CAUTION
  • When using this interface board as a USB interface, do not connect USB cables to both the main unit side and interface board side.
    If USB cables are connected to both, priority will be given to communication of the one connected to the connector on the main unit side.
Bluetooth status LED
Status Description LED Status
Detection
standby
(Discoverable) 		Standing by for
detection and
connection
Connection
standby
(Connectable) 		Standing by for
connection
iOS connection Data session unopened
Communicating iOS: data session opened
Other OS: connection established and communication in progress
Error Error or settings being configured Unlit
Pairing operation
You need to perform the operations below the first time you establish a Bluetooth connection for Bluetooth data communication.
    • 1.Detect Bluetooth devices
    • 2.Configure pairing settings
  • 1.Detecting Bluetooth devices
  • Confirm that Bluetooth is enabled on the host PC before searching for Bluetooth devices.
  • This product will show up as "CT-E651_XX"(XX is last 2 digits of unique Serial Number.) when it is detected.
  • Select this product from among the detected devices.
  • Note: You can search for devices and change the names.
  • When memory switch MSW13-5 is set to "No Response," nothing is displayed by device detection.
  • You can temporarily switch this setting to device detection (detect mode) by opening the paper cover and holding down the FEED button for two seconds. Detect mode is exited when the connection between the host PC is terminated.
  • 2.Configuring pairing settings
  • Normally, selecting the printer during device detection will transition directly to pairing settings.
CAUTION
  • Some host PC configurations and models may not transition directly to pairing settings after the printer is selected during device detection.
The operation required to configure pairing settings depends on whether SSP (secure simple pairing) is enabled on the host PC.
If SSP is enabled on the host PC, pairing can be achieved without additional operations.
If SSP is disabled on the host PC, you will be prompted to input a passkey.
Input the passkey as described below.
Passkey
Last four digits of the address on the self test printout (Letters A through F are uppercase)
Example: If the address is 01:23:45:67:89:AB the passkey is 89AB.
If you delete paring information from the host PC without deleting the corresponding pairing information on the printer, the printer may not show up if you detect devices again with the host PC.
To delete printer pairing information, open the paper cover and then hold down the FEED button for five seconds.
Deleting pairing information on the printer will put the printer into discovery mode.
Auto reconnection
With iOS device Bluetooth communication, a connection between a paired iOS device and the printer is not automatically restored after it is lost. However, when auto reconnection is enabled, the printer tries to reconnect with an iOS device after two-way communication is enabled and automatically restores the connection.
CAUTION
  • This function is enabled when shipped from the factory. (MSW13-6)
    Auto reconnection can take some time to connect when the host is not an iOS device.
  • Even if the partner device is an iOS device, the conditions below can interfere with the auto reconnection function.
    • When you want Bluetooth communication to cut off after printing is complete
    • When there are multiple iOS devices printing on the same printer
  • Under such conditions, disable auto reconnection.
Enabling and disabling auto reconnect
During self test, press the FEED button 3 times -> Auto reconnect = Valid
During self test, press the FEED button 4 times -> Auto reconnect = Invalid
At the end of self test, new setting will be printed as Auto reconnect [Valid] or [Invalid].
Refer to Self Test
Bluetooth USB host interface board
In addition to printer control via Bluetooth communication, Bluetooth USB host interfaces can control peripheral devices connected via a USB port.
Names of parts
  • 1.Panel button
  • Control this interface board.
  • 2.USB 2 port
  • Connect a peripheral device.
CAUTION
  • Only connect peripheral devices specified by our company to the USB port.
  • Only plug in/remove peripheral devices when the printer power is turned off.
Pairing operation
You need to perform the operations below the first time you establish a Bluetooth connection for Bluetooth data communication.
    • 1.Detect Bluetooth devices
    • 2.Configure pairing settings
  • 1.Detecting Bluetooth devices
  • Confirm that Bluetooth is enabled on the host PC before searching for Bluetooth devices.
  • This product will show up as "CT-E651_XX"(XX is last 2 digits of unique Serial Number.) when it is detected.
  • Select this product from among the detected devices.
  • Note: You can search for devices and change the names.
  • When memory switch MSW13-5 is set to "No Response," nothing is displayed by device detection.
  • With these settings, pressing and holding the panel button for at least three seconds and then pressing it twice more places the product temporarily in a state where it will be found in device searching (discovery mode).
    Discovery mode cancels when the product is connected to a host PC.
  • 2.Configuring pairing settings
  • Normally, selecting the printer during device detection will transition directly to pairing settings.
CAUTION
  • Some host PC configurations and models may not transition directly to pairing settings after the printer is selected during device detection.
The operation required to configure pairing settings depends on whether SSP (secure simple pairing) is enabled on the host PC.
If SSP is enabled on the host PC, pairing can be achieved without additional operations.
If SSP is disabled on the host PC, you will be prompted to input a passkey.
Input the passkey as described below.
Passkey
Last four digits of the address on the self test printout (Letters A through F are uppercase)
Example: If the address is 01:23:45:67:89:AB the passkey is 89AB.
If you delete paring information from the host PC without deleting the corresponding pairing information on the printer, the printer may not show up if you detect devices again with the host PC.
When deleting pairing information, press and hold the panel button for at least three seconds, and after the buzzer sounds, press it four more times.
If successful, “Erase Bonded Device” is printed.
Deleting pairing information on the printer will put the printer into discovery mode.
Auto reconnection
With iOS device Bluetooth communication, a connection between a paired iOS device and the printer is not automatically restored after it is lost. However, when auto reconnection is enabled, the printer tries to reconnect with an iOS device after two-way communication is enabled and automatically restores the connection.
CAUTION
  • This function is enabled when shipped from the factory. (MSW13-6)
    Auto reconnection can take some time to connect when the host is not an iOS device.
  • Even if the partner device is an iOS device, the conditions below can interfere with the auto reconnection function.
    • When you want Bluetooth communication to cut off after printing is complete
    • When there are multiple iOS devices printing on the same printer
  • Under such conditions, disable auto reconnection.
Enabling and disabling auto reconnect
During self test, press the FEED button 3 times -> Auto reconnect = Valid
During self test, press the FEED button 4 times -> Auto reconnect = Invalid
At the end of self test, new setting will be printed as Auto reconnect [Valid] or [Invalid].
Refer to Self Test
Panel button operation
Use the panel button on the rear of the Bluetooth board to operate this board.
  • BT device search (MSW13-5) settings
    • 1.Press and hold the panel button to turn on printer power.
    • 2.Press the panel button within one second after starting the printer.
    • The setting changes in accordance with the number of times you press the panel button.
    • Two presses: Discovery possible
    • Three presses: No response
    • After these operations the printer restarts.
  • Print the interface board state
  • After starting the printer, pressing the panel button once prints the interface board state.

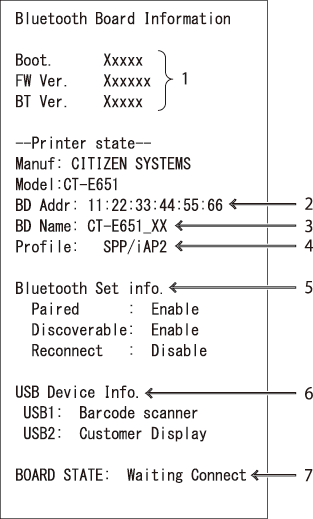

Print example
  • 1.Board firmware version
  • 2.Address of equipped Bluetooth module
  • 3.Bluetooth name
  • 4.Response profile in Bluetooth transmission
  • 5.Bluetooth setting state
  • 6.Name of connected USB device (“No connection” is displayed when there is no connection)
  • 7.Board status
Ethernet (LAN)/Wireless LAN Interface Board
This section provides an overview of the interface board. For details on this board, including explanations about the USB host function and XML peripheral device support, refer to the separate manual.

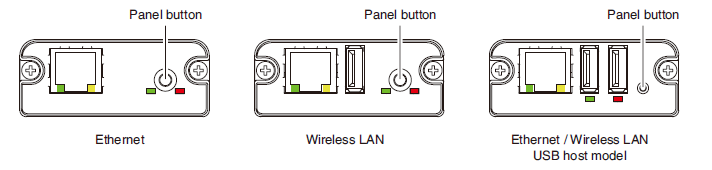

Panel button operation
Board operations are performed using the panel button on the rear of the LAN board.
  • Enabling LAN connection
  • Turn on the printer. Operation of this board will start about 20 seconds later.
  • Printing LAN setup information
  • Press the panel button.
  • Entering setting mode
  • Hold down the panel button. A buzzer will sound once to indicate that setting mode has been entered.
    • You can use setting mode to read factory settings.
    • If no operation is performed for 3 seconds in configuration mode, the mode switches back to normal mode.
  • Returning to factory settings
  • Enter the board setting mode, and then hold down the panel button. This returns the board to its factory settings.
CAUTION
  • The board will automatically restart after this operation is complete. After clearing settings, you will need to re-configure network settings.

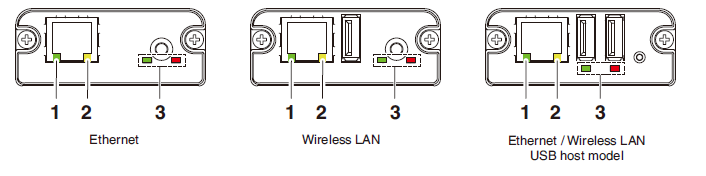

LED Functions
The tables below explain how to interpret LED indications.
  • 1.Wired LAN transmission speed
    • Transmission speed LED (green)
    100 Mbps Lit
    10 Mbps/Not connected Unlit
  • 2.Wired LAN connection/transmission status
    • Connection status LED (yellow)
    Connected Lit
    Not connected Unlit
    Data transmission in progress Flashing
  • 3.Wired/Wireless LAN status
    • Connection status LED (green) LED (red) Description
    No printer connection Unlit — Board is not connected with a printer.
    Printer connection No network connection Lit Unlit Board is connected with a printer.
    Connected by wired LAN Lit Flashing
    (1-second cycle)     		Getting an IP address from the DHCP server over wired LAN.
    Wired LAN operation Lit Lit Network operation being performed over wired LAN.
    Connected by wireless LAN * Flashing
    (2-second cycle)     		Flashing
    (1-second cycle)     		Connecting to an access point or getting an IP address from the DHCP server over wireless LAN.
    Wireless LAN operation * Flashing
    (2-second cycle)     		Lit Network operation being performed over wireless LAN.
    Resource error Alternate flashing
    (1-second cycle)    		 Board is unable to operate normally.
    System error Alternate flashing
    (0.2-second cycle)    		 Board is unable to operate normally.
    *: Only when using wireless LAN
Web Manager
The interface board has a Web Manager function that can be used to connect to the board with a web browser and change board settings.
Starting up Web Manager
  • 1.Start up a web browser.
  • 2.In the address field, input the board's IP address and then press [Enter].

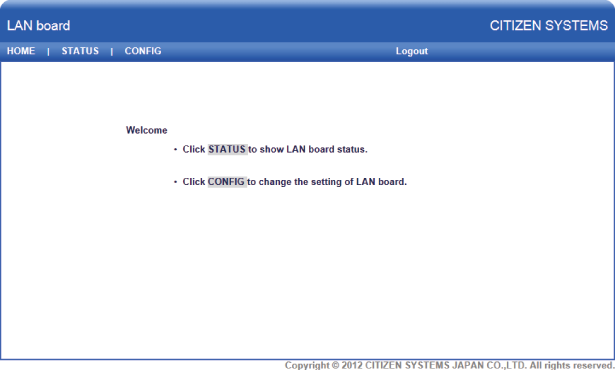

HOME Screen
This is the Web manager home screen.
The following screen is an example for a wireless LAN.
Here, press the [CONFIG] button.
CONFIG Screen

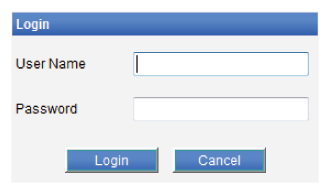

This will display the Login dialog box shown below. Log in as an administrator and then configure interface board settings.
  • User Name
  • Input a board administrator user name. (Initial setting: admin)
  • Password
  • Input the administrator user password. (Initial setting: admin)
  • [Login] button
  • After inputting an administrator user name and password, click the [Login] button.
    This displays the setting screen.
  • For details about settings, refer to the separate manual.
Lightning USB host interface board
In addition to printer control via USB (Lightning) communication, Lightning USB host interfaces can control peripheral devices connected via a USB port.For Apple products with a USB Type-C connector, such as the iPad Pro, it is possible to use the same function by using USB Type-A - Type-C cable.

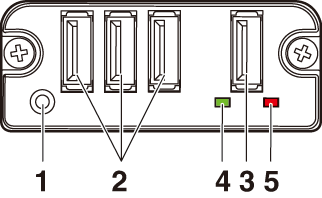

Names of parts
  • 1.Panel button
  • Control this interface board.
  • 2.USB port for peripheral device connection (3 ports)
  • Connect a peripheral device.
  • 3.USB port for Apple device connection (1 port)
  • Connect an Apple device.
  • Data can be transmitted even during fast charging of Apple devices.
  • 4.Green LED
  • This LED indicates the communication status with the printer.
  • 5.Red LED
  • This LED indicates the connection status with an Apple device.
CAUTION
  • Only connect peripheral devices specified by our company to the USB port.
  • Only plug in/remove peripheral devices when the printer power is turned off.
  • Operation of this board will start about 30 seconds after the power is turned on.
  • Use an MFi certified cable for connection with an Apple device.
Panel button operation
Use the panel button on the rear of the Lightning board to operate this board.

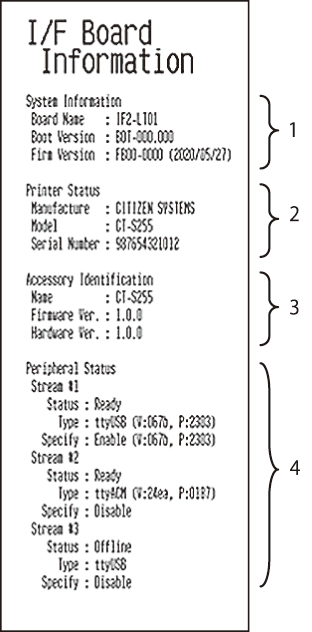

  • 1.Print the interface board state
  • After starting the printer, pressing the panel button once prints the interface board state.
  • 1.System information of this interface board
  • 2.Information of the printer connected to this interface board
  • 3.Identification information of this interface board
  • 4.Peripheral device connection information
LED Functions
The tables below explain how to interpret LED indications.
  • 1.Communication status with the printer
    • Communicating LED (green)
    Not connected Unlit
    Connected Lit
    Communication in progress Flashing
  • 2.Connection status with an Apple device
    • Communicating LED (red)
    Not connected Unlit
    Connected Lit
    Communication failed Flashing
    (1-second cycle)
    Interface board error Flashing
    (0.2-second cycle)
Connecting the Cash Drawer
  • 1.Turn off the power.
  • 2.Confirm the orientation of the cash drawer kick-out cable connector and connect it to the cash drawer kick-out connector at the back of the printer.
  • 3.Remove the screw for the ground wire.
  • 4.Screw the cash drawer’s ground wire to the body of the printer.
  • 1.Cash drawer kick-out connector
  • 2.Cash drawer kick-out cable connector
  • 3.Ground wire
  • 4.Screw for ground wire
CAUTION
  • Connect only the cash drawer kick-out cable to this connector. (Do not connect a telephone line.)
  • Signals cannot be output from the cash drawer kick-out connector while printing.
  • Hold the connector of the drawer kick cable perpendicular and straight when connecting or disconnecting it. Doing it at an angle may cause the connector to misconnect.
  • (1)Connector pin configuration
    • No. Signal Function
    1 FG Frame ground
    2 DRAWER1 Cash drawer 1 drive signal
    3 DRSW Cash drawer switch input
    4 VDR Cash drawer drive power supply
    5 DRAWER2 Cash drawer 2 drive signal
    6 GND Signal ground (common ground on circuits)
    Connector used:TM5RJ3-66 (Hirose) or equivalent
    Applicable connector: TM3P-66P (Hirose) or equivalent
  • (2)Electric characteristics
    • 1)Drive voltage: 24 VDC
    • 2)Drive current: Approx. 1 A max. (not to exceed 510 ms.)
    • 3)DRSW signal: Signal levels: “L” = 0 to 0.5 V, “H” = 3 to 5 V
  • (3)DRSW signal
  • Status can be tested by commands.
  • (4)Drive circuit
    • Cash drawer kick-out connector
CAUTION
  • Cash drawers 1 and 2 cannot be operated at the same time.
  • The solenoid used for the cash drawer should be 24 Ω or more. Do not allow the electric current to exceed 1 A. Excessive current could damage or burn out the circuits.
Precautions for Installing the Printer
This printer can only be positioned horizontally. It cannot be positioned vertically or on a wall.
Horizontal position Vertical position
CAUTION
  • Do not use the printer under the following conditions.
  • Avoid locations subject to vibration or instability.
  • Locations that are very dirty or dusty.
  • Avoid locations where the printer is not level.
    • The printer may fall and cause an injury.
    • The quality of printing may deteriorate.
  • Oriented other than as specified.
    • Malfunction, failure, or electric shock may result.
Adjusting the Paper Near-end Sensor
Change the settings of the paper near-end sensor to set the position at which the near-end of the paper is detected.
  • 1.Gently press the paper near-end sensor with your finger.
  • 2.Keep the paper near-end sensor pressed as you move it left and right. The sensor positions are shown below for the various diameters of the paper roll used.
(Unit: mm)
Sensor position Paper roll outer diameter when near-end is detected Exterior/ interior diameter of core of paper roll used
1* Approximately ø22.0 ø18/ø12
2 Approximately ø25.0 ø18/ø12
3 Approximately ø29.0 ø18/ø12
4 Approximately ø34.0 ø32/ø25.4
Notes:
*Sensor position when shipped from the factory. However, factory settings differ depending on the destination market.
CAUTION
  • The diameter of the roll of paper that is detected is an estimate. Some variations may occur depending on the paper.

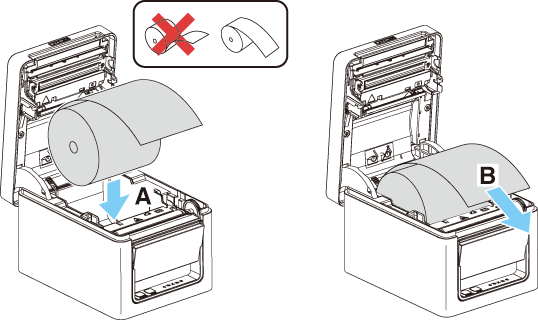

Loading Paper
  • 1.Turn on the power.
  • 2.Flip up the cover open lever to open the paper cover.
    • CAUTION
    • When pressing up on the lever, take care that you do not pinch your fingers in the gap above the top of the lever.
  • 3.Load the paper roll so that the printable side of the paper is facing up, as shown by arrow A.
  • 4.Pull a few centimeters of paper straight out in the direction of arrow B.
  • 5.Close the paper cover until you hear a click. Paper is fed and cut automatically (by the factory setting).
CAUTION
  • When opening the paper cover, be careful not to touch the entrance of the blade of the auto cutter.
  • The print head is very hot immediately after printing. Be careful not to touch it with your hands.
  • Do not touch the print head with bare hands or metal objects.
  • Always use the specified types of paper rolls.
  • Confirm that the paper roll is set correctly.
  • If the paper is skewed and not coming straight out of the paper cover, open it and straighten the paper.
  • Always pull a few centimeters of paper straight out of the printer if you open the paper cover while paper is loaded.
  • Press on the center of the paper cover to close it securely.
  • Be careful of paper cuts while loading the paper.
Refer to PRECAUTIONS IN HANDLING THE PRINTER
Selecting a Paper Type
Paper type selection is available by the combination of memory switches MSW4-4 and MSW4-5 by the used of “Memory Switch Select Mode”. In addtion, the following procedure is available.
  • 1.Enter Selecting Paper Type mode.
  • 1) With the top cover open, turn on the printer power switch while pressing and holding the FEED key.
    The buzzer sounds and the status LED flashes in green.
  • 2) After releasing your finger from the FEED button briefly, press the FEED button consecutively four times.
    Next, when the paper is set in place and the top cover closed, the buzzer sounds four short times and paper selection mode starts.
  • 2.Select Paper Type.
  • Press the FEED key to match the paper used with the paper type displayed by the status display LED.
  • (Refer to the table below.)
    • Paper roll POWER LED PAPER LED CUTTER LED Buzzer
    Thermal roll paper Flashing Unlit Unlit Once
    Press the FEED key ↓
    Black mark paper Flashing Lit Unlit Twice
    Press the FEED key ↓
    Label media Flashing Lit Lit Three times
    Return to receipt paper selection
  • 3.Save the selected Paper Type to the Printer.
  • Open the top cover and then close it as it is.
    The paper type selected is stored in the printer memory switch as shown in the table below. The paper type setting mode finishes and the printer restarts automatically.
    • Paper type MSW
    4-4 4-5
    Thermal roll paper Thermal roll paper -
    Black mark paper Black mark paper/label media Black mark detection
    Label media Black mark paper/label media Label gap detection
Calibrating the Paper Sensor
Calibrate the paper sensor to suit the actual paper you are using before using label paper or black mark paper.
Before executing this mode, use the paper selection mode or the MSW4-4 and MSW4-5 settings to set the paper type you want to use.
Refer to Selecting a Paper Type
Refer to Manual Setting of Memory Switches
  • 1.Loading Media
  • Turn the printer power off and open the paper cover.

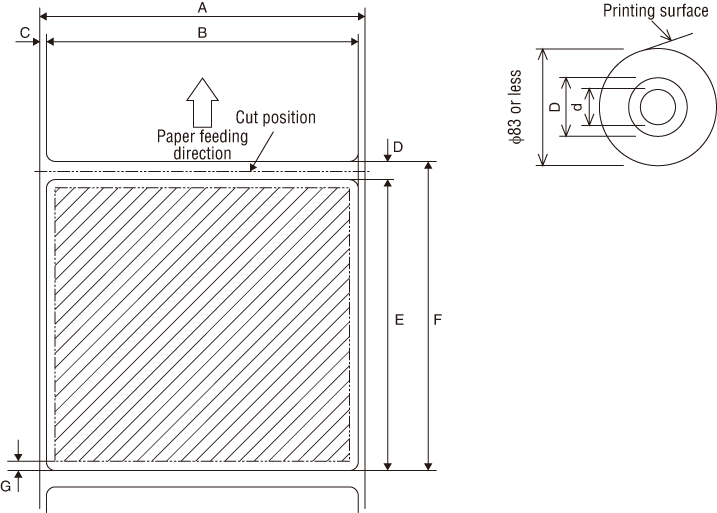

    • Label paper sensor adjustment method
    • Check that MSW4-4: OFF and MSW4-5: ON.
    • Peel the label from the first roll paper and then set the roll paper in place with the printing surface facing up.
    • Adjust the position of the paper so that the area where the label was removed is above the bottom sensor.
      • 1.Bottom sensor
    • Black mark paper sensor adjustment method
    • Check that MSW4-4: OFF and MSW4-5: OFF.
    • Set the roll paper in place with the printing surface facing up.
    • Adjust the position of the paper so that the black mark area is not above the bottom sensor.
      • 1.Bottom sensor
  • 2.Enter the paper sensor adjustment mode
  • 1) With the paper cover open, turn the printer power switch ON while holding down the FEED button.
  • 2) After releasing your finger from the FEED button briefly, press the FEED button consecutively five times.
  • 3) Next, close the paper cover so that the buzzer sounds five times and paper sensor adjustment mode starts.
  • 3.Adjust the sensors
  • Press the FEED button. The sensors are adjusted automatically. Once sensors have been adjusted the printer restarts.
CAUTION
  • Set MSW to match the paper you are using and adjust the paper sensors.
  • If you have changed the label paper or black mark paper type, please adjust the paper sensors again.
58-mm Width Roll Paper Partition (Opiton)
  • 1.Turn off the power.
  • 2.Flip up the cover open lever to open the paper cover.
  • 3.Mount the supplied partition to the groove. When using the 80-mm width roll paper, remove the partition.
  • 4.Change the print area width while referring to “Manual Setting of Memory Switches” in Section 5.3.
    • Refer to Manual Setting of Memory Switches
CAUTION
  • When opening the paper cover, be careful not to touch the entrance of the blade of the auto cutter.
  • The print head is very hot immediately after printing. Be careful not to touch it with your hands.
  • Do not touch the print head with bare hands or metal objects.
  • When using 58-mm wide paper, use the printer as a dedicated printer for that paper size.
    The printer may not correctly feed paper or print if it is switched to 80-mm wide paper after using 58-mm wide paper.
Refer to PRECAUTIONS IN HANDLING THE PRINTER
Setting the Long Life Printing (LLP) Function
It can extend the abrasion life of the head-resistant by reducing the pressure to press the print head against the paper.
The Long Life Printing (LLP) function can be enabled by changing the position of the projection switch inside the paper cover.
  • 1.Turn off the power.
  • 2.Flip up the cover open lever to open the paper cover.
  • 3.Flip down the projection switches on both sides in the arrow direction with the tip of a screwdriver.
  • Flip down the projection switches on the left and right from the standard position to the LLP position one by one.
  • 4.Close the paper cover firmly until it clicks.
CAUTION
  • When opening the paper cover, be careful not to touch the entrance of the blade of the auto cutter.
  • The print head is very hot immediately after printing. Be careful not to touch it with your hands.
  • Do not touch the print head with bare hands or metal objects.
  • The set position of the projection switches on the left and right must be identical.
  • When this setting is enabled, the printing density may decrease. If necessary, increase the printing density or use a paper with excellent coloring properties.
  • This function reduces physical friction by reducing the head pressure and does not guarantee friction resistance for all bad quality papers.
Refer to PRECAUTIONS IN HANDLING THE PRINTER

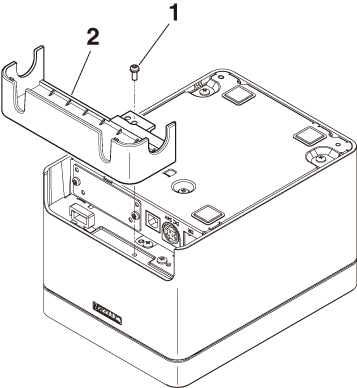

Mounting the Cable Cover
  • 1.Remove the screw for the ground wire.
  • 2.Screw the screw for the ground wire into the cable cover and the body of the printer.
  • 1.Screw for ground wire
  • 2.Cable cover
Precautions for Creating Applications and Practical Operations
If printing is done immediately after the paper is partially cut and torn off, the top of the next print out may be distorted.
For printing after cutting, we recommend to print with the first line empty.
If you are using a serial interface that has a slow data transmission speed, streaks may appear in the printouts when you are printing graphics or gradated text, which require large amounts of data.
USB interfaces may be susceptible to the effects of electromagnetic interference from the host or environment.
If this is the case, try using a cable with ferrite cores on both ends, which are very effective at eliminating EMI.
Download Site for Various Electronic Files
You can view support information and download the latest documents, drivers, utilities, etc. from the following site.
https://www.citizen-systems.co.jp/en/printer/download/#CT-E651

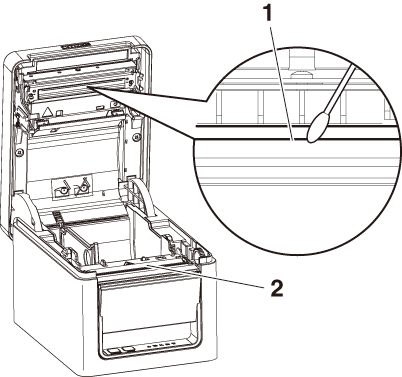

Periodic Cleaning
Printing may not be performed normally if the thermal head, paper feed roller (platen roller), or sensor protection sheet are dirty, so cleaning should be performed regularly (every two or three months).
  • 1.Turn off the power.
  • 2.Flip up the cover open lever to open the paper cover.
  • 3.Wait a few minutes until the print head cools.
  • 4.Use a cotton swab dampened with ethyl alcohol to wipe off any dirt and dust that is on the print head and platen.
  • 1.Print head
  • 2.Platen
CAUTION
  • When opening the paper cover, be careful not to touch the entrance of the blade of the auto cutter.
  • The print head is very hot immediately after printing. Be careful not to touch it with your hands.
  • Do not touch the print head with bare hands or metal objects.
Refer to PRECAUTIONS IN HANDLING THE PRINTER
Clearing a Cutter Error
If the auto cutter stops during the auto cutter operation with the blade of the auto cutter in the open position due to foreign matter entering, paper jamming, etc., the CUTTER LED flashes. When a cutter error occurs, resolve the cutter error with the following procedure.
  • 1.Turn off printer power.
  • 2.Flip up the cover open lever to open the paper cover.
  • 3.Remove any jammed paper including any scraps of paper. (Remove the paper roll that is loaded in the holder also.)
  • 4.Reload the paper roll and close the paper cover.
  • 5.Turn on the power.
CAUTION
  • When opening the paper cover, be careful not to touch the entrance of the blade of the auto cutter.
  • The print head is very hot immediately after printing. Be careful not to touch it with your hands.
  • Do not touch the print head with bare hands or metal objects.
Refer to PRECAUTIONS IN HANDLING THE PRINTER

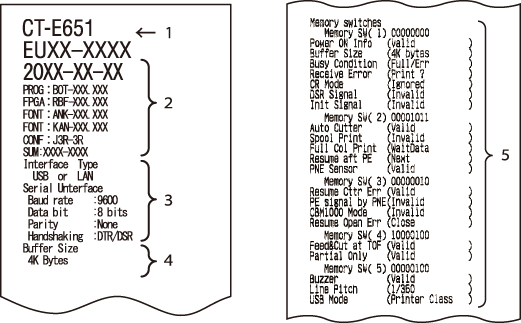

Self Test
You can use self test to check for printer problems.
Performing a self test operation
  • 1.While paper is loaded, press and hold the FEED button and turn on the power.
  • 2.Hold the FEED button down for about one second until the buzzer sounds. Release the button to start self test. The printer will print its model name, version, memory switch settings, and built-in fonts.
  • 1.Printer type name
  • 2.Firmware version
  • 3.Interface settings
  • 4.Buffer size
  • 5.Memory switch settings
Hexadecimal Dump Printing
Print received data in hexadecimal. If problems such as missing or duplicated data occur, this function allows you to check whether or not the printer is receiving data correctly.
How to do hexadecimal dump printing
  • 1.Load paper.
  • 2.While the paper cover is open, hold down the FEED button as you turn on printing power. Keep FEED button pressing until the POWER LED starts to flash, and then close the paper cover.
  • 3.The printer will print “HEX dump print mode” followed by the received data printed in hexadecimal numbers and some characters.
How to stop hexadecimal dump printing
Do one of the following to stop printing.
  • Press the FEED button consecutively three times
  • Turn off the power
  • Receive a reset command from an interface
CAUTION
  • The printer prints “.” if there is no character corresponding to the data.
  • None of the commands function during hexadecimal dump printing.
  • If print data does not cover a complete line, press the FEED button to advance the paper.
Print example
HEX dump print mode
Error Indications
  • Paper end, paper near-end
    The end of the roll of paper is detected at two stages, paper near-end and paperend.
    When paper near-end is detected, the PAPER LED flashes. Prepare a new paper roll.
    When paper end is detected, the PAPER LED lights and the buzzer sounds. Load a new paper roll. Memory switch settings can be used to disable the buzzer.
  • Cover Open
    If the cover is opened, the COVER LED lights.The buzzer may also sound depending on the memory switch setting. Do not open the cover during printing. If the cover is accidentally opened, the COVER LED flashes. Check the paper, pull it straight out of the printer by a couple of centimeters, and then close the cover. Printing restarts. A command must be sent to restart printing depending on the memory switch setting.
  • Cutter error
    If the auto cutter cannot move because of a paper jam or something else, the CUTTER LED flashes and the buzzer sounds. Remove the cause of the trouble and press the FEED button. If the auto cutter still does not move and the paper cover cannot be opened, refer to “Clearing a Cutter Error.”
    • Refer to Clearing a Cutter Error
  • Print head hot
    When you print dense characters, dark images, or for an extended time in a hot
    environment, the print head temperature increases. If the print head exceeds a
    specified temperature, the printer stops printing and waits for the print head to
    cool. When this happens, the PAPER LED, CUTTER LED, and COVER LED flash.
    Printing resumes automatically when the print head cools.
  • Black mark/label gap detection error
  • The black mark or label gap cannot be detected.
  • The PAPER LED flashes and a buzzer sounds.
  • Adjust to black mark sensor or the label sensor with the paper you are using.
    • Refer to Calibrating the Paper Sensor
The status display for various messages is shown below.
Status PAPER LED CUTTER LED COVER LED SERVICE LED Buzzer*1
Paper near-end Unlit Unlit Unlit No
Paper-end Lit Unlit Unlit Unlit Yes*2
Cover open*3 Unlit Unlit Lit Unlit No*2
Cover open II*4 Unlit Unlit Unlit No*2
Cutter locked Unlit Unlit Unlit Yes
Low-voltage error Unlit No
High-voltage error Unlit Unlit Unlit No
System error Unlit Unlit Unlit No
Memory error Unlit Unlit Unlit No
Print head hot Unlit No
Black mark/label gap detection error
*5 		Unlit Unlit Unlit Yes
Notes:
*1: Buzzer sounds when MSW5-1 (buzzer setting) is set to ON.
*2: The buzzer can be set to sound or not sound with MSW10-5 (buzzer event).
*3: Indicated when a cover is opened during standby.
*4: Indicated when a cover is opened during printing.
*5: Label specifications/black mark specifications.
Paper Jams
Take care to avoid obstruction of the paper outlet and paper jamming around the outlet during printing.
If paper cannot get out of the printer, it can roll up on the platen inside the printer and cause an error.
If the paper wraps around the platen, open the paper cover and carefully pull the paper out.
Precautions for Performing Printing for Which Printing Speed Changes
When printing for which the printing speed changes is performed, white lines may be printed or paper may not be fed depending on the printing conditions. To prevent these problems, change the following memory switch settings.
  • 1.Enable MSW2-3 (buffering).
  • 2.Increase the baud rate of MSW7-1 (serial baud rate).
  • 3.Change MSW10-2 (print speed) to a lower level.
CAUTION
  • Depending on the serial interface transmission speed, ambient temperature, print data duty, and other factors, changing the above settings may not eliminate the problems.
External Views and Dimensions
(Unit: mm)
Printing Paper
Use the paper shown in the following table or paper of the same quality.
Paper type Product name
Recommended thermal roll paper Nippon Paper TP50KR-2Y, TP50KJ-R, TL69KS-LH, TF50KS-E2D
Oji Paper PD150R, PD160R, PD160R-63
Mitsubishi Paper Mills HP220AB-1, F230AA, P220AB
Koehler KT48-FA
Recommended thermal label roll paper Nippon Paper HD75
Ricoh 150LA-1
CAUTION
  • This product is not equipped with a manual cutter, thus it cannot manually cut paper with perforated lines well.
  • Cutting paper with perforated lines with the auto cutter may cause paper scraps to accumulate internal part of the printer, causing it to break down.

(Unit: mm)
  • Thermal roll paper
Paper thickness (μm) 53 to 85
Core inner diameter d (mm) ø12
Core outer diameter D (mm) ø18
CAUTION
  • Use thermal paper that is wound as follows:
  • Not creased and fits tight to the core.
  • Not folded.
  • Not glued to the core.
  • Rolled with the printable side out.
  • Label media

(Unit: mm)
Symbol Item Dimensions
A Backing paper width 57.5/79.5 ±0.5
B Label width 53.5/75.5 ±0.5
C Label position on left edge 2 ±0.5
D Label gap 4 to 30
E Label length 25 to 300
F Label pitch D + E
G Label paper angle (R) 3 or less
Label paper thickness 65 to 85 μm
Backing paper thickness 60 μm or less
Core inner diameter d (mm) 25.4
Core outer diameter D (mm) 32
CAUTION
  • When using the auto cutter, this may damage the cutter lock or the cutter, so be careful of the following.
  • ・Keep the paper cut length to 29 mm or more.
  • ・Set the cut position to cut between the labels (the backing paper section). Do not cut the label paper (the tack paper).
  • If you have changed the label backing paper type, be sure to adjust the paper sensors again.
  • Keep both the left and right margins of the paper to at least 2 mm.
  • Keep the top and bottom margins of the paper to at least 1 mm.
  • Black mark paper

(Unit: mm)
Symbol Item Dimensions
A Black mark position on right edge 13.4 or more
B Black mark position on left edge 0.4 or less
C Black mark height 4 to 6
D Black mark cut position 2 to 3
E Above paper margin 0 ±0.5
F Black mark pitch 30 to 300
CAUTION
  • Use a black mark PCS value of 0.90 or more.
  • Take the basic printing position ±2 mm into account for print cue accuracy using black mark detection. For printing length, take variations in the ambient temperature and platen diameter machining accuracy in the initial state into account and allow for ±2% with regard to setting values. Additionally, when considering the product life, allow for a maximum of -5% with regard to setting values. When using preprinted paper, give due consideration to the print layout.
  • If printing spans multiple black marks, the black marks are ignored, and printing continues.
Manual Setting of Memory Switches
Memory switches are used to set various printer settings. Memory switches can be set manually, or by utilities or commands. This section explains how to perform manual settings.
For information on how to set the memory switches using commands, please refer to the Command Reference.
Quick setting mode
The settings for the memory switches for a replacement printer’s manufacturer, model, paper width, and character spacing can be set at the same time to the optimum settings.
Do the settings while confirming the selected items on the printout.
  • 1.Load paper.
  • 2.While the paper cover is open, press and hold the FEED button and turn on the power.
  • 3.Press the FEED button three and close the paper cover.
  • The printer enters memory switch quick setting mode.

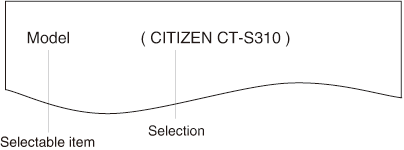

  • The selectable item “Model” and the selection are printed.
  • 4.Press the FEED button.
  • A selection is printed in order through the cycle each time the FEED button is pressed.
  • Press the FEED button until the selection you want is printed.
  • 5.Press the FEED button for at least two seconds.
  • The selection is set.
  • If there is another selectable item, it and the selection are printed.
  • 6.Repeat steps 4 and 5 to select and set the printer’s model, paper width, character spacing (EPSON T88 only).
  • When all the items are set, “Save To Memory” is printed.
  • 7.Press the FEED button for at least two seconds.
  • The changed memory switch settings are saved and a list of them is printed.
  • The printer exits quick setting mode when printing is finished.
Selected item Automatic memory switch settings
Manufacturer Paper
width		 Character
space		 MSW2-4
Full Col
Print		 MSW3-7
CBM1000
Mode		 MSW8-1
Print Width		 MSW6-2
Character
Space
CITIZEN
CT-S310 		58 mm － WaitData Invalid 384 dots －
80 mm － WaitData Invalid 576 dots －
EPSON
T88 		58 mm 0 dot WaitData Invalid 360 dots 0 dot
1 dot WaitData Invalid 390 dots 1 dot
80 mm 0 dot WaitData Invalid 512 dots 0 dot
1 dot WaitData Invalid 546 dots 1 dot
EPSON
203dpi 		80 mm － WaitData Invalid 576 dots 0 dot
58 mm － WaitData Invalid 420 dots －
Individual setting mode
Set the memory switches individually.
Do the settings while confirming the memory switch function and settings on the printout.
  • 1.Load paper.
  • 2.While the paper cover is open, press and hold the FEED button and turn on the power.
  • 3.Press the FEED button twice and close the paper cover.
  • The printer enters the mode for setting memory switches individually.

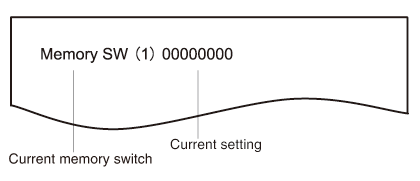

  • The printer prints “Memory SW (1)” and the current setting, 0 (off) or 1 (on).
  • (The current settings for memory switches 7 to 13 are not printed.)
  • 4.Press the FEED button.
  • Each press of the FEED button cycles through the list of memory switches in the following sequence: “Memory SW (1)” > “Memory SW (2)” > ...“Memory SW (11)” or “Memory SW (13)” > “Save To Memory” > “Memory SW (1)”.
  • Press the FEED button until the number for the memory switch you want to change is printed.
  • 5.Press the FEED button for at least two seconds.

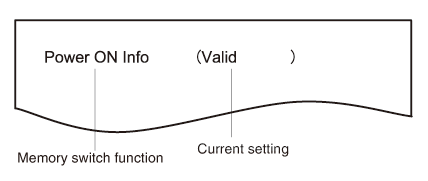

  • A setting for the memory switch is printed, through the cycle, each time the FEED button is pressed for at least two seconds.
  • Press the FEED button for at least two seconds to cycle through the list until the function of the memory switch you want to change is printed.
  • 6.Press the FEED button.
  • A setting is printed each time the FEED button is pressed in order through the cycle.
  • When the current settings are printed, the COVER LED lights.
  • Press the FEED button until the setting you want is printed.
  • 7.Press the FEED button for at least two seconds.
  • The selected settings are set.
  • The next memory switch function and settings are printed.
  • 8.Repeat steps 5 to 7 to change different functions for the current memory switch number.
  • 9.Open the paper cover and close it.
  • The changed memory switch settings are printed.
  • 10.Repeat steps 4 to 9 to change functions for a different memory switch number.
  • 11.Press the FEED button until “Save To Memory” is printed.
  • 12.Press the FEED button for at least two seconds.
  • The changed memory switch settings are saved and a list of them is printed.
  • The printer exits individual setting mode when printing is finished.
Memory switch initialization
Set all the memory switches to the factory settings.
  • 1.Do steps 1 through 3 of the procedure to enter individual setting mode.
  • 2.Press the FEED button until “Save To Memory” is printed.
  • 3.Open the paper cover.
  • 4.Press the FEED button for at least two seconds.
  • All memory switches change to the factory settings.
  • 5.Close the paper cover.
The function of each memory switch is shown in the following table. (Shaded values are factory settings.)
Switch no. Function OFF ON
MSW1-1 Power ON Info Valid Not Send
MSW1-2 Buffer Size 4K bytes 45 bytes
MSW1-3 Busy Condition Full/Err Full
MSW1-4 Receive Error Print“?” No Print
MSW1-5 CR Mode Ignored LF
MSW1-6 Reserved Fixed —
MSW1-7 DSR Signal Invalid Valid
MSW1-8 INIT Signal Invalid Valid
MSW2-1 Reserved — Fixed
MSW2-2 Auto Cutter Invalid Valid
MSW2-3 Spool Print Invalid Valid
MSW2-4 Full Col Print LineFeed WaitData
MSW2-5 Resume aft PE Next Top
MSW2-6 Reserved Fixed —
MSW2-7 Reserved Fixed —
MSW2-8 PNE Sensor Valid Invalid
MSW2-8*1 PNE Sensor Valid Invalid
MSW3-1 Resume Cttr Err Valid Invalid
MSW3-2 PE signal by PNE Valid Invalid
MSW3-3 Reserved Fixed —
MSW3-4 Reserved Fixed —
MSW3-5 Reserved Fixed —
MSW3-6 Reserved Fixed —
MSW3-7 CBM1000 Mode Invalid Valid
MSW3-8 Resume Open Err Close Command
MSW4-1 Reserved Fixed —
MSW4-1*1 P.Length Set Auto Measure Command
MSW4-2 Reserved Fixed —
MSW4-2*1 Power on TOF Invalid Valid
MSW4-3 Feed&Cut at TOF Invalid Valid
MSW4-4 Reserved Fixed —
MSW4-4*1 Paper Select Thermal Roll BM.P / Lbl.P
MSW4-5 Reserved Fixed —
MSW4-5*1 Position Detect Black Mark Label
MSW4-6 Reserved Fixed —
MSW4-6*1 Measure at Close Invalid Valid
MSW4-7 Reserved Fixed —
MSW4-8*2 Partial Only Invalid Valid
MSW5-1 Buzzer Valid Invalid
MSW5-2 Line Pitch 1/360 1/406
MSW5-3 USB Mode Virtual COM Printer Class
MSW5-4 Reserved Fixed —
MSW5-5 Reserved Fixed —
MSW5-6 Reserved Fixed —
MSW5-7 Reserved Fixed —
MSW5-8 Reserved Fixed —
MSW6-1 Act. For Driver Invalid Valid
MSW6-2 Character Space Invalid Valid
MSW6-3 USB Power Save Invalid Valid
MSW6-4 Reserved Fixed —
MSW6-5 Reserved Fixed —
MSW6-6 Reserved Fixed —
MSW6-7 Reserved Fixed —
MSW6-8 Power ON trigger Power switch ON AC power input
Switch no. Function Initial setting Setting value
MSW7-1 Baud Rate 9600 bps 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps
MSW7-2 Data Length 8bits 7bits, 8bits
MSW7-3 Stop Bit 1bit 1bit, 2bits
MSW7-4 Parity NONE NONE, ODD, EVEN
MSW7-5 Flow Control DTR/DSR DTR/DSR, XON/XOFF
MSW7-6 DMA Control Valid Valid, Invalid
MSW7-7 VCom Protocol PC Setting PC Setting, DTR/DSR, XON/XOFF
MSW8-1 Print Width 576 dots 576 dots, 546 dots, 512 dots, 420 dots, 390 dots, 384 dots, 360 dots
MSW8-3 Top Margin 11mm 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm
MSW8-4 Line Gap Reduce Invalid Invalid, 3/4, 2/3, 1/2, 1/3, 1/4, 1/5, ALL
MSW8-5 Reduced Char V/H 100% / 100% 100% / 100%, 75% / 100%, 50% / 100%, 100% / 75%, 75% / 75%, 50% / 75%
MSW8-6 Auto Side Shift Invalid Invalid, 1 dot, 2 dots, 3 dots, 4 dots, 5 dots, 6 dots, 7 dots
MSW8-7 Liner Free Mode Invalid Disabled, 1 h, 6 h, 12 h, 18 h, 24 h, 5 m, 10 m
15 m, 20 m, 30 m
MSW9-1 Code Page PC437 Katakana, PC 437, PC 737, PC 850, PC 852, PC 857, PC 858, PC 860, PC 862, PC 863, PC 864, PC 865, PC 866, WPC1251, WPC1252, WPC1253, WPC1255, WPC1258, Space page, ThaiCode11 1Pass, ThaiCode11 3Pass, ThaiCode18 1Pass, ThaiCode18 3Pass, TCVN-3
MSW9-2 Int’Char Set U.S.A USA, France, Germany, England, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark 2, Spain 2, Latin America, Korea, Croatia, China, Vietnam
MSW9-4 Kanji code Invalid Disabled, JIS (Japan), SJIS: CP932 (Japan), SJIS: X0213 (Japan), GB18030 (China), KS Hangul (South Korea), EUC Hangul (South Korea), BIG5 (Taiwan)
MSW10-1 Print Density 100 % 70 %, 75 %, 80 %, 85 %, 90 %, 95 %, 100 %, 105 %, 110 %, 115 %, 120 %, 125 %, 130 %, 135 %, 140 %
MSW10-2 Print Speed Level 9 Level 1, Level 2, Level 3, Level 4, Level 5, Level 6, Level 7, Level 8, Level 9
MSW10-4 Old Command Invalid Invalid, CBM1, CBM2
MSW10-5 Buzzer Event Not By C. Open All Event/Error, Not by C.Open, Not by C.Open/PE
MSW10-6 Buzzer Sound Tone 2 Tone 1, Tone 2, Tone 3, Tone 4
MSW13-1 Security/Target Low/All Low/All, Mid/All, Mid/Paired only, Hi/All, Hi/Paired only
MSW13-5 BT Device Scan Discoverable No Response, Discoverable
MSW13-6 Auto Reconnect Valid Valid | Invalid, Valid
*1: Label specifications/black mark specifications
*2: For label specifications/black mark specifications, MSW4-8 settings are not applied. (Limited to full cut)
