LINE THERMAL PRINTER

MODEL CT-S251
User’s Manual
WEEE MARK
If you want to dispose of this product, do not mix it with general household waste. There is a separate collection systems for used electronics products in accordance with legislation under the WEEE Directive and is effective only within European Union.
Wenn Sie dieses Produkt entsorgen wollen, dann tun Sie dies bitte nicht zusammen mit dem Haushaltsmüll. Es gibt im Rahmen der WEEE-Direktive innerhalb der Europäischen Union gesetzliche Bestimmungen für separate Sammelsysteme für gebrauchte elektronische Geräte und Produkte.
Si vous souhaitez vous débarrasser de cet appareil, ne le mettez pas à la poubelle avec vos ordures ménagères. Il existe un système de récupération distinct pour les vieux appareils électroniques conformément à la législation WEEE sur le recyclage des déchets des équipements électriques et électroniques qui est uniquement valable dans les pays de l’Union européenne.
Les appareils et les machines électriques et électroniques contiennent souvent des matières dangereuses pour l’homme et l’environnement si vous les utilisez et vous vous en débarrassez de façon inappropriée.
Si desea deshacerse de este producto, no lo mezcle con residuos domésticos de carácter general. Existe un sistema de recogida selectiva de aparatos electrónicos usados, según establece la legislación prevista por la sobre residuos de aparatos eléctricos y electrónicos (RAEE), vigente únicamente en la Unión Europea.
Se desiderate gettare via questo prodotto, non mescolatelo ai rifiuti generici di casa. Esiste un sistema di raccolta separato per i prodotti elettronici usati in conformità alla legislazione RAEE, valida solo all’interno dell’Unione Europea.
Deponeer dit product niet bij het gewone huishoudelijk afval wanneer u het wilt verwijderen. Er bestaat ingevolge de WEEE-richtlijn een speciaal wettelijk voorgeschreven verzamelsysteem voor gebruikte elektronische producten, welk alleen geldt binnen de Europese Unie.
Hvis du vil skille dig af med dette produkt, må du ikke smide det ud sammen med dit almindelige husholdningsaffald. Der findes et separat indsamlingssystem for udtjente elektroniske produkter i overensstemmelse med lovgivningen under WEEE-direktivet, som kun er gældende i den Europæiske Union.
Se quiser deitar fora este produto, não o misture com o lixo comum. De acordo com a legislação que decorre da Directiva REEE – Resíduos de Equipamentos Eléctricos e Electrónicos, existe um sistema de recolha separado para os equipamentos electrónicos fora de uso, em vigor apenas na União Europeia.
Jeżeli zamierzasz pozbyć się tego produktu, nie wyrzucaj go razem ze zwykłymi domowymi odpadkami. Według dyrektywy WEEE obowiązującej w Unii Europejskiej dla używanych produktów elektronicznych należy stosować oddzielne sposoby utylizacji.
Compliance Statement for European Users
CE marking shows conformity to the following criteria and provisions:
Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), and RoHS directive (2011/65/EU)
Full text of the EU declaration of conformity is available at the following internet
address:
http://www.citizen-systems.co.jp/en/printer/download/eu_doc.html
IMPORTANT: This equipment generates, uses, and can radiate radio frequencyenergy and if not installed and used in accordance with the instruction manual, maycause interference to radio communications. It has been tested and found to complywith the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCCRules, which are designed to provide reasonable protection against such interferencewhen operated in a commercial environment. Operation of this equipment in aresidential area is likely to cause interference, in which case the user at his ownexpense will be required to take whatever measures may be necessary to correct theinterference.
CAUTION: Use shielded cable for this equipment.
Sicherheitshinweis
Die Steckdose zum Anschluß dieses Druckers muß nahe dem Gerät angebracht und leicht zugänglich sein.
For Uses in Canada
This Class A Information Technology Equipment (ITE) complies with Canadian CAN ICES-3(A)/NMB-3(A).
This Information Technology Equipment (ITE) does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
Pour L’utilisateurs Canadiens
Cet Equipements informatiques (EI) de la classe A est conforme a la norme CAN ICES-3(A)/NMB-3(A) du Canada.
Le present Equipements informatiques (EI) n’emet pas de bruite radio electriques depassant les limites applicables aux appareils numeriques de la classe A prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des Communications du Canada.
GENERAL PRECAUTIONS
  • Before using this product, be sure to read through this manual. After having read this manual, keep it in a safe, readily accessible place for future reference.
  • The information contained herein is subject to change without prior notice.
  • Reproduction or transfer of part or all of this document in any means is prohibited without permission from Citizen Systems.
  • Note that Citizen Systems is not responsible for any operation results regardless of omissions, errors, or misprints in this manual.
  • Note that Citizen Systems is not responsible for any trouble caused as a result of using options or consumables that are not specified in this manual.
  • Except explained elsewhere in this manual, do not attempt to service, disassemble, or repair this product.
  • Note that Citizen Systems is not responsible for any damage attributable to incorrect operation/handling or improper operating environments that are not specified in this manual.
  • Data is basically for temporary use and not stored for an extended period of time or permanently. Please note that Citizen Systems is not responsible for damage or lost profit resulting from the loss of data caused by accidents, repairs, tests or other occurrences.
  • If you find omissions, errors, or have questions, please contact your Citizen Systems dealer.
  • If you find any pages missing or out of order, contact your Citizen Systems dealer for a replacement.
Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
  • Apple, Apple TV, Apple Watch, iPad, iPad Air, iPad Pro, iPhone, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries. tvOS is a trademark of Apple Inc. The trademark “iPhone” is used in Japan with a license from Aiphone K.K.
  • EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
  • QR Code is a registered trademark of DENSO WAVE INCORPORATED.
  • Ethernet is a registered trademark of Fuji Xerox Corporation.
  • Bluetooth® is a registered trademark of Bluetooth-SIG Inc.
  • CITIZEN is a registered trademark of Citizen Watch Co., Ltd.
  • All other trademarks are the property of their respective owners.
  • Citizen Systems use these trademarks in accordance with the license of relevant owners.
Copyright© CITIZEN SYSTEMS JAPAN CO., LTD. 2019
SAFETY PRECAUTIONS...WHICH SHOULD BE STRICTLY OBSERVED
Before using this product for the first time, carefully read these SAFETY PRECAUTIONS. Improper handling may result in accidents (fire, electric shock or injury).
In order to prevent injury to operators, third parties, or damage to property, special warning symbols are used in the User’s Manual to indicate important items to be strictly observed.
  • After having read this Manual, keep it in a safe, readily accessible place for future reference.
  • Some of the descriptions contained in this manual may not be relevant to some printer models.
The following describes the degree of hazard and damage that could occur if the printer is improperly operated by ignoring the instructions indicated by the warning symbols. Be sure to read this information carefully.
WARNING
  • Neglecting precautions indicated by this symbol may result in fatal or serious injury.
CAUTION
  • Neglecting precautions indicated by this symbol may result in injury or damage to property.
This symbol is used to alert your attention to important items.
This symbol is used to alert you to the danger of electric shock or electrostatic damage.
This symbol denotes a request to unplug the printer from the wall outlet.
This symbol is used to indicate that the power supply must be grounded.
This symbol is used to indicate useful information, such as procedures, instructions or the like.
This symbol is used to indicate prohibited actions.
PRECAUTIONS ON PRINTER INSTALLATION
WARNING
  • Do not use or store this product in a place where it will be exposed to:
    • Flames or moist air.
    • Direct sunlight.
    • Hot airflow or radiation from a heating device.
    • Salty air or corrosive gases.
    • Ill-ventilated atmosphere.
    • Chemical reactions in a laboratory.
    • Airborne oil, steel particles, or dust.
    • Static electricity or strong magnetic fields.
    • These locations create the risk of printer damage, as well as product failure, overheating, emission of smoke, fire, or electric shock.
      They can also result in fire or electric shocks and so should always be avoided.
  • Do not drop any foreign object nor spill liquid into the printer. Do not place any object on the printer either.
  • Do not drop any metallic object such as paper clips, pins or screws into the printer.
  • Do not place a flower vase, pot, or anything containing water on the printer.
  • Do not spill coffee, soft drinks, or any other liquid into the printer.
  • Do not spray insecticide or any other chemical liquid over the printer.
    • Dropping a metallic foreign object into the printer, may cause printer failure, fire, or electric shock.
      Should it occur, immediately turn the printer off, unplug it from the supply outlet, and call your local Citizen Systems dealer.
  • Do not handle the printer in the following ways:
  • Do not subject the printer to strong impacts or hard jolts (e.g., being stepped on, dropped or struck).
  • Never attempt to disassemble or modify the printer.
    • These actions create the risk of printer damage, as well as product failure, overheating, emission of smoke, fire, or electric shock.
      They can also result in fire or electric shocks and so should always be avoided.
  • Install, use, or store the printer out of the reach of children.
    • Electric appliances could cause an unexpected injury or accident if they are handled or used improperly.
    • Keep the power cord and signal cables out of the reach of children. Also children should not be allowed to gain access to any internal part of the printer.
    • The plastic bag the printer came in must be disposed of properly or kept away from children. Wearing it over the head may lead to suffocation.
CAUTION
  • Do not use the printer under the following conditions.
  • Avoid locations subject to vibration or instability.
  • Avoid locations where the printer is not level.
    • The printer may fall and cause an injury.
    • The quality of printing may deteriorate.
  • Do not obstruct the printer’s air vents.
  • Do not place anything on the printer.
  • Do not cover or wrap the printer in cloth or blankets.
    • Doing so could cause heat to build up and deform the case or start a fire.
  • Avoid using the printer near a radio or TV set or from supplying it from the same electric outlet as these appliances.
  • Avoid using the printer interconnected with a cable or cord that has no protection against noise.
    (For interconnections, use shielded or a twisted pair of cables and ferrite cores, or other anti-noise devices.)
  • Avoid using the printer with a device that is a strong source of noise.
    • The printer may have an adverse effect on nearby radio or TV transmissions. There may also be cases when nearby electrical appliances adversely influence the printer, causing data errors or malfunction.
  • Installed in any orientation other than those specified.
    • Malfunction, failure, or electric shock may result.
  • Connect the printer to a ground.
    • Electric leakage may cause an electric shock.
  • Do not connect the printer’s ground to any of the following:
    • Gas piping
      • A gas explosion could result.
    • Telephone line ground
    • Lightning rod
      • If lightning strikes a large surge of current may cause fire or shock.
    • Water pipes
      • Plastic water pipes should not be used for grounding. (Those approved by a Waterworks Department may be used.)
  • Before connecting or disconnecting the grounding lead to or from the printer, always unplug it from the electric outlet.
PRECAUTIONS IN HANDLING THE PRINTER
WARNING
  • Please observe the following precautions for power source and power cord:
  • Do not plug or unplug the power cord with a wet hand.
  • Use the printer only at the specified supply voltage and frequency.
  • Use only the specified AC adapter with the printer.
  • Use only the power cord that comes with the printer, and never use the supplied power cord with another device.
  • Check to make sure that the supply outlet from which the printer is powered has a sufficient capacity.
  • Do not supply the printer from a power strip or current tap shared with other appliances.
  • Do not plug the power cord into an electric outlet with dust or debris left on the plug.
  • Do not use a deformed or damaged power cord.
  • Do not move the printer while its power is on.
    • Neglecting to handle it properly may result in printer failure, emission of smoke, fire, or electric shock.
    • An overload may cause the power cord to overheat, catch fire, or the circuit breaker to trip.
  • Do not allow anything to rest on the power cord. Do not place the printer where the power cord may be stepped on.
  • Do not subject the power cord to severe bending, twisting, or pulling. Do not carry the product while it is in this state either.
  • Do not attempt to modify the power cord unnecessarily.
  • Do not place the power cord near any heating device.
    • Neglecting these cautions may cause wires or insulation to break, which could result in electric leakage, electric shock, or printer failure.
      If the power cord sustains damage, contact your Citizen Systems dealer.
  • Do not leave things around the electric outlet.
  • Supply power to the printer from a convenient electric outlet, readily accessible in an emergency.
    • Pull the plug to immediately shut it down in an emergency.
  • Insert the power plug fully into the outlet.
  • If the printer will not be used for a long time, disconnect it from its electric outlet.
  • Hold the plug and connector when plugging or unplugging the power cord or signal cable after turning off the printer and the appliance connected to it.
CAUTION

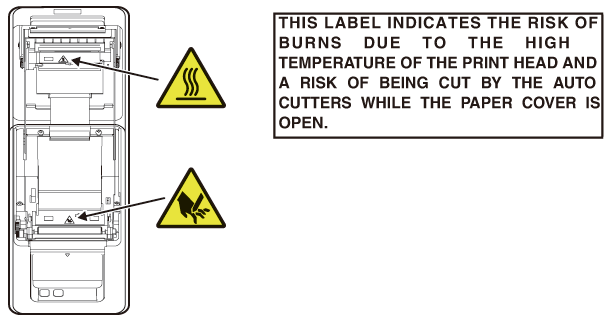

  • Caution label is attached in the position shown in the following figure. Carefully read the handling precautions before using the printer.
  • Do not transport this printer with the paper roll inside.
    • Printer failure or damage may occur.
  • To prevent possible malfunction or failure observe the following.
  • Do not open the paper cover during printing.
  • Avoid operating the printer without paper properly loaded.
  • Avoid the use of paper not complying with specifications.
    • May result in poor print quality.
  • Avoid using torn pieces of paper or paper spliced with plastic adhesive tape.
  • Avoid forcibly pulling already loaded paper by hand.
  • Avoid using a sharp pointed device to operate panel buttons.

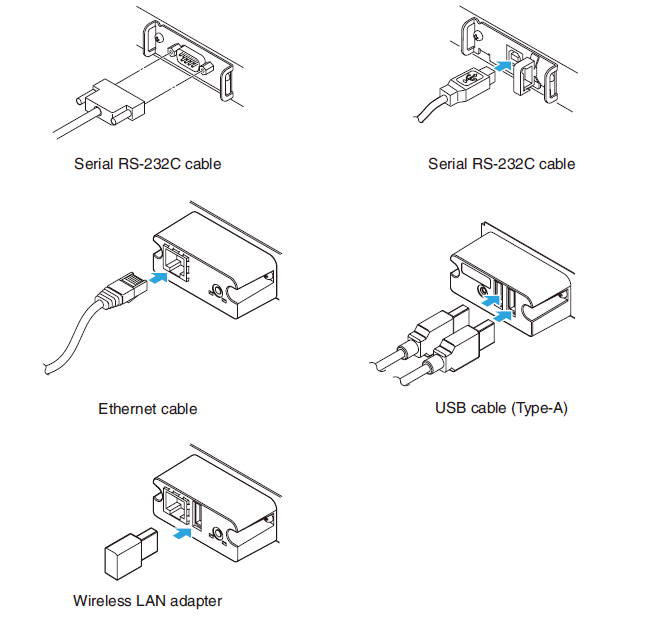

  • Be sure to firmly insert the cable plugs into their mating sockets.
    • A cross connection may damage the printer’s internal electronics or the host system’s hardware.
  • Only use the printer with devices that have designated solenoid specifications for the cash drawer interface connector.
    • Neglecting this caution may result in malfunction or failure.
  • To prevent injury and printer failures from worsening, observe the following:
  • Do not touch the printing surface of the thermal head.
  • Do not touch any of the moving parts (e.g., paper cutter, gears, active electric parts) while the printer is working.
  • In case of trouble do not attempt to repair the printer. Ask Citizen Systems service for repair.
  • Be careful that the covers do not pinch your hands or fingers.
  • Be careful of the sharp edges on the printer. Do not allow them to injure you or damage property.
    • May result in electric shock, burn, or injury.

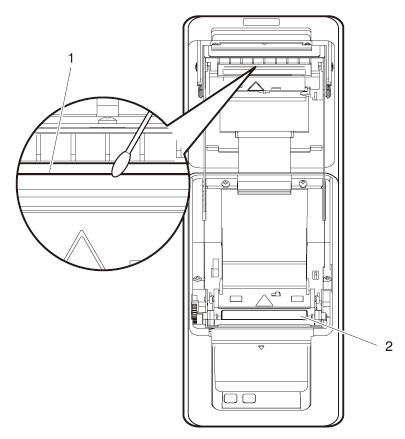

DAILY MAINTENANCE
  • Observe the following precautions for daily maintenance.
  • When cleaning the printer, always turn it off and unplug it from the electric outlet.
  • Use a soft, dry cloth for cleaning the surface of the printer case.
    For severe stains, use a soft cloth slightly dampened with water.
    Never use organic cleaning solvent such as alcohol, paint thinner, trichloroethylene, benzene, or ketone. Never use a chemically processed cleaning cloth.
  • To remove paper dust, use a soft brush.
CAUTION
  • The thermal head is at a dangerously high temperature immediately after printing.
    Allow it to cool off before starting maintenance work.
GENERAL OUTLINE
The CT-S251 line thermal printer series is designed for use with a broad array of terminal equipment including data, POS, and kitchen terminals.
These printers have extensive features so they can be used in a wide range of applications.

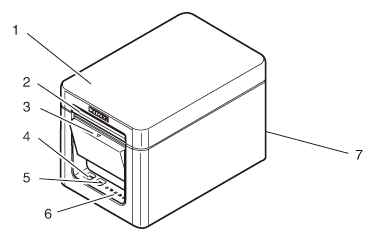

EXPLANATION OF PRINTER PARTS
SETUP
MAINTENANCE AND TROUBLESHOOTING
OTHER
"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.
  • iPad, iPhone and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air and iPad mini are trademarks of Apple Inc.
  • EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
  • QR Code is a registered trademark of DENSO WAVE INCORPORATED.
  • Ethernet is a registered trademark of Fuji Xerox Corporation.
  • Bluetooth® is a registered trademark of Bluetooth-SIG Inc.
  • CITIZEN is a registered trademark of Citizen Watch Co., Ltd.
  • All other trademarks are the property of their respective owners.
  • Citizen Systems use these trademarks in accordance with the license of relevant owners.
Copyright© CITIZEN SYSTEMS JAPAN CO., LTD. 2019
Features
  • High-speed (300 mm/s) printing
  • Attractive, stylish design
  • Design so compact it can be installed anywhere
  • Paper is output from the front so the printer can be placed in a place that has a height limitation
  • Equipped with a fast cutter
  • Printer status and errors indicated by five LEDs
  • Interchangeable interface board
  • XML/Web print function included (wired LAN or wireless LAN model)
  • A USB host function that can control peripheral devices is provided for the wired LAN interface and Bluetooth interface
  • Built-in cash drawer kick-out interface
  • USB power supply OFF
  • 16 level greyscale and clear printing
  • Paper saving functions
  • Level 3 and Level 4 kanji (JIS X0213) support
  • Memory switches make customization possible
  • Store user-defined characters and logos on user memory
  • Barcode and 2D barcode printing supported
  • Driver and utility software included
  • Apple MFi certified Bluetooth communication support (Bluetooth model)
Unpacking
Make sure the following items are included with your printer.
NAME QUANTITY ILLUSTRATION
Printer 1
AC power cord 1
Sample paper roll 1 roll

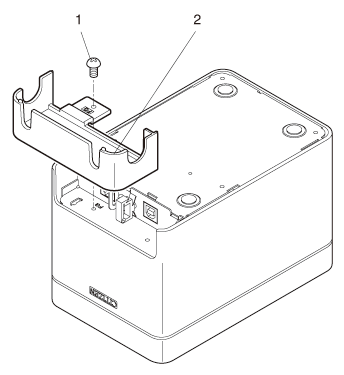

Cable cover 1
Quick Start Guide 2
AC adapter 1
Model Classification
Model numbers indicate printer features according to the following system.
  • 1.Model name
  • 2.Interface
  • RS: Serial RS-232C
  • UB: USB
  • ET: Ethernet
  • HET： Ethernet (USB host function)
  • BT: Bluetooth+USB
  • HBT： Bluetooth (USB host function)
  • WX: Wireless LAN+USB
  • 3.Market
  • J: Japan
  • U: North America
  • A: Asia
  • E: Europe
  • C: China
  • 4.Body case color
  • WH: Pure white
  • BK: Black
  • NN: No finish
Note:
*: AC power cord, serial I/F screw, firmware and other specifications vary according to markets.
Basic Specifications
Item Specifications
Model CT-S251
Print method Line thermal dot print method
Print widths 54.5 mm/436 dots, 54 mm/432 dots, 52.5 mm/420 dots, 48.75 mm/390 dots, 48 mm/384 dots, 45 mm/360 dots, Factory setting: 54 mm
Dot density 8 × 8 dots/mm (203 dpi)
Print Speed 300 mm/s (fastest, print density 100%, 2400 dot-lines/s)
Number of print columns *1 Font Maximum number of characters (columns) / 54mm Dot configuration
(dots)
Font A 36 12 × 24
Font B 48 9 × 24
Font C 54 8 × 16
Character size *2 Font A:1.50×3.00 mm, Font B:1.13×3.00 mm, Font C:1.00×2.00 mm
Character type Alphanumeric, international, PC437/850/852/857/858/860/863/864/865/866, WPC1252, katakana, ThaiCode 11/18 (1Pass/3Pass), TCVN-3
User memory 384 KB (capable of storing user-defined characters and logos)
Bar code types UPC-A/E, JAN(EAN) 13 digits/8 digits, ITF, CODE39, CODE128, CODABAR (NW-7), CODE93, PDF417, QR Code, GS1-DataBar
Line spacing 4.25 mm (1/6 inch) (Variable by command)

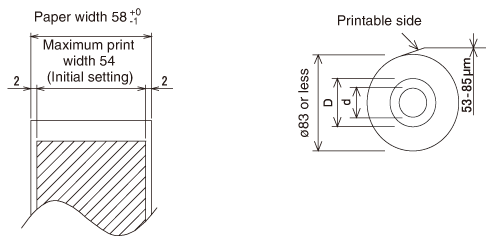

Paper roll Paper roll: 58 mm × ø83 mm max.
Paper thickness: 53 -75 μm (paper tube inner diameter: 12 mm /outer diameter: 18 mm)
75-85 μm (core tube diameter: inner 25.4 mm/outer 32 mm)
Interface Serial (RS-232C standard), USB, Bluetooth+USB, LAN, wireless LAN+LAN, LAN (USB host function) (USB 2 port)), Bluetooth (USB host function) (USB 2 port))
Cash drawer kick-out Supports 2 cash drawers
Input buffer 4 K bytes/45 bytes
Supply voltage DC 24 V ±5%
Power consumption Approximately 2.0 A (average), approximately 0.1 A (standby)
AC adapter
(36AD2/37AD5) 		Rated input: AC 100 to 240 V, 50/60 Hz, 150 VA
Rated output: DC 24 V, 2.1 A
Weight Approximately 1.3 kg

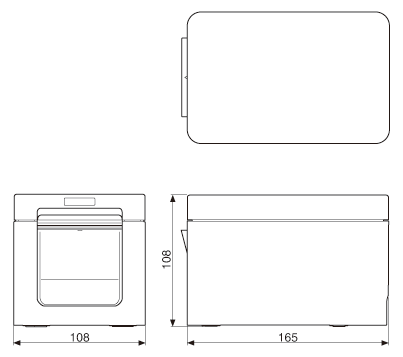

Outside dimensions 108(W)×165(D)×108(H) mm
Operating temperature and humidity 5 to 45°C, 10 to 90% RH (no condensation)
Storage temperature and humidity -20 to 60°C, 10 to 90% RH (no condensation)
Reliability Print head life: 150 km, 200 million pulses (at normal temperature/humidity, using recommended paper and paper thickness)
Auto cutter life: 2 million cuts (full cut), 2 million cuts (partial cut) (at normal temperature/humidity, using recommended paper and paper thickness)
Safety standard *3 UL, cUL, FCC, IC, CE, UKCA *4
Notes:
*1: The number of printable columns is selected using a memory switch.
The numbers of columns noted in this table refer to typical models. The number of columns varies depending on specifications.
*2: Characters appear small because the dimensions include a blank area surrounding each character.
*3: Compliant if the Citizen Systems AC adapter (36AD2/37AD5) is used.
*4: Please contact us for information on other regions and the latest status such as standardnumbers.
Printer Appearance
Names of parts
  • 1.Paper cover
  • Open to load paper.
    Also open to clear a cutter error.
    * The paper cover cannot be used for manual cutting.
    • Refer to Clearing a Cutter Error

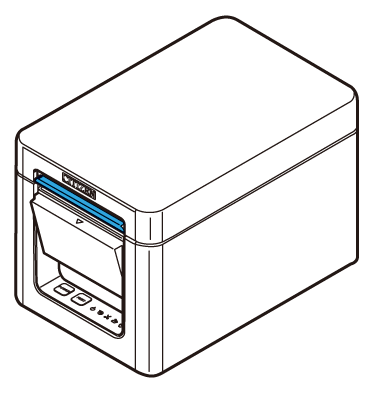

  • 2.Cover open lever
  • Use to open the paper cover.
  • 3.BEZEL LED (Blue)
  • Flashes while data is being received.
    Settings can be configured so this LED lights or flashes by user command.
  • 4.POWER button
  • Hold down two or three seconds to switch power on or off.
  • 5.FEED button
  • Press this button to feed paper.
    In case of a cutter error, press the FEED button with the paper cover closed after removing the cause.
    The printer enters the mode for setting memory switches and running self test.

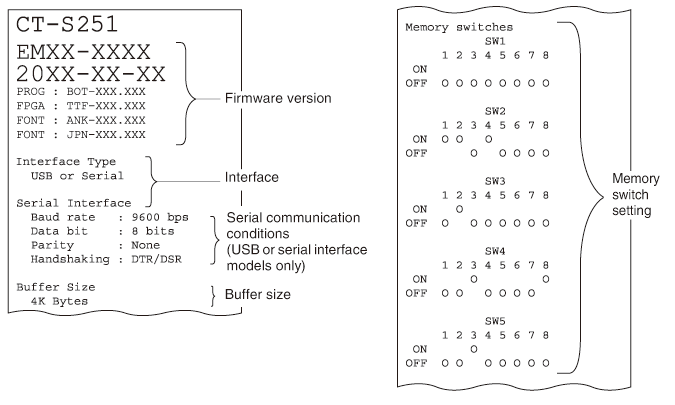

    • Refer to Self Test
    Refer to Manual Setting of Memory Switches
  • 6.Operation panel
  • 7.Rear connectors

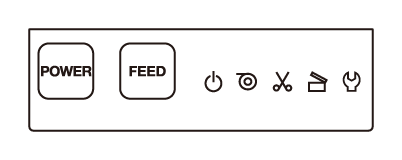

Operation panel
The operation panel has five LEDs and two buttons.
LED name Description
POWER LED Lights when the power is on, turns off when the power is off.
PAPER LED Lights or flashes when no paper or low paper is detected.
May also light or flash when other abnormalities are detected.
CUTTER LED Flashes when a cutter error is detected.
May also light or flash when other abnormalities are detected.
COVER LED Lights or flashes when an open paper cover is detected.
May also light or flash when other abnormalities are detected.
SERVICE LED Flashes when an unrecoverable printer abnormality is detected.
Refer to Error Indications
Rear connectors (serial interface example)
  • 1.Interface connector (serial, parallel, USB, etc.)
  • Connect to the interface cable.

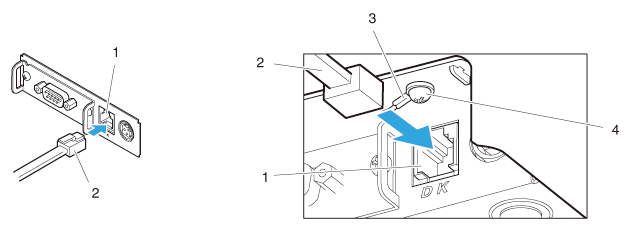

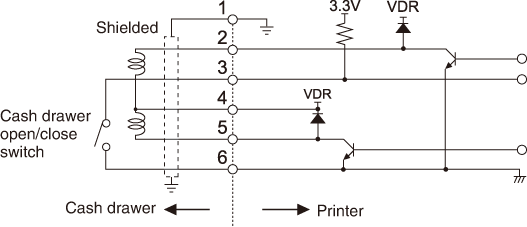

  • 2.Cash drawer kick-out connector
  • Connect to the cable from the cash drawer.
  • 3.Power connector
  • Connect to the AC adapter cable.

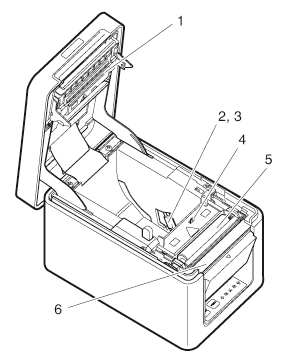

Inside the Paper Cover
  • 1.Print head (thermal)
  • Prints characters and graphic data on paper (paper rolls).

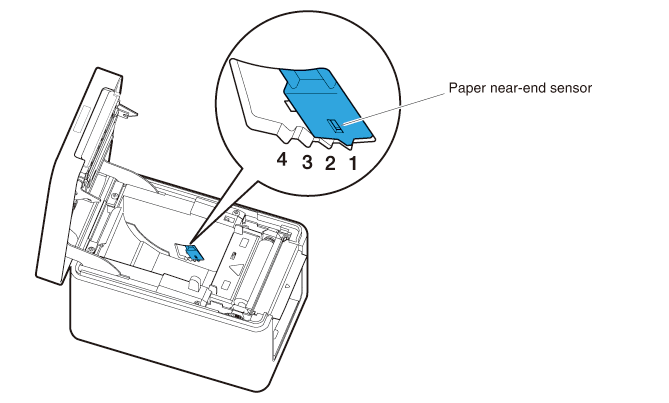

  • 2.Paper near-end (PNE) sensor
  • Detects when the paper is near the end of the roll. Adjust the position of the sensor to determine when it detects the end of the paper is near.
  • 3.Button to change paper near-end sensor
  • Change the position of the paper near-end sensor to match the paper being used.
    • Refer to Adjusting the Paper Near-end Sensor
  • 4.Paper end (PE) sensor
  • Detects when there is no paper. Printing stops when this sensor detects there is no paper.
  • 5.Platen
  • Feeds the paper.
    Do not remove the platen except to do maintenance.
  • 6.Auto cutter
  • Cuts the paper.
    • Refer to Manual Setting of Memory Switches
Other Built-in Functions
  • Buzzer
  • Buzzes when errors occur or when operations or command operations are performed.
    • Refer to Error Indications
  • User memory
  • You can save user-defined logo and character data in this memory. Data remains stored in this memory even if the printer is turned off. For information on how to save data, refer to the Command Reference.
  • Memory switch
  • Setting of various kinds of functions can be stored in memory. Settings remain stored in the memory even if the printer is turned off.
  • USB-linked power OFF (When MSW6-3 of memory switch is set to ON)
  • When the printer is connected to PC by USB, the printer becomes the state of USB-linked power OFF after 3 seconds when PC power off or USB connection lost.
    This mode is canceled when the PC is turned back on or when a USB connection is established.
CAUTION
  • Since the POWER LED is unlit when the state of USB-linked power OFF, it cannot be identified from the power OFF.
  • Pressing the POWER button while the state of USB-linked power OFF turns on power normally.
  • Paper saving functions
  • Memory switches MSW8-3 through MSW8-4 can be used to configure the settings below, which save paper.
    • Top margin suppression
    • The printer back feeds the paper before printing which reduces the blank space at the top edge of the paper.
      The back feed amount can be specified.
    • Line gap reduce
    • Automatically compresses the linefeed amount between lines. The compression ratio can be specified.
CAUTION
  • Before configuring the top margin suppression setting, first remove any partially cut paper from the printer. Failure to do so can cause the cut paper to be torn off by the next print operation, which can cause printer trouble.
  • Auto side shift (MSW8-6)
  • This function dissipates heat load during frequent heat generation by a vertical ruled line or other specific head heating element.
  • If no data is received within 15 seconds after each cut or print, the print position is automatically slid N* dots to the right. The original print position is returned to at the next slide timing.
  • * N is the MSW8-6 setting value.
CAUTION
  • If the right margin is too narrow, this may result in some print characters being cut off.
  • This function is disabled under initial settings.
  • To enable this function, use MSW8-6 to specify an appropriate value for the maximum slide amount.
Connecting the AC Power Cord
  • 1.Turn off the power.
  • 2.Connect the power connector to the AC adapter cable connector.
    Next, connect the AC power cord to the AC inlet, and insert the plug into an electric outlet.
  • 1.Cable connector
  • 2.Power connector
  • 3.AC adapter
  • 4.AC inlet
  • 5.AC power cord
CAUTION
  • Use only the specified AC adapter.
  • Always hold the AC adapter’s cable connector by the connector when removing or inserting it.
  • Use an AC power source that does not also supply power to equipment that generates electromagnetic noise.
  • Pulling on the AC power cord may damage it, cause a fire, electric shock, or break a wire.
  • If a lightning storm is approaching, unplug the AC power cord from the electric outlet. A lightning strike may cause a fire or electric shock.
  • Keep the AC power cord away from heat generating appliances. The insulation on the AC power cord may melt and cause a fire or electric shock.
  • If the printer is not going to be used for a long time, unplug the AC power cord from the electric outlet.
  • Place the AC power cord so that people do not trip on it.
  • Be sure to unplug the AC power cord when connecting the cable connector to the power connector. If the AC power cord is left plugged into the electric outlet, the 24 V and GND terminals of the cable connector may come into contact with the screw head or other metal parts and cause a short circuit, resulting in malfunction of the AC adapter.
Connecting Cables
  • 1.Turn off the power.
  • 2.Orient the cable correctly and insert it into the connector.
CAUTION
  • When disconnecting the cable, always hold the connector.
  • Be careful not to insert the USB cable into the cash drawer kick-out connector.
  • To connect more than one printer to a single computer by USB, you must change the serial number of the USB interface.
  • Hold the connector of the LAN cable perpendicular and straight when connecting or disconnecting it. Doing it at an angle may cause the connector to misconnect.
Use a serial cable with the connection layout shown below.
9-pin (female) - 9-pin (female) cable
CAUTION
  • Place the interface cable so that people do not trip on it.

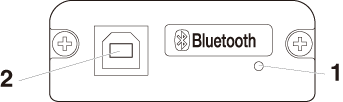

Bluetooth Interface Board
Names of parts
  • 1.Status LED
  • LEDs indicate communication/connection/error status for this interface board.
  • 2.USB connector
  • Receive data from the host computer via USB communication.
Bluetooth status LED
Status Description LED Status
Detection
standby
(Discoverable) 		Standing by for
detection and
connection
Connection
standby
(Connectable) 		Standing by for
connection
iOS connection Data session unopened
Communicating iOS: data session opened
Other OS: connection established and communication in progress
Error Error or settings being configured Unlit
Pairing operation
You need to perform the operations below the first time you establish a Bluetooth connection for Bluetooth data communication.
    • 1.Detect Bluetooth devices
    • 2.Configure pairing settings
  • 1.Detecting Bluetooth devices
  • Confirm that Bluetooth is enabled on the host PC before searching for Bluetooth devices.
  • This product will show up as "CT-S251_XX"(XX is last 2 digits of unique Serial Number.) when it is detected.
  • Select this product from among the detected devices.
  • Note: You can search for devices and change the names.
  • When memory switch MSW13-5 is set to "No Response," nothing is displayed by device detection.
  • You can temporarily switch this setting to device detection (detect mode) by opening the paper cover and holding down the FEED button for two seconds. Detect mode is exited when the connection between the host PC is terminated.
  • 2.Configuring pairing settings
  • Normally, selecting the printer during device detection will transition directly to pairing settings.
CAUTION
  • Some host PC configurations and models may not transition directly to pairing settings after the printer is selected during device detection.
The operation required to configure pairing settings depends on whether SSP (secure simple pairing) is enabled on the host PC.
If SSP is enabled on the host PC, pairing can be achieved without additional operations.
If SSP is disabled on the host PC, you will be prompted to input a passkey.
Input the passkey as described below.
Passkey

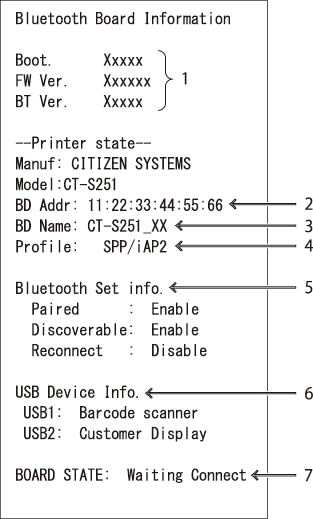

Last four digits of the address on the self test printout (Letters A through F are uppercase)
Example: If the address is 01:23:45:67:89:AB the passkey is 89AB.
If you delete paring information from the host PC without deleting the corresponding pairing information on the printer, the printer may not show up if you detect devices again with the host PC.
To delete printer pairing information, open the paper cover and then hold down the FEED button for five seconds.
Deleting pairing information on the printer will put the printer into discovery mode.
Auto reconnection
With iOS device Bluetooth communication, a connection between a paired iOS device and the printer is not automatically restored after it is lost. However, when auto reconnection is enabled, the printer tries to reconnect with an iOS device after two-way communication is enabled and automatically restores the connection.
CAUTION
  • This function is enabled when shipped from the factory. (MSW13-6)
    Auto reconnection can take some time to connect when the host is not an iOS device.
  • Even if the partner device is an iOS device, the conditions below can interfere with the auto reconnection function.
    • When you want Bluetooth communication to cut off after printing is complete
    • When there are multiple iOS devices printing on the same printer
  • Under such conditions, disable auto reconnection.
Enabling and disabling auto reconnect
During self test, open the cover, press the FEED button 3 times and close the cover
-> Auto reconnect = Valid
During self test, open the cover, press the FEED button 4 times and close the cover
-> Auto reconnect = Invalid
At the end of self test, new setting will be printed as Auto reconnect [Valid] or [Invalid].
Refer to Self Test
Bluetooth USB host interface board
In addition to printer control via Bluetooth communication, Bluetooth USB host interfaces can control peripheral devices connected via a USB port.
Names of parts
  • 1.Panel button
  • Control this interface board.
  • 2.USB 2 port
  • Connect a peripheral device.
CAUTION
  • Only connect peripheral devices specified by our company to the USB port.
  • Only plug in/remove peripheral devices when the printer power is turned off.
Pairing operation
You need to perform the operations below the first time you establish a Bluetooth connection for Bluetooth data communication.
    • 1.Detect Bluetooth devices
    • 2.Configure pairing settings
  • 1.Detecting Bluetooth devices
  • Confirm that Bluetooth is enabled on the host PC before searching for Bluetooth devices.
  • This product will show up as "CT-S251_XX"(XX is last 2 digits of unique Serial Number.) when it is detected.
  • Select this product from among the detected devices.
  • Note: You can search for devices and change the names.
  • When memory switch MSW13-5 is set to "No Response," nothing is displayed by device detection.
  • With these settings, pressing and holding the panel button for at least three seconds and then pressing it twice more places the product temporarily in a state where it will be found in device searching (discovery mode).
    Discovery mode cancels when the product is connected to a host PC.
  • 2.Configuring pairing settings
  • Normally, selecting the printer during device detection will transition directly to pairing settings.
CAUTION
  • Some host PC configurations and models may not transition directly to pairing settings after the printer is selected during device detection.
The operation required to configure pairing settings depends on whether SSP (secure simple pairing) is enabled on the host PC.
If SSP is enabled on the host PC, pairing can be achieved without additional operations.
If SSP is disabled on the host PC, you will be prompted to input a passkey.
Input the passkey as described below.
Passkey
Last four digits of the address on the self test printout (Letters A through F are uppercase)
Example: If the address is 01:23:45:67:89:AB the passkey is 89AB.
If you delete paring information from the host PC without deleting the corresponding pairing information on the printer, the printer may not show up if you detect devices again with the host PC.
When deleting pairing information, press and hold the panel button for at least three seconds, and after the buzzer sounds, press it four more times.
If successful, “Erase Bonded Device” is printed.
Deleting pairing information on the printer will put the printer into discovery mode.
Auto reconnection
With iOS device Bluetooth communication, a connection between a paired iOS device and the printer is not automatically restored after it is lost. However, when auto reconnection is enabled, the printer tries to reconnect with an iOS device after two-way communication is enabled and automatically restores the connection.
CAUTION
  • This function is enabled when shipped from the factory. (MSW13-6)
    Auto reconnection can take some time to connect when the host is not an iOS device.
  • Even if the partner device is an iOS device, the conditions below can interfere with the auto reconnection function.
    • When you want Bluetooth communication to cut off after printing is complete
    • When there are multiple iOS devices printing on the same printer
  • Under such conditions, disable auto reconnection.
Enabling and disabling auto reconnect
During self test, open the cover, press the FEED button 3 times and close the cover
-> Auto reconnect = Valid
During self test, open the cover, press the FEED button 4 times and close the cover
-> Auto reconnect = Invalid
At the end of self test, new setting will be printed as Auto reconnect [Valid] or [Invalid].
Refer to Self Test
Panel button operation
Use the panel button on the rear of the Bluetooth board to operate this board.
  • BT device search (MSW13-5) settings
    • 1.Press and hold the panel button to turn on printer power.
    • 2.Press the panel button within one second after starting the printer.
    • The setting changes in accordance with the number of times you press the panel button.
    • Two presses: Discovery possible
    • Three presses: No response
    • After these operations the printer restarts.
  • Print the interface board state
  • After starting the printer, pressing the panel button once prints the interface board state.
Print example
  • 1.Board firmware version
  • 2.Address of equipped Bluetooth module
  • 3.Bluetooth name
  • 4.Response profile in Bluetooth transmission
  • 5.Bluetooth setting state
  • 6.Name of connected USB device (“No connection” is displayed when there is no connection)
  • 7.Board status
Ethernet (LAN)/Wireless LAN Interface Board
This section provides an overview of the interface board. For details on this board, including explanations about the USB host function and XML peripheral device support, refer to the separate manual.

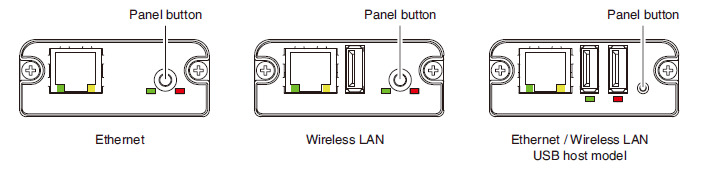

Panel button operation
Board operations are performed using the panel button on the rear of the LAN board.
  • Enabling LAN connection
  • Turn on the printer. Operation of this board will start about 20 seconds later.
  • Printing LAN setup information
  • Press the panel button.
  • Entering setting mode
  • Hold down the panel button. A buzzer* will sound once to indicate that setting mode has been entered.
    • You can use setting mode to read factory settings.
    • If no operation is performed for 3 seconds in configuration mode, the mode switches back to normal mode.
  • Returning to factory settings
  • Enter the board setting mode, and then hold down the panel button. This returns the board to its factory settings.
CAUTION
  • The board will automatically restart after this operation is complete. After clearing settings, you will need to re-configure network settings.

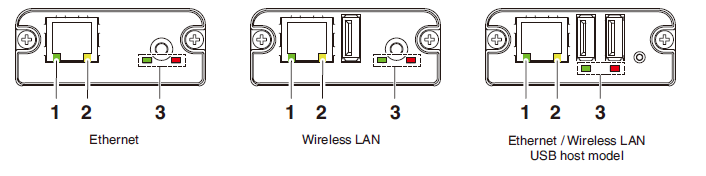

LED Functions
The tables below explain how to interpret LED indications.
  • 1.Wired LAN transmission speed
    • Transmission speed LED (green)
    100 Mbps Lit
    10 Mbps/Not connected Unlit
  • 2.Wired LAN connection/transmission status
    • Connection status LED (yellow)
    Connected Lit
    Not connected Unlit
    Data transmission in progress Flashing
  • 3.Wired/Wireless LAN status
    • Connection status LED (green) LED (red) Description
    No printer connection Unlit — Board is not connected with a printer.
    Printer connection No network connection Lit Unlit Board is connected with a printer.
    Connected by wired LAN Lit Flashing
    (1-second cycle)     		Getting an IP address from the DHCP server over wired LAN.
    Wired LAN operation Lit Lit Network operation being performed over wired LAN.
    Connected by wireless LAN * Flashing
    (2-second cycle)     		Flashing
    (1-second cycle)     		Connecting to an access point or getting an IP address from the DHCP server over wireless LAN.
    Wireless LAN operation * Flashing
    (2-second cycle)     		Lit Network operation being performed over wireless LAN.
    Resource error Alternate flashing
    (1-second cycle)    		 Board is unable to operate normally.
    System error Alternate flashing
    (0.2-second cycle)    		 Board is unable to operate normally.
    *: Only when using wireless LAN
Web Manager
The interface board has a Web Manager function that can be used to connect to the board with a web browser and change board settings.
Starting up Web Manager
  • 1.Start up a web browser.
  • 2.In the address field, input the board's IP address and then press [Enter].

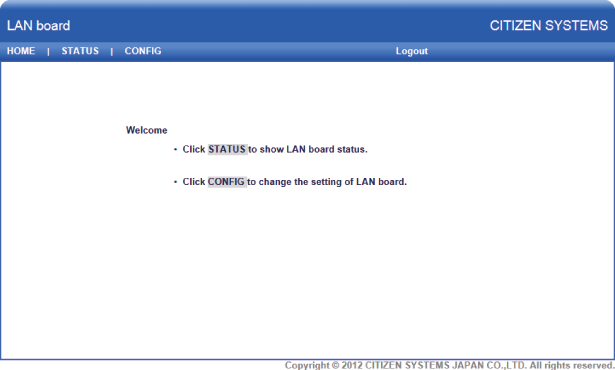

HOME Screen
This is the Web manager home screen.
The following screen is an example for a wireless LAN.
Here, press the [CONFIG] button.

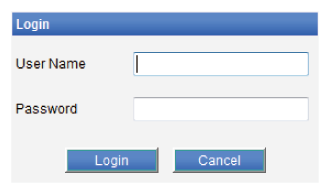

CONFIG Screen

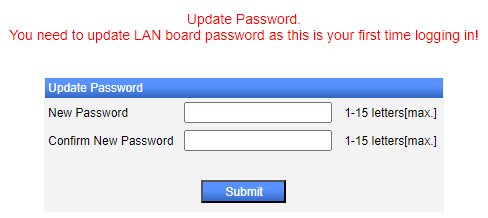

This will display the Login dialog box shown below. Log in as an administrator and then configure interface board settings.
  • User Name
  • Input a board administrator user name. (Initial setting: admin)
  • Password
  • Input the administrator user password. (Initial setting: admin)
  • [Login] button
  • After inputting an administrator user name and password, click the [Login] button.
    This displays the setting screen.
  • For details about settings, refer to the separate manual.
The previous model Ethernet (LAN) ＋ USB Interface Board
This section provides an overview of the previous model Ethernet (LAN) interface board. For details about this board, refer to the separate manual.
Panel button operation
Board operations are performed using the panel button on the Ethernet board. You can use the button to print setup information.
  • Printing network setup information
  • Press the panel button.
  • Returning to factory settings
  • Hold down the panel button. A buzzer* will sound and then hold down the panel button again within 3 seconds. It returns network settings to its factory settings.
  • * Depending on settings, the buzzer may not sound.
CAUTION
  • The board will automatically restart after this operation is complete.
  • If settings are configured to obtain an IP address from a DHCP server automatically, the new IP address may be different from the previous one.
LED Functions
The tables below explain how to interpret LED indications.
  • 1.Network transmission speed
    • Transmission speed LED (green)
    100 Mbps Lit
    10 Mbps/Not connected Unlit
  • 2.Network status
    • Status LED (yellow)
    Connected Lit
    Not connected Unlit
    Data transmission in progress Flashing
Changing network settings
You can use a web browser to access a special settings page to check and change board settings.
  • Access the special settings page
  • 1.Use a web browser to access the URL of the special settings page. Enter the IP address assigned to the printer as the part of URL. (Example: For an IP address of 169.254.1.10, input: http://169.254.1.10.)

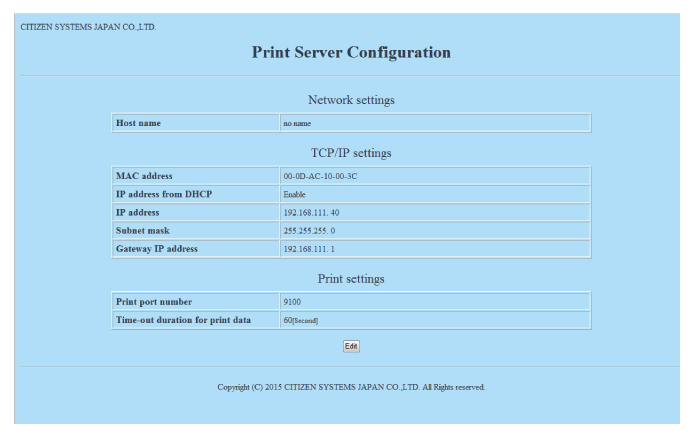

  • 2.This displays the page to display the current status.

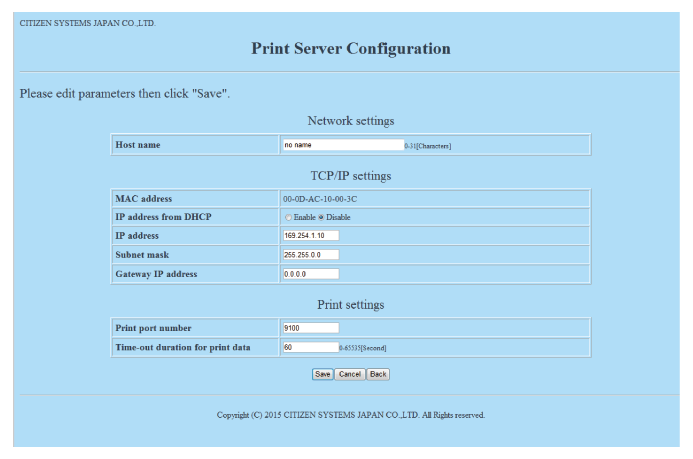

  • 3.Click the "Edit" button to display the "Print Server Configuration" page shown below.
    For details about settings, refer to the separate manual.
Connecting the Cash Drawer
  • 1.Turn off the power.
  • 2.Confirm the orientation of the cash drawer kick-out cable connector and connect it to the cash drawer kick-out connector at the back of the printer.
  • 3.Remove the screw for the ground wire.
  • 4.Screw the cash drawer’s ground wire to the body of the printer.
  • 1.Cash drawer kick-out connector
  • 2.Cash drawer kick-out cable connector
  • 3.Ground wire
  • 4.Screw for ground wire
CAUTION
  • Connect only the cash drawer kick-out cable to this connector. (Do not connect a telephone line.)
  • Signals cannot be output from the cash drawer kick-out connector while printing.
  • Hold the connector of the drawer kick cable perpendicular and straight when connecting or disconnecting it. Doing it at an angle may cause the connector to misconnect.
  • (1)Connector pin configuration
    • No. Signal Function
    1 FG Frame ground
    2 DRAWER1 Cash drawer 1 drive signal
    3 DRSW Cash drawer switch input
    4 VDR Cash drawer drive power supply
    5 DRAWER2 Cash drawer 2 drive signal
    6 GND Signal ground (common ground on circuits)
    Connector used:TM5RJ3-66 (Hirose) or equivalent
    Applicable connector: TM3P-66P (Hirose) or equivalent
  • (2)Electric characteristics
    • 1)Drive voltage: 24 VDC
    • 2)Drive current: Approx. 1 A max. (not to exceed 510 ms.)
    • 3)DRSW signal: Signal levels: “L” = 0 to 0.5 V, “H” = 3 to 5 V
  • (3)DRSW signal
  • Status can be tested by commands.
  • (4)Drive circuit
    • Cash drawer kick-out connector
CAUTION
  • Cash drawers 1 and 2 cannot be operated at the same time.
  • The solenoid used for the cash drawer should be 24 Ω or more. Do not allow the electric current to exceed 1 A. Excessive current could damage or burn out the circuits.
Precautions for Installing the Printer
This printer can only be positioned horizontally. It cannot be positioned vertically or on a wall.
Horizontal position Vertical position
CAUTION
  • Do not use the printer under the following conditions.
  • Avoid locations subject to vibration or instability.
  • Locations that are very dirty or dusty.
  • Avoid locations where the printer is not level.
    • The printer may fall and cause an injury.
    • The quality of printing may deteriorate.
  • Oriented other than as specified.
    • Malfunction, failure, or electric shock may result.
Adjusting the Paper Near-end Sensor
Change the settings of the paper near-end sensor to set the position at which the near-end of the paper is detected.
  • 1.Gently press the paper near-end sensor with your finger.
  • 2.Keep the paper near-end sensor pressed as you move it left and right. The sensor positions are shown below for the various diameters of the paper roll used.
(Unit: mm)
Sensor position Paper roll outer diameter when near-end is detected Exterior/ interior diameter of core of paper roll used
1* Approximately ø22.0 ø18/ø12
2 Approximately ø25.2 ø18/ø12
3 Approximately ø29.2 ø18/ø12
4 Approximately ø34.0 ø18/ø12
Notes:
*Sensor position when shipped from the factory. However, factory settings differ depending on the destination market.
CAUTION
  • The diameter of the roll of paper that is detected is an estimate. Some variations may occur depending on the paper.

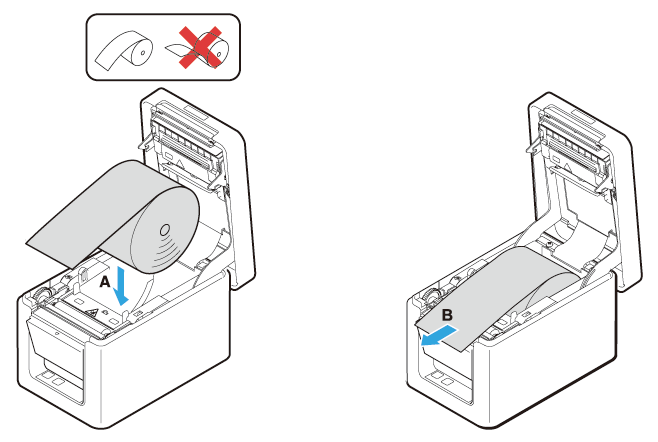

Loading Paper
  • 1.Turn on the power.
  • 2.Flip up the cover open lever to open the paper cover.
    • CAUTION
    • When pressing up on the lever, take care that you do not pinch your fingers in the gap above the top of the lever.
  • 3.Load the paper roll so that the printable side of the paper is facing up, as shown by arrow A.
  • 4.Pull a few centimeters of paper straight out in the direction of arrow B.
  • 5.Close the paper cover until you hear a click. Paper is fed and cut automatically (by the factory setting).
CAUTION
  • Always use the specified types of paper rolls.
  • Confirm that the paper roll is set correctly.
  • If the paper is skewed and not coming straight out of the paper cover, open it and straighten the paper.
  • Always pull a few centimeters of paper straight out of the printer if you open the paper cover while paper is loaded.
  • Press on the center of the paper cover to close it securely.
  • Be careful of paper cuts while loading the paper.
  • Do not touch the print head or auto cutter while the paper cover is open. Doing so may cause a burn or cut.
Mounting the Cable Cover
  • 1.Remove the screw for the ground wire.
  • 2.Screw the screw for the ground wire into the cable cover and the body of the printer.
  • 1.Screw for ground wire
  • 2.Cable cover
Precautions for Creating Applications and Practical Operations
If printing is done immediately after the paper is partially cut and torn off, the top of the next print out may be distorted.
For printing after cutting, we recommend to print with the first line empty.
If you are using a serial interface that has a slow data transmission speed, streaks may appear in the printouts when you are printing graphics or gradated text, which require large amounts of data.
USB interfaces may be susceptible to the effects of electromagnetic interference from the host or environment.
If this is the case, try using a cable with ferrite cores on both ends, which are very effective at eliminating EMI.
Download Site for Various Electronic Files
You can view support information and download the latest documents, drivers, utilities, etc. from the following site.
https://www.citizen-systems.co.jp/en/printer/download/#CT-S251
Periodic Cleaning
A dirty print head or platen may reduce printing quality or cause malfunctions. We recommend cleaning the printer periodically (every 2 to 3 months) as shown below.
  • 1.Turn off the power.
  • 2.Flip up the cover open lever to open the paper cover.
  • 3.Wait a few minutes until the print head cools.
  • 4.Use a cotton swab dampened with ethyl alcohol to wipe off any dirt and dust that is on the print head and platen.
  • 1.Print head
  • 2.Platen
CAUTION
  • The print head is hot immediately after printing. Do not touch it.
  • Do not touch the print head with bare hands or metal objects.
Clearing a Cutter Error
The CUTTER LED flashes, the PAPER LED and COVER LED light, and the auto cutter blade remains extended because a foreign object or paper jam is obstructing it.
If a cutter error occurs, clear the locked cutter as described below.
  • 1.Turn off printer power.
  • 2.Flip up the cover open lever to open the paper cover.
  • 3.Remove any jammed paper including any scraps of paper. (Remove the paper roll that is loaded in the holder also.)
  • 4.Reload the paper roll and close the paper cover.
  • 5.Turn on the power.
CAUTION
  • The print head is hot immediately after printing. Do not touch it.
  • Do not touch the print head with bare hands or metal objects.
Self Test
You can use self test to check for printer problems.
Performing a self test operation
  • 1.While paper is loaded, press and hold the FEED button and turn on the power.
  • 2.Hold the FEED button down for about one second until the buzzer sounds. Release the button to start self test. The printer will print its model name, version, memory switch settings, and built-in fonts.
Hexadecimal Dump Printing
Print received data in hexadecimal. If problems such as missing or duplicated data occur, this function allows you to check whether or not the printer is receiving data correctly.
How to do hexadecimal dump printing
  • 1.Load paper.
  • 2.While the paper cover is open, hold down the FEED button as you turn on printing power. Keep FEED button pressing until the POWER LED starts to flash, and then close the paper cover.
  • 3.The printer will print “HEX dump print mode” followed by the received data printed in hexadecimal numbers and some characters.
How to stop hexadecimal dump printing
Do one of the following to stop printing.
  • Press the FEED button consecutively three times
  • Turn off the power
  • Receive a reset command from an interface
CAUTION
  • The printer prints “.” if there is no character corresponding to the data.
  • None of the commands function during hexadecimal dump printing.
  • If print data does not cover a complete line, press the FEED button to advance the paper.
Print example
HEX dump print mode
Error Indications
  • Paper end, paper near-end
    The end of the roll of paper is detected at two stages, paper near-end and paperend.
    When paper near-end is detected, the PAPER LED flashes. Prepare a new paper roll.
    When paper end is detected, the PAPER LED lights and the buzzer sounds. Load a new paper roll. Memory switch settings can be used to disable the buzzer.
  • Cover open
    If the cover is opened, the COVER LED lights.
    The buzzer may also sound depending on the memory switch setting.
    Do not open the paper cover during printing. If the paper cover is opened by mistake, the COVER LED lights or flashes. Check the paper and pull a few cm of paper straight out of the printer before closing the cover. Printing resumes. Sending a command to resume printing may be required depending on the memory switch setting.
  • Cutter locked
    If the auto cutter cannot move because of a paper jam or something else, the CUTTER LED flashes. Remove the cause of the trouble and press the FEED button. If the auto cutter still does not operate and the paper cover does not open, refer to “Clearing a Cutter Error”.
    • Refer to Clearing a Cutter Error
  • Print head hot
    When you print dense characters, dark images, or for an extended time in a hot environment, the print head temperature increases. If the print head exceeds a specified temperature, the printer stops printing and waits for the print head to cool. When this happens, the PAPER LED, CUTTER LED, and COVER LED flash.
    Printing resumes automatically when the print head cools.
The status display for various messages is shown below.
Status PAPER LED CUTTER LED COVER LED SERVICE LED Buzzer*1
Paper near-end Unlit Unlit Unlit No
Paper-end Lit Unlit Unlit Unlit Yes*2
Cover open*3 Unlit Unlit Lit Unlit No*2
Cover open II*4 Unlit Unlit Unlit No
Cutter locked Unlit Unlit Unlit Yes
Low-voltage error Unlit No
Low-voltage error II Unlit Unlit Unlit No
High-voltage error Unlit Unlit Unlit Yes
System error Unlit Unlit Unlit No
Memory error Unlit Unlit Unlit No
Print head hot Unlit No
Waiting for macro to execute Unlit No
Notes:
*1: Buzzer sounds when MSW5-1 (buzzer setting) is set to ON.
*2: The buzzer can be set to sound or not sound with MSW10-5 (buzzer event).
*3: Indicated when a cover is opened during standby.
*4: Indicated when a cover is opened during printing.
Paper Jams
Take care to avoid obstruction of the paper outlet and paper jamming around the outlet during printing.
If paper cannot get out of the printer, it can roll up on the platen inside the printer and cause an error.
If the paper wraps around the platen, open the paper cover and carefully pull the paper out.
Serial Interface Operation Precautions
While using the serial interface, certain printing conditions can cause white stripes in printouts and feed failure. To avoid these problems, change memory switch settings as described below.
  • 1.Change MSW7-1 (serial baud rate) to a faster baud rate setting.
  • 2.Change MSW10-2 (print speed) to a lower level.
CAUTION
  • Depending on the serial interface transmission speed, ambient temperature, print data duty, and other factors, changing the above settings may not eliminate the problems.
External Views and Dimensions
(Unit: mm)
Printing Paper
Use the paper shown in the following table or paper of the same quality.
Paper type Product name
Recommended thermal roll paper TF50KS-E2D, TF50KR-2Y or TR50KJ-R from Nippon Paper
PD150R or PD160R from Ohji Paper
P220AG, HP220A, HP220AB-1, or P220AB from Mitsubishi Paper
(Unit: mm)
Paper thickness (μm) 53 to 75 75 to 85
Core inner diameter d (mm) ø12 ø25.4
Core outer diameter D (mm) ø18 ø32
CAUTION
  • Use thermal paper that is wound as follows:
  • Not creased and fits tight to the core.
  • Not folded.
  • Not glued to the core.
  • Rolled with the printable side out.
Manual Setting of Memory Switches
Memory switches are used to set various printer settings. Memory switches can be set manually, or by utilities or commands. This section explains how to perform manual settings.
For information on how to set the memory switches using commands, please refer to the Command Reference.
Individual setting mode
Set the memory switches individually.
Do the settings while confirming the memory switch function and settings on the printout.
  • 1.Load paper.
  • 2.While the paper cover is open, press and hold the FEED button and turn on the power.
  • 3.Press the FEED button twice and close the paper cover.
  • The printer enters the mode for setting memory switches individually.

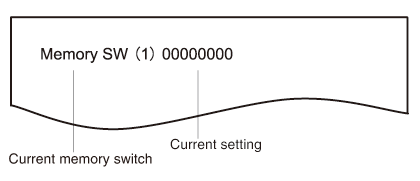

  • The printer prints “Memory SW (1)” and the current setting, 0 (off) or 1 (on).
  • (The current settings for memory switches 7 to 13 are not printed.)
  • 4.Press the FEED button.
  • Each press of the FEED button cycles through the list of memory switches in the following sequence: “Memory SW (1)” > “Memory SW (2)” > ...“Memory SW (11)” or “Memory SW (13)” > “Save To Memory” > “Memory SW (1)”.
  • Press the FEED button until the number for the memory switch you want to change is printed.
  • 5.Press the FEED button for at least two seconds.

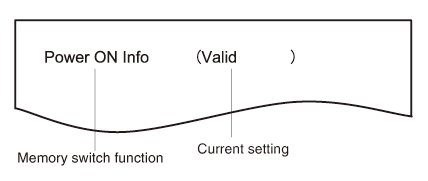

  • A setting for the memory switch is printed, through the cycle, each time the FEED button is pressed for at least two seconds.
  • Press the FEED button for at least two seconds to cycle through the list until the function of the memory switch you want to change is printed.
  • 6.Press the FEED button.
  • A setting is printed each time the FEED button is pressed in order through the cycle.
  • When the current settings are printed, the COVER LED lights.
  • Press the FEED button until the setting you want is printed.
  • 7.Press the FEED button for at least two seconds.
  • The selected settings are set.
  • The next memory switch function and settings are printed.
  • 8.Repeat steps 5 to 7 to change different functions for the current memory switch number.
  • 9.Open the paper cover and close it.
  • The changed memory switch settings are printed.
  • 10.Repeat steps 4 to 9 to change functions for a different memory switch number.
  • 11.Press the FEED button until “Save To Memory” is printed.
  • 12.Press the FEED button for at least two seconds.
  • The changed memory switch settings are saved and a list of them is printed.
  • The printer exits individual setting mode when printing is finished.
Memory switch initialization
Set all the memory switches to the factory settings.
  • 1.Do steps 1 through 3 of the procedure to enter individual setting mode.
  • 2.Press the FEED button until “Save To Memory” is printed.
  • 3.Open the paper cover.
  • 4.Press the FEED button for at least two seconds.
  • All memory switches change to the factory settings.
  • 5.Close the paper cover.
The function of each memory switch is shown in the following table. (Shaded values are factory settings.)
Switch no. Function OFF ON
MSW1-1 Power ON Info Valid Not Send
MSW1-2 Buffer Size 4K bytes 45 bytes
MSW1-3 Busy Condition Full/Err Full
MSW1-4 Receive Error Print“?” No Print
MSW1-5 CR Mode Ignored LF
MSW1-6 Reserved Fixed —
MSW1-7 DSR Signal Invalid Valid
MSW1-8 Init Signal Invalid Valid
MSW2-1 Reserved — Fixed
MSW2-2 Auto Cutter Invalid Valid
* MSW2-3 Spool Print Invalid Valid
MSW2-4 Full Col Print LineFeed WaitData
MSW2-5 Resume aft PE Next Top
MSW2-6 Reserved Fixed —
MSW2-7 Reserved Fixed —
MSW2-8 PNE Sensor Valid Invalid
MSW3-1 Resume Cttr Err Valid Invalid
MSW3-2 PE signal by PNE Valid Invalid
MSW3-3 Reserved Fixed —
MSW3-4 Reserved Fixed —
MSW3-5 Reserved Fixed —
MSW3-6 Reserved Fixed —
MSW3-7 CBM1000 Mode Invalid Valid
MSW3-8 Resume Open Err Close Command
MSW4-1 Reserved Fixed —
MSW4-2 Reserved Fixed —
MSW4-3 Feed&Cut at TOF Invalid Valid
MSW4-4 Reserved Fixed —
MSW4-5 Reserved Fixed —
MSW4-6 Reserved Fixed —
MSW4-7 Reserved Fixed —
MSW4-8 Partial Only Invalid Valid
MSW5-1 Buzzer Valid Invalid
MSW5-2 Line Pitch 1/360 1/406
MSW5-3 USB Mode Virtual COM Printer Class
MSW5-4 Reserved Fixed —
MSW5-5 GradationQuality Quality Speed
MSW5-6 Reserved Fixed —
MSW5-7 Reserved Fixed —
MSW5-8 Reserved Fixed —
MSW6-1 Act. For Driver Invalid Valid
MSW6-2 Character Space Invalid Valid
MSW6-3 USB Power Save Invalid Valid
MSW6-4 Reserved Fixed —
MSW6-5 Reserved Fixed —
MSW6-6 Reserved Fixed —
MSW6-7 Reserved Fixed —
MSW6-8 Reserved Fixed —
Switch no. Function Initial setting Setting value
MSW7-1 Baud Rate 9600 bps 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps
MSW7-2 Data Length 8bits 7bits, 8bits
MSW7-3 Stop Bit 1bit 1bit, 2bits
MSW7-4 Parity NONE NONE, ODD, EVEN
MSW7-5 Flow Control DTR/DSR DTR/DSR, XON/XOFF
MSW7-6 DMA Control Valid Valid, Invalid
MSW7-7 VCom Protocol PC Setting PC Setting, DTR/DSR, XON/XOFF
MSW8-1 Print Width 432dots 436dots, 432dots, 420dots, 390dots, 384dots, 360dots
MSW8-3 Top Margin 11mm 6mm, 7mm, 8mm, 9mm, 10mm, 11mm
MSW8-4 Line Gap Reduce Invalid Invalid, 3/4, 2/3, 1/2, 1/3, 1/4, 1/5, ALL
MSW8-5 Reduced Char V/H 100% / 100% 100% / 100%, 75% / 100%, 50% / 100%, 100% / 75%, 75% / 75%, 50% / 75%
MSW8-6 Auto Side Shift Invalid Invalid, 1 dot, 2 dots, 3 dots, 4 dots, 5 dots, 6 dots, 7 dots
MSW8-7 Liner Free Mode Invalid Invalid, 1 h, 6 h, 12 h, 18 h, 24 h, 5 m, 10 m
15 m, 20 m, 30 m
MSW9-1 Code Page PC437 PC 437, Katakana, PC 850, PC 858, PC 860, PC 863, PC 865, PC 852, PC 866, PC 857, WPC1252, Space page, PC 864, ThaiCode11 1Pass, ThaiCode11 3Pass, ThaiCode18 1Pass, ThaiCode18 3Pass, TCVN-3
MSW9-2 Int’Char Set U.S.A USA, France, Germany, England, Denmark, Sweden, Italy, Spain, Japan, Norway, Denmark 2, Spain 2, Latin America, Korea, Croatia, China, Vietnam
MSW9-3 Kanji OFF ON, OFF
MSW9-4 JIS/Shift JIS JIS JIS, Shift JIS (PC932), Shift JIS (x0213)
MSW10-1 Print Density 100 % 70 %, 75 %, 80 %, 85 %, 90 %, 95 %, 100 %, 105 %, 110 %, 115 %, 120 %, 125 %, 130 %, 135 %, 140 %
MSW10-2 Print Speed Level 9 Level 1, Level 2, Level 3, Level 4, Level 5, Level 6, Level 7, Level 8, Level 9
MSW10-4 Old Command Invalid Invalid, CBM1, CBM2
MSW10-5 Buzzer Event Not By C. Open All Event/Error, Not by C.Open, Not by C.Open/PE
MSW10-6 Buzzer Sound Tone 2 Tone 1, Tone 2, Tone 3, Tone 4
MSW11-1 Bezel LED Blink by Recv Off, On, Blink, Blink by Recv
MSW13-1 Security/Target Low/All Low/All, Mid/All, Mid/Paired only, Hi/All, Hi/Paired only
MSW13-5 BT Device Scan Discoverable No Response, Discoverable
MSW13-6 Auto Reconnect Valid Invalid, Valid
Notes:
*If print data is very dense, the print head is hot, data transmission is slow, or some other conditions, the motor and printing may occasionally stop which causes white stripes in the printout. To print high-density data, set MSW2-3 (Spool Print) to ON to reduce striping, although this increases the time before printing starts.
For a serial interface, increase the transmission speed to prevent the motor from stopping.
