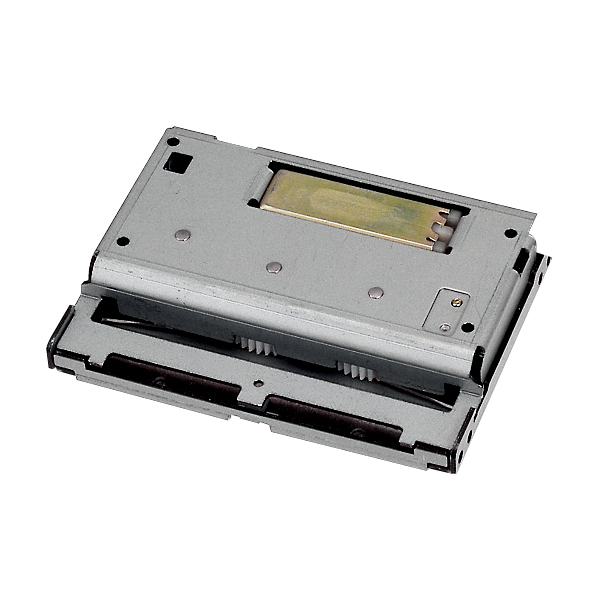

ACS-220 |

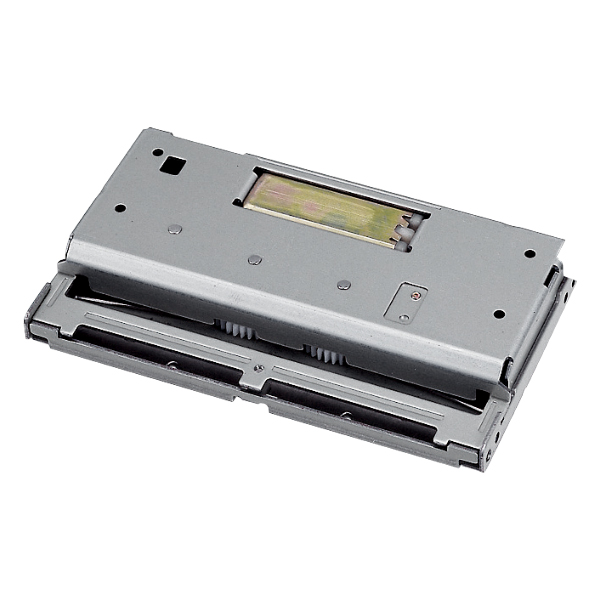

ACS-230 |

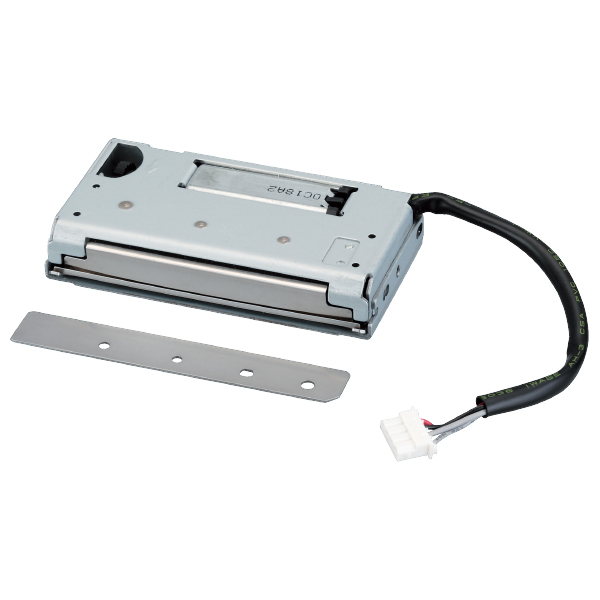

ACS-520 |

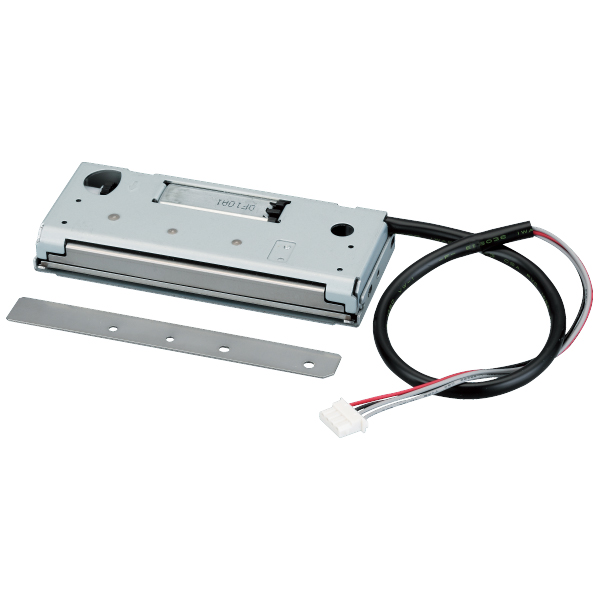

ACS-530 |
|
|---|---|---|---|---|
| Model Number | ACS-220 | ACS-230 | ACS-520 | ACS-530 |
| Cutting Method | Slide Shearing Method | Slide Shearing Method Combination Full or Partial Cut |
||
| Paper Width | 45 to 69mm | 50 to 80mm | 45 to 65mm | 50 to 83mm |
| Paper Thickness | 0.06 to 0.15mm | |||
| Maximum Cuts/1 minute | 20 cuts/minute | |||
| Voltage | 24V±10% (ACS-224 only: 5V±10% drive) | 24V±10% | ||
| Operating Temperature | 0 to 45℃ | 0 to 55℃ | ||
| External Dimensions | 80(W) × 55.7(D) × 15(H) mm | 102(W) × 55.7(D) × 15(H) mm | 80(W) × 40.7(D) × 15(H) mm | 102(W) × 40.7(D) × 15(H) mm |
| Mass | 140g | 180g | Approx. 130g | Approx. 150g |
| Reliability | 1 million cuts (paper thickness of 65μm) | 1 million cuts | ||
| Compatible Models | LT-286＋（ACS-224）, LT1220/2220（ACS-225） | LT1320/2320（ACS-235） | LT-2221 | LT-2321 |

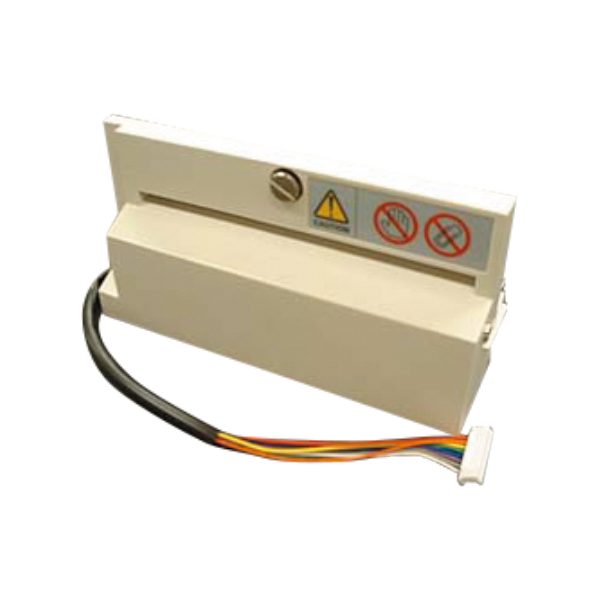

Slide Shearing cutter |

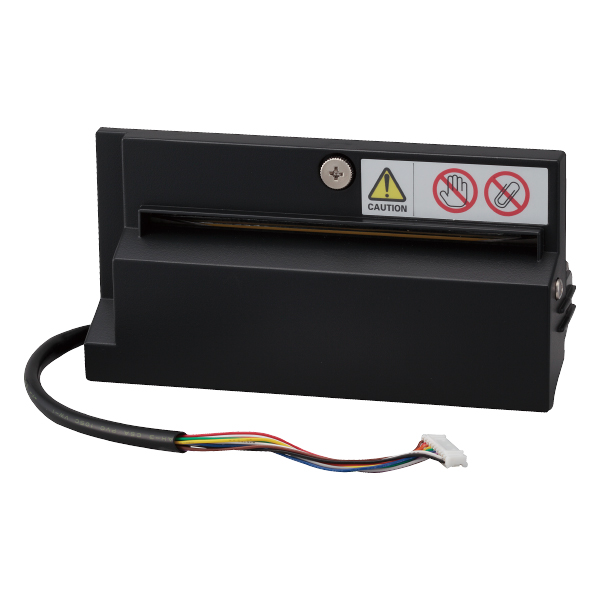

Slide Shearing cutter |

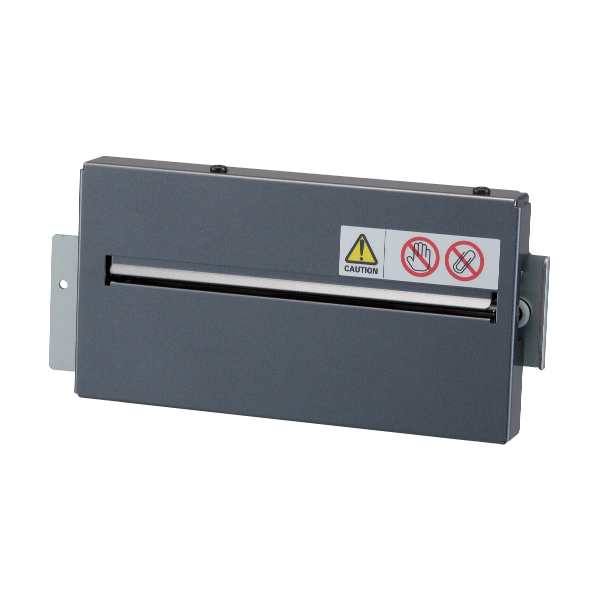

Pizza Cutter |

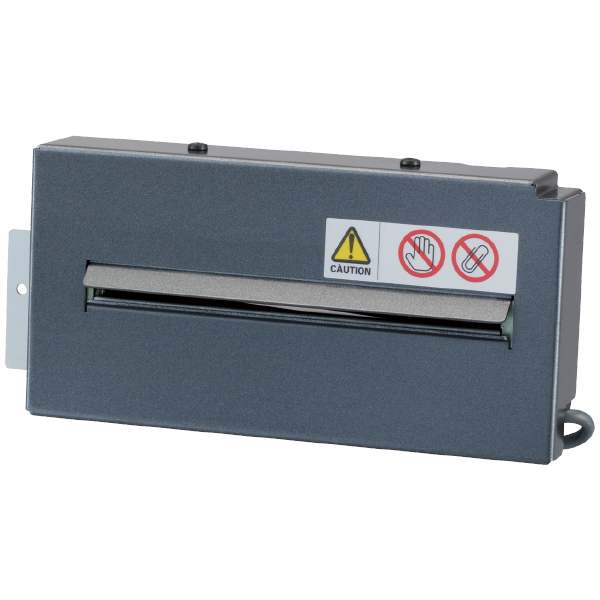

Rotary cutter |

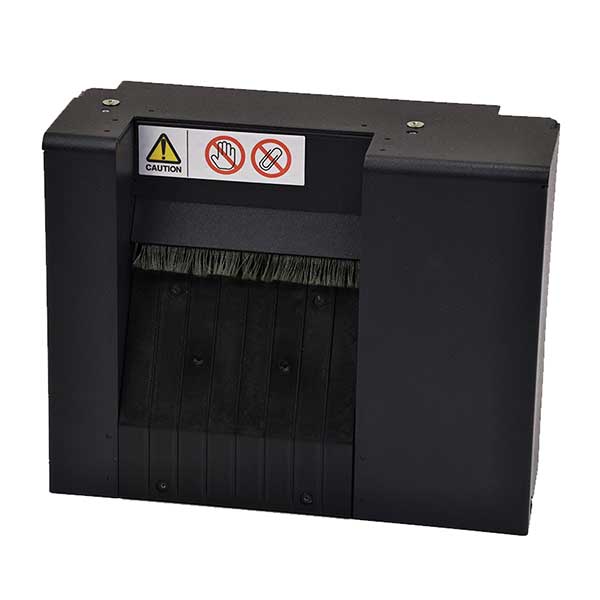

care label cutter |
|
|---|---|---|---|---|---|
| Product Number | JM98901 | JM98916 | JN98901 | JN98911 | PPN00053 |
| Compatible Models | CL-S521/531/621/631 CL-S400DT |
CL-E720/730 | CL-S700/703/700II/703II/700III/703III | 700III/703III | |
| Cutting Method | Slide Shearing Method | Pizza Cutter Method | Rotary Method | ||
| Paper Width | 25.4 to 118mm | 25.4 to 118mm | 25.4 to 70.0㎜ | ||
| Paper Thickness | 0.06 to 0.254mm | 0.25mm | 0.28mm | 0.06 to 0.15㎜ | |
| Maximum Cuts/1 minute | 40 cuts/minute | 120 cuts/minute | |||
| Voltage | 24V±10% | ||||
| Operating Temperature | 5 to 40℃ | 5 to 35℃ | |||
| External Dimensions | 146(W) × 75(D) × 40(H) mm | 180(W) × 85(D) × 58(H) mm | 180(W) × 85(D) × 41(H) mm | 165.9(W) ×129.6(D) ×77.5(H) mm | |
| Mass | 500g | 480g | 800g | 2100g | |
| Reliability | 300,000 cuts or more | 300,000 cuts or more (paper thickness of 60 to 150μm) 100,000 cuts or more (paper thickness of 150 to 250μm) |
1 million cuts or more (paper thickness of 280μm) | 500,000 cuts or more(May vary depending on the media) | |
