POS Printers: Lightning & USB Host

Connecting a single cable from an iPad allows printing and control of peripheral equipment.
Apple MFi certified Lightning printers

Interface:
Lightning models

This product is not for all the regions.
Please contact us for the availability in your region.

Features of Lightning printers

Feature#1 Easy installation

Charging, printing, and peripheral control via a single cable
No need for pairing or other complicated setup

Feature#2 Stable operation

Reliable data transfer by the wired connection
Uses high-speed data transfer method (up to 480 Mbps)

Feature#3 Various peripherals

Up to three USB peripherals connected together
Three types of peripherals available including automatic change machine
(No need for a LAN environment with routers, LAN-serial converters, etc.)

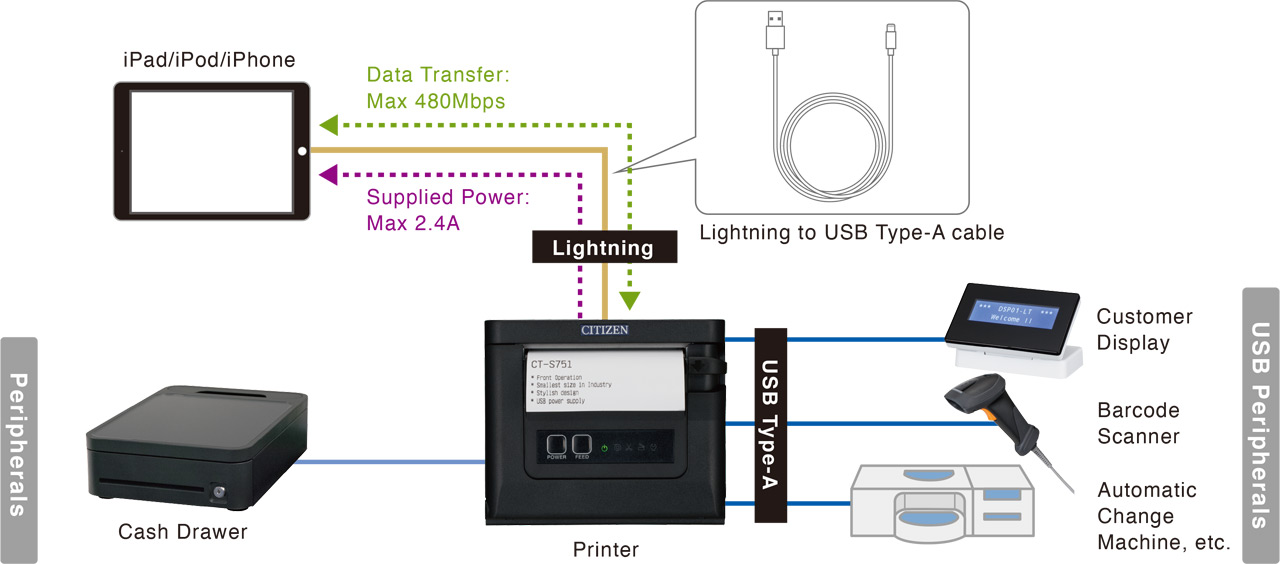

Connection diagram

Connect the printer to an iOS device (iPad, iPod, or iPhone) using a Lightning to USB Type-A cable. Data Transfer: Up to 480 Mbps, Supplied Power: Up to 2.4 A

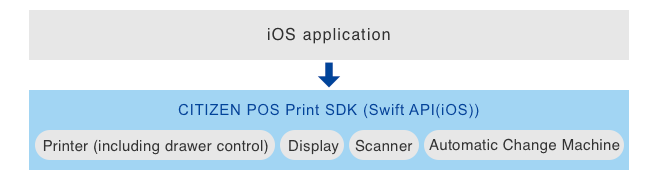

Software Structure

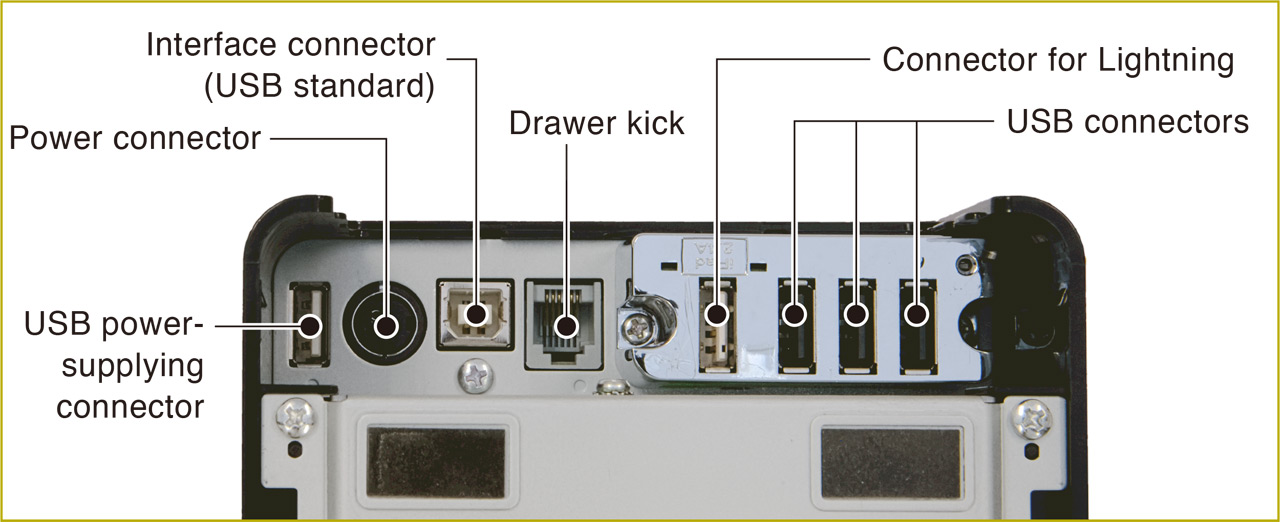

Interface area

USB power-supplying connector, Power connector, Interface connector (USB standard), Drawer kick, Connector for Lightning, USB connectors

*USB power-supplying connector cannot be used on Lightning models

Printer with Lightning

CT-S751

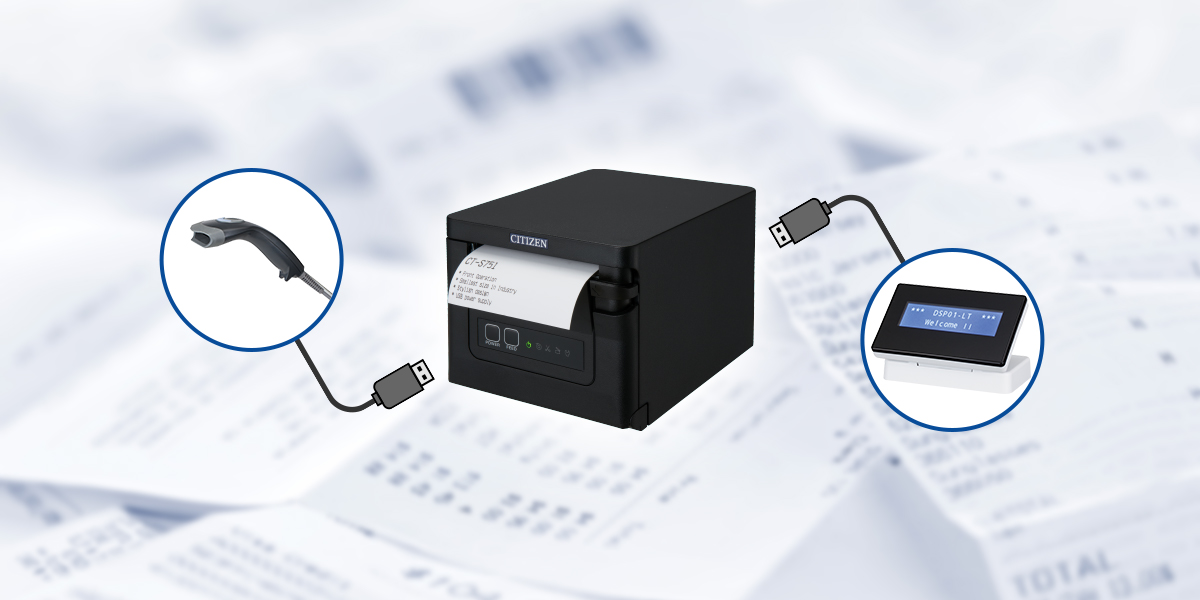

Keep the cashier space clean and tidy
by connecting USB peripherals to the printer!
Introducing POS printers with USB Host function
and POS peripheral devices

Overview of POS printers with USB Host function

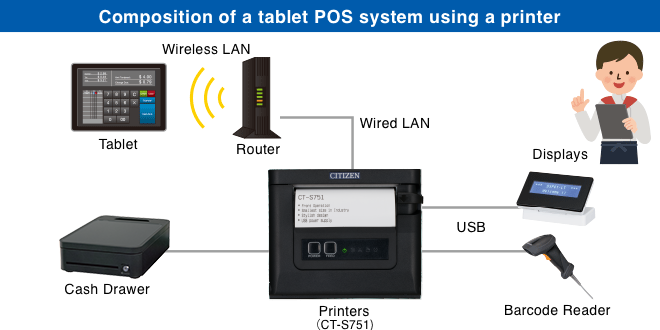

Composition of a tablet POS system using a printer

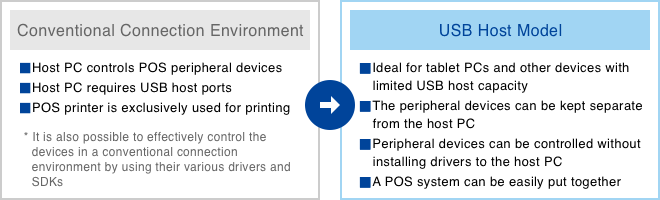

Comparison of conventional connection environment and USB host model

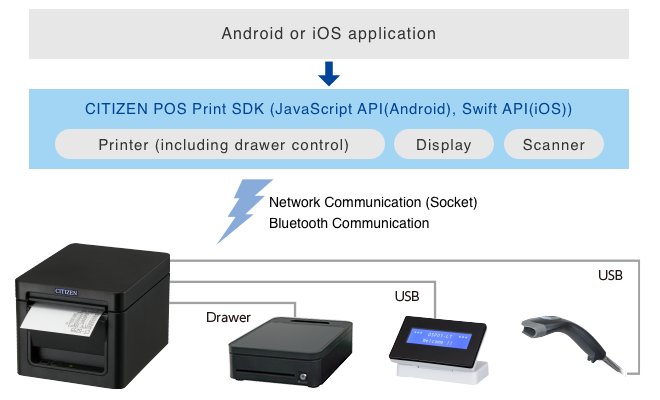

Android/iOS Environment

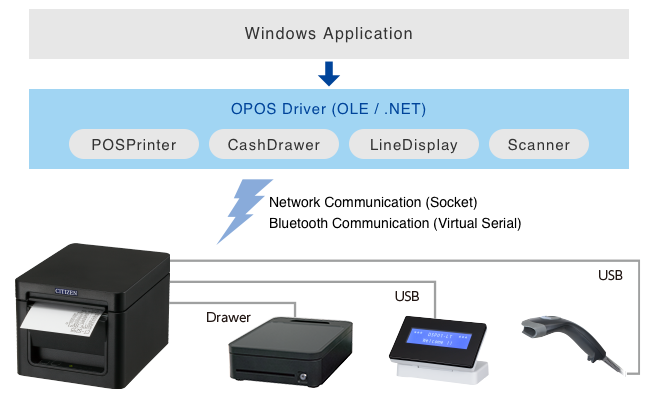

Windows Environment

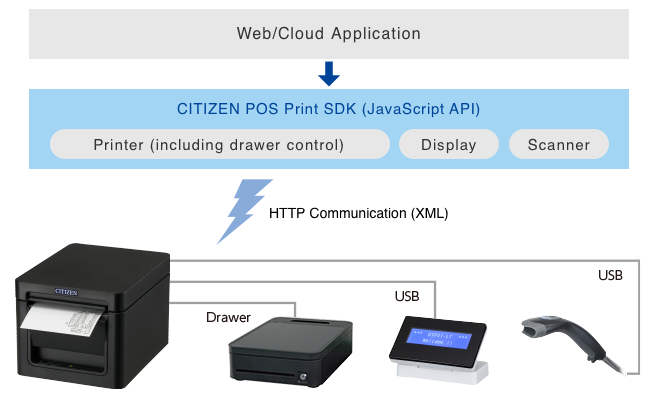

Web/Cloud Environment

Customer Displays


Model Number	DSP01-LTJW/B	DSP02-LSJW/B
Display Format	TFT LCD	STN LCD
Resolution	480×140 dots	320×32 dots
Characters Displayed	20 columns × 2 lines (alphanumeric) 10 columns × 2 lines (kanji)	20 columns × 2 lines
Dot Composition of Character	24 × 48 dots (alphanumeric) 48 × 48 dots (kanji)	16×16 dots
Dot Size	0.066×0.198mm	0.375×0.625mm
Brightness	250cd/m²	200cd/m²
Character Types	Alphanumeric, kanji, hiragana, katakana, Chinese (simplified, traditional), Korean	Alphanumeric, kanji, hiragana, katakana, Chinese (simplified, traditional), Korean
Character Size	4.8×9.5mm	6×10mm
Display Area	97×30mm	120×20mm
External Dimensions	132(W) × 91(D) × 87.3(H) mm	147(W) × 89.9(D) × 67.5(H) mm
Mass	450g	380g

Scanners


Model Number	SCN01-Z1DB	SCN02-Z2DB
Scanning Light Source	Red LED (617nm)	Fluorescent LED (6500K)
Scanning System	Linear CCD Array	CMOS（640×480 pixel）
Scan Speed	330 scans/sec.	-
Scanning Depth (@UPC/EAN00%, PCS=90%)	0-300mm	30-200mm
Scannable Codes	One Dimensional	One Dimensional/Two Dimensional
External Dimensions	64(W) × 152(D) × 104(H) mm	66(W) × 82(D) × 163(H) mm
Mass	84g	143g
