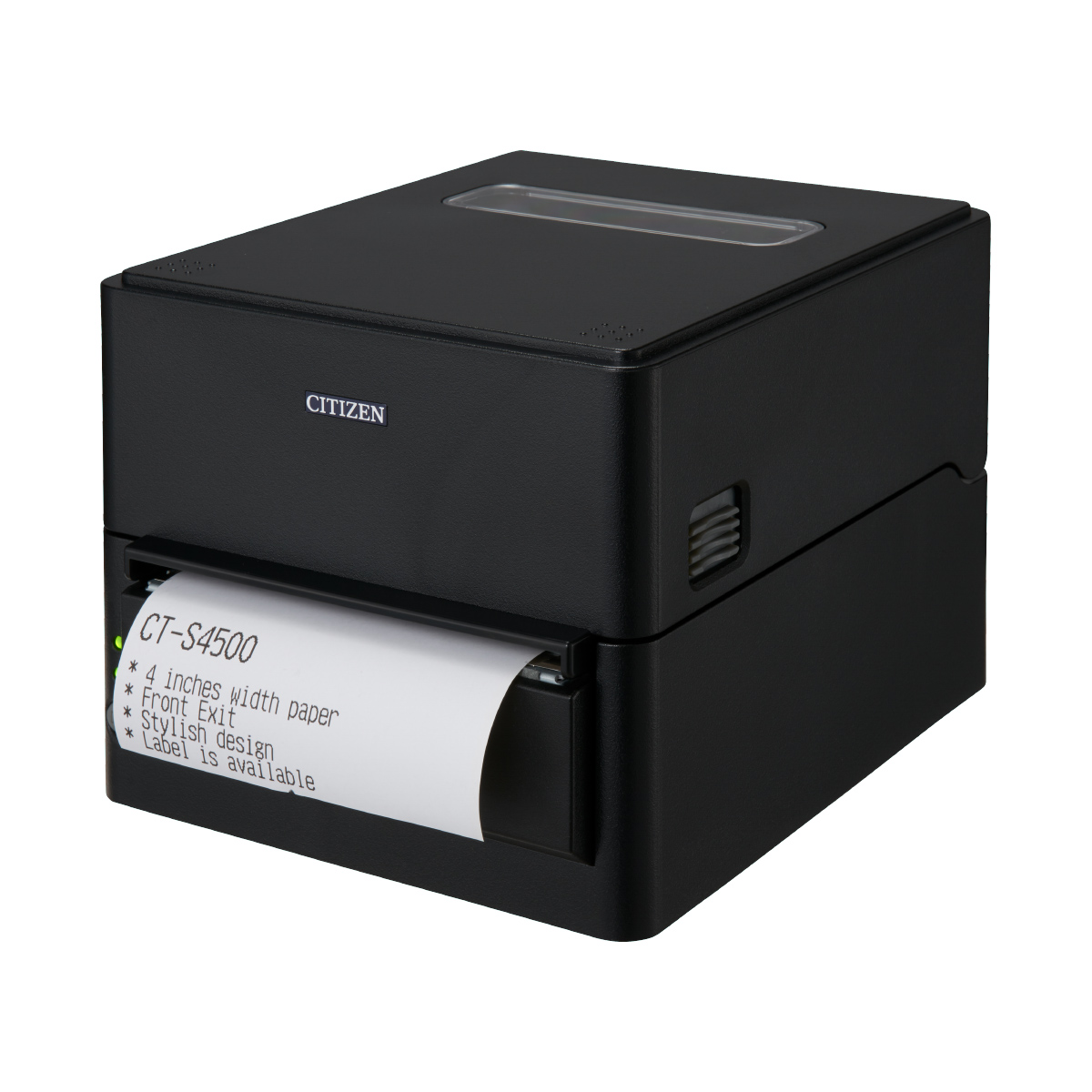

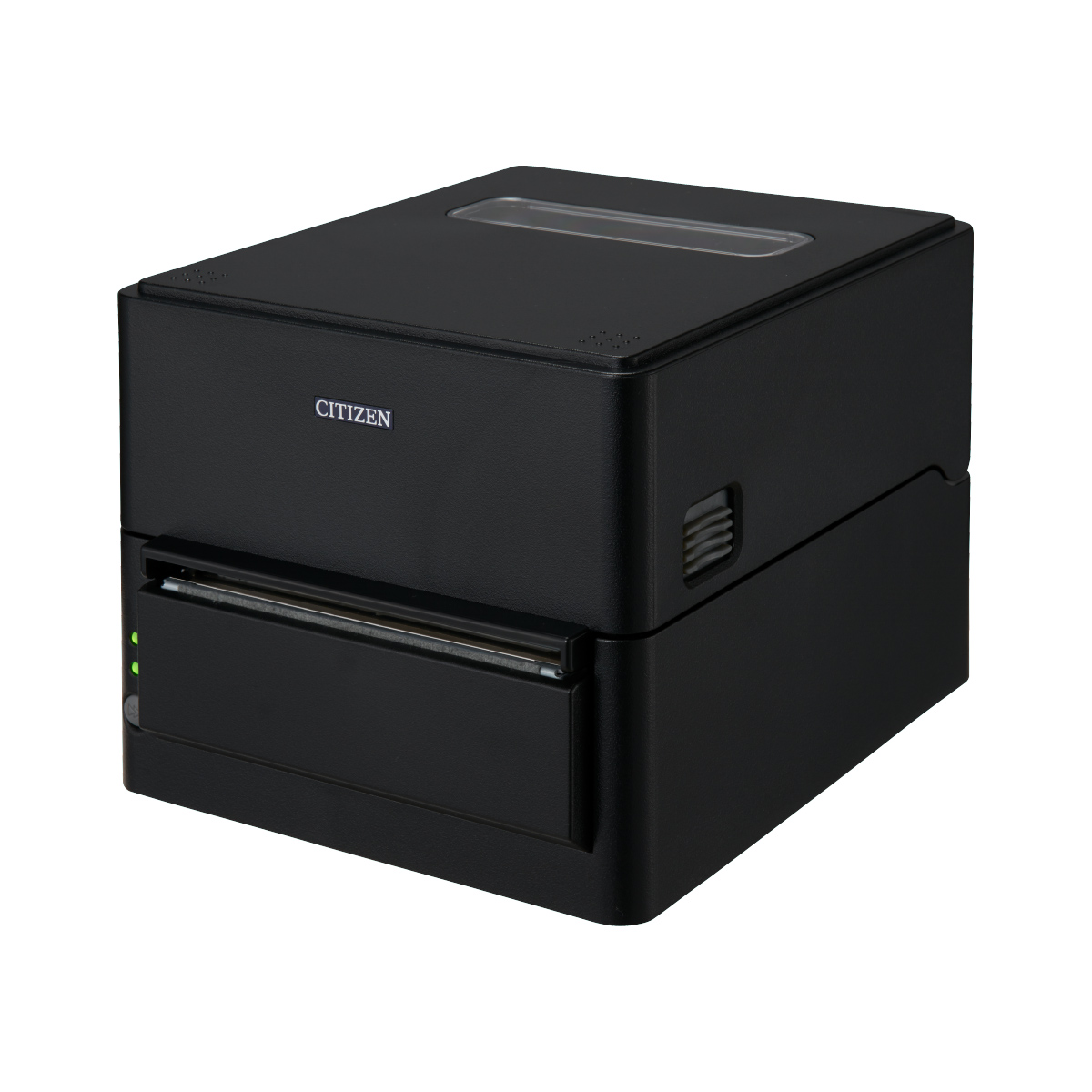

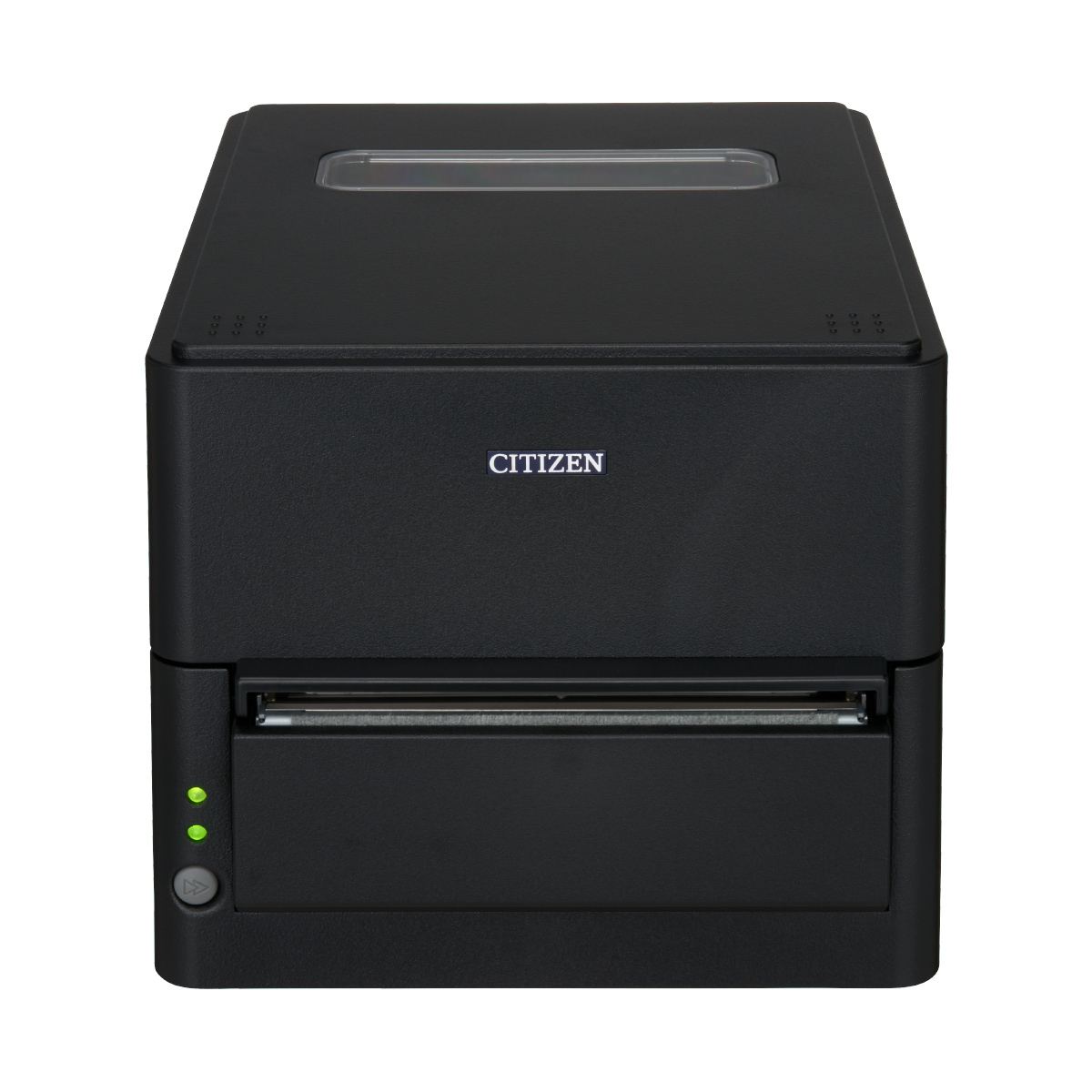

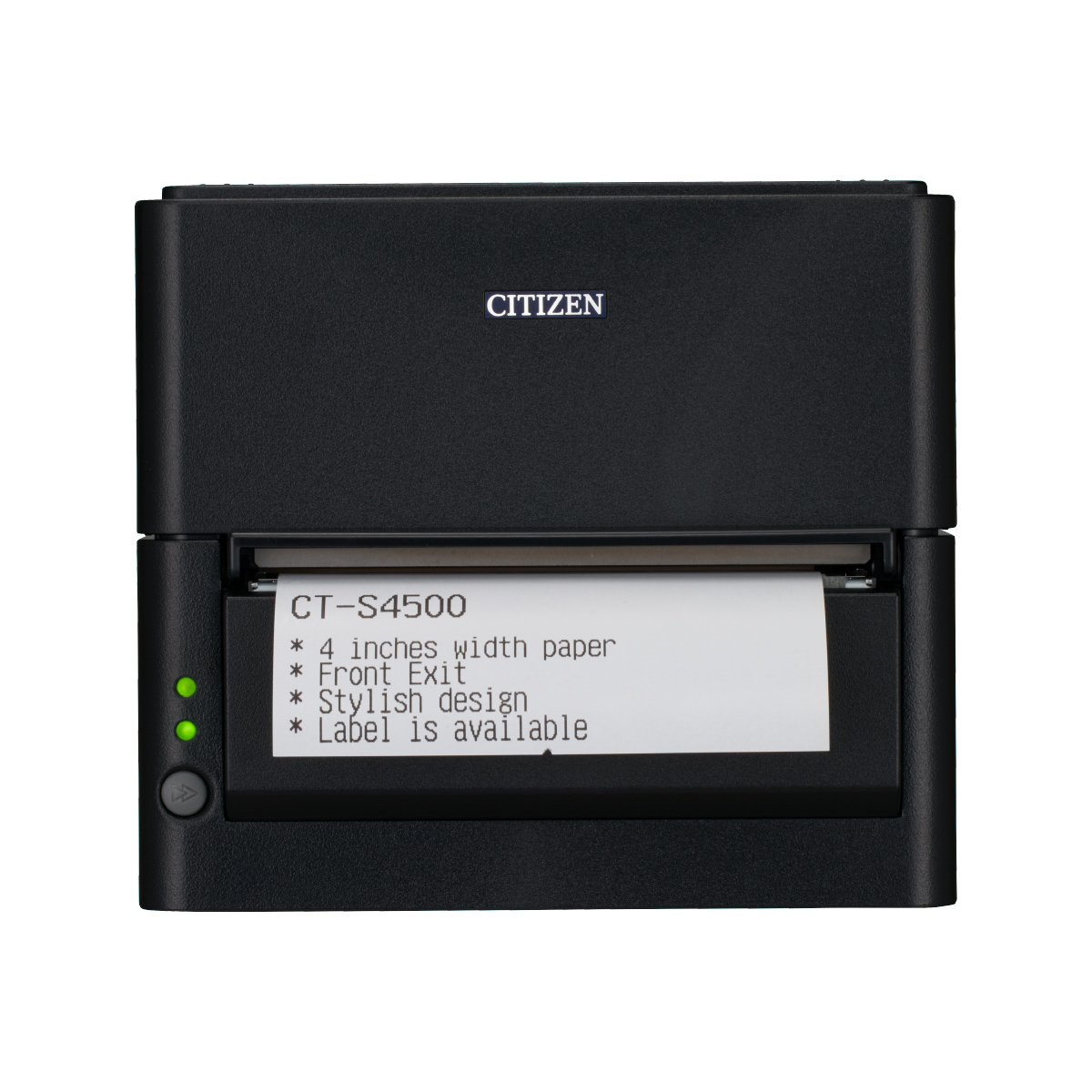

Receipt PrinterCT-S4500

Thermal receipt printer supporting 112mm paper width

  • ENERGY STAR
Paper Width
58mm*labels only
80mm
112mm
Print Method
Direct Thermal Printing
Functions
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker

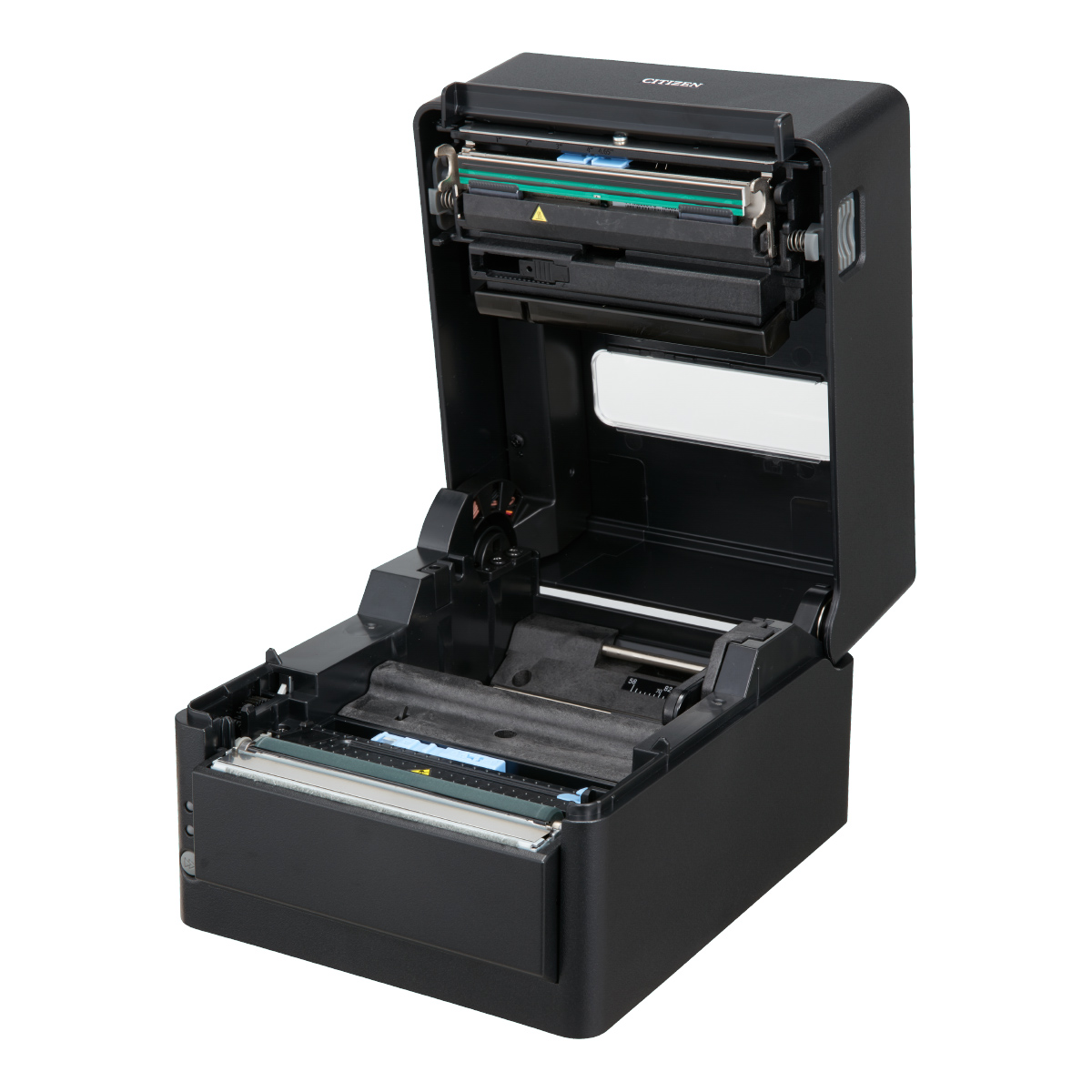

  • Drop-in Paper Loading
  • Shaft for Paper Roll
Applications
  • Receipts
  • Tickets
  • Kitchen
  • Barcodes
  • 2D Barcodes

Features

  • High-speed printing at 200mm/sec.

    Achieves one of the industry’s highest speeds for a 4-inch POS printer at 200mm/sec.

  • Supports paper rolls up to 102mm in diameter, as well as various paper types

    Selection of either a drop-in paper loading method or a paper shaft method
    - Thermal Paper Roll: 80 to 112mm
    - Thermal Label Paper Roll: 58 to 112mm

  • Features dual interfaces

    In addition to a standard USB interface, there are several options to choose from.
    Select a USB host model for uncluttered connection of peripheral devices

  • XML/Web app printing

    Supports printing by directly sending XML data to the printer without installing a device driver (SDK) (equipped as standard with LAN model)

  • Provides USB power

    Equipped as standard with a powered USB port which can charge tablets and other devices (up to of 2.1A)

  • Supports multilingual printing

    Ability to print multiple international character sets.
    (Compatible languages: Simplified Chinese, Traditional Chinese, Japanese, Hangul)

  • Supports many different uses

    Prints both receipts and labels.

  • Paper-saving function (ECO Printing)

    Capable of using approximately 25% less paper by elimination of the top margin, compression of space between lines, and font size reduction.

  • Extensive variety of character types

    Support for Simplified Chinese, Traditional Chinese, and Korean Hangul
    Support for Thai and Vietnamese characters
    Supports UTF-8

Introductory Video

Main Applications

  • Receipts

  • Tickets

  • Kitchen

  • Barcode Printing

Used in the following industries

  • Hospitality

  • Distribution

  • Healthcare/Clinical

Basic Functions

Features
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading
  • Thermal
Supported Interfaces
  • USB
  • Serial
  • Wired LAN
  • Wireless LAN
  • Bluetooth
  • USB Host + Wired LAN
  • USB Host + Bluetooth
Available Drivers
  • Windows
  • OPOS
  • CUPS
Supported Platform by SDKs
  • Android
  • iOS
  • Windows
  • Linux for ARM
Smartphone/Tablet Compatibility
  • AndroidBluetoothUSBWireless LAN
  • iOSBluetoothWireless LAN

Specifications

Print Method Direct Thermal Printing
Printing Width 4 inch = 104mm, 90mm / 3 inch = 82.5mm, 72mm, 68.25mm, 64mm / 2 inch (labels only) = 54.5mm, 54mm, 52.5mm, 48mm, 45mm
Maximum Printing Speed 200mm/sec. * Print Density 100%
Paper Paper Thickness: 60 to 150μm
Auto Cutter: equipped as standard (partial cut as well as full cut) Full cut only for Thermal Label Paper Roll and for Thermal Paper Roll with a paper thickness of 85μm or more
Number of Columns Printable When paper width is 112mm:
Font A: 69 columns (12×24 dots)
Font B: 92 columns (9×24 dots)
Font C: 104 columns (8×16 dots)
Kanji Font A: 34 columns (24×24 dots)
Kanji Font C: 52 columns (16×16 dots)
Character Size Font A: 1.5×3mm
Font B: 1.13×3mm
Font C: 1×2mm
Kanji Font A: 3×3mm
Kanji Font C: 2×2mm
Character Types Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai code 18, Kanji (JIS first, second, third, and fourth level), Kana, JIS C 6226-1983
User Memory 384 kB (user-made characters and logos can be registered)
Barcodes UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE93, CODE128, CODABAR (NW-7), QR codes, PDF417, GS1 Databar
Interfaces Equipped as Standard: USB
Selectable additions: Serial RS-232C compatibility, wired LAN, wireless LAN, Bluetooth, wired LAN + USB host, Bluetooth + USB host
Input Buffer 4k/45 bytes
Power Supply Voltage AC Type: AC100V
Power Consumption Normal Printing: 65W; Standby: 1.5W
Drawer Kick-Out Control of up to 2 drawers
Usage Environment Operating Environment Temperature/Humidity: 5 to 40℃; 10 to 90% RH (no condensation) Storage Environment Temperature/Humidity: -20 to 60℃; 5 to 90% RH (no condensation)
Mass Approx. 2.5kg
External Dimensions 170(W)×217(D)×152(H) mm
AC Adapter Specifications Input:AC100V/240V, 50/60Hz
Output:DC24V
Main Body Case Color Cool White, Black
Reliability Head Life: 100km, 100 million pulses
Cutter Life: 1 million cuts (paper thickness 65μm to 85μm, paper width: 3 to 4 inches)
Accessories Thermal paper roll (*small-diameter paper included with accessories)
Clamp Cable
Quick Start Guide
AC cord

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

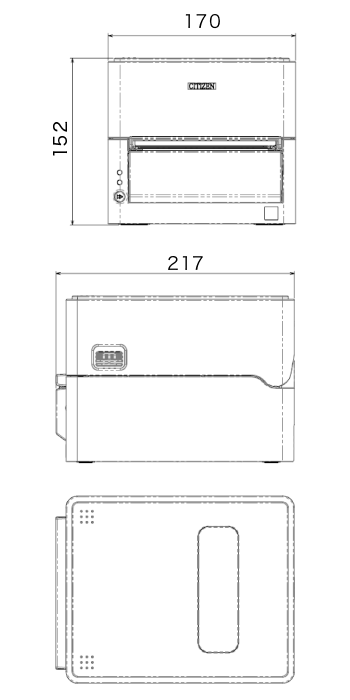

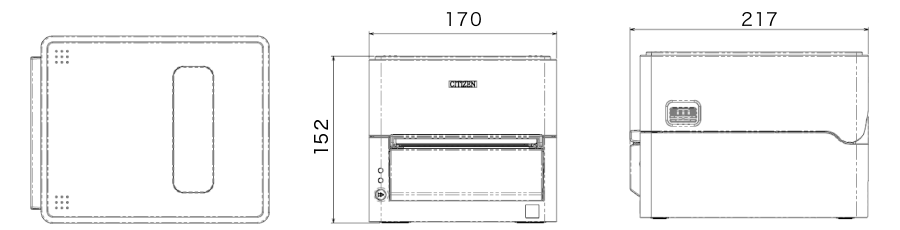

Dimensions

DimensionsDimensions

(Unit: mm)

Interfaces

Along with standard USB, 1 additional connection method can be selected as a factory option.

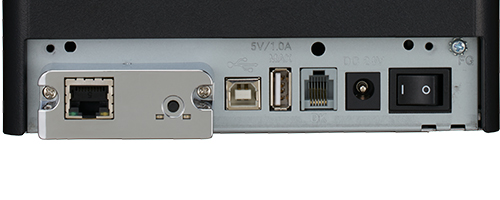

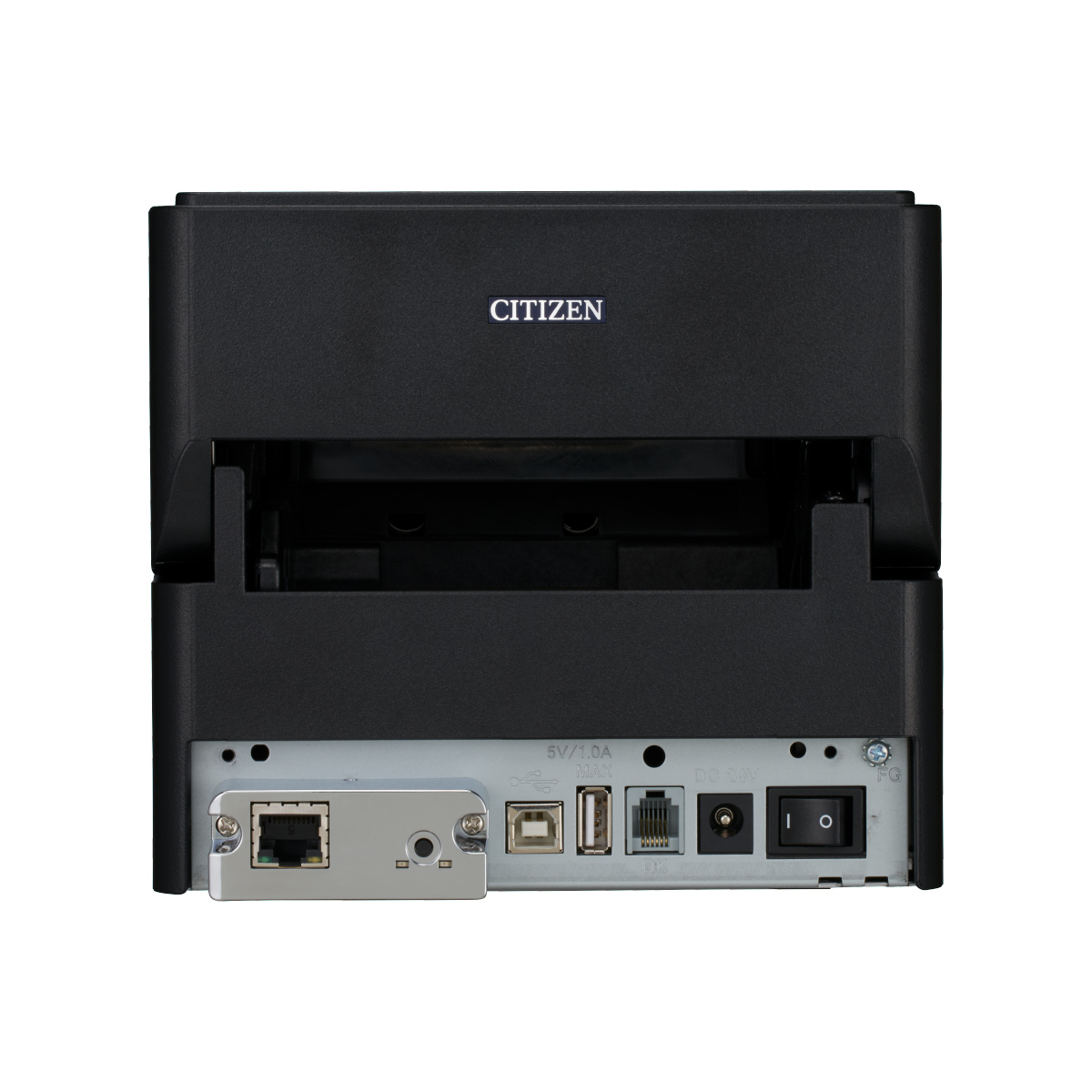

Interface area on back

Equipped as Standard

  • USB

Factory OptionsOne of the following connection methods can be selected

  • Serial
  • Wired LAN
  • Wireless LAN
  • Bluetooth
  • USB Host + Wired LAN
  • USB Host+Bluetooth

* Company names and product names are trademarks or registered trademarks of their respective companies.
