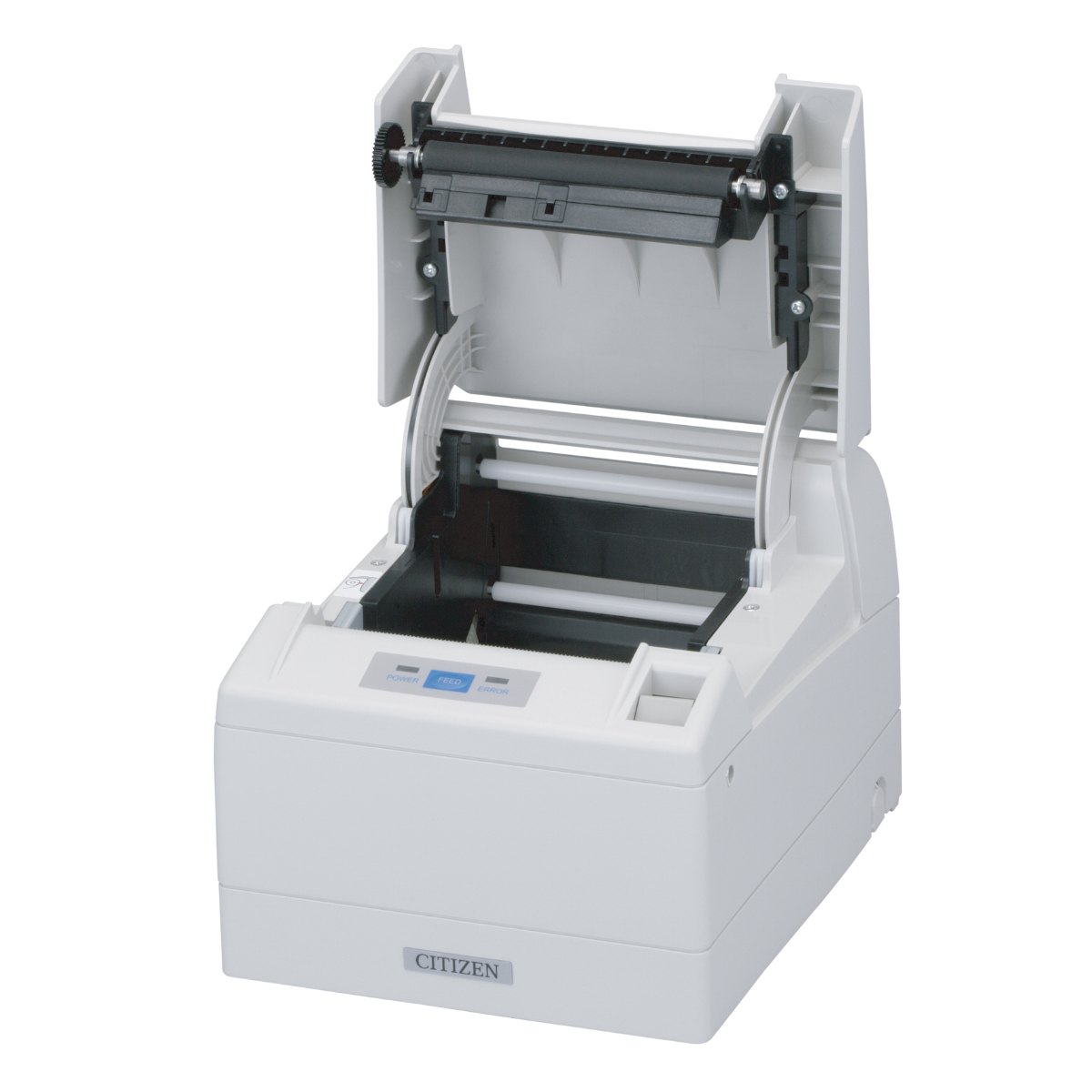

Receipt PrinterCT-S4000

The standard in 4-inch receipt printers.

Paper Width
112mm
Print Method
Direct Thermal Printing
Functions
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading
  • Built-in Power Supply
Applications
  • Receipts
  • Tickets
  • Kitchen
  • Barcodes
  • 2D Barcodes

Features

  • Easy Replacement of Consumables

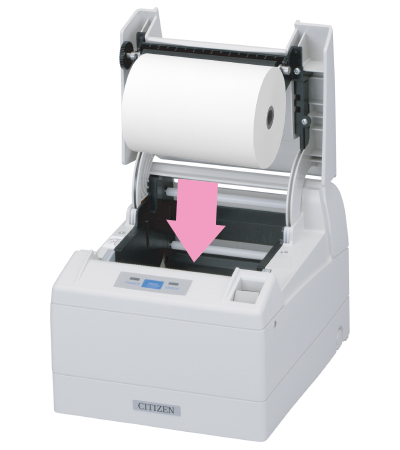

    Drop-in paper loading mechanism

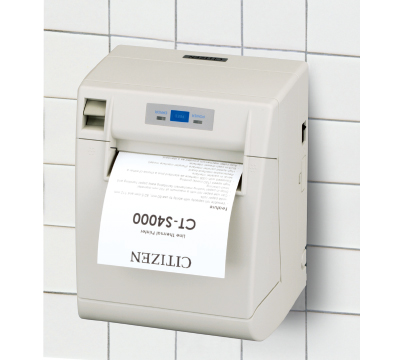

  • Designed for horizontal, vertical, or (optional) wall-hanging installation.

  • Achieves high speed printing at up to 150mm/sec. on 4-inch 112mm width paper.

  • Supports paper widths of 112, 82.5 and 80mm.

  • Supports large-diameter 102mm paper rolls.

  • Internal power supply as standard.

  • USB interface equipped as standard.

  • Uses a detachable interface board.

Main Applications

  • Receipts

  • Tickets

  • Kitchen

  • Barcode Printing

Used in the following industries

  • Hospitality

  • Distribution

  • Healthcare/Clinical

Basic Functions

Features
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading
  • Internal Power Supply (with extended base option)
  • Thermal
Supported Interfaces
  • USB
  • Serial
  • Parallel
Available Drivers
  • Windows
  • OPOS
  • CUPS

Specifications

Print Method Direct Thermal Printing
Printing Width (Total Dot Number) 112mm/832 dots, 82.5mm/660 dots, 80mm/576 dots
Dot Density Horizontal, Vertical 8 dots/mm (203 dpi)
Maximum Printing Speed 150mm/sec. (Highest Speed, Printing Density Level 100%, 1,200 dot-lines/sec.)
Line Spacing 4.23mm(1/6inch)
Paper Thermal paper roll: 112+ 0–1mm/82.5 + 0–1mm/80 + 0–1mm × up to 102mm diameter
Paper Thickness: 65 to 150μm
Number of Columns Printable When paper width is 112mm:
Font A: 69 columns (12 × 24 dots)
Font B: 92 columns (9 × 24 dots)
Font C: 104 columns (8 × 16 dots)
Kanji Font A: 34 columns (24 × 24 dots)
Kanji Font B: 41 columns (20 × 24 dots)
Kanji Font C: 52 columns (16 × 16 dots)
Character Size Font A: 1.5×3mm
Font B: 1.13×3mm
Font C: 1×2mm
Kanji Font A: 3×3mm
Kanji Font B: 2.5×3mm
Kanji Font C: 2×2mm
Character Types Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai code 18, Kanji (JIS first, second), Kana, JIS C 6226-1983
User Memory 384KB (user-made characters and logos can be registered)
Barcodes UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE 128, CODABAR (NW-7), CODE93, QR codes, PDF417 codes
Interfaces Serial (RS-232C compliant), Parallel (IEEE1284 compliant), and USB
Input Buffer Serial or parallel interface: 4k bytes/45 bytes (selectable)
USB interface: 16k bytes
Power Supply Voltage AC100 to 240V
Power Consumption Approx. 70W (during normal printing)
Drawer Kick-Out Control of up to 2 drawers
Usage Environment Operating Environment Temperature/Humidity: 5 to 45°C; 10 to 90% RH (no condensation) Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% RH (no condensation)
Mass Approx. 2.1kg
External Dimensions 177 (W) x 213 (D) x 147 (H) mm
Reliability Print Head Life: 100km, 100 million pulses (room temperature, room humidity, specified recommended paper)
Auto Cutter Life: 1 million cuts (room temperature, room humidity, specified recommended paper)
Standards Compliance VCCI Class A
Utility Software Printer Customization, POS Printer Utility
Drivers Windows, OPOS, Linux, CUPS
Accessories AC Power Cord (AC Power Type)
Thermal Paper Roll (1 roll) *Small diameter roll is included as accessory
CD-ROM
Quick-start guide

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

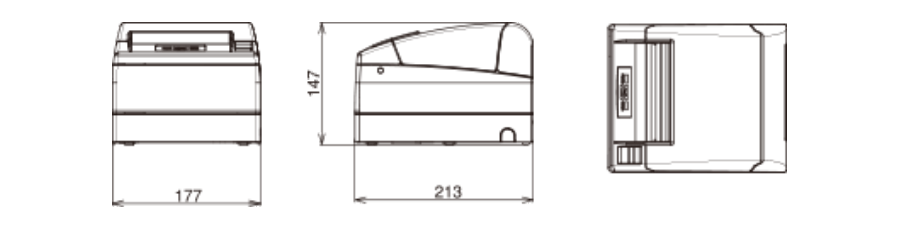

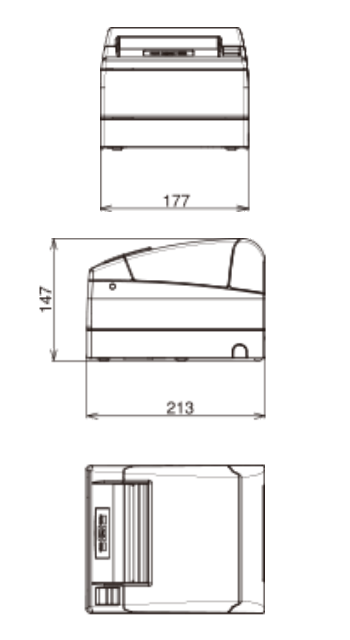

Dimensions

DimensionsDimensions

(Unit: mm)

Interfaces

For interfaces, USB is equipped as standard, and either serial or parallel is selectable as a factory option.

Interface area on back (Parallel selection + standard-equipped USB)

Equipped as Standard

  • USB

Factory OptionsOne of the following connection methods can be selected

  • Serial
  • Parallel
