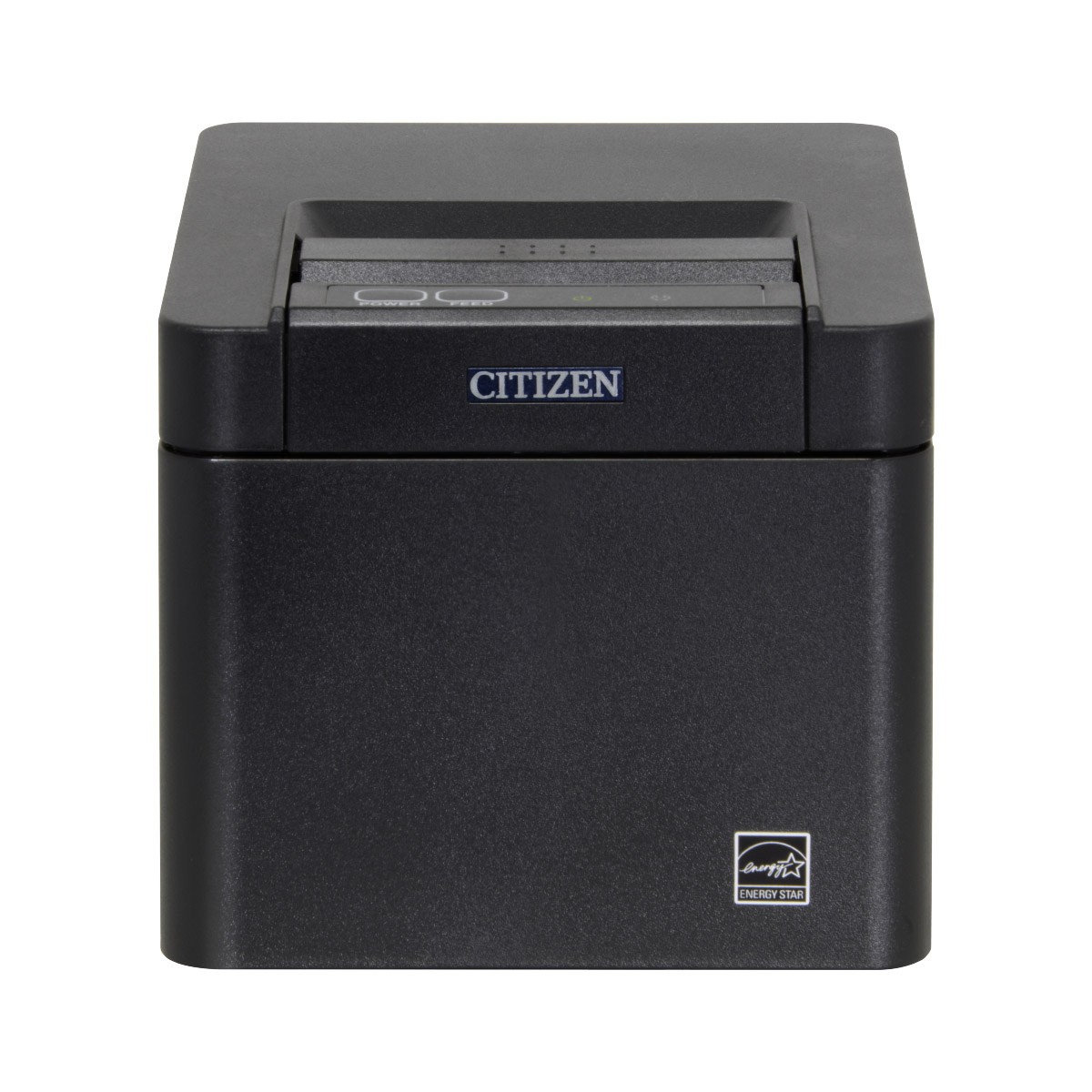

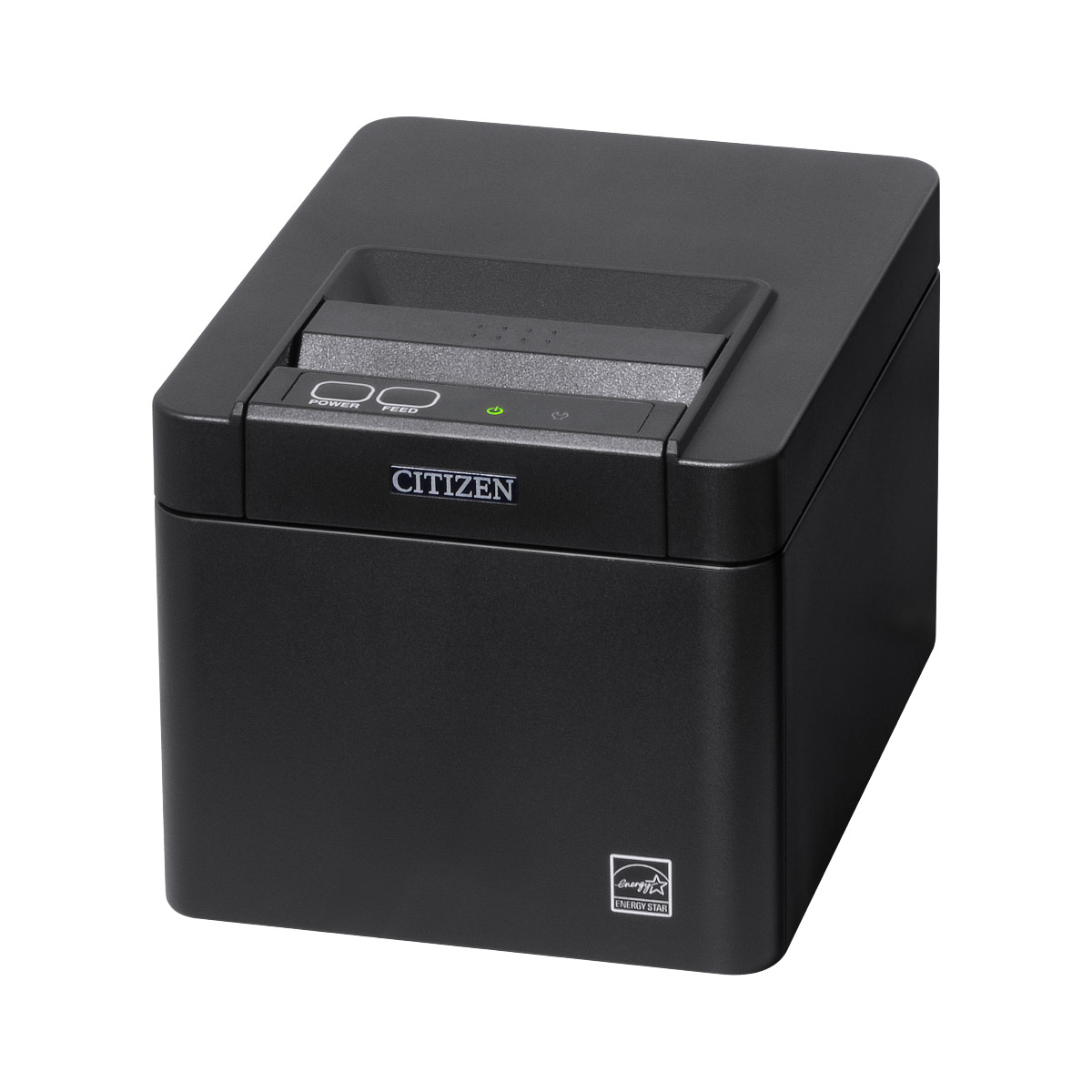

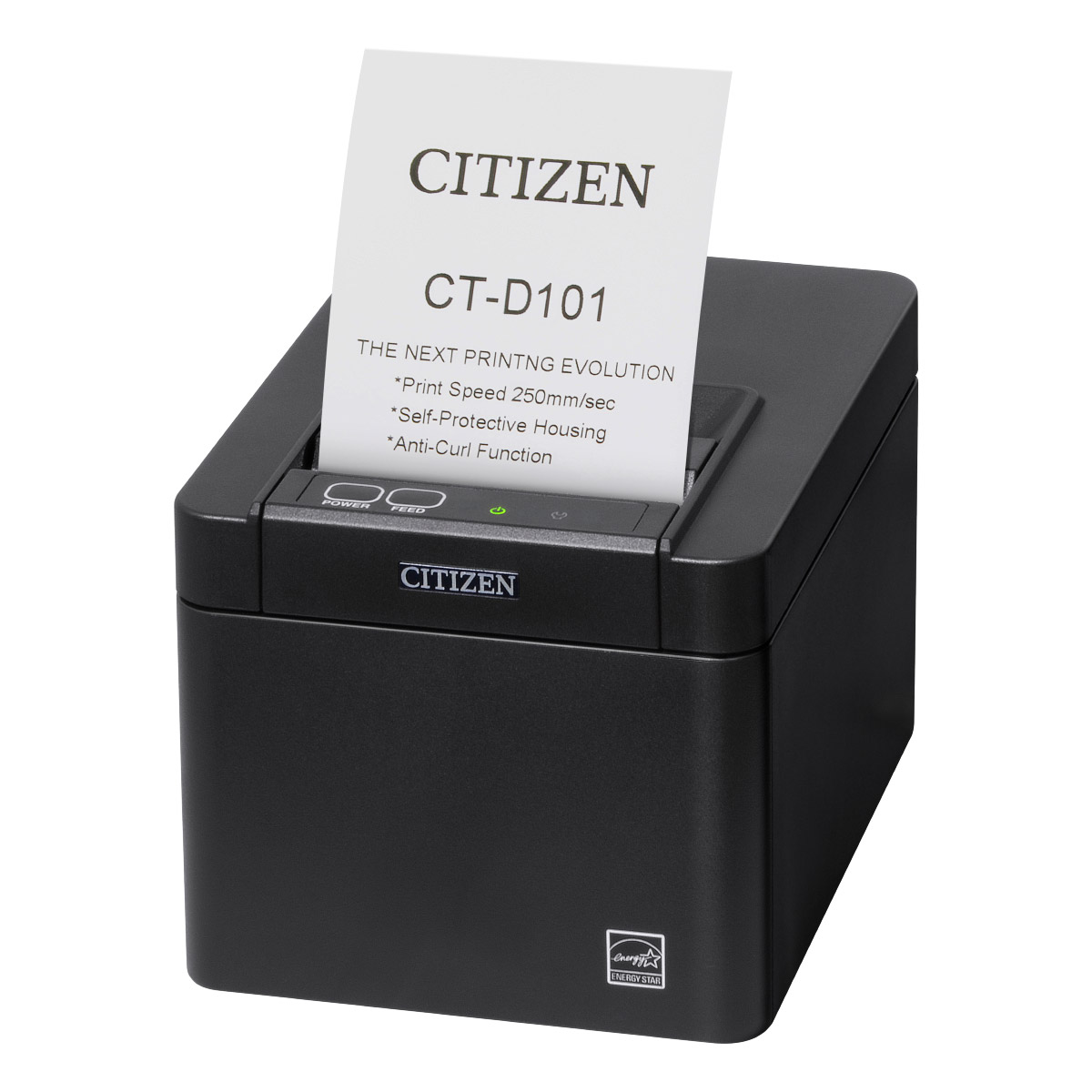

Receipt PrinterCT-D101

Silver Ion infused outer case
Self-protective housing, top paper exit model with one motion lever

  • ENERGY STAR
Paper Width
58mm
80mm
Print Method
Direct Thermal Printing
Functions
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading

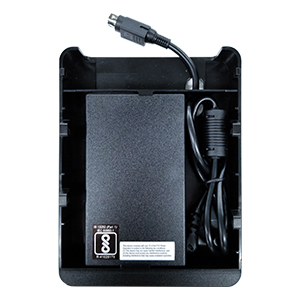

  • Internal Power Supply (with extended base option)
Applications
  • Receipts
  • Tickets
  • Queue Tickets
  • Barcodes
  • 2D Barcodes
  • AG+Ion
  • Chemical resistance
  • Anti-curl

Features

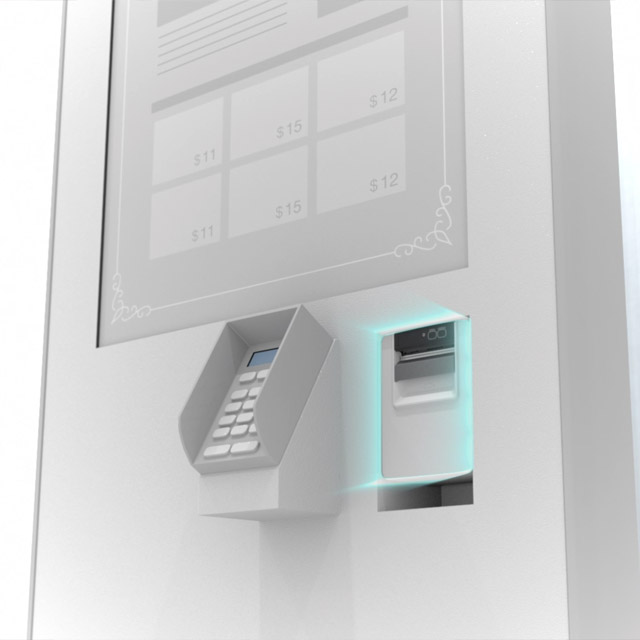

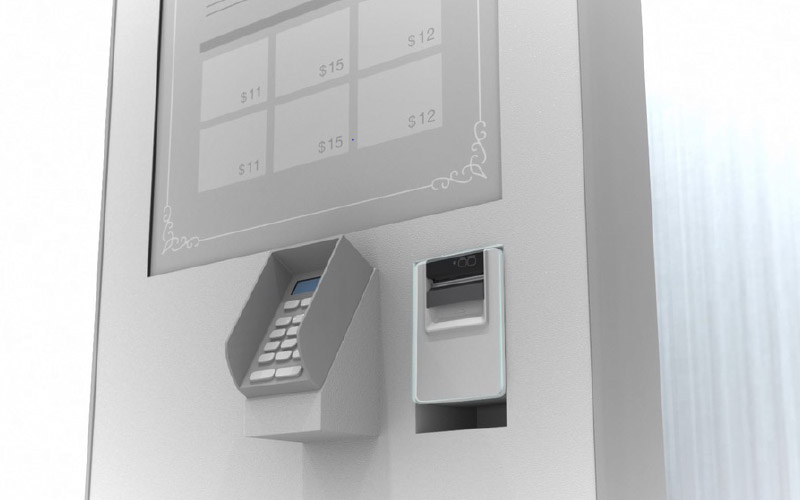

  • Kiosk systems

    CT-D101 has a compact design which can be integrated into kiosk terminals.

  • Silver Ion infused plastics

    The outer cases is infused with a Silver Ion additive. This will suppress bacterial growth and protect the product against bacteria build-up.

    ※It provides no assurance that the Silver Ion can be effective against all bacteria

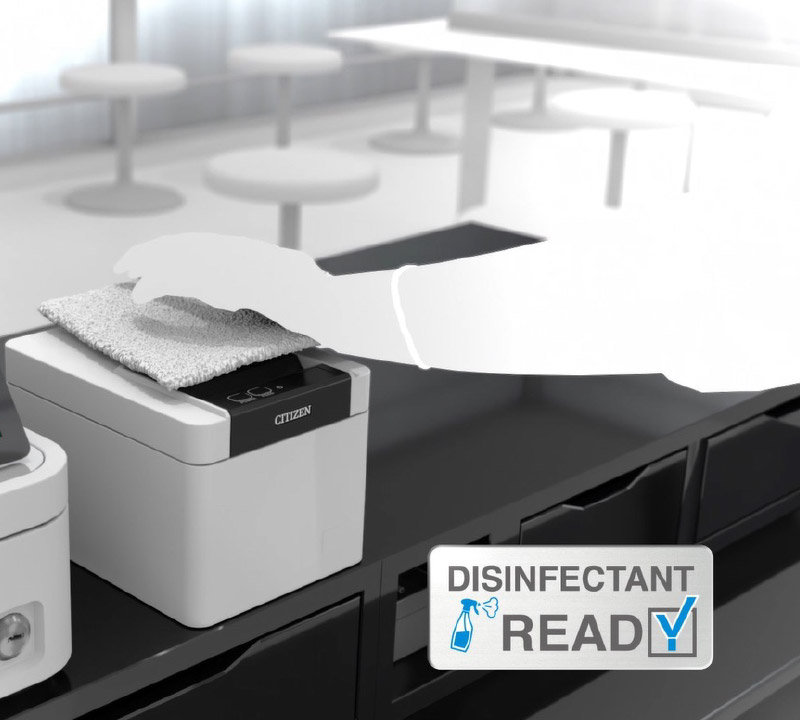

  • Chemical resistance

    CT-D101 printer’s outer case can be wiped with disinfectants (as noted below) for additional cleaning benefit in key applications.

    useful disinfectant concentration
    ethanol 80%
    isopropyl alcohol(IPA) 70%
    Hydrogen peroxide(Oxydol) 3%
    Sodium hypochlorite 0.05%

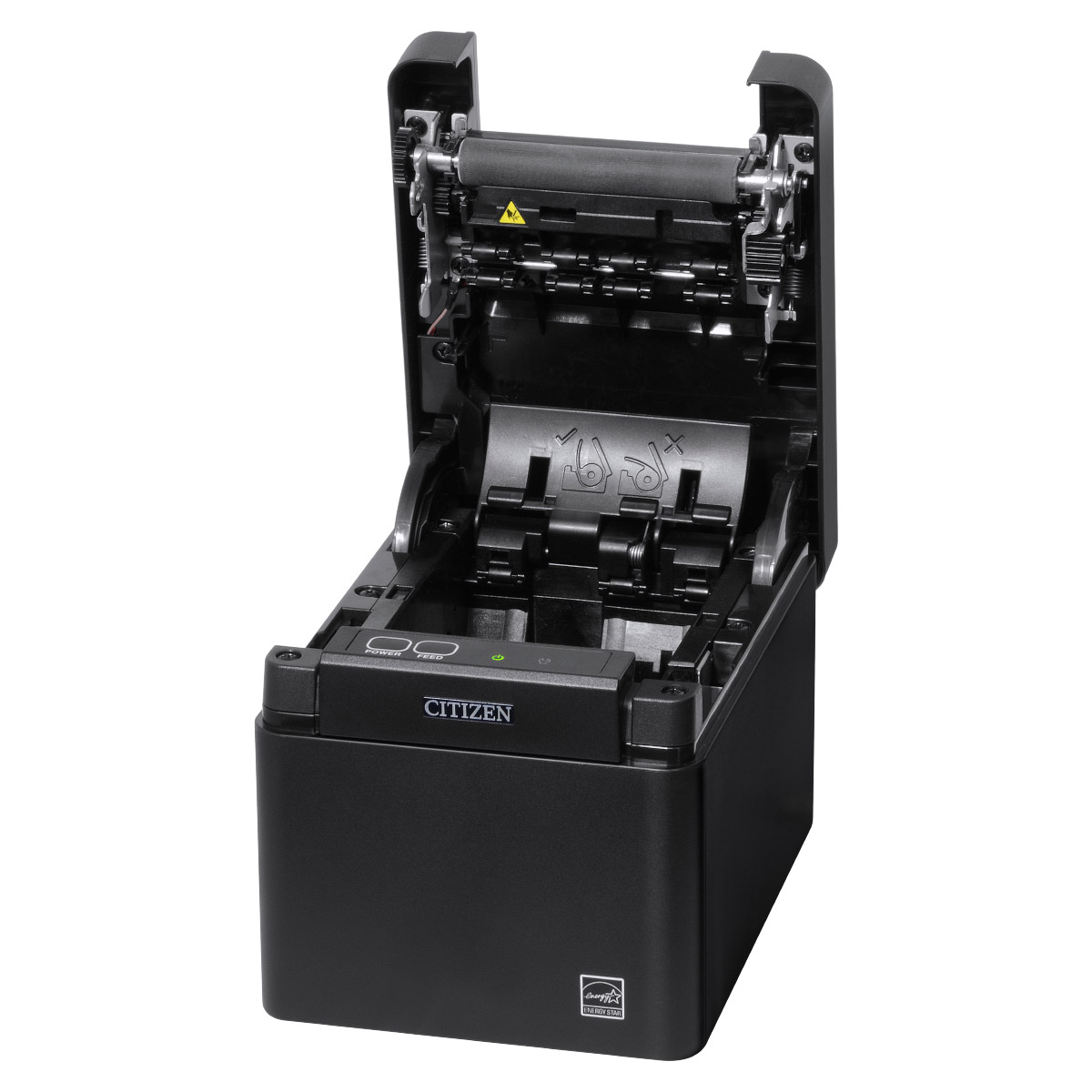

  • One motion lever

    The lever can be used to open and close the top cover using only one hand.

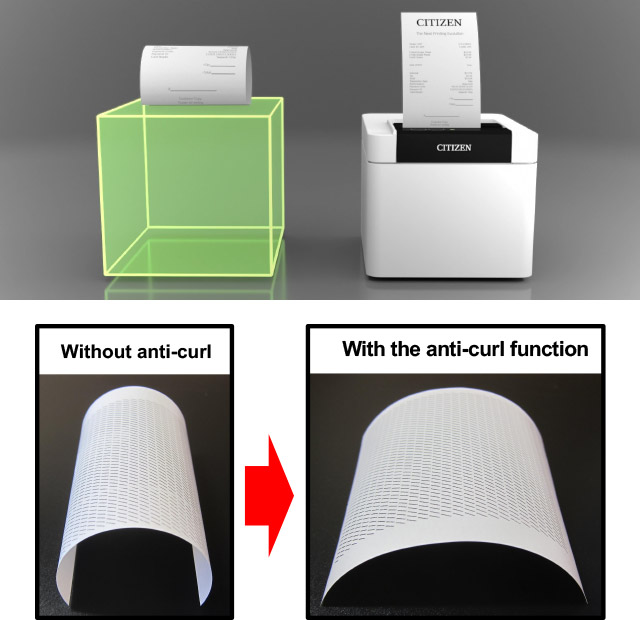

  • Anti-curl function

    Paper curl is lessened at the time of printing the receipt.

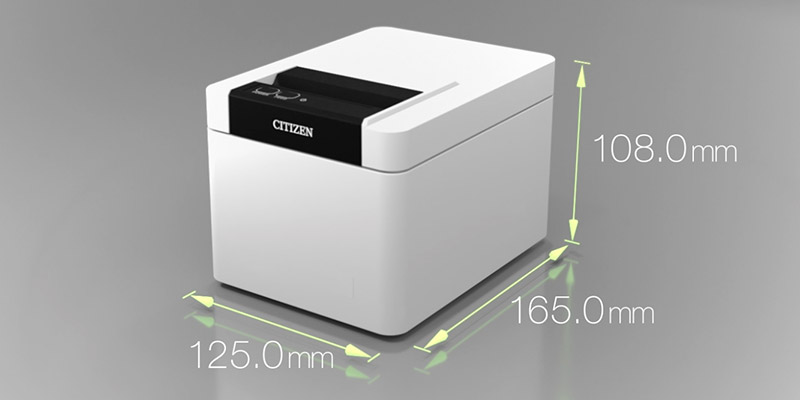

  • Compact design

    The compact design provides optimal space saving efficiency in any application.

Introductory Video

Main Applications

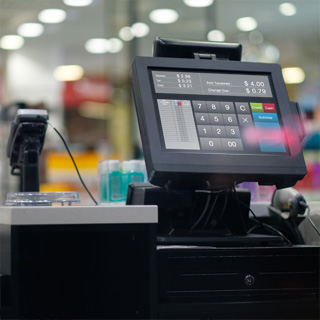

  • POS equipment

  • Measuring equipment/medical equipment

  • Kiosk system

Used in the following industries

  • Financial

  • Retail

  • Distribution

  • Restaurants

  • Apparel

  • Hospitality

  • Healthcare/Clinical

Basic Functions

Features
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading
  • Thermal
Supported Interfaces
  • USB
  • Serial
  • Wired LAN
Available Drivers
  • Windows
  • OPOS
  • CUPS
Supported Platform by SDKs
  • Android
  • iOS
  • Windows
  • Linux for ARM
Smartphone/Tablet Compatibility
  • AndroidUSB

Specifications

Print Method Direct Thermal Printing
Printing Width 3-inch: 72 mm; 2-inch: 52.5 mm
Maximum Printing Speed 250 mm/sec. (speed decreases during gray-scale printing)
Paper Paper Thickness: 53–85 μm
Auto Cutter: equipped standard (partial cut and full cut)
Number of Columns Font A: 48 columns (12×24 dots) Font B: 64 columns (9×24 dots)
Font C: 72 columns (8×16 dots)
Kanji Font A: 24 columns (24×24 dots)
Kanji Font C: 36 columns (16×16 dots)
Character Size Font A: 1.5×3 mm
Font B: 1.13×3 mm
Font C: 1×2 mm
Kanji Font A: 3×3 mm
Kanji Font C: 2×2 mm
Character Types Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252,Katakana, Thai code 18, Kanji (JIS first, second, third, and fourth level), Kana, JIS C 6226-1983
User Memory 384 KB (user-made characters and logos can be registered)
Barcodes UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE 93, CODE 128, CODABAR (NW-7), PDF417, QR codes, GS1 Databar
Interface USB+LAN+Serial or USB only
Input Buffer 4k/45 bytes
Power Supply Voltage AC Type: AC100V
Power Consumption Normal Printing: Approx. 50W; Standby: Approx. 2W
Drawer Kick-Out Control of up to 2 drawers
Usage Environment Operating Environment Temperature/Humidity: 5 to 45°C; 10 to 90% RH (no condensation)
Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% RH (no condensation)
Mass Approx. 1.3 kg
External Dimension 125 (W) x 165 (D) x 108 (H) mm
AC Adapter Specifications Input: AC100/240V, 50/60Hz; Output: DC24V
Output: DC24V 2.1A
Main Body Case Color Cool White, Black
Reliability Head Life: 150 km, 200 million pulses (room temperature, room humidity, specified recommended paper)
Auto cutter life: 1.5 million cuts (room temperature, room humidity, specified recommended paper, specified paper thickness, specified cutting conditions) (3-inch type, for 53 μm ≤ paper thickness ≤ 85 μm)
Accessories AC adapter
AC cord
Quick-start guide

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

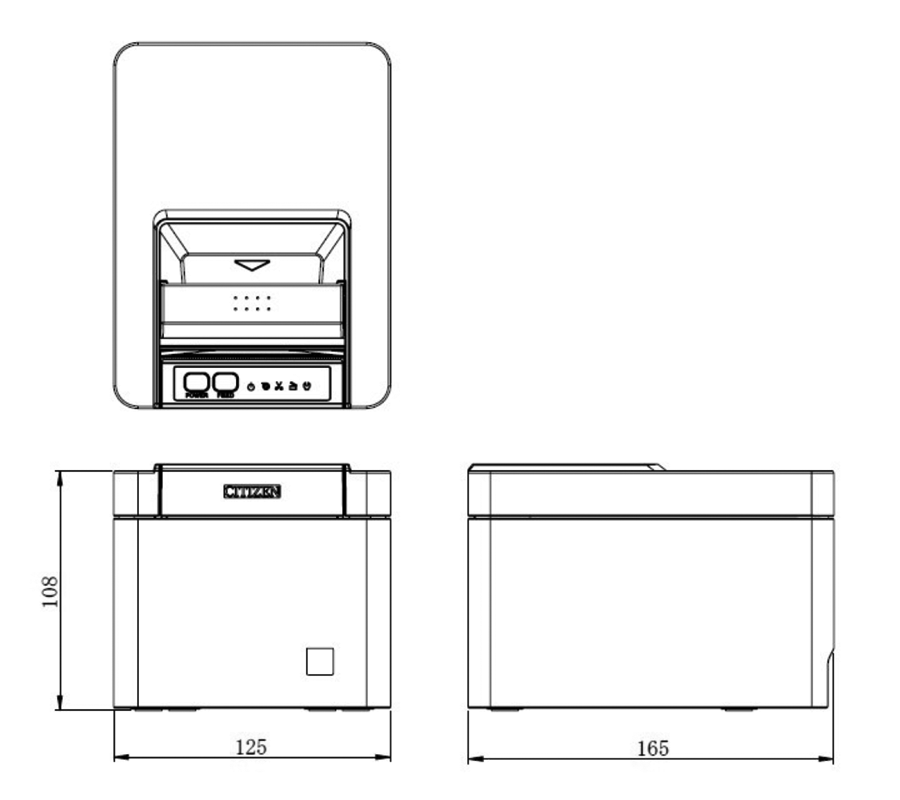

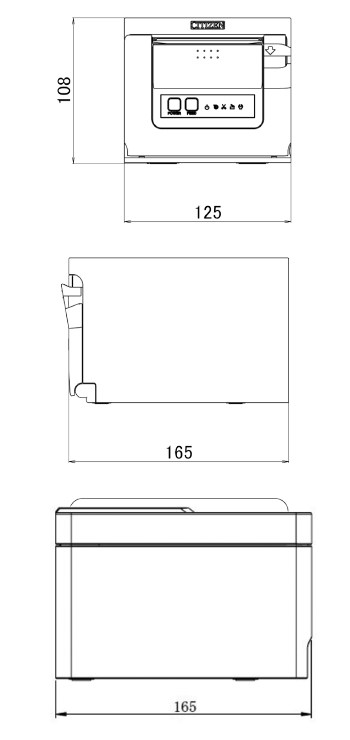

Dimensions

DimensionsDimensions

(Unit: mm)

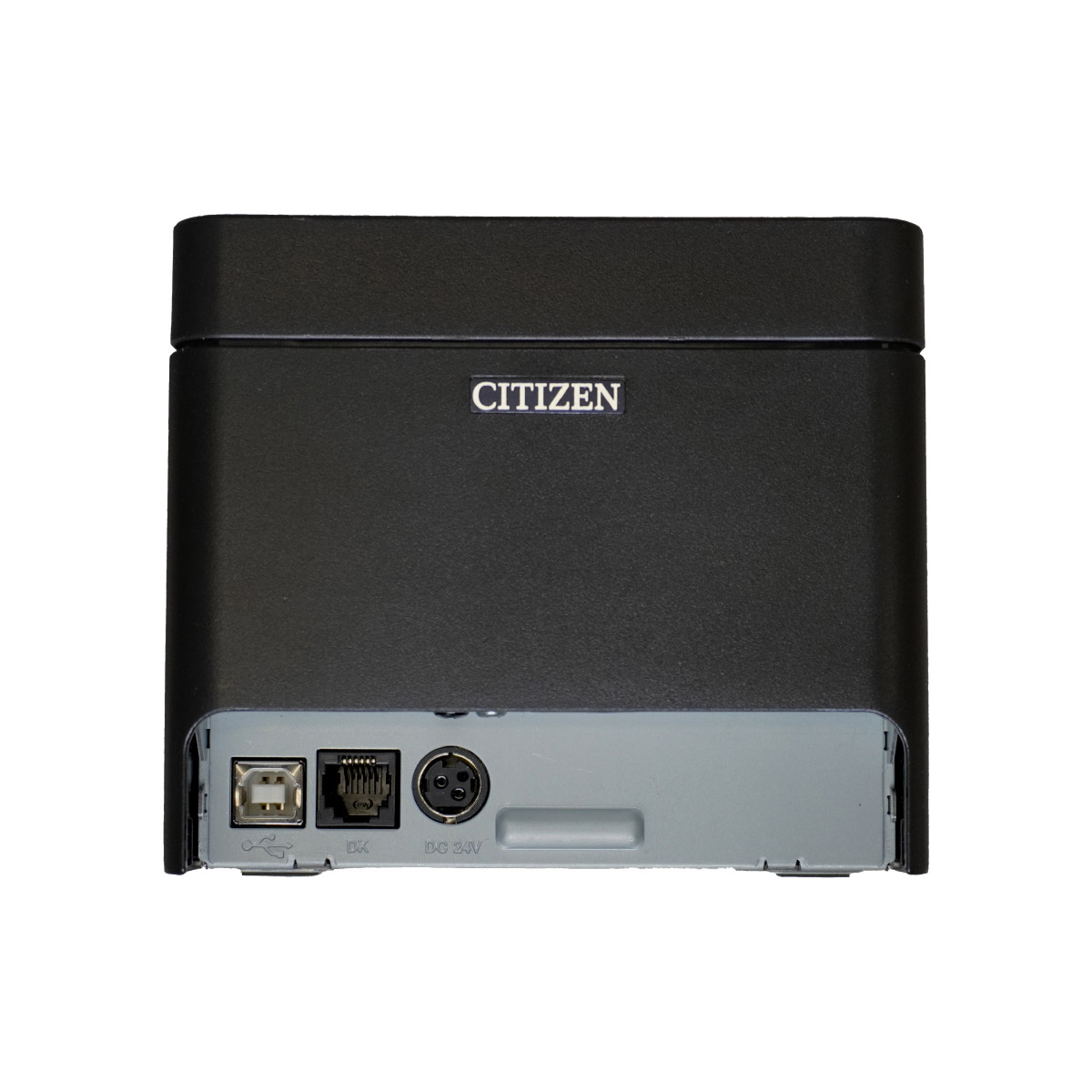

Interfaces

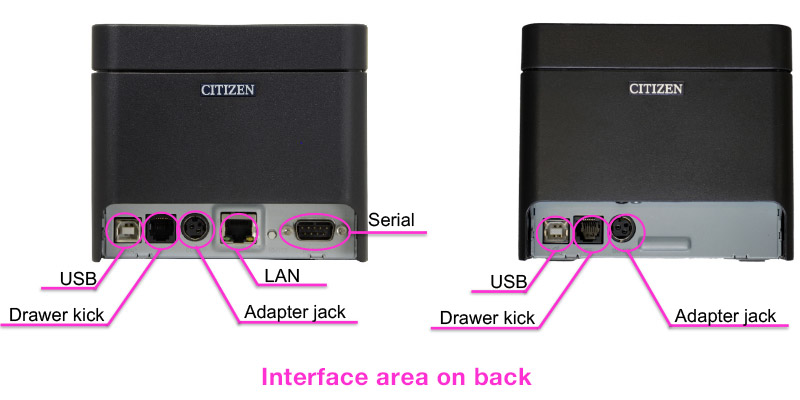

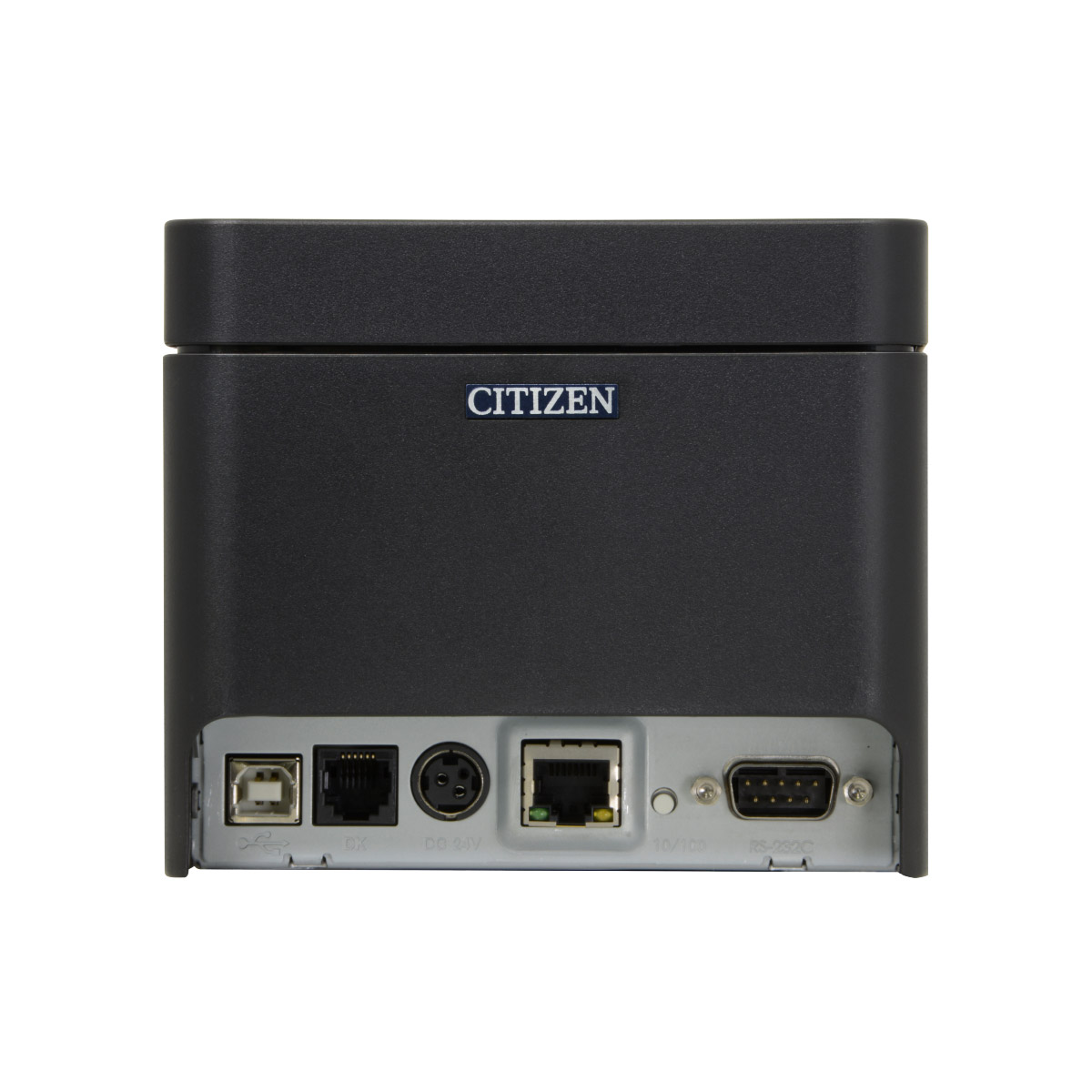

Interface area on back

Equipped as Standard

  • USB

Factory Options

  • Serial
  • Wired LAN
