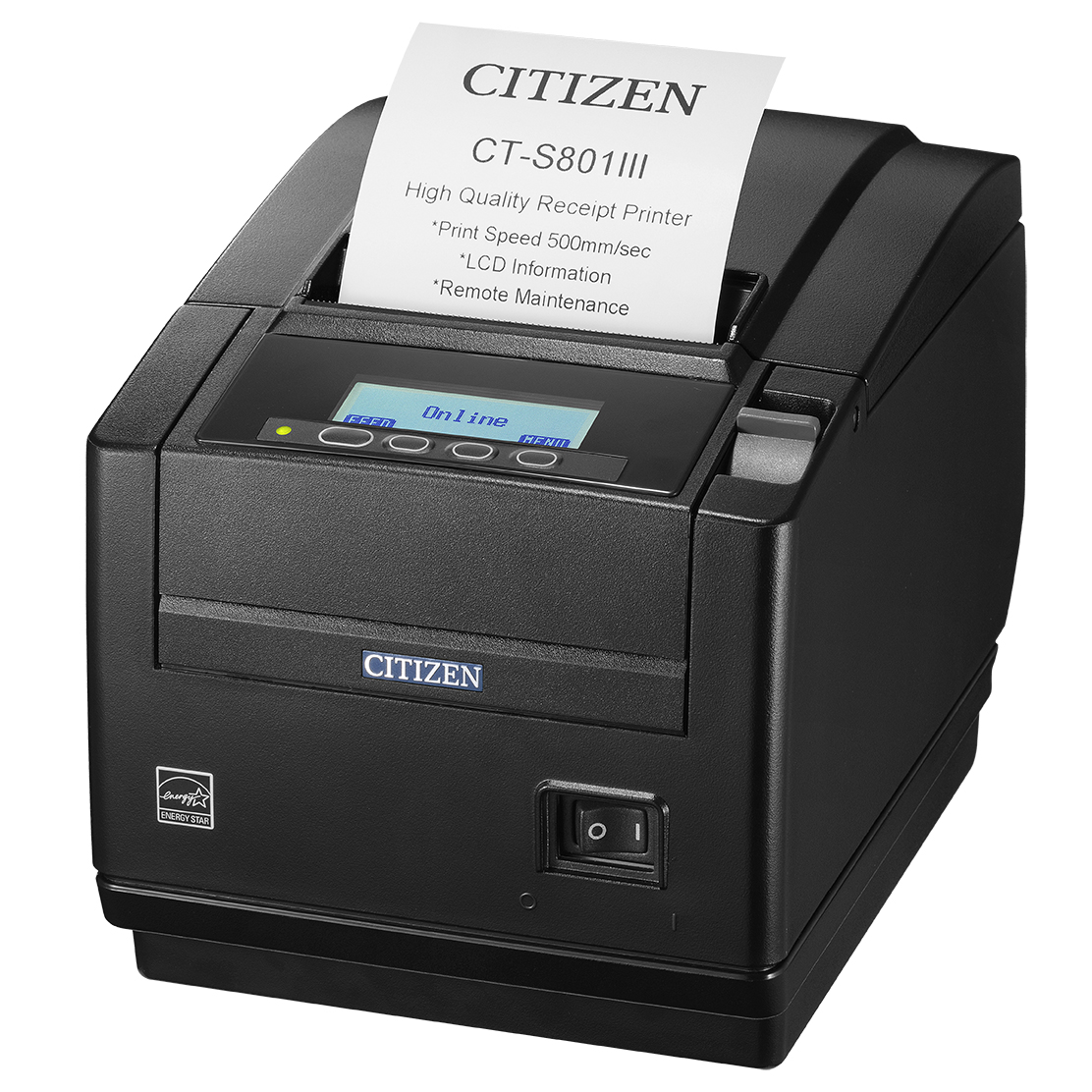

Maximum printing speed of 500 mm/sec.
Top exit POS printer with high contrast LCD.
A new model combines the functionality, robustness and durability.

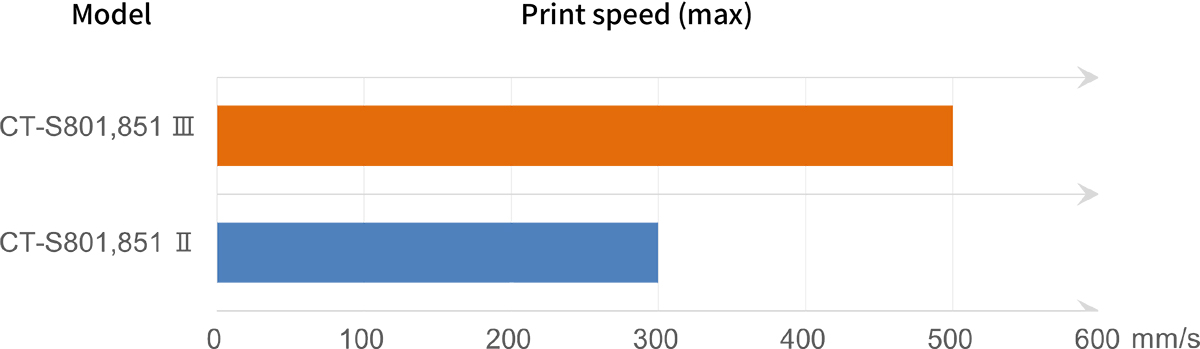

Industry's fastest class printing speed MAX500mm/sec
Reduce customer waiting time at self-checkouts, which are becoming increasingly popular.Smooth customer service when issuing long receipts or multiple receipts.(e.g., bulk purchases at grocery stores, issuance of warranty cards at electronics retailers, etc.)

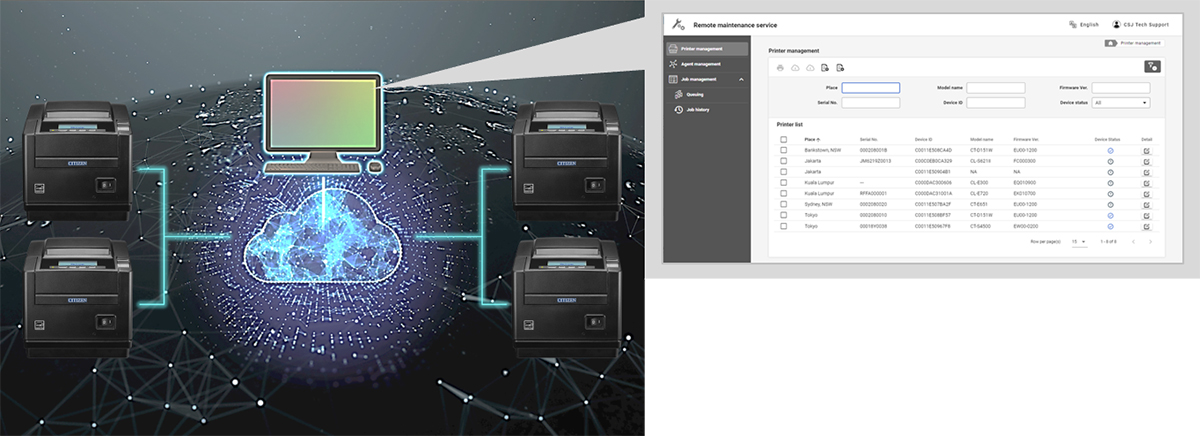

Remote Maintenance and Monitoring function
Memory Switch Backup and Restore, Send files, Firmware updates
Obtain and monitor printer status information
*Option wired LAN interface is necessary.

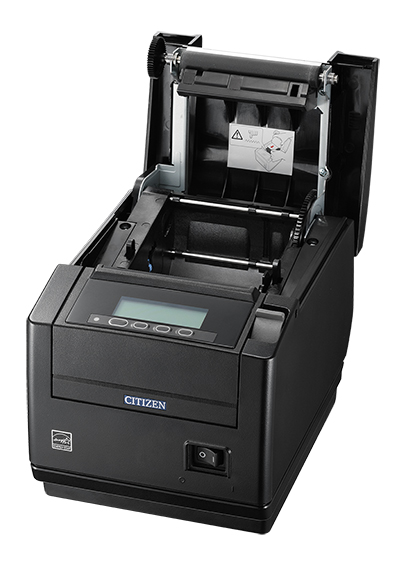

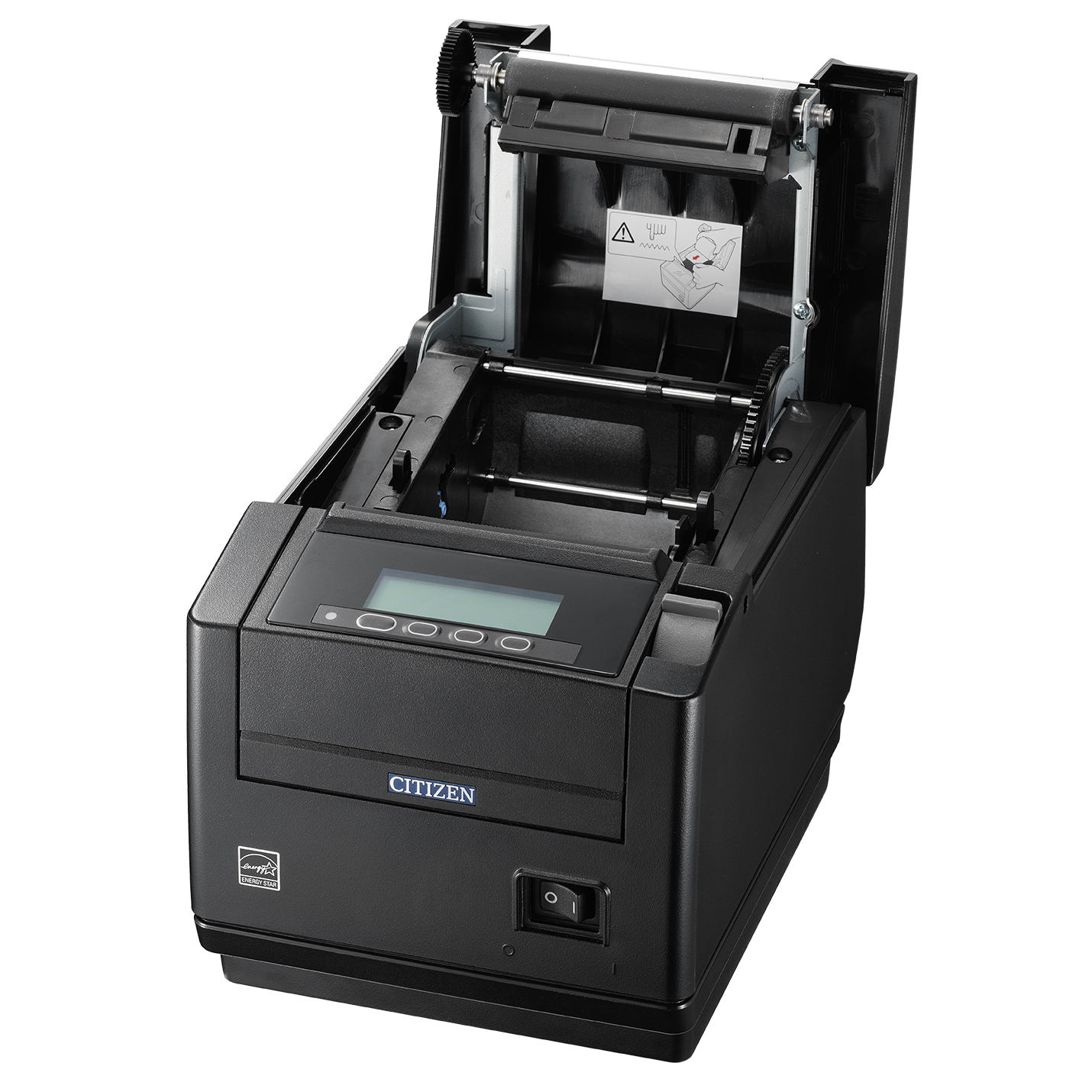

Easy to open
Easy maintenance of head and cutter.
Small-Footprint Design

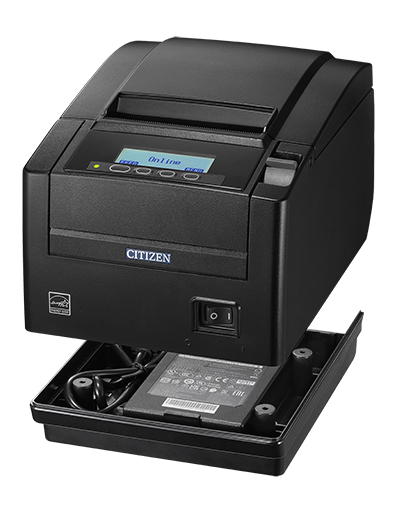

AC adapter can be equipped inside the bottom face
(Internal Power Supply Type)
Apple MFi license program certified Bluetooth, and multi-OS compatible (iOS/Android/Windows).
Equipped with paper-saving function to conserve paper
Grayscale printing (16 shades) allows optimal printing of pictures and other images.
Extensive variety of character types
Support for Simplified Chinese, Traditional Chinese, and Korean Hangul
Support for Thai and Vietnamese characters
Supports UTF-8
Features a substantial variety of drivers and an abundance of utilities
Comes with a 2-year warranty to ensure full support after purchase

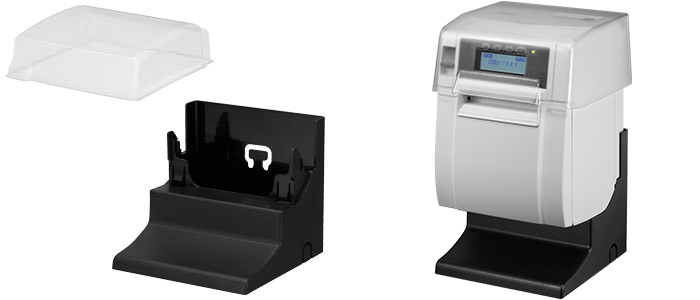

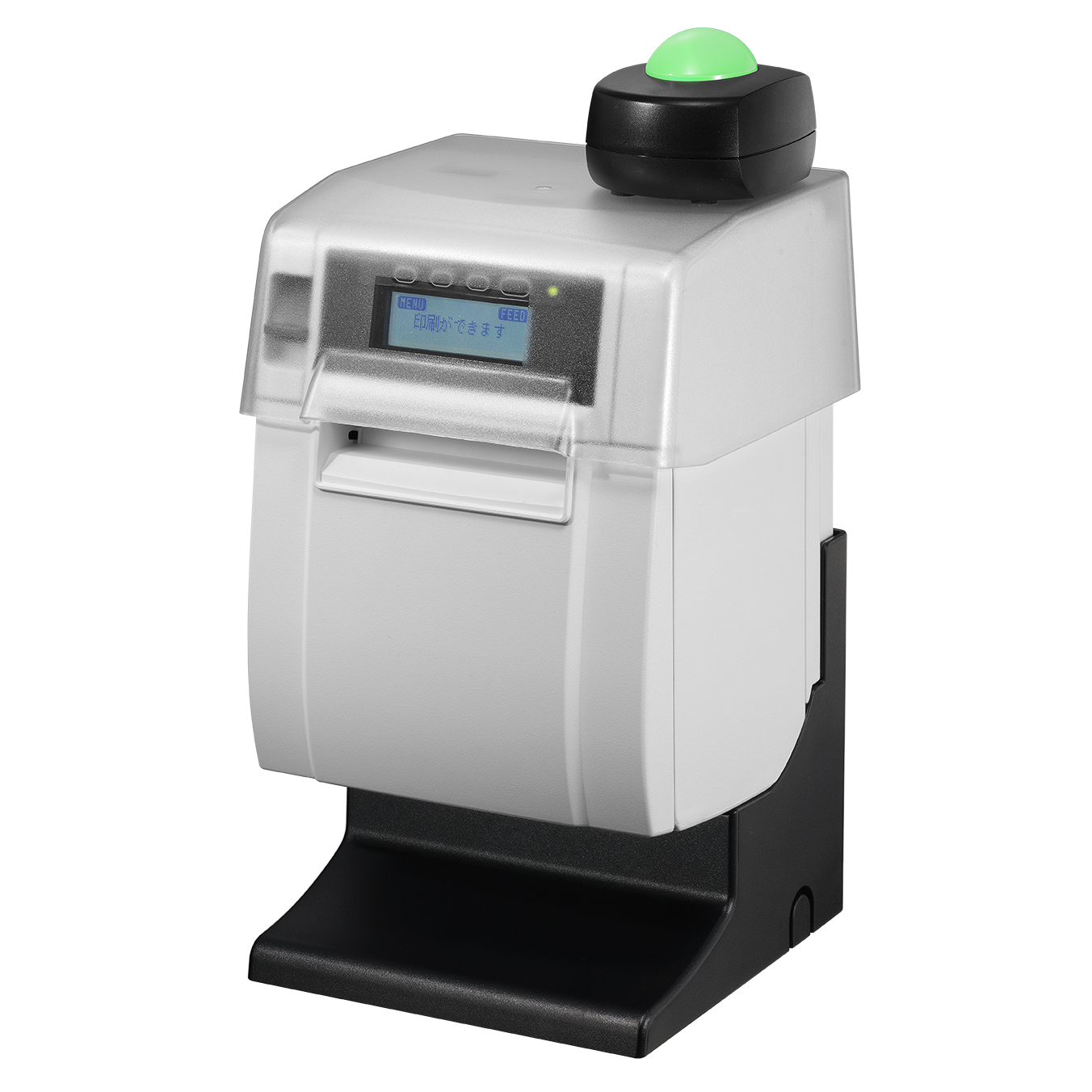

Vertical Placement Kit (Option sold separately)
Ideal for cooking-instruction slips in the kitchen.
*Cannot be used when equipped with parallel interface

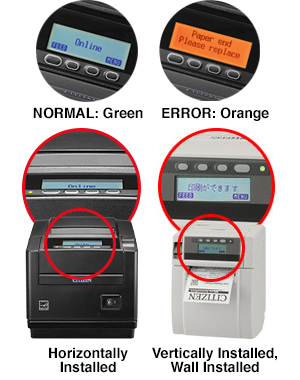

LCD
Displays printer status, functions of keys, types of errors, and messages.
The utility software can be used to change the display content, such as displaying the message “Add paper” for the Paper Error when the printer runs out of paper.
LCD Auto SHUTOFF Function
LCD and backlight automatically turn off when data is received from the host, when an error is detected, or when there are no key inputs on the operation panel for a specific period of time.
Supports Vertical Installation
Display can be vertically flipped with the memory switch when the printer is installed vertically or on the wall.

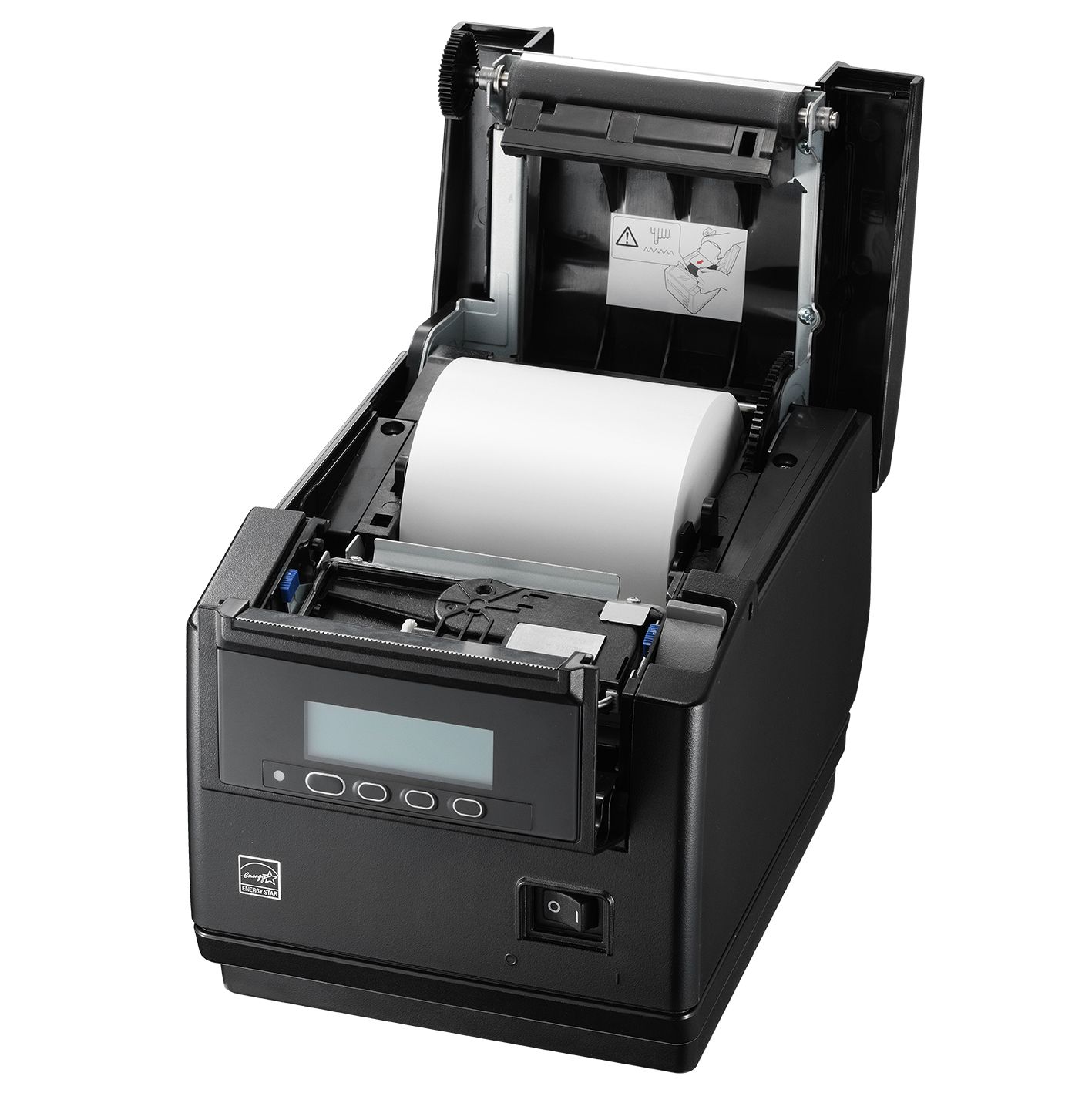

Maintenance Operation
Easy maintenance of head and cutter

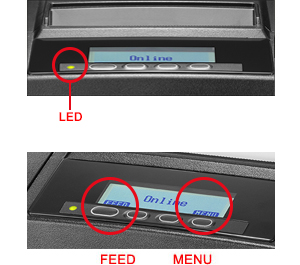

LED shows information with easy-to-recognize colors
Light OFF
Printer’s power is OFF
Green Light
Printer’s power is ON
Red Light
Error or special mode activated
Orange Light
Paper near end, printer head set for high-speed, LCD is OFF
Operation Keys
FEED Key
Feeds paper while pressed. Can also be pressed to clear a cutter lock error after the cause has been eliminated.
MENU Key
Activates memory switch setup mode when pressed for over two seconds.
MENU Key Lock
Function for preventing erroneous operation by making it difficult to enter memory setup mode.
POS/ECR equipment
Measuring equipment/medical equipment
Printing from various instruments, terminals and machines
Financial
Retail
Food
Distribution
Restaurants
Healthcare/Clinical
Print Method | Direct Thermal Printing |
---|---|
Dot Density | Horizontal, Vertical 8 dots/mm (203 dpi) |
Maximum Printing Speed | Max500mm/sec(4000dots/sec)※ High-speed print mode Max400mm/sec(3200dots/sec) Printing Conditions: Print Rate 12.5%, Print Density 100% |
Line Spacing | 4.25mm (1/6 inch) configurable by command |
Paper | Paper Width: 3-inch (83mm/80mm), 2-inch (60mm/58mm) Paper Roll Diameter: up to 83mm Paper Thickness: 65 to 75μm (Paper tube inner diameter 12mm/outer diameter 18mm), 75 to 85μm (Paper tube inner diameter 25.4mm/outer diameter 32mm) |
Printing Width | 80mm 72mm 54.5mm 54mm |
Number of Columns Printable | When paper width is 83mm: Font A: 53 columns (12×24 dots) Font B: 71 columns (9×24 dots) Font C: 80 columns (8×16 dots) Kanji Font A: 26 columns (24×24 dots) Kanji Font C: 40 columns (16×16 dots) |
Character Size | Font A: 1.5×3mm Font B: 1.13×3mm Font C: 1×2mm Kanji Font A: 3×3mm Kanji Font C: 2×2mm |
Character Types | Alphanumeric characters, international characters, PC437/737/850/852/857/858/860/862/863/864/865/866, WPC1251/1252/1253/1255/1258 Katakana, Thai code 18, Kanji (JIS first, second, third, and fourth level), JIS X0213 |
User Memory | 384K bytes (user-made characters and logos can be registered) |
Barcodes | UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE 93, CODE 128, CODABAR (NW-7), GS1 *1 |
2D Barcodes | PDF417, QR CODE |
Interfaces | Built-in:USB (Full speed) Options:Serial (RS-232C compliant), Parallel (IEEE1284 compliant, Centronics compliant), Wired LAN, Wireless LAN, USB Host + Wired LAN, Bluetooth (MFi certification acquired) |
Operation Panel | 128 x 32 dot STN LCD, red/white 2-color LED backlight, operation keys: 4 keys |
Input Buffer | 4k or 45 bytes |
Power Supply Voltage | AC100 to 240V |
Power Consumption | Approx. 45W (when printing) Standby: 3W |
Drawer Kick-Out | Control of up to 2 drawers |
Usage Environment | Operating Environment Temperature/Humidity: 5 to 45°C; 10 to 90% RH (no condensation) Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% RH (no condensation) |
Mass | Approx. 2.0 kg |

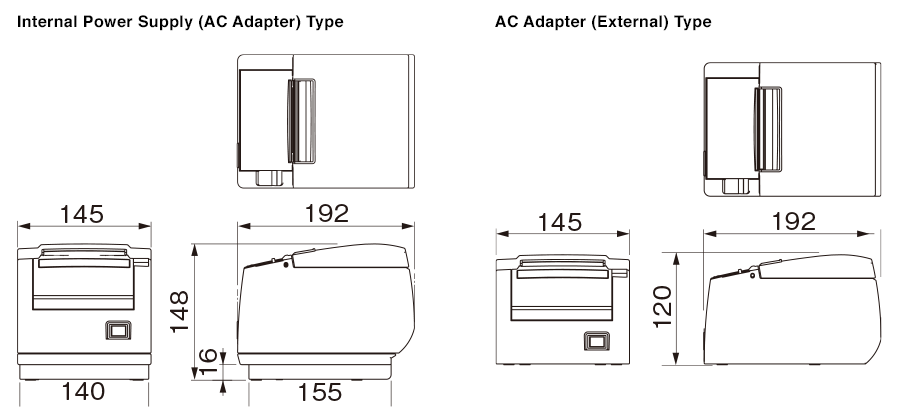

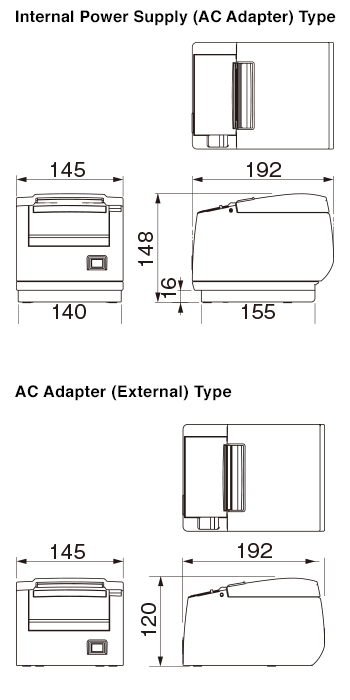

External Dimensions | 145 (W) x 192 (D) x 148 (H) mm |
AC Adapter Specifications | Input: AC100 to 240V 50/60Hz 120VA Output: DC24V 1.9A |

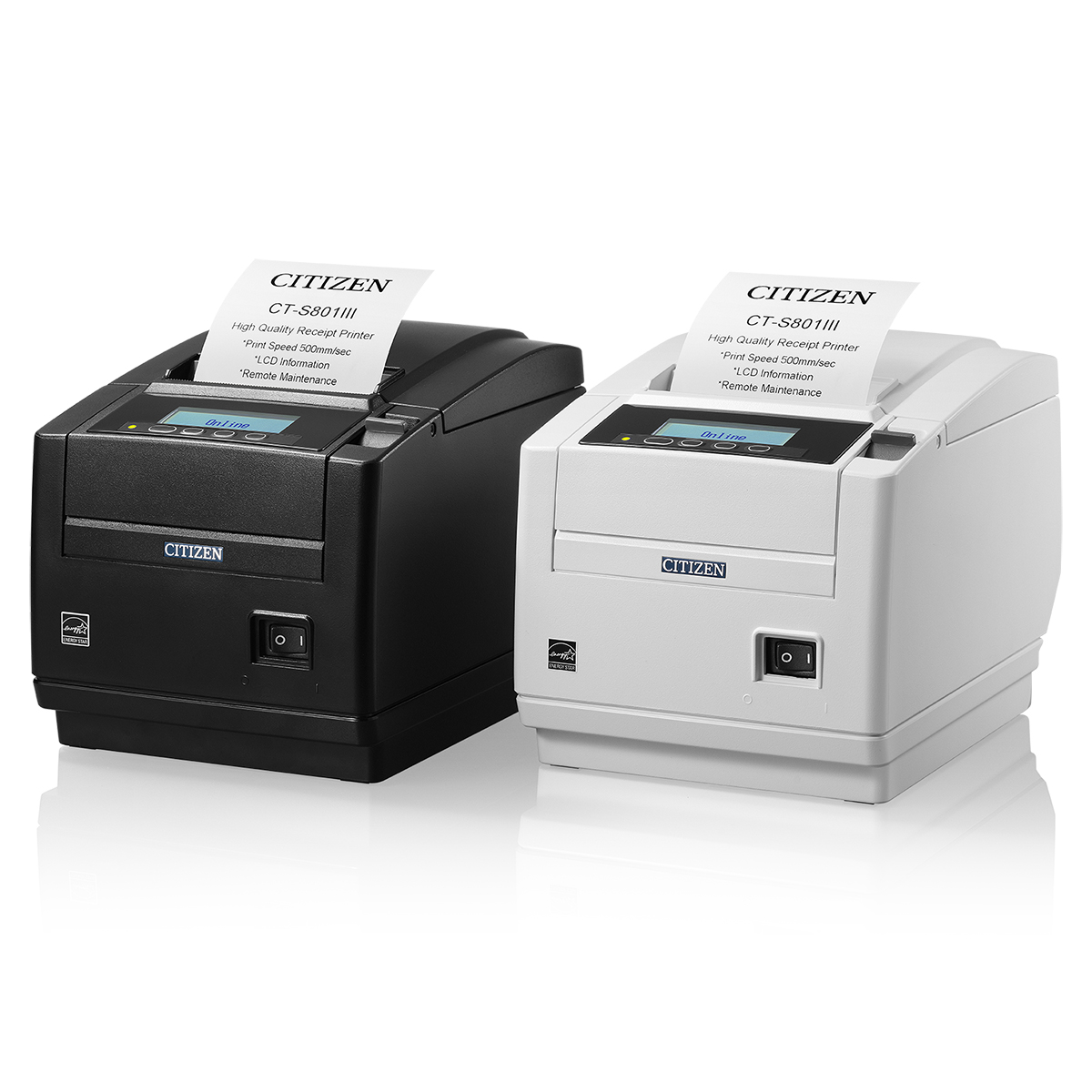

Main Body Case Color | Black / Pure White |
Reliability | Head Life: abrasion-resistance 150 km, 200 million pulses (room temperature, room humidity, specified recommended paper) Auto cutter life: 2 million cuts (room temperature, room humidity, specified recommended paper) |
Standards Compliance | CB, UL, FCC, Energy star, cUL, IC, CE, UKCA, CCC *The acquired standards apply when Citizen Systems AC Adapter (37AD2/37AD3) is used. *Please contact us for other standards |
Utility Software | Printer Customization, POS Printer Utility |
Drivers | Windows, OPOS, POS for.NET, Java POS, CUPS |
Accessories | AC Cord: ×1 Thermal Paper Roll for Testing: 1 roll AC Adapter: ×1 *only for AC Adapter type Quick Start Guide Power Switch Cover Cable Cover (for built-in AC Adapter type) Cable Cover (for external AC Adapter type) |
(Unit: mm)

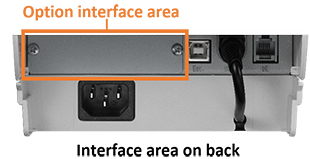

For the interface, select one connection method from the available factory options: USB, Serial, Parallel, Wired LAN, Wireless LAN, USB Host + Wired LAN, or Bluetooth.
