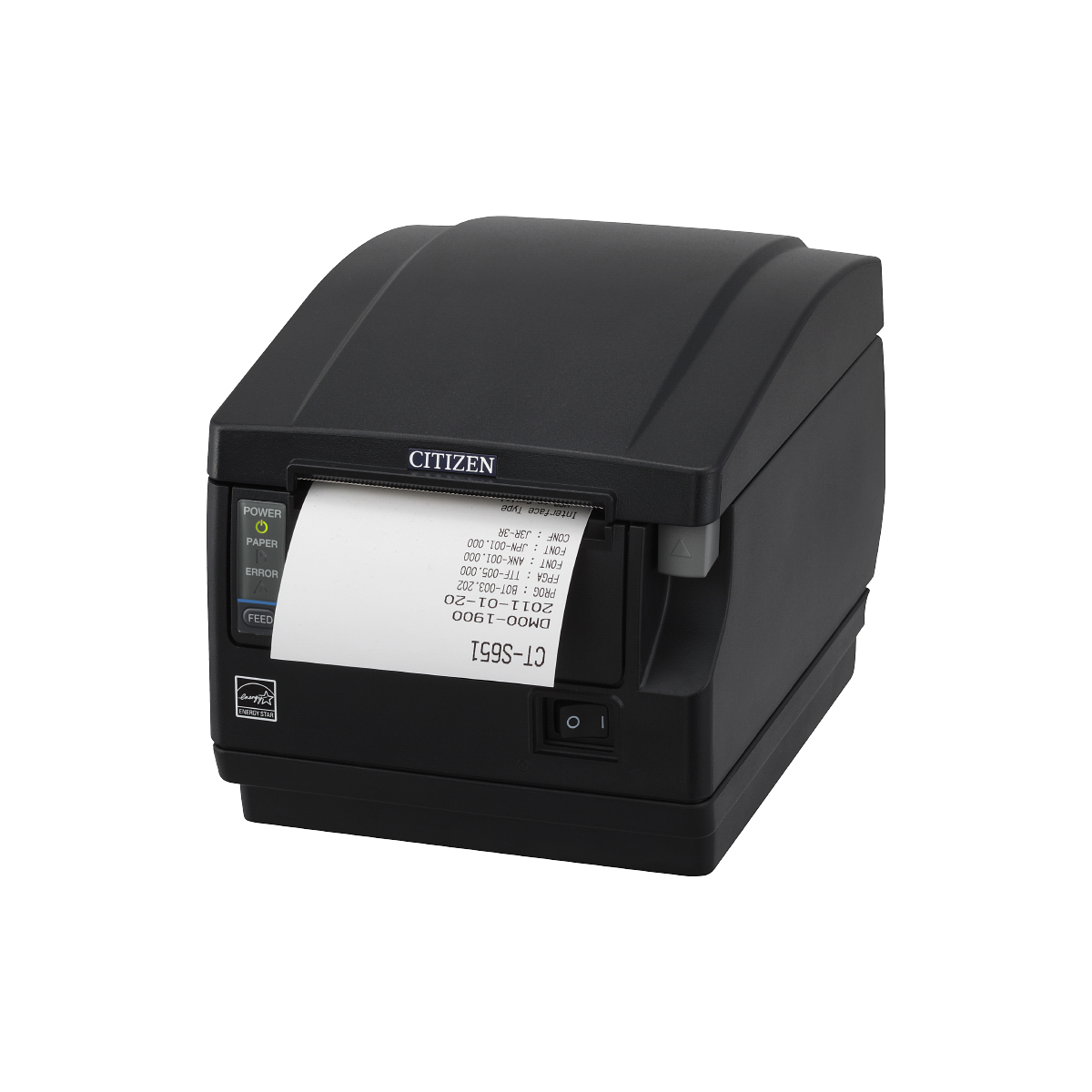

Receipt PrinterCT-S651Ⅱ

Highly reliable and easy to operate standard model. Top paper exit model equipped with 4 new functions.

Paper Width: 58mm; 80mm

Print Method: Direct Thermal Printing

Functions

Printing Speed: up to 220mm/sec.
Auto Cutter
Buzzer
Cash Drawer Kicker
Drop-in Paper Loading
Internal Power Supply (with extended base option)

Applications

Receipts
Tickets
Kitchen
Queue Tickets
Barcodes
2D Barcodes

Features

Low-cost version of the CT-S851Ⅱ
High-Speed Printing of up to 220mm/sec.

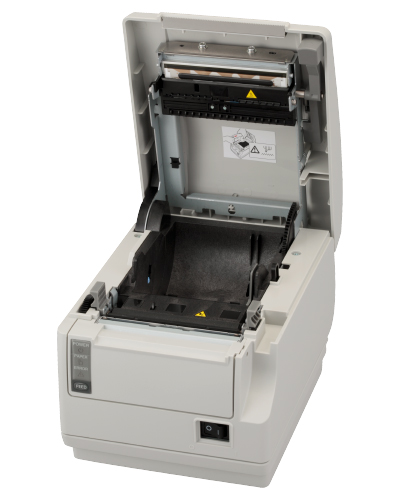

Easy to open

Easy maintenance of head and cutter.

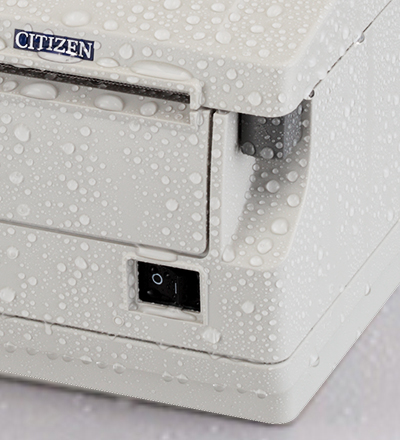

Drip-Proof Design

Equivalent to IEC60529 IPX1
Space-saving design, able to equip a built-in AC adapter in the bottom face (Internal Power Supply Type)
Apple MFi licenses program certified Bluetooth, and multi-OS compatible (iOS/Android/Windows).
Equipped with paper-saving function to conserve paper
Grayscale printing (16 shades) allows optimal printing of pictures and other images.
Extensive variety of character types

Support for Simplified Chinese, Traditional Chinese, and Korean Hangul
Support for Thai and Vietnamese characters
Supports UTF-8
Features a substantial variety of drivers and an abundance of utilities
Comes with a 2-year warranty to ensure full support after purchase

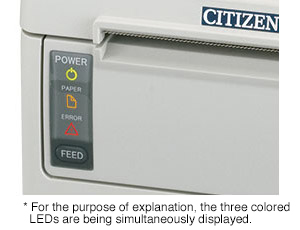

Operation Panel

Three colored LEDs display the printer’s status and error types

The FEED key is not for just feeding paper, but can be used for self-printing and memory switch setting modes

LED

POWER LED
Lights up when the power is switched ON and extinguishes when switched OFF

PAPER LED
Lights up when the paper supply is nearly out or empty

ERROR LED
Blinks if the printer overheats, when the paper cover is open, if a cutter error occurs, etc.

Operation Keys

FEED Key
Feeds paper while pressed.
After removing the cause of a cutter error, pressing the FEED key with the paper cover closed will clear the error.
Used for operation of self-printing and memory switch setup mode.

Main Applications

POS/ECR Equipment
Measuring equipment/medical equipment
Printing from various instruments, terminals and machines
Kitchen Printer

Used in the following industries

Financial
Retail
Food
Distribution
Restaurants
Healthcare/Clinical

Basic Functions

Features

Auto Cutter
Buzzer
Cash Drawer Kicker
Drop-in Paper Loading
Internal Power Supply (with extended base option)
Thermal

Supported Interfaces See Interface Details

USB
Serial
Parallel
Wired LAN
Wireless LAN
USB Host + Wired LAN
Bluetooth + USB

Available Drivers

Windows
OPOS
CUPS

Supported Platform by SDKs

Android
iOS
Windows
Linux for ARM

Smartphone/Tablet Compatibility

AndroidBluetoothUSBWireless LAN
iOSBluetoothWireless LAN

Downloads

Consumables/Options

See Consumables/Options (Sold Separately)

Specifications

Print Method	Direct Thermal Printing
Dot Density	Horizontal, Vertical 8 dots/mm (203 dpi)
Maximum Printing Speed	220mm/sec. (Highest Speed, Printing Density Level 100%, 1,760 dots lines/sec.)
Line Spacing	4.25mm (1/6 inch) configurable by command
Paper	Paper Width: 3-inch (83mm/80mm), 2-inch (60mm/58mm) Paper Diameter: up to 83mm Paper Thickness: 65 to 75μm (Paper tube inner diameter 12mm/outer diameter 18mm), 75 to 85μm (Paper tube inner diameter 25.4mm/outer diameter 32mm)
Printing Width *1	80mm 72mm 54.5mm 54mm
Number of Columns Printable *2	When paper width is 83mm: Font A: 53 columns (12×24 dots) Font B: 71 columns (9×24 dots) Font C: 80 columns (8×16 dots) Kanji Font A: 26 columns (24×24 dots) Kanji Font C: 40 columns (16×16 dots)
Character Size *3	Font A: 1.5×3mm Font B: 1.13×3mm Font C: 1×2mm Kanji Font A: 3×3mm Kanji Font C: 2×2mm
Character Types	Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai code 18, Kanji (JIS first, second, third, and fourth level), Kana, JIS X0213
User Memory	384K bytes (user-made characters and logos can be registered)
Barcodes	UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE 93, CODE 128, CODABAR (NW-7), GS1 *4
2D Barcodes	PDF417, QR CODE
Interfaces	Serial (RS-232C compliant), Parallel (IEEE1284 compliant, Centronics compliant), USB (Full speed), Bluetooth (MFi certification acquired), USB with HUB, Wired LAN (Standard and High-Performance specs), Powered USB
Operation Panel	LED Display: 3 colors, Operation Keys: 1 key
Input Buffer	4k bytes / 45 bytes
Power Supply Voltage	AC100 to 240V
Power Consumption	Approximately 45W (when printing) Standby: 3W
Drawer Kick-Out	Control of up to 2 drawers
Usage Environment	Operating Environment Temperature/Humidity: 5 to 45°C; 10 to 90% RH (no condensation) Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% RH (no condensation)
Mass	Approx. 2.1Kg
External Dimensions	145 (W) x 192 (D) x 142 (H) mm
AC Adapter Specifications	Input: AC100 to 240V 50/60Hz 120VA Output: DC24V 1.9A
Main Body Case Color	White, Black
Reliability	Head Life: abrasion-resistance 150 km, 200 million pulses (room temperature, room humidity, specified recommended paper) Auto cutter life: 2 million cuts (room temperature, room humidity, specified recommended paper)
Standards Compliance	VCCI Class A * The acquired standards apply when Citizen Systems AC Adapter (36AD2/36AD3) is used.
Utility Software	POS Printer Utility
Drivers	Windows、OPOS、Pos　for.NET、Java POS、Linux、CUPS
Accessories	AC Cord: ×1 Thermal Paper Roll for Testing: 1 roll AC Adapter: ×1 *only for AC Adapter type Quick Start Guide Power Switch Cover Cable Cover (for built-in AC Adapter type) Cable Cover (for external AC Adapter type)

*1: When paper width is 83, 80, 60, or 58mm
*2: Number of columns for printing can be changed with the memory switch.
*3: Actual characters may appear smaller, as the listed dimensions include the space within the font.
*4: Please contact us for details regarding GS1.

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

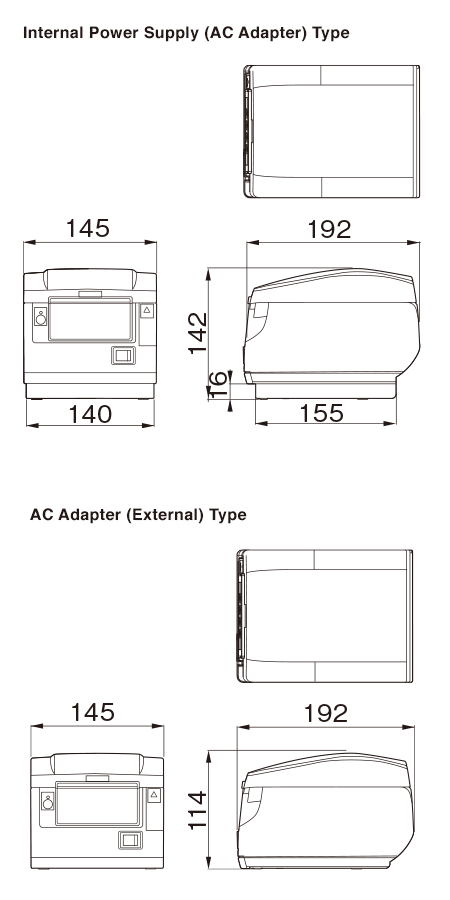

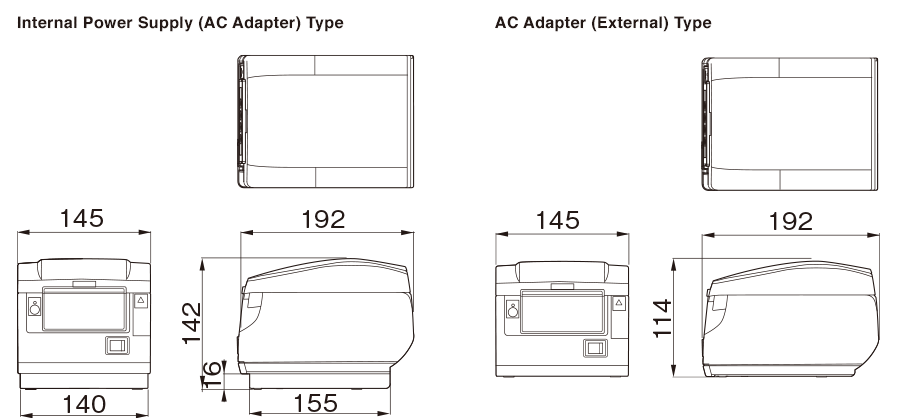

Dimensions

(Unit: mm)

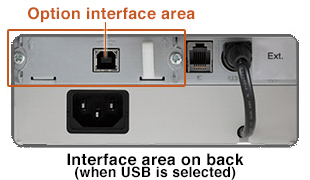

Interfaces

For the interface, select one connection method from the available factory options: USB, Serial, Parallel, Wired LAN, Wireless LAN, or Bluetooth + USB.
Other options sold separately.
