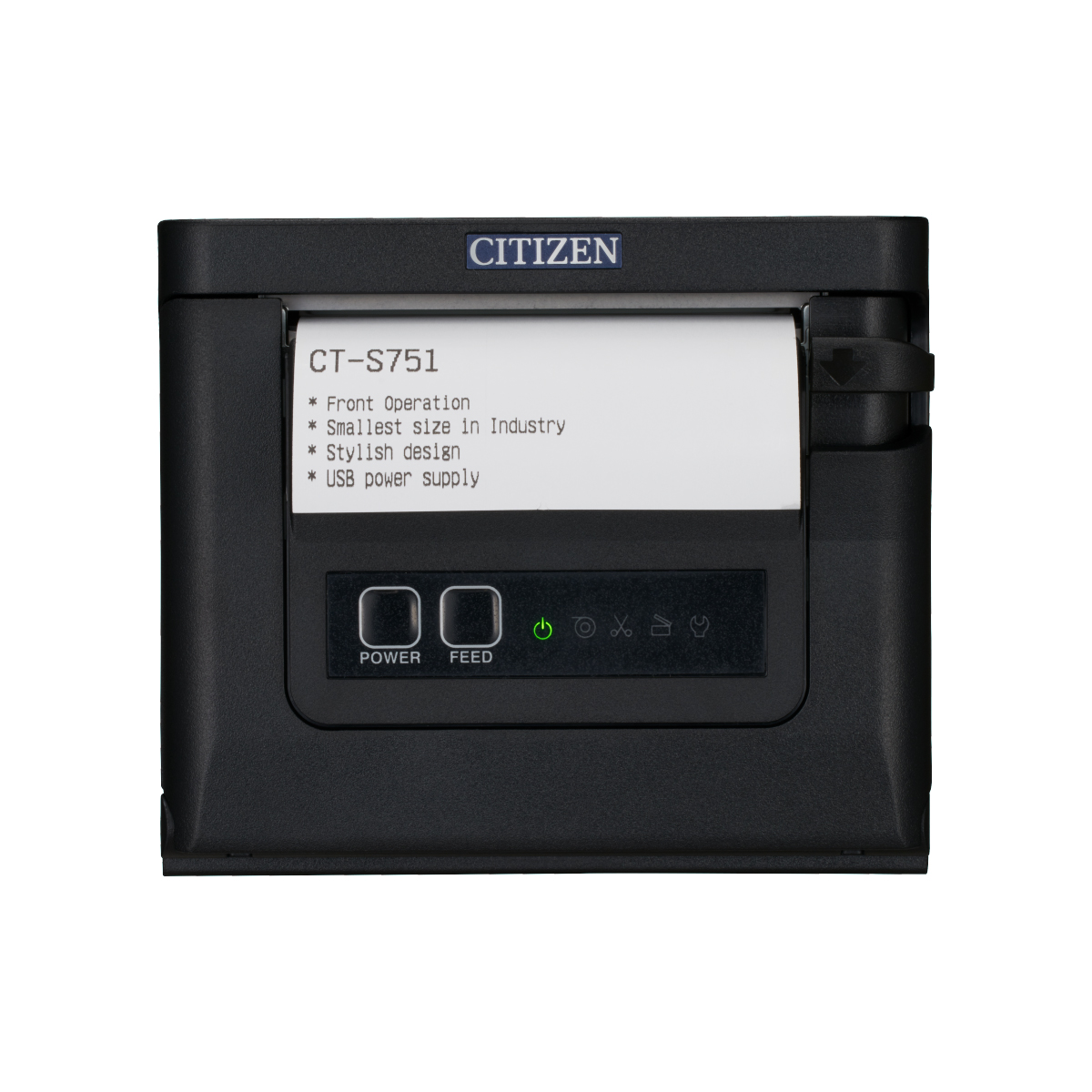

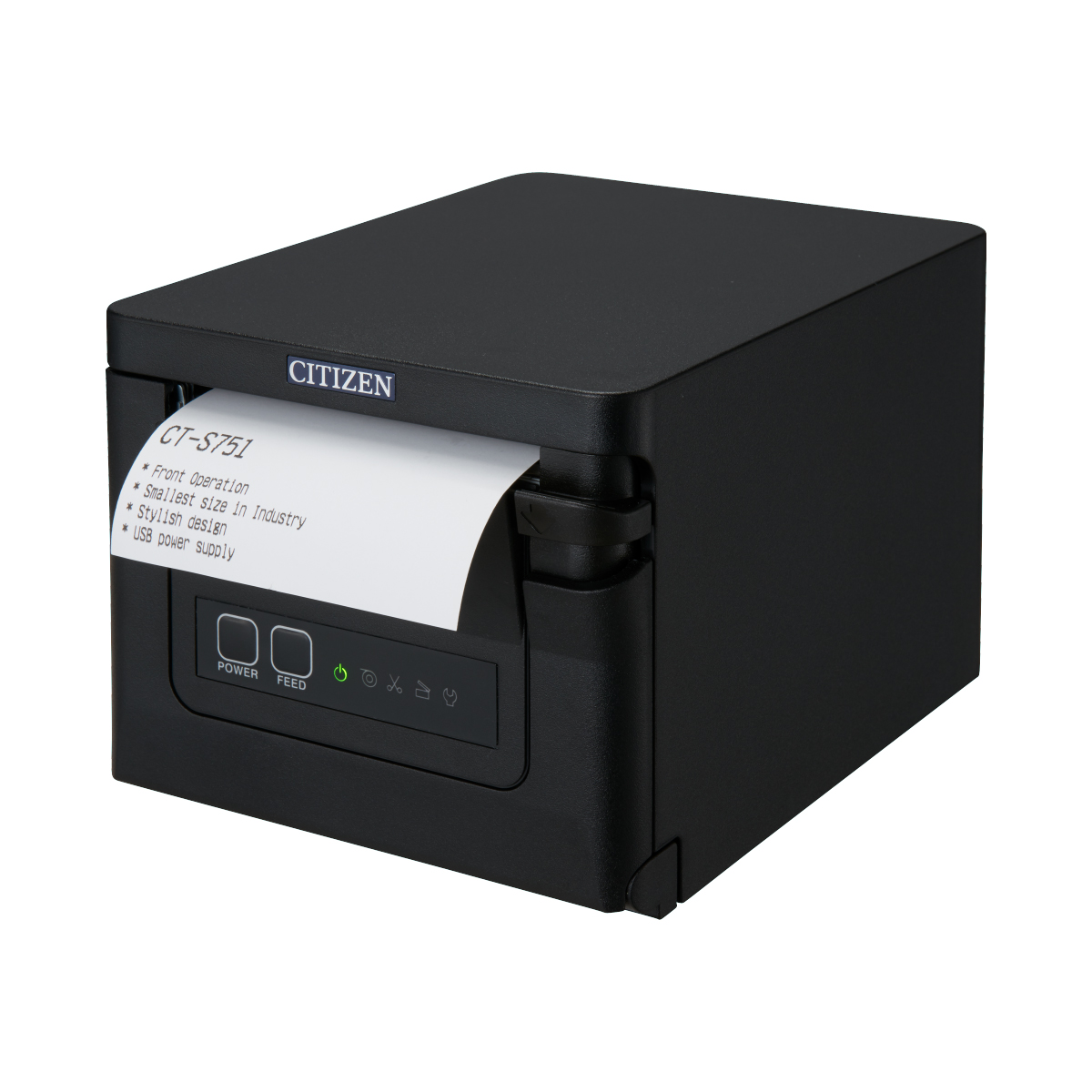

Receipt PrinterCT-S751

The CT-S751 printer provides best-in-class print speed of 350 mm per second and achieves optimal space savings with front access media loading in one of the industry’s smallest sized printers.

  • ENERGY STAR
Paper Width
58mm
80mm
Print Method
Direct Thermal Printing
Functions
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading

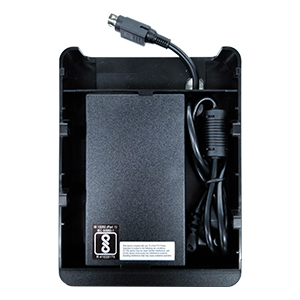

  • Internal Power Supply (with extended base option)
Applications
  • Receipts
  • Tickets
  • Queue Tickets
  • Barcodes
  • 2D Barcodes

Features

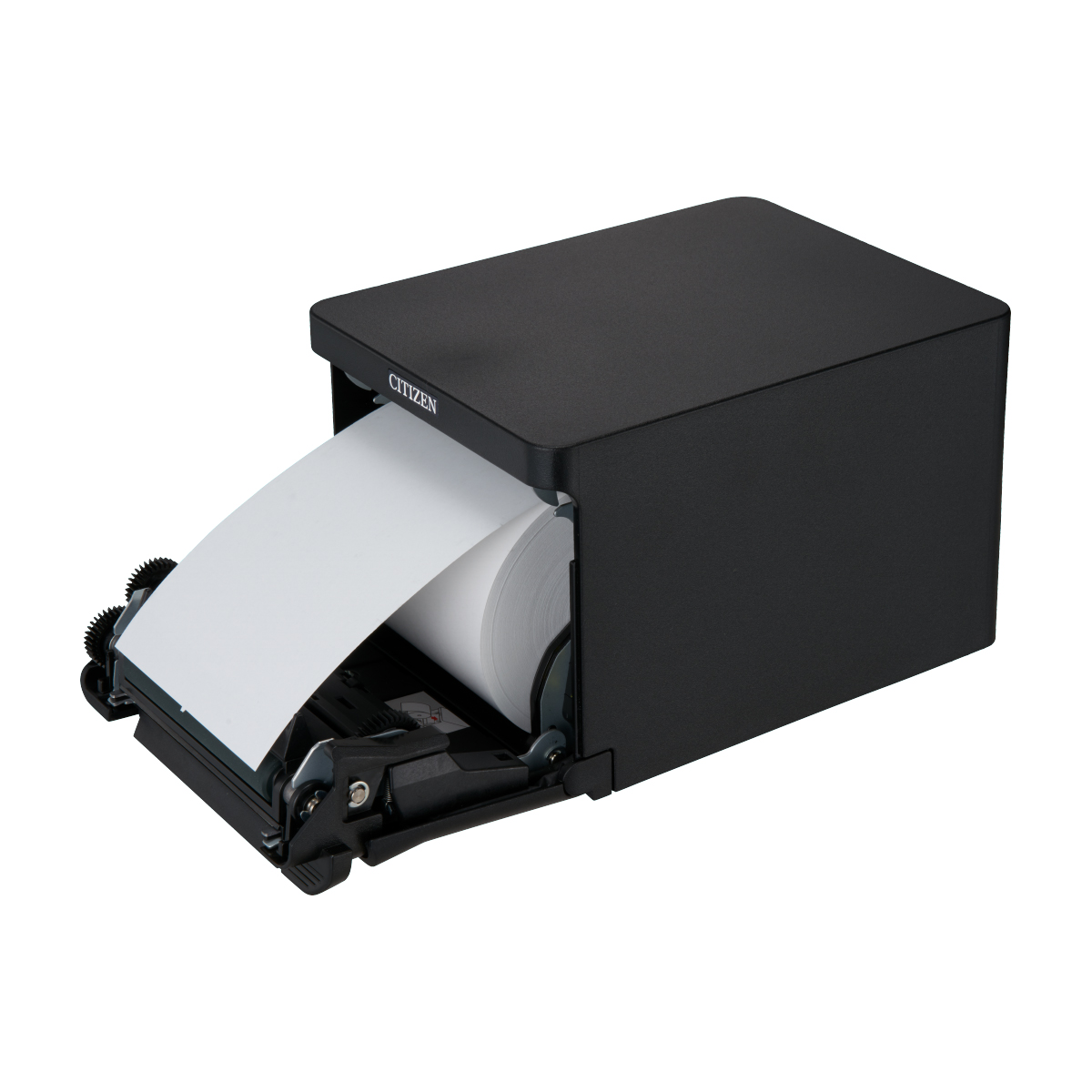

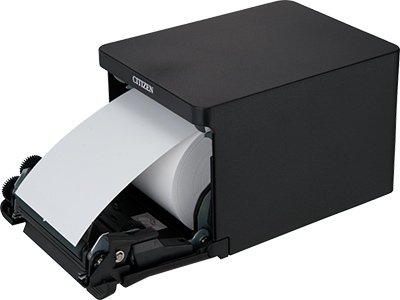

  • Front access

    Paper loading, switching power ON/OFF, and other tasks can be done at the front of the machine.
    Suitable for installing under a counter, shelf or rack

  • Bluetooth for printing with smartphones and tablets

    Bluetooth allows direct printing from a smartphone or tablet.

  • XML/Web app printing

    Without installing a device driver, XML data can be sent directly to the printer for printing. (LAN model standard)

  • Supports multilingual printing

    Ability to print multiple international character sets.
    (Simplified Chinese, Traditional Chinese, Japanese, Hangul)

  • Provides USB power

    Equipped standard with a powered USB port, which can charge tablets and other devices (maximum of 2.1A)

  • Functional design

    Simple design allows setup in any location for industrial or retail use.

  • Paper-saving function (ECO Printing)

    Saves paper by means of top margin deletion, line space compression, and letter size reduction.

  • Grayscale printing

    Grayscale printing (16 shades) allows optimal printing of pictures and other images.

  • Extensive variety of character types

    Support for Simplified Chinese, Traditional Chinese, and Korean Hangul
    Support for Thai and Vietnamese characters
    Supports UTF-8

Introductory Video

Main Applications

  • POS equipment

  • Measuring equipment/medical equipment

  • Printing from various instruments, terminals and machines

Used in the following industries

  • Financial

  • Retail

  • Distribution

  • Restaurants

  • Apparel

  • Hospitality

  • Healthcare/Clinical

Basic Functions

Features
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading
  • Thermal
Supported Interfaces
  • USB
  • Serial
  • Wired LAN
  • Wireless LAN
  • Bluetooth
  • USB Host + Wired LAN
  • USB Host + Bluetooth
Available Drivers
  • Windows
  • OPOS
  • CUPS
Supported Platform by SDKs
  • Android
  • iOS
  • Windows
  • Linux for ARM
Smartphone/Tablet Compatibility
  • AndroidBluetoothUSBWireless LAN
  • iOSBluetooth

Specifications

Print Method Direct Thermal Printing
Printing Width 3-inch: 72 mm; 2-inch: 52.5 mm
Maximum Printing Speed 350 mm/sec. (speed decreases during gray-scale printing)
Paper Paper Thickness: 53–85 μm
Auto Cutter: equipped standard (partial cut and full cut)
Number of Columns Font A: 48 columns (12×24 dots) Font B: 64 columns (9×24 dots)
Font C: 72 columns (8×16 dots)
Kanji Font A: 24 columns (24×24 dots)
Kanji Font C: 36 columns (16×16 dots)
Character Size Font A: 1.5×3 mm
Font B: 1.13×3 mm
Font C: 1×2 mm
Kanji Font A: 3×3 mm
Kanji Font C: 2×2 mm
Character Types Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Kanji (JIS first, second, third, fourth level), Kana, JIS C 6226-1983, TCVN3, TCVN3 Caps, Thai Code11 1Pass, Thai Code11 3Pass, Thai Code18 1Pass, Thai Code18 3Pass, WPC1258, Korean, Simplified Chinese GB18030-2000, Traditional Chinese CP950, Traditional Chinese HKSCS-2016
User Memory 384 KB (user-made characters and logos can be registered)
Barcodes UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE 93, CODE 128, CODABAR (NW-7), PDF417, QR codes, GS1 Databar
Interface Equipped as Standard: USB,
Selectable additions: Serial RS-232C compatibility, wired LAN, wireless LAN, Bluetooth, wired LAN + USB host, Bluetooth + USB host
Input Buffer 4k/45 bytes
Power Supply Voltage AC Type: AC100V
Power Consumption Normal Printing: Approx. 50W; Standby: Approx. 2W
Drawer Kick-Out Control of up to 2 drawers
Usage Environment Operating Environment Temperature/Humidity: 5 to 45°C; 10 to 90% RH (no condensation)
Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% RH (no condensation)
Mass Approx. 1.3 kg
External Dimension 125 (W) x 165 (D) x 108 (H) mm
AC Adapter Specifications Input: AC100/240V, 50/60Hz; Output: DC24V
Output: DC24V 2.1A
Main Body Case Color Cool White, Black
Reliability Head Life: 200 km, 200 million pulses (room temperature, room humidity, specified recommended paper)
Auto cutter life: 2 million cuts (room temperature, room humidity, specified recommended paper, specified paper thickness, specified cutting conditions) (3-inch type, for 53 μm ≤ paper thickness ≤ 85 μm)
Accessories Thermal paper roll (*small-diameter paper included with accessories)
AC adapter
AC cord
Quick-start guide
Cable cover
Partition

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

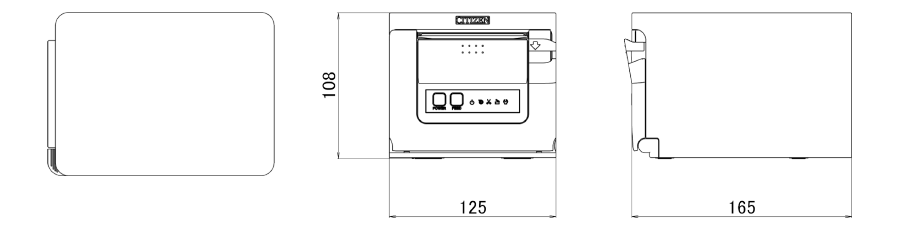

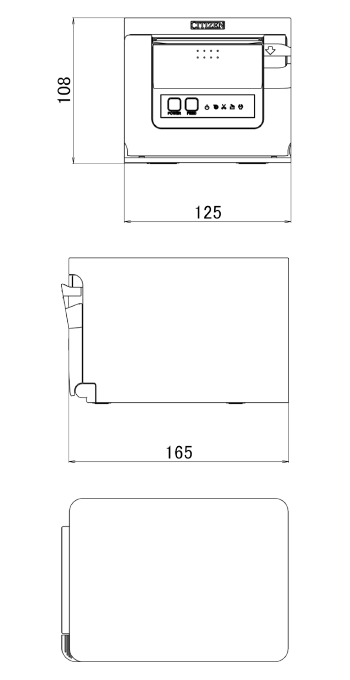

Dimensions

DimensionsDimensions

(Unit: mm)

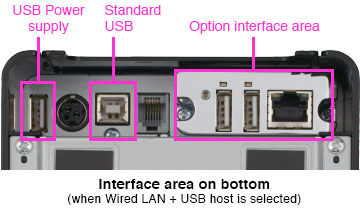

Interfaces

Along with standard USB, 1 additional connection method can be selected as a factory option.

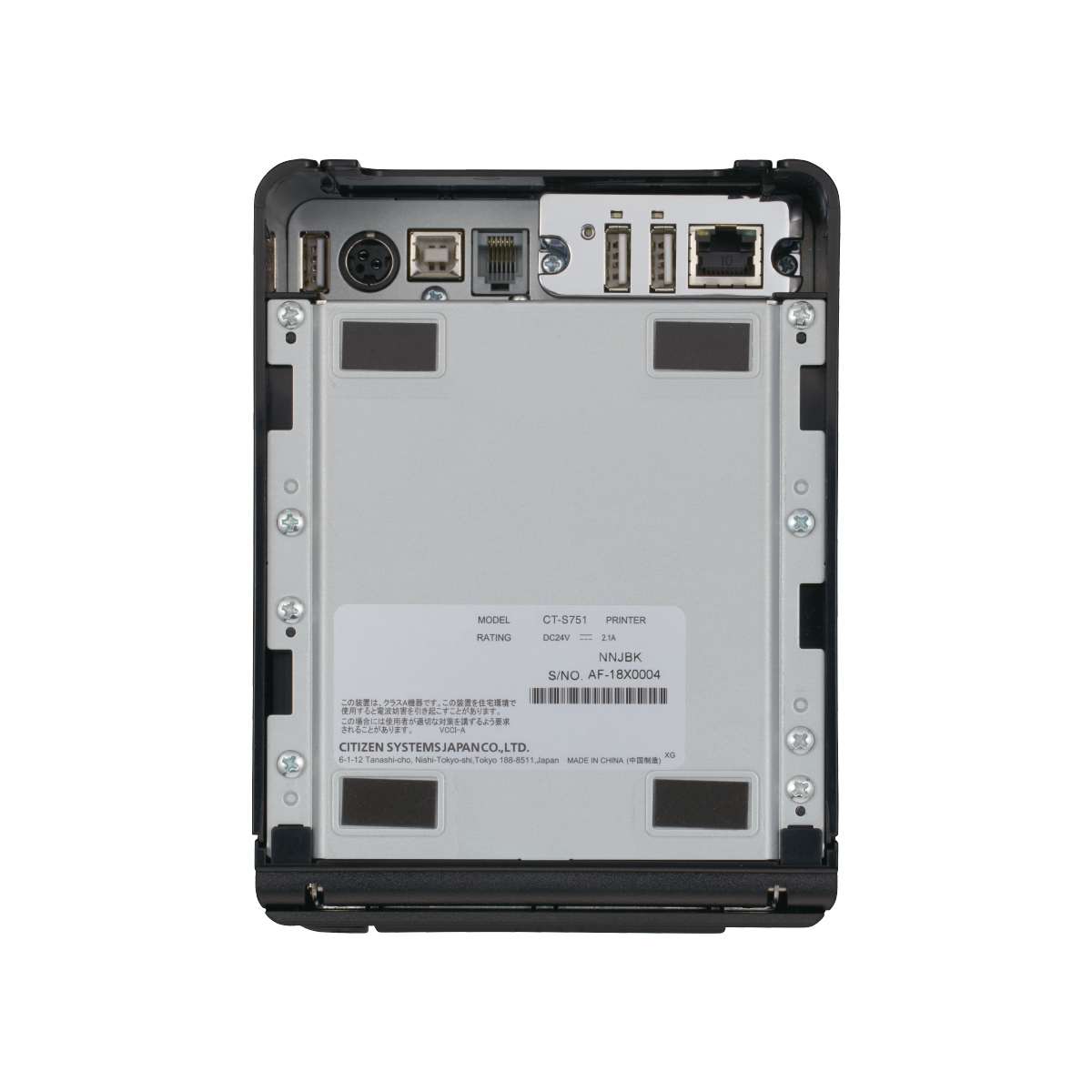

Connection area on bottom

Equipped as Standard

  • USB

Factory OptionsOne of the following connection methods can be selected

  • Serial
  • Wired LAN
  • Wireless LAN
  • Bluetooth
  • USB host + wired LAN
  • USB host + Bluetooth
