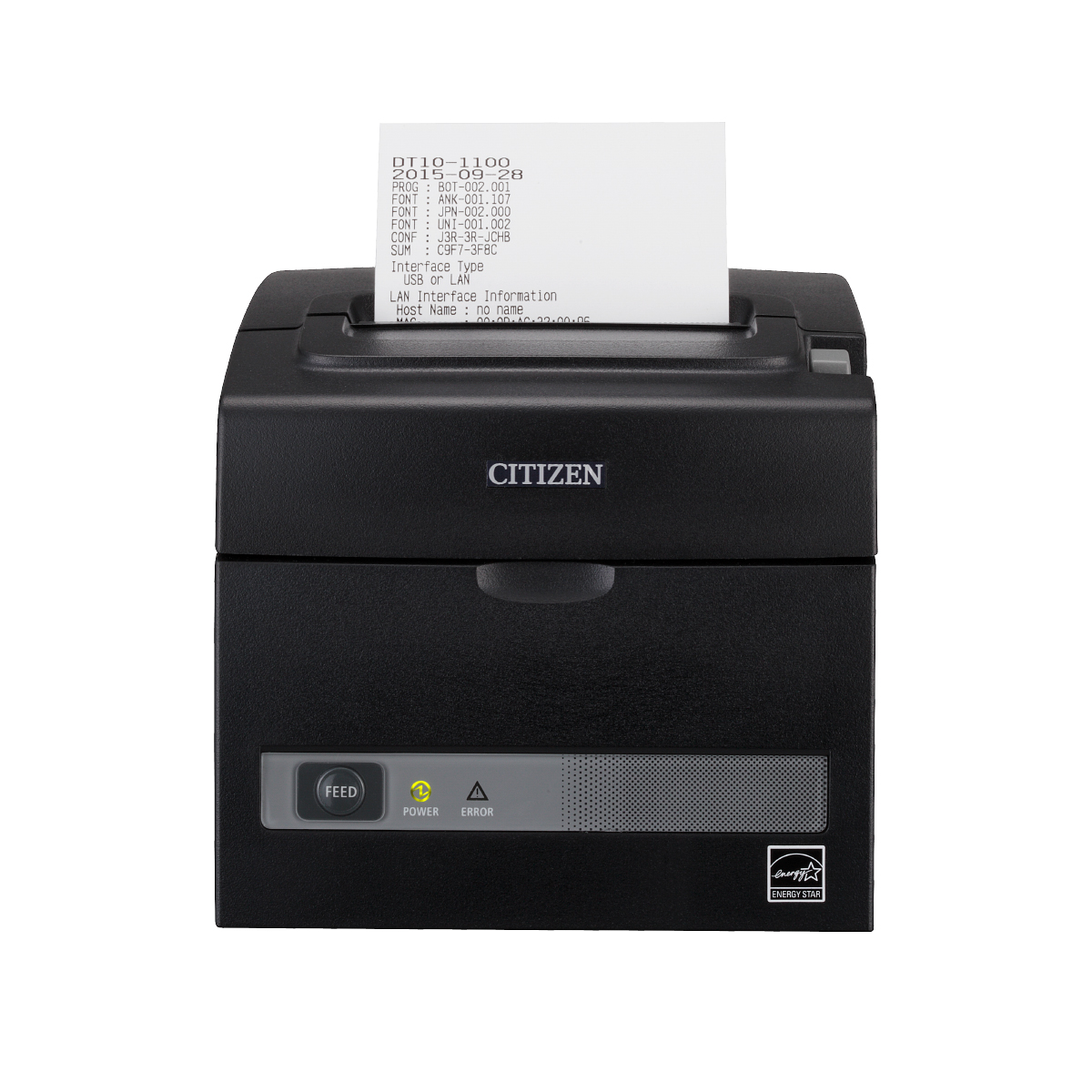

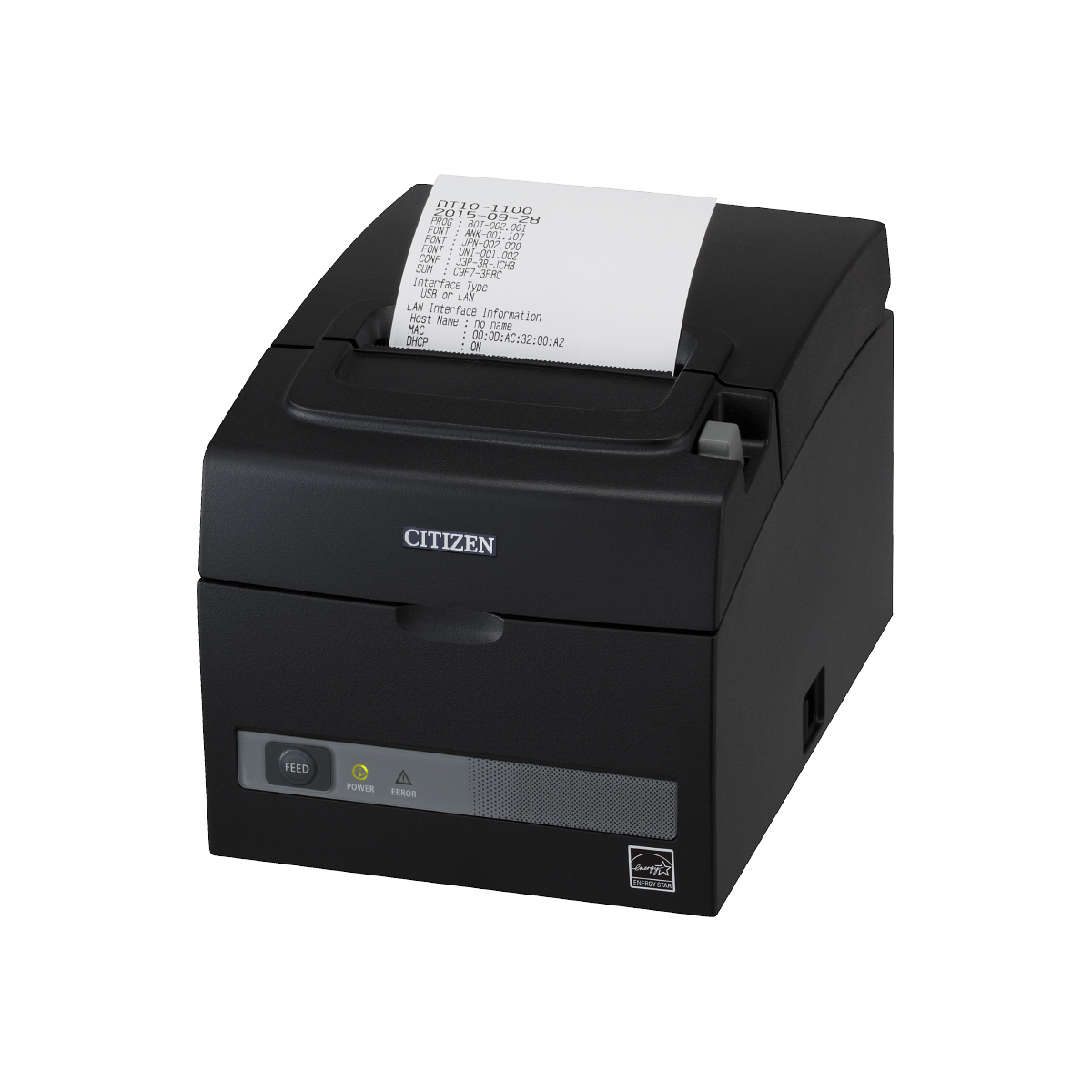

Receipt PrinterCT-S310Ⅱ

An economical model designed for easy operation and cost performance.

  • ENERGY STAR
Paper Width
58mm
80mm
Print Method
Direct Thermal Printing
Functions
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading
  • Built-in Power Supply
Applications
  • Receipts
  • Tickets
  • Kitchen
  • Barcodes
  • 2D Barcodes

Features

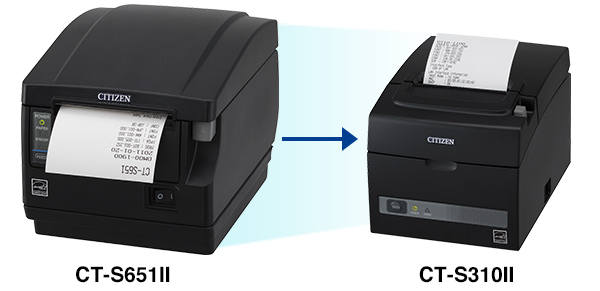

  • Small footprint saves space around the cash register

    Built-in power source means no messy wiring, allowing the printer to be set up anywhere including the countertop.

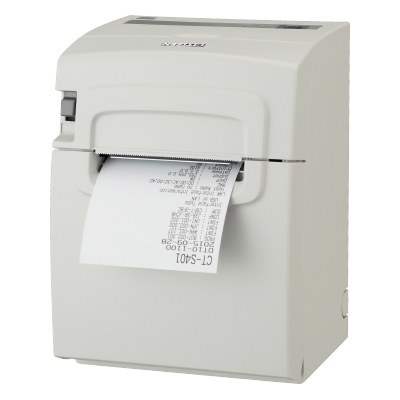

  • Smartly designed to allow installation or placement anywhere

    Packaged with rubber feet for vertical placement along with a wall installation kit.

  • Features dual interfaces (Wired LAN + USB)

  • Equipped with paper save mode + JIS levels 3 and 4 (JIS20043 compatible)

  • USB Power Save Mode

    When connected to a host through USB, the printer's power synchronizes with the host’s power, helping to conserve power as the host is switched ON and OFF.

  • Various SDKs (development support tools) including for Android and iOS are provided free of charge

Main Applications

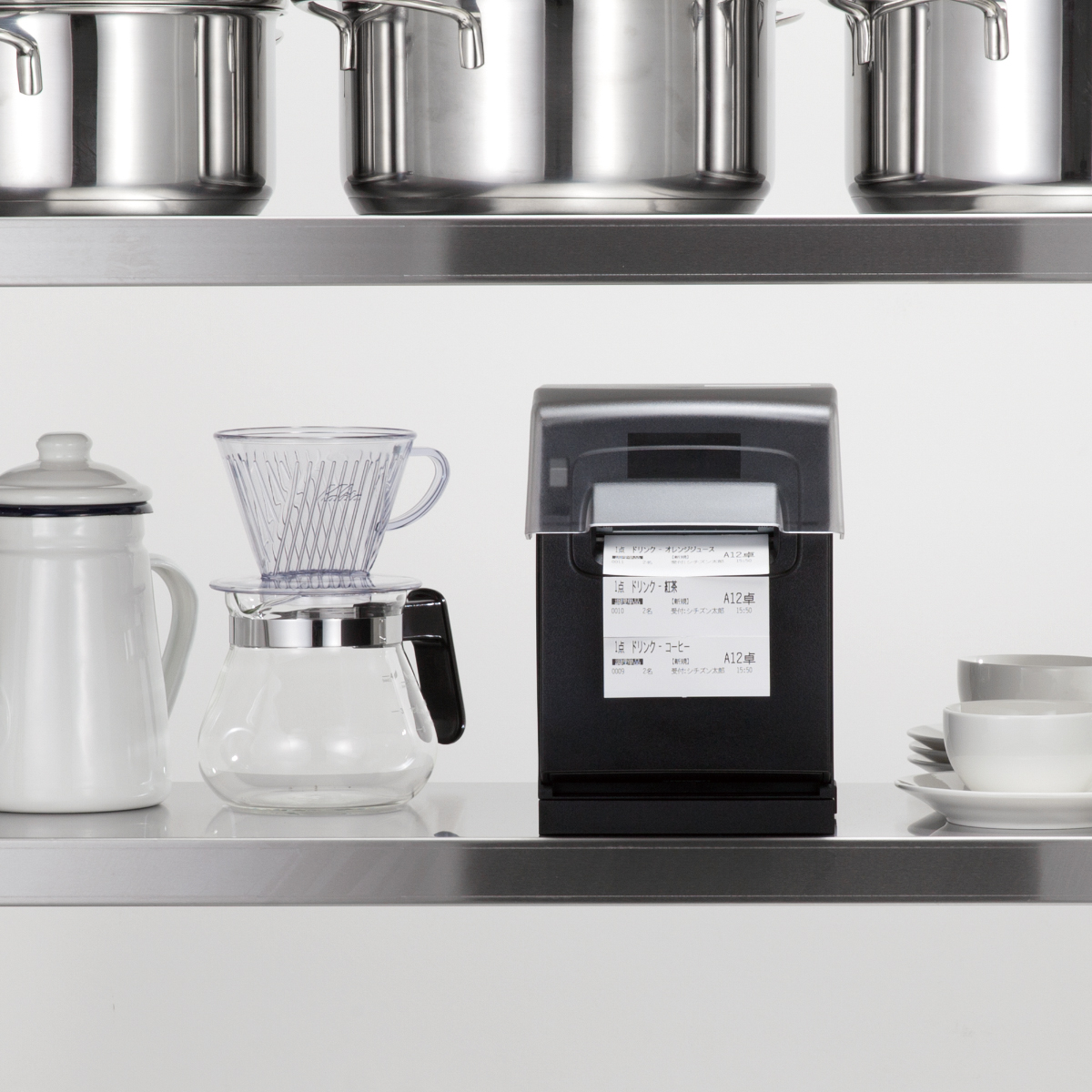

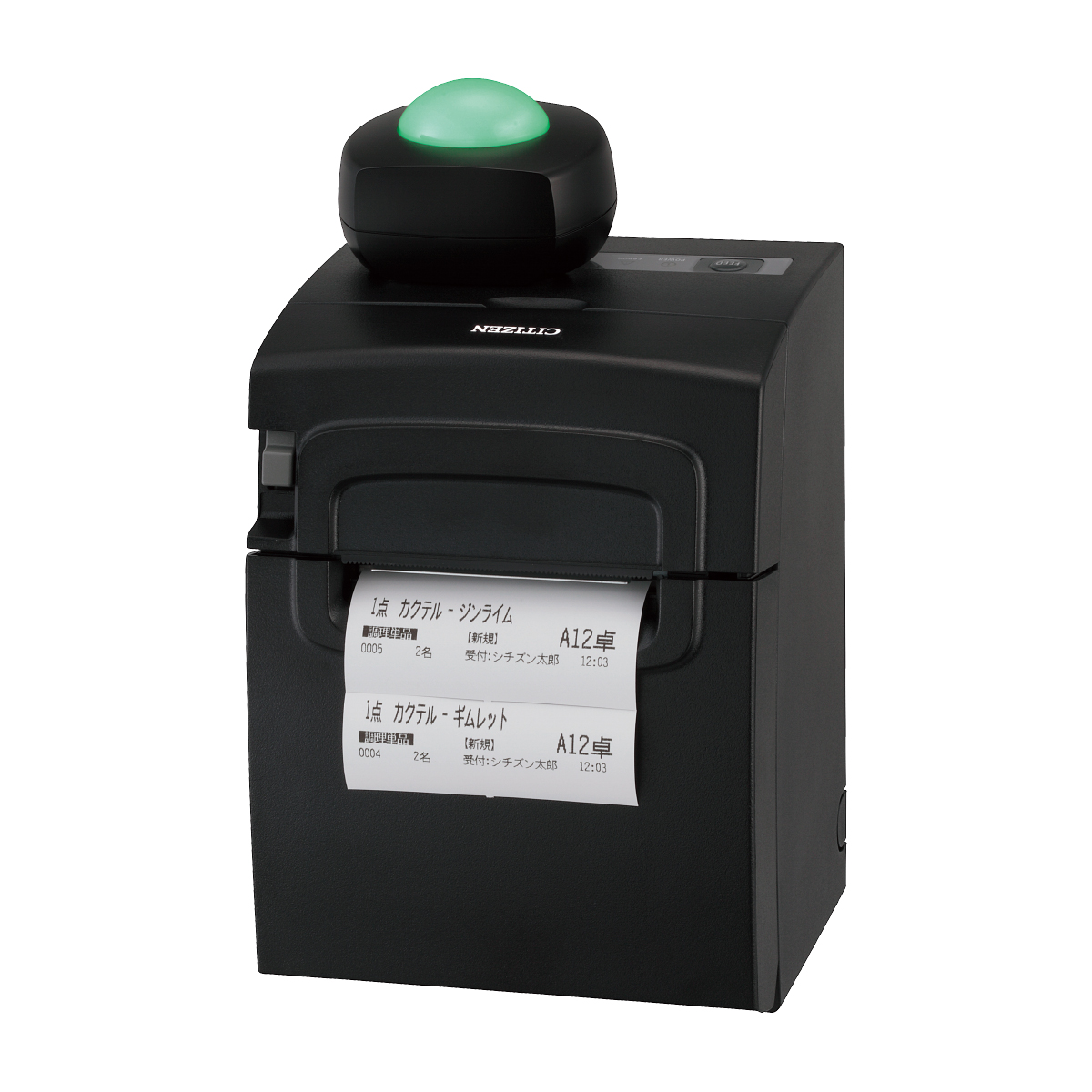

  • Kitchen Printer

  • POS equipment

  • Measuring equipment/medical equipment

  • Printing from various instruments, terminals and machines

Used in the following industries

  • Restaurants

  • Retail

  • Apparel

Basic Functions

Features
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading
  • Internal Power Supply (with extended base option)
  • Thermal
Supported Interfaces
  • USB
  • Serial
  • Wired LAN
Available Drivers
  • Windows
  • OPOS
  • CUPS
Supported Platform by SDKs
  • Android
  • iOS
  • Windows
  • Linux for ARM

Specifications

Print Method Direct Thermal Printing
Printing Width (Total Dot Number) 72㎜(576 dots)・52.5mm(420 dots)
Dot Density Horizontal, Vertical 8 dots/mm (203 dpi)
Maximum Printing Speed 160mm/sec.
Line Spacing 4.25mm (1/6 inch) configurable by command
Paper Paper Width: 80㎜・58mm
Paper Diameter: up to 83mm
Paper Thickness: 65 to 75μm (Paper tube inner diameter 12mm/outer diameter 18mm)
Number of Columns Printable *1 Font A: 48 columns (12×24 dots)
Font B: 64 columns (9×24 dots)
Font C: 72 columns (8×16 dots)
Kanji Font A: 24 columns (24×24 dots)
Kanji Font C: 36 columns (16×16 dots)
Character Size *2 Font A: 1.5×3mm
Font B: 1.13×3mm
Font C: 1×2mm
Kanji Font A: 3×3mm
Kanji Font B: 2×2mm
Character Types Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai code 18, Kanji (JIS first, second, third, and fourth level), Kana, JIS X0213
User Memory 384KB (user-made characters and logos can be registered)
Barcodes UPC-A/E, JAN (EAN) 13 columns/8 columns, ITF, CODE39, CODE 93, CODE 128, CODABAR (NW-7), GS1-DataBar
2D Barcodes PDF417, QR CODE
Interfaces Wired LAN+USB
Input Buffer 4k bytes / 45 bytes
Power Supply Voltage AC100 to 240V
Power Consumption Approximately 32W (when printing) Standby: 0.6W
Drawer Kick-Out Control of up to 2 drawers
Usage Environment Operating Environment Temperature/Humidity: 5 to 45°C; 10 to 90% RH (no condensation) Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% RH (no condensation)
Mass Approx. 1.9kg
External Dimensions 140(W)×195(D)×132(H) mm
Main Body Case Color White, Black
Reliability Head Life: abrasion-resistance 150 km, 300 million pulses (room temperature, room humidity, specified recommended paper)
Auto Cutter Life: 2 million cuts (room temperature, room humidity, specified recommended paper)
Standards Compliance VCCI Class A
Utility Software POS Printer Utility
Drivers Windows, OPOS, POS for.NET, Java POS, Linux, CUPS
Accessories AC Power Cord
Paper Roll Sample
Rubber Feet for Vertical Placement
Power Switch Cover
CD-ROM
Partition
Quick Start Guide
Wall Installation Kit
*1
Number of columns for printing can be changed with the memory switch.
*2
Actual characters may appear smaller, as the listed dimensions include the space within the font.

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

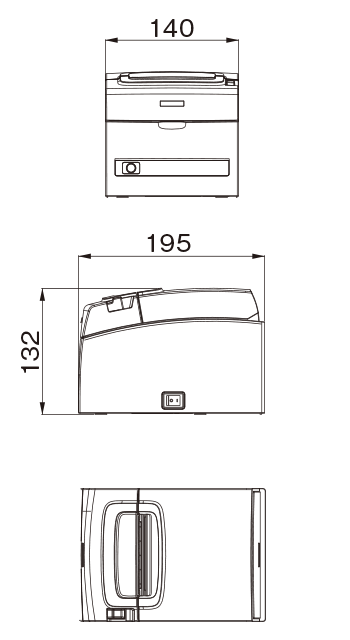

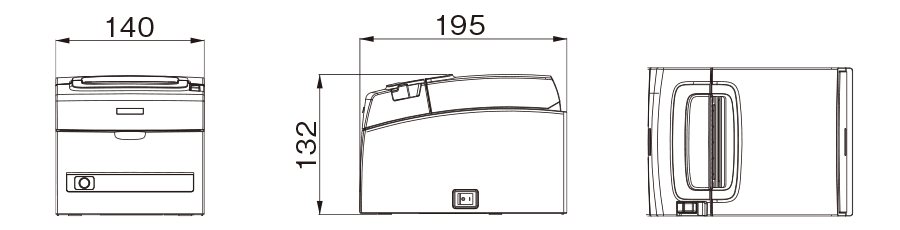

Dimensions

DimensionsDimensions

(Unit: mm)

Interfaces

Equipped as standard with two interfaces: Wired LAN + USB

Interface area on back

Equipped as Standard

  • USB

Factory Options

  • Serial
  • Wired LAN
