External Melody Buzzer

Lineup of External Melody Buzzers

CBZ-100

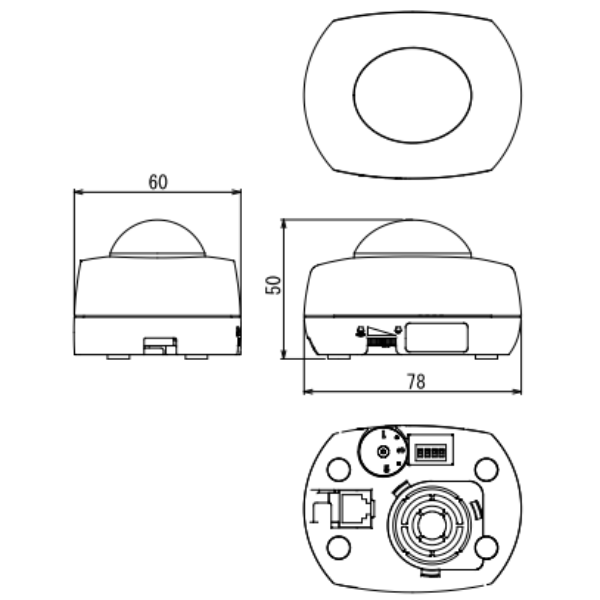

External Dimensions 78 (W) x 60 (D) x 48.4 (H) mm
寸法図

* Do not use cables other than the ones included with the products.

Features

  • Connect to the printer’s drawer kick and be notified by a loud buzzer that a print has been issued
  • LED lights up to also provide visual notification
  • Features 4 different sounds
  • Includes 2 connector cables

    A 30cm and a 60cm connector cable are packaged with the buzzer for connecting it with the printer unit.
    * Do not use cables other than the ones packaged with the products.

  • Can make notification types distinguishable by different sounds

    By using drawer kick 1 and 2 for different purposes, a different alert sound than normal can be used to notify of urgent orders, etc.

  • MADE IN JAPAN quality and reliability that you can trust.
  • Does not require a power source such as an AC adapter since power can be supplied from the printer.

Specifications

Model Number CBZ-100
Body Color Black
Interfaces Modular jack for drawer kick
Tones 4 Types (selectable with dip switch)
Indicator 4 LEDs
Volume Up to approx. 90dB (measured at a distance of 1m)
Power Supply Voltage 24V to 8.5V (power supplied from printer)
External Dimensions 60(W) × 78(D) × 50(H) mm
Mass Approx. 80g
