The CT-S801Ⅱ and CT-S851Ⅱ feature an LCD display and 4 keys to easily handle even complex settings changes. On the CT-S601Ⅱ and CT-S651Ⅱ, there are three color LEDs to support ease of operation while ensuring cost performance.

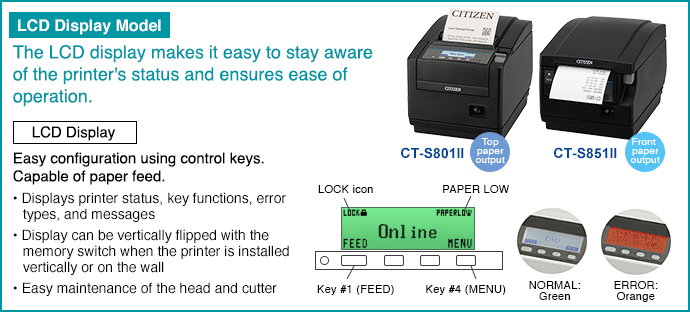

![[LCD Display Model] The LCD display makes it easy to stay aware of the printer's status and ensures ease of operation.](/cms/c-s/en/printer/special/ct_s800_s600series/img/p2_img01.png)

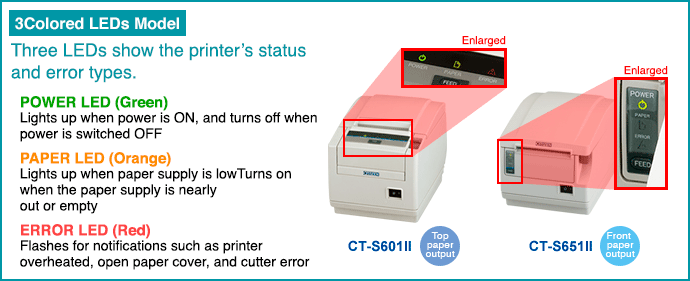

![[3Colored LEDs Model] Three LEDs show the printer’s status and error types.](/cms/c-s/en/printer/special/ct_s800_s600series/img/p2_img02.png)

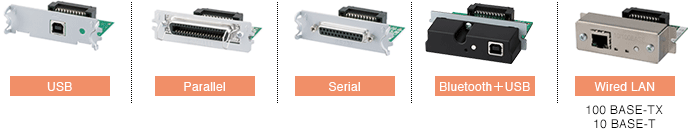

In addition to standard interfaces such as USB (2.0), Serial (RS232C) and Parallel (IEEE1284), the following wired and wireless interfaces are available as well.
* All interfaces below are factory options. Specify one when ordering your printer.

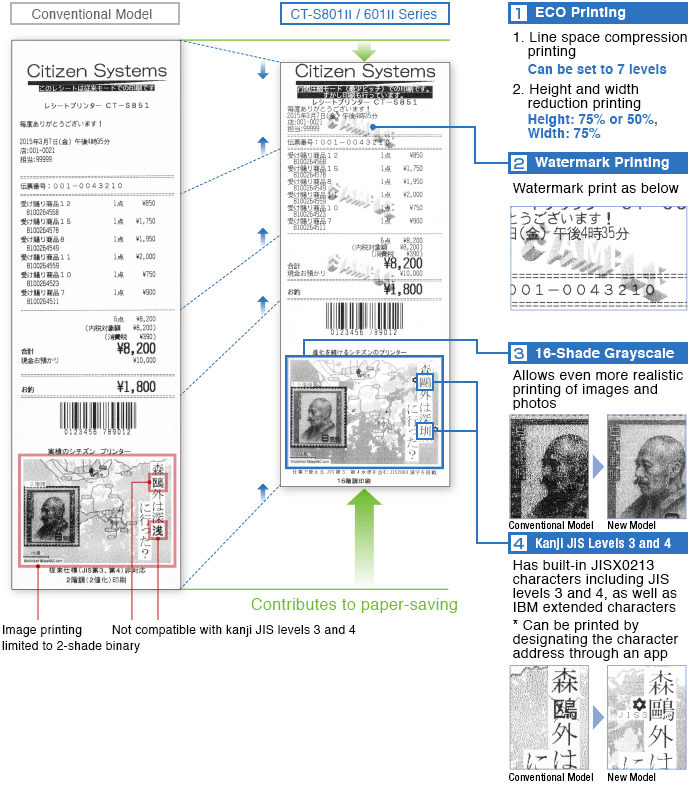

* The sample (at right) is printed in line space compression mode and with the smallest pitch. It is not set for height and width reduction printing.
Layout SDK (for Windows) * Easy and flexible creation of receipt layouts

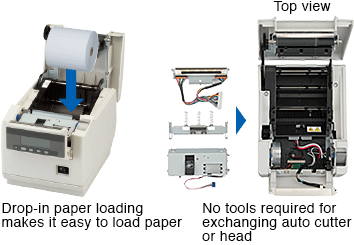

Easy-maintenance design allows the easy exchange of an auto cutter or head, and makes it possible for the sales agents near you to service your printer.
* Photo shows CT-S801Ⅱ as an example
To Products Page |
To Products Page
|
To Products Page
|
To Products Page
|
|
| Model Number | CT-S801Ⅱ | CT-S601Ⅱ | CT-S851Ⅱ | CT-S651Ⅱ |
| Color | White |
White Black |
White |
White Black |
| Paper Size | Paper Width 58mm／80mm | |||
| Paper Output Direction | Top paper output | Top paper output | Front paper output | Top/front output |
| Maximum Print Speed (mm/sec.) | 300mm/sec. | 220mm/sec. | 300mm/sec. | 220mm/sec. |
| Interfaces | USB, Serial, Parallel, Wired LAN, Wireless LAN, Bluetooth + USB | |||
| 外形寸法 | 145(W) × 192(D) × 148(H)mm | 145(W) × 192(D) × 120(H)mm | ||
