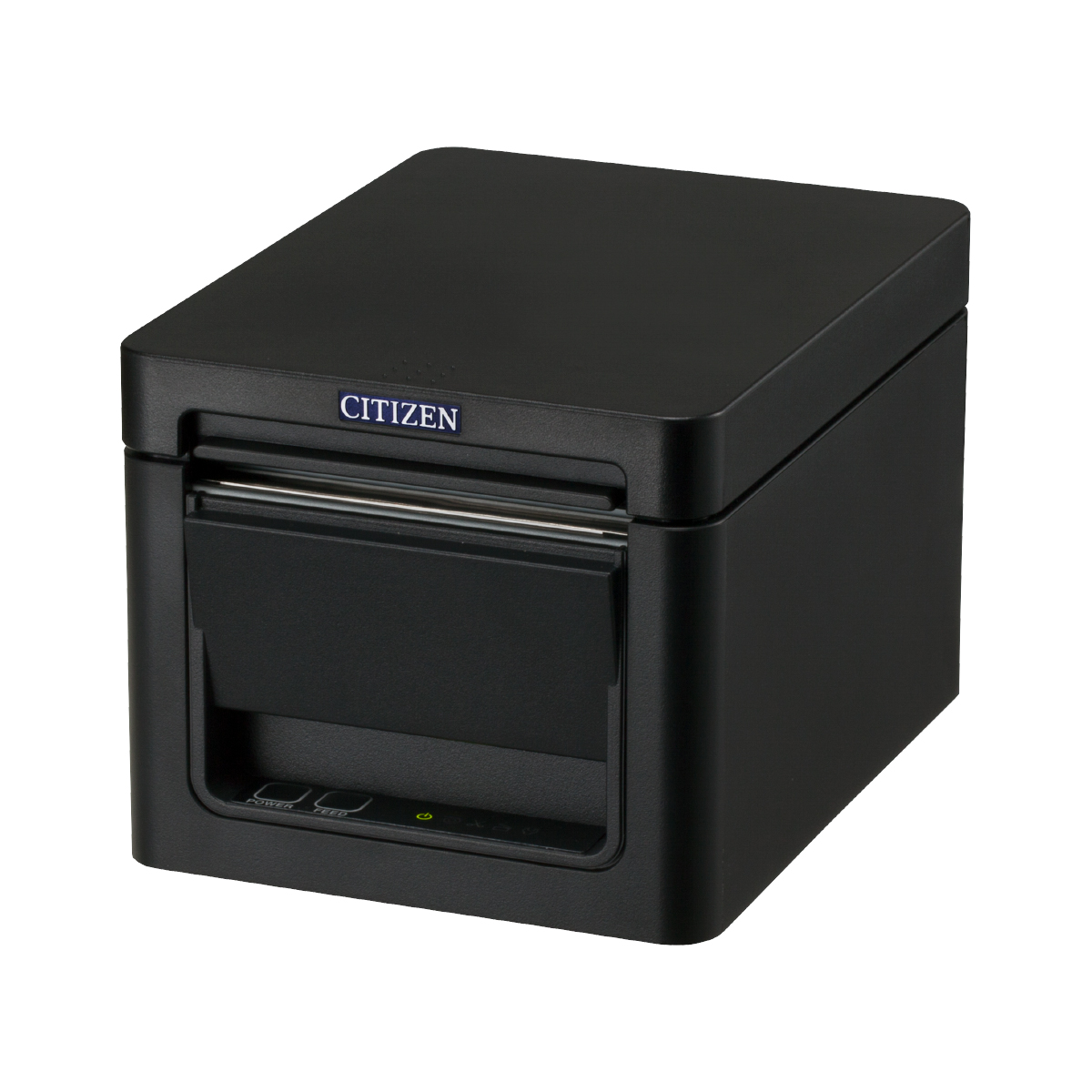

Receipt PrinterCT-D150/CT-D151

Measuring 108mm in height and 125mm in width, it’s one of the smallest in the industry. A new model with outstanding design and practical characteristics.

  • ENERGY STAR
Paper Width
58mm
80mm
Print Method
Direct Thermal Printing
Functions
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading

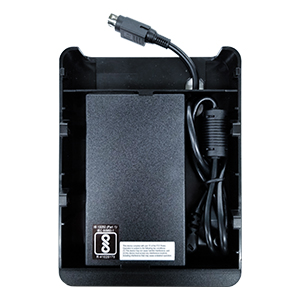

  • Internal Power Supply (with extended base option)
  • Black Mark Sensor *2

*1:CT-D150, *2:CT-D151

Applications
  • Receipts
  • Tickets
  • Queue Tickets
  • Barcodes
  • 2D Barcodes

Features

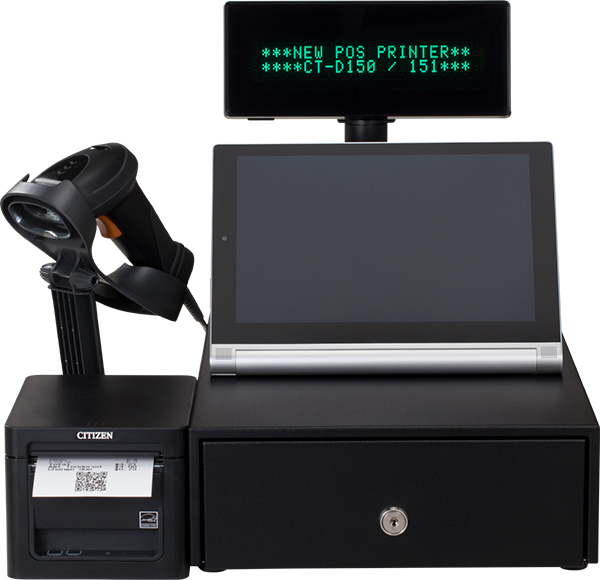

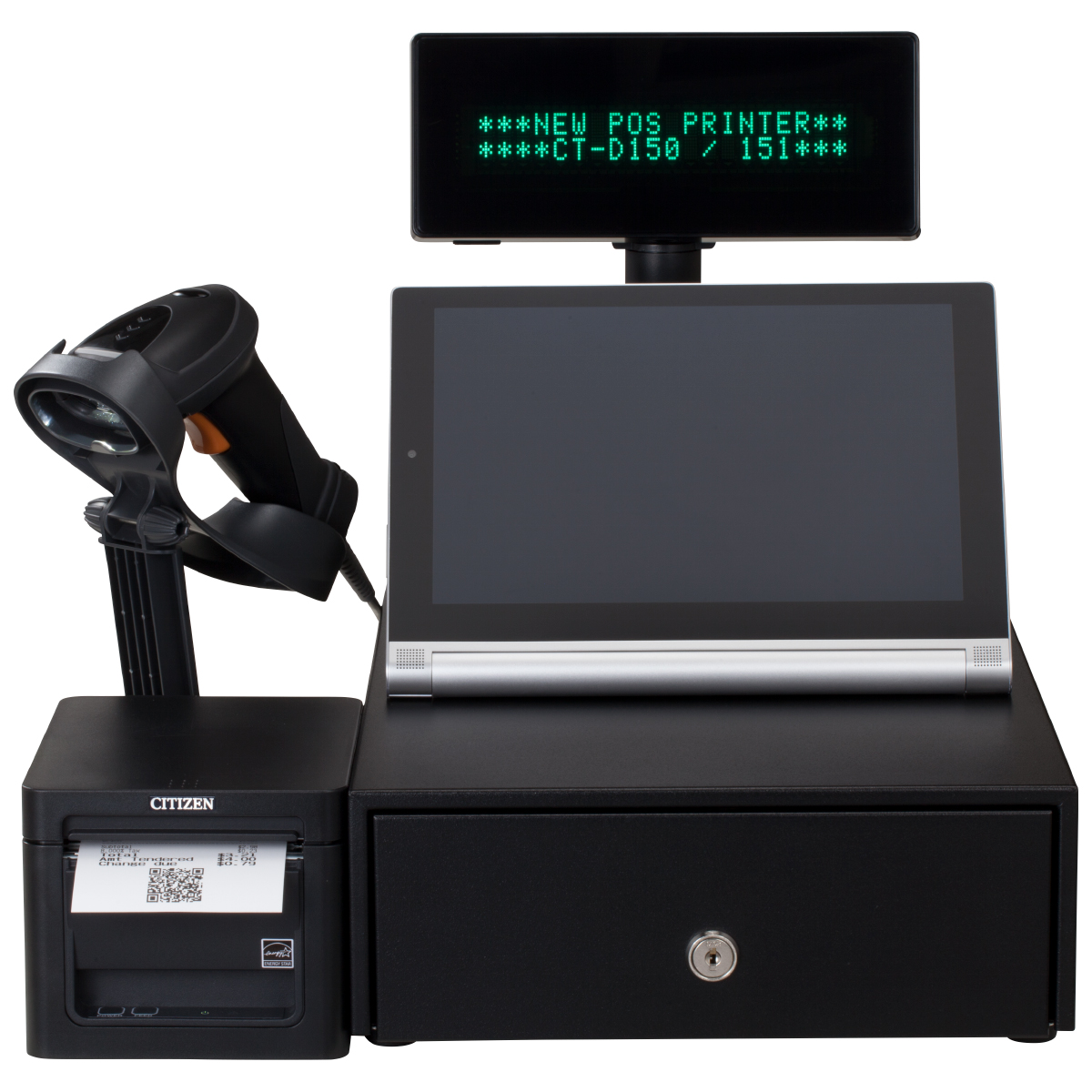

  • A business-use printer with a refined design that fits right in with a smartphone or tablet.

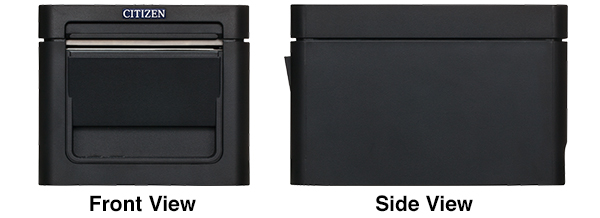

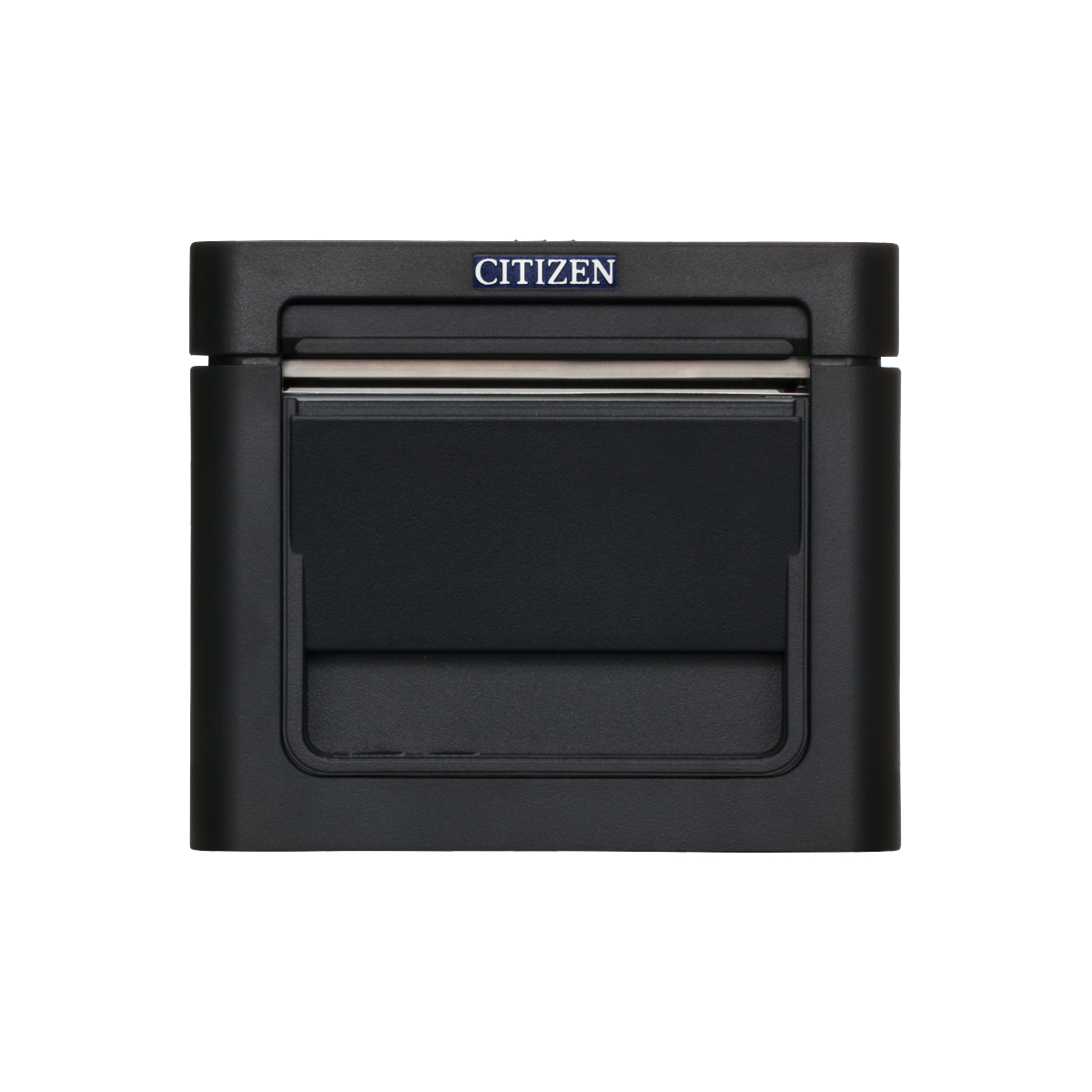

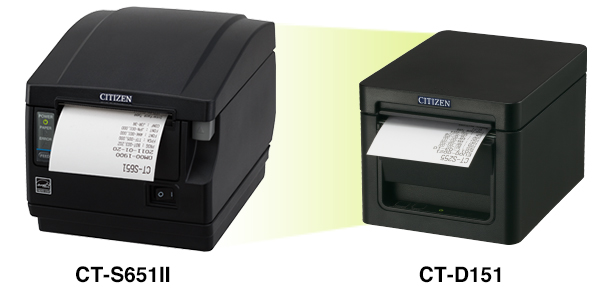

  • One of the industry's smallest 3-inch (80mm) models in terms of height and width

  • Small footprint saves space around the cash register

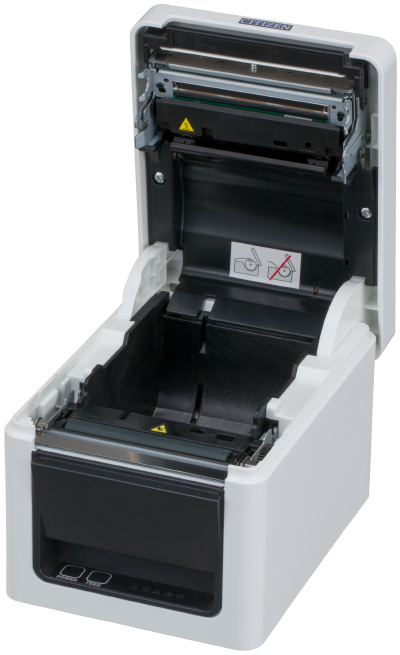

  • Easy to open

    Easy maintenance of head and cutter.

  • Capable of printing multiple international character sets (Traditional Chinese, Simplified Chinese, Japanese, and Hangul alphabet).

  • Wide variety of interfaces available
    (USB/Serial/Wired LAN/Wireless LAN/Bluetooth)

  • Various SDKs (software development kit) provided free of charge

  • Equipped with paper save mode
    * Can be printed by designating the character address from the app

  • Can handle thin 53μm receipt paper

  • Cash drawer available to match the printer’s dimensions

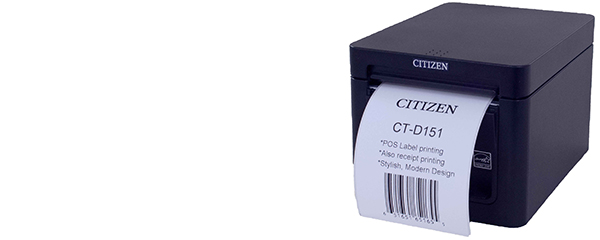

  • Supports label printing (CT-D151 only)

Main Applications

  • POS equipment

  • Measuring equipment/medical equipment

  • Printing from various instruments, terminals and machines

Used in the following industries

  • Financial

  • Retail

  • Distribution

  • Restaurants

  • Apparel

Basic Functions

Features
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading
  • Thermal
Supported Interfaces
  • USB
  • Serial
  • Wired LAN
  • Wireless LAN* **
  • Bluetooth**
  • USB Host + Wired LAN**
  • USB Host + Bluetooth

* Ordering requires a separate consultation.
** CT-D151 only.

Available Drivers
  • Windows
  • OPOS
  • CUPS
Supported Platform by SDKs
  • Android
  • iOS
  • Windows
  • Linux for ARM
Smartphone/Tablet Compatibility
  • AndroidBluetoothUSBWireless LAN
  • iOSBluetoothWireless LAN

Specifications

Model Name CT-D150 CT-D151
Print Method Direct Thermal Printing
Printing Width (Total Dot Number) 72mm(576dots) 72mm(576dots)、52.5mm(420dots)
Dot Density Horizontal, Vertical 8 dots/mm (203 dpi)
Maximum Printing Speed 250mm/sec. 300mm/sec. (Highest Speed, Printing Density Level 100%, 2,400 dots lines/sec.)
Line Spacing 4.25mm (1/6 inch) configurable by command
Paper Paper Width: 58mm/80mm
Paper Diameter: up to φ83mm
Paper Thickness: 53 to 85μm (Paper tube inner diameter 12mm/outer diameter 18mm)
Number of Columns Printable *1 Font A: 48 columns (12×24 dots)
Font B: 64 columns (9×24 dots)
Font C: 72 columns (8×16 dots)
Font A: 48 columns (12×24 dots)
Font B: 64 columns (9×24 dots)
Font C: 72 columns (8×16 dots)
Kanji Font A: 24 columns (24×24 dots)
Kanji Font C: 36 columns (16×16 dots)
Character Size *2 Font A: 1.50×3.00mm
Font B: 1.13×3.00mm
Font C: 1.00×2.00mm
Font A: 1.50×3.00mm
Font B: 1.13×3.00mm
Font C: 1.00×2.00mm
Kanji Font A: 3.00×3.00mm
Kanji Font C: 2.00×2.00mm
Character Types Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Kanji (JIS first, second, third, fourth level), Kana, JIS C 6226-1983, TCVN3, TCVN3 Caps, Thai Code11 1Pass, Thai Code11 3Pass, Thai Code18 1Pass, Thai Code18 3Pass, WPC1258, Korean, Simplified Chinese, Traditional Chinese
User Memory 384K bytes (user-made characters and logos can be registered)
Barcodes Code3of9, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8(JAN-8),Codabar, ITF, CODE39, CODE93, CODE128, CODABAR(NW-7), PDF 417, QR Code, GS1-Databar, Composit Symb UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE 93, CODE 128, CODABAR (NW-7), GS1 *3
2D Barcodes PDF417, QR CODE
Interfaces Dual interfaces: USB + LAN or USB + Serial Serial (RS-232C compliant) + USB, Bluetooth + USB, Wired LAN + USB
Operation Panel 5 Types of LED Lights
Input Buffer 4k bytes / 45 bytes
Power Supply Voltage AC Type: AC100V - 240V
Power Consumption Approx. 50W (when printing) Standby: 2W
Drawer Kick-Out CDK / DK connector, RJ12, 2 drawer control Compatible
Usage Environment Operating Environment Temperature/Humidity: 5 to 45°C; 10 to 90% RH (no condensation) Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% RH (no condensation)
Mass Approx. 1.0 kg Approx. 1.3 kg
External Dimensions 125 (W) x 165 (D) x 108 (H) mm
AC Adapter Specifications Input: AC100 to 240V 50/60Hz 150VA
Output: DC24V 2.1A
Main Body Case Color Cool White, Black
Reliability
Thermal Head:
200 million pulses, 150 km (An average of the head resistance fluctuation keeps under ±15%)
Auto Cutter:
1.5 million cut (3 inch type: 53 μm ≤ Paper thickness ≤ 85 μm)
1.0 million cut (2 inch type: 53 μm ≤ Paper thickness ≤ 85 μm)
Thermal Head:
200 million pulses, 200 km (An average of the head resistance fluctuation keeps under ±15%)
Auto Cutter:
2.0 million cut (3 inch type: 53 μm ≤ Paper thickness ≤ 85 μm)
1.5 million cut (2 inch type: 53 μm ≤ Paper thickness ≤ 85 μm)
Standards Compliance FCC Class A, VCCI Class A
Utility Software POS Printer Utility
Drivers Windows, OPOS, POS for.NET, Java POS, Linux, CUPS
Accessories AC Cord: ×1
Thermal Paper Roll for Testing
AC Adapter: ×1
CD-R (Driver, Manual, etc.)
Quick Start Guide
Partition
Cable Cover
*1
Number of columns for printing can be changed with the memory switch.
*2
Actual characters may appear smaller, as the listed dimensions include the space within the font.
*3
Please contact us for details regarding GS1.

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

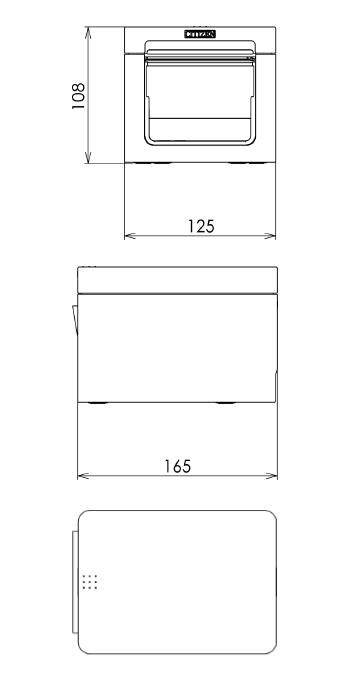

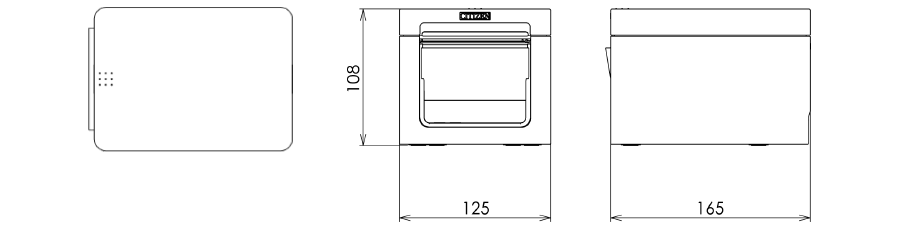

Dimensions

DimensionsDimensions

(Unit: mm)

Interfaces

Serial, Wired LAN, Bluetooth, and USB Host + Bluetooth are factory options from which 1 method can be chosen (USB is equipped as standard).

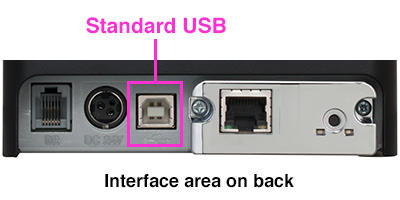

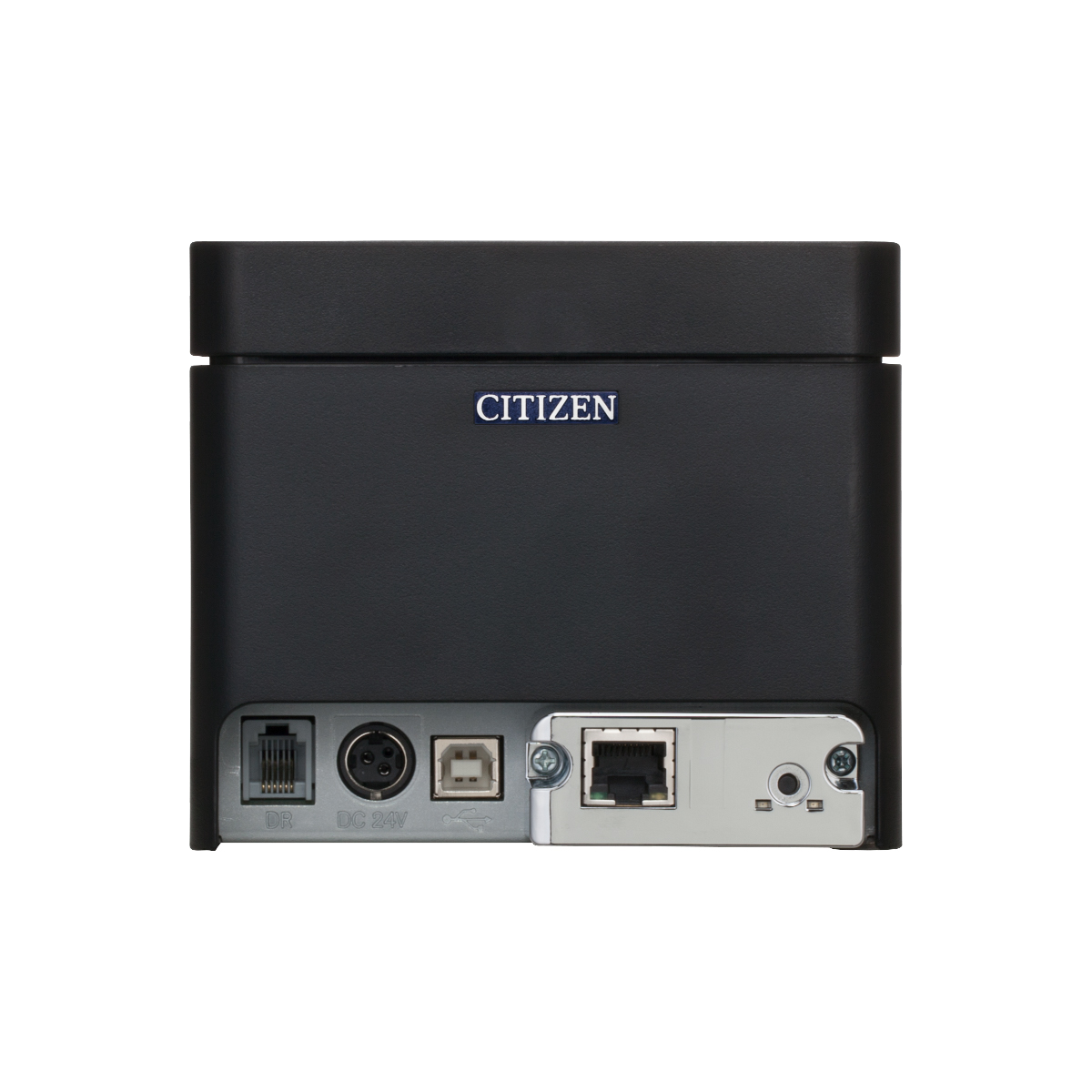

Interface area on back

Equipped as Standard

  • USB

Factory OptionsOne of the following connection methods can be selected

  • Serial
  • Wired LAN
  • Wireless LAN

    CT-D151 Only

  • Bluetooth

    CT-D151 Only

  • USB Host + Wired LAN

    CT-D151 Only

  • USB Host + Bluetooth

    CT-D151 Only
