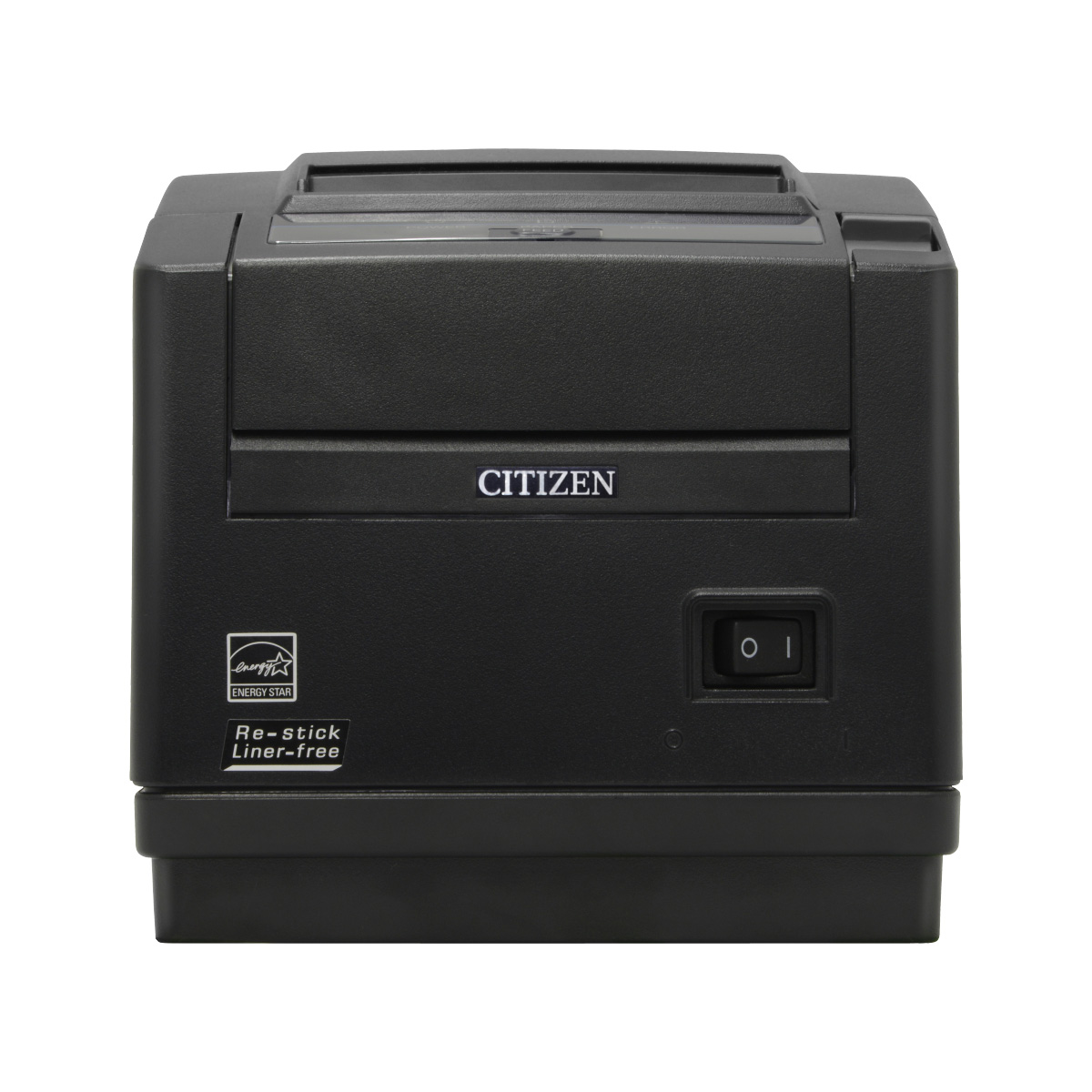

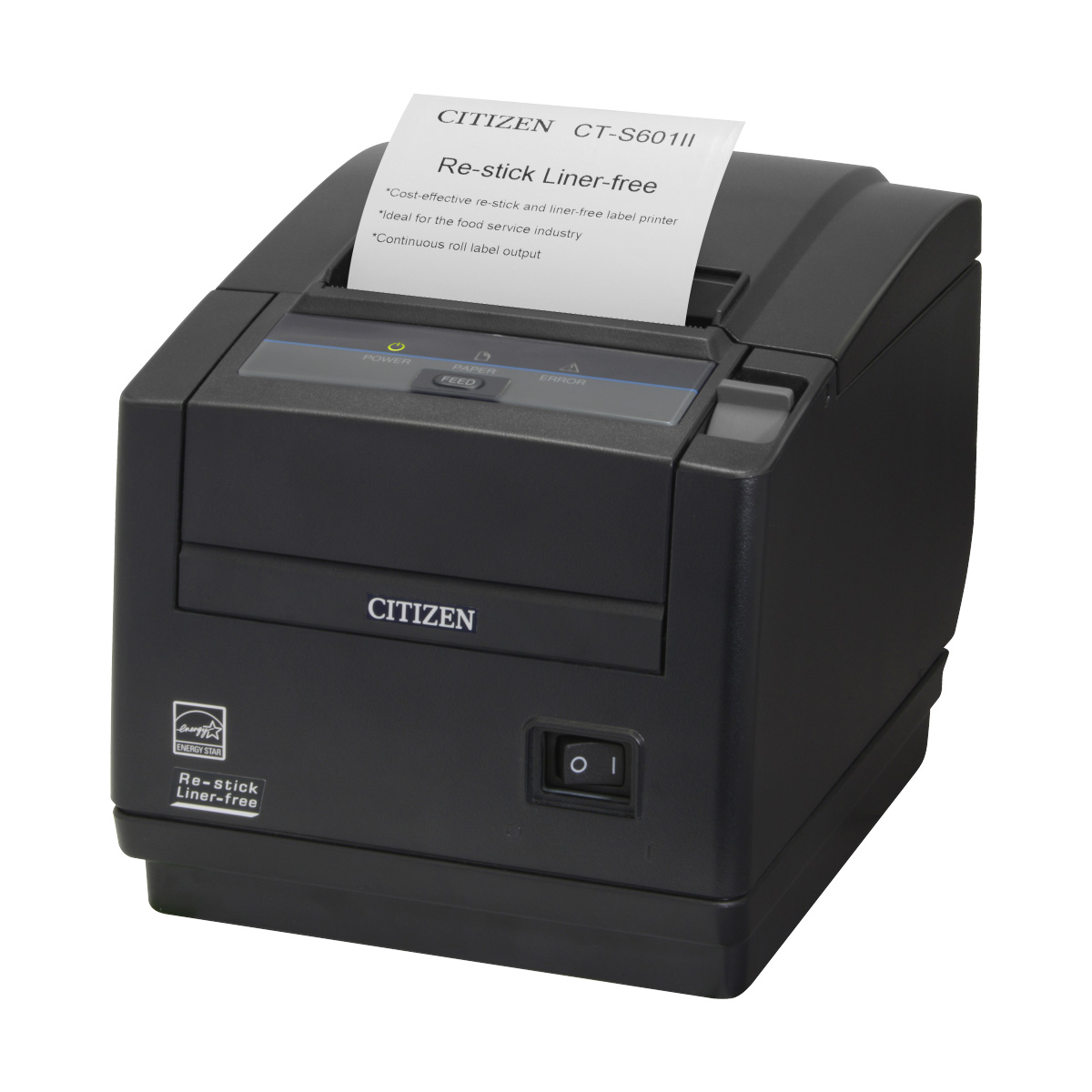

Label PrinterCT-S601Ⅱ Re-stick Liner-free

Point of sale Re-stick Liner-free printing solution.
Eco-friendly printer,eliminating waste across multiple applications.

Paper Width: 58mm; 80mm

Print Method: Direct Thermal Printing

Functions

Printing Speed: Up to 175mm/sec.
Auto Cutter
Buzzer
Cash Drawer Kicker

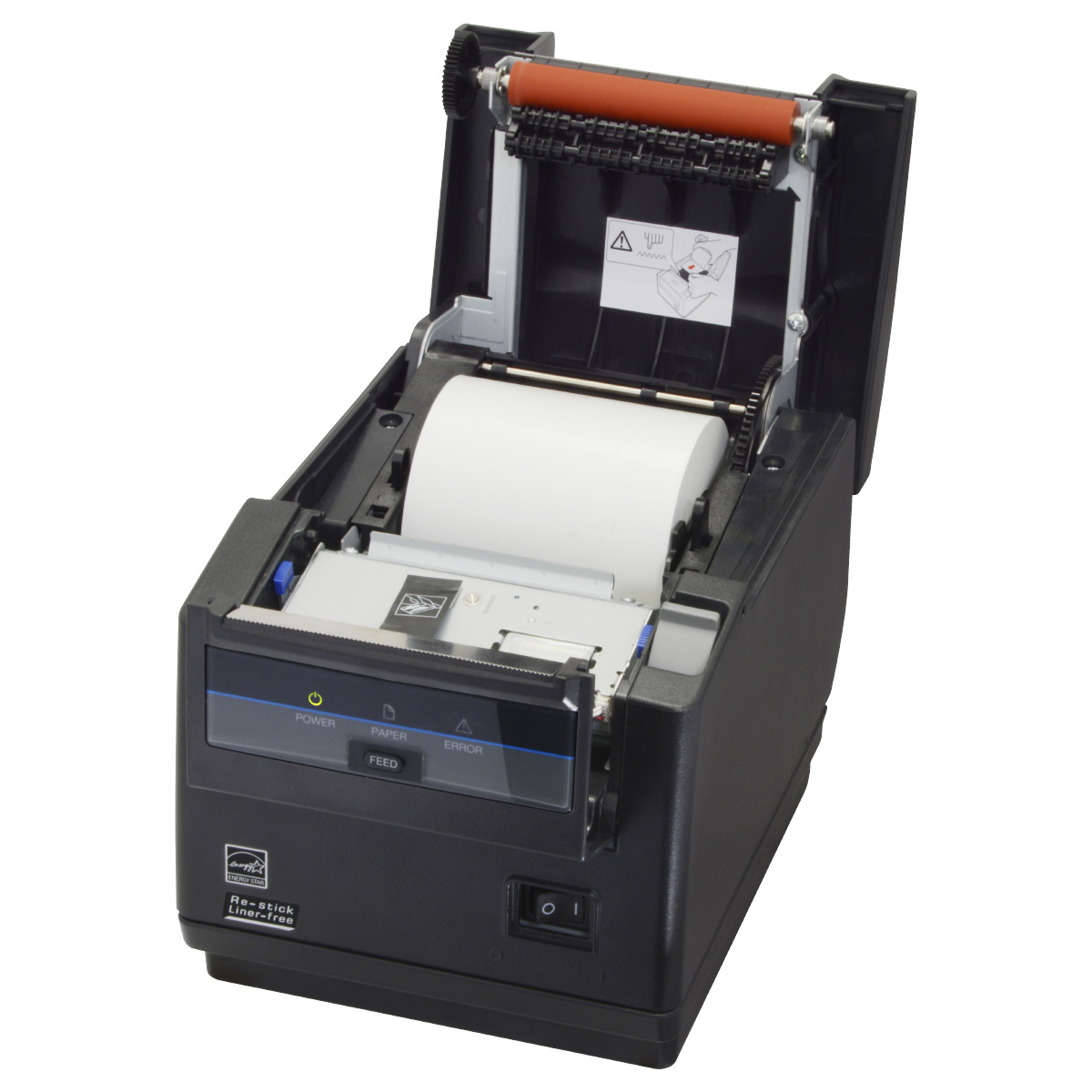

Drop-in Paper Loading
Internal Power Supply (with extended base option)

Applications

Labels
Tickets
Kitchen
Queue Tickets
Barcodes
2D Barcodes

Features

The printed label can be applied multiple times without affixed surface.
High-Speed Printing of up to 175mm/sec.
Operational efficiency improvement

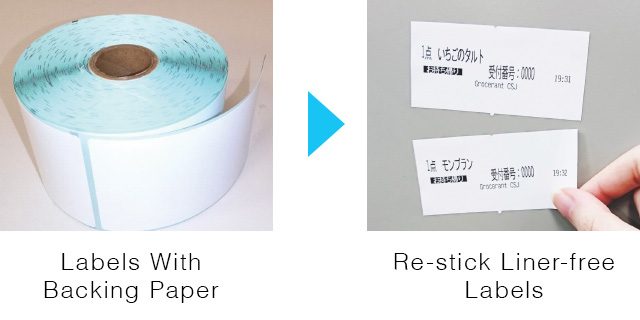

The label can be printed and applied without peeling liner.
No Waste

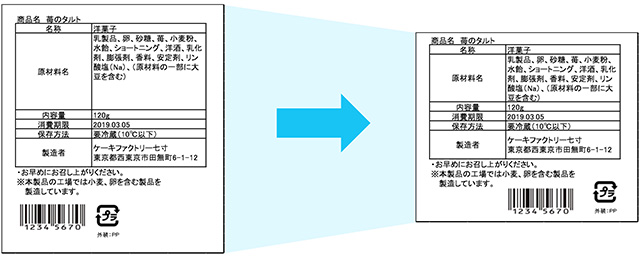

The printer freely adjusts the cutting position. Label size can be adjusted to actual print length -Less waste of media.
Environmentally Friendly

Re-stick liner-free labels have no liner.
You can reduce label liner waste.
A full range of various drivers, SDKs and utility software are provided.

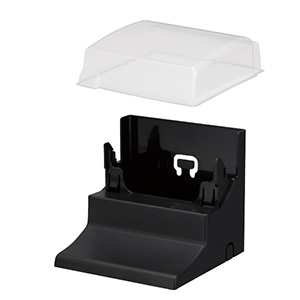

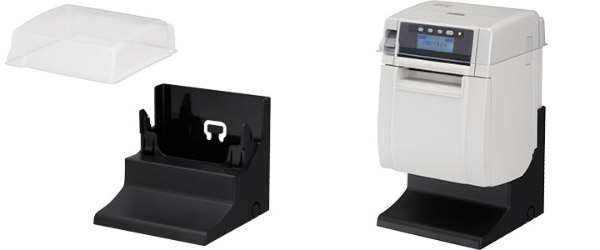

Vertical Placement Kit (Option sold separately)

Ideal for cooking-instruction slips in the kitchen.

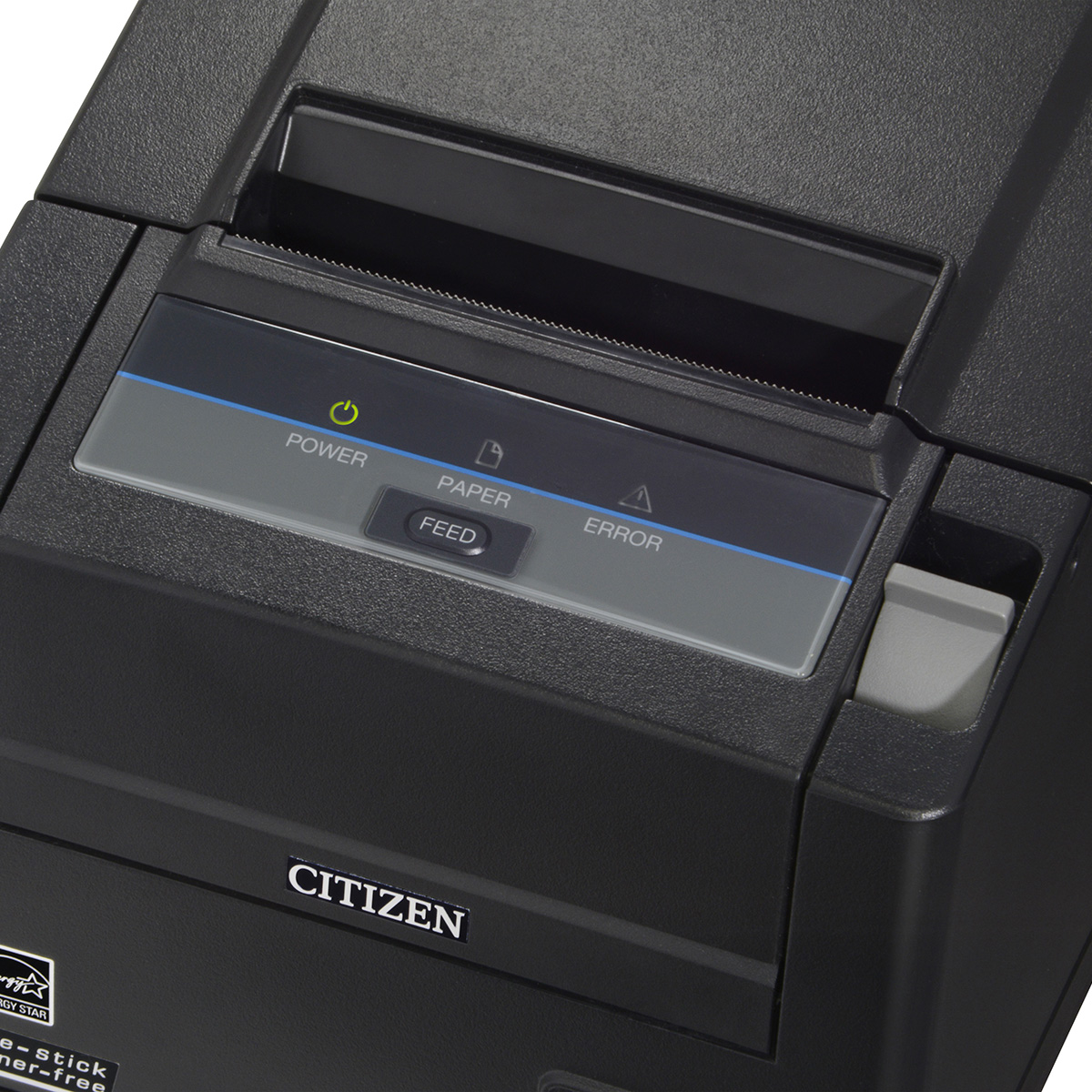

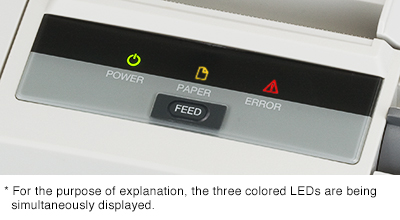

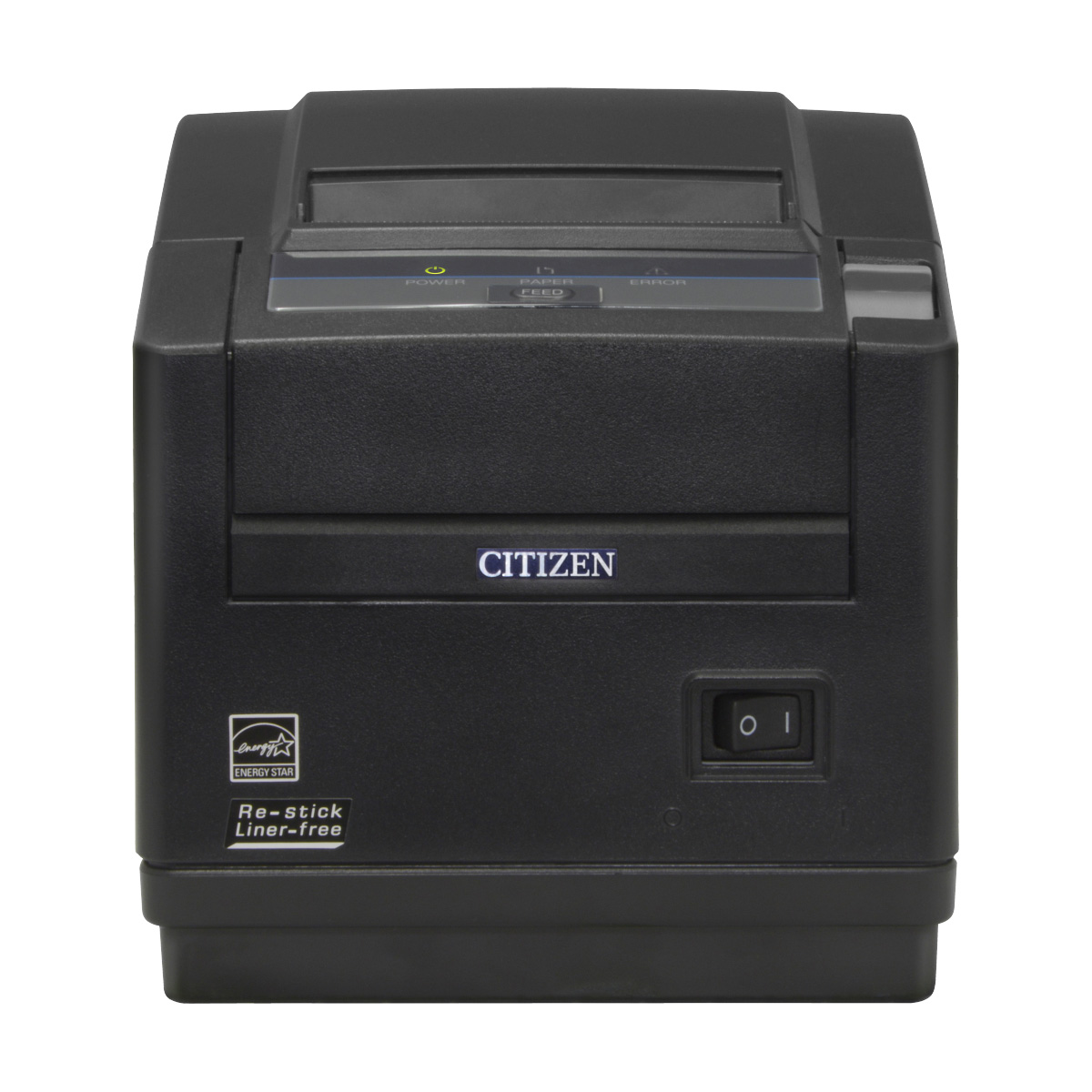

Operation Panel

Three colored LEDs display the printer’s status and error types

The FEED key is not for just feeding paper, but can be used for self-printing and memory switch setting modes

LED

POWER LED
Lights up when power is ON, and turns off when power is switched OFF

PAPER LED
Lights up when the paper supply is nearly empty or empty

ERROR LED
Flashes for notifications such as “printer overheated”, “open paper cover”, and “cutter error”

Operation Keys

FEED Key
Feeds paper while pressed.
After removing the cause of a cutter error, pressing the FEED key with the paper cover closed will clear the error.
Used for operation of self-printing and memory switch setup mode.

Main Applications

Short order labels in the kitchen
Speciality order labels in the restaurant
Take-away labels
Drink labels in the cafeteria

Used in the following industries

Retail
Food
Distribution
Restaurants
Healthcare/Clinical

Basic Functions

Features

Auto Cutter
Buzzer
Cash Drawer Kicker
Drop-in Paper Loading
Internal Power Supply (with extended base option)
Thermal

Supported Interfaces See Interface Details

USB
Serial
Parallel
Wired LAN
Wireless LAN
USB Host + Wired LAN
Bluetooth + USB

Available Drivers

Windows
OPOS
CUPS

Supported Platform by SDKs

Android
iOS
Windows
Linux

Smartphone/Tablet Compatibility

AndroidBluetoothUSBWireless LAN
iOSBluetoothWireless LAN

Downloads

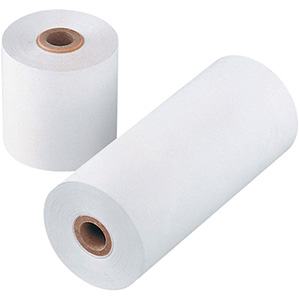

Consumables/Options

See Consumables/Options (Sold Separately)

Specifications

Print Method	Direct Thermal Dot Printing
Dot Density	Horizontal, Vertical 8 dots/mm (203 dpi)
Maximum Printing Speed	175mm/sec. (Highest Speed, Printing Density Level 100%, 1,760 dots lines/sec.)
Line Spacing	4.25mm (1/6 inch) configurable by command
Paper	Paper Width: 3-inch specification (83mm/80mm), 2-inch specification (60mm/58mm) Paper Diameter：MAX.φ83mm Paper Thickness: 65 to 75μm (Paper tube inner diameter 12mm/outer diameter 18mm), 75 to 85μm (Paper tube inner diameter 25.4mm/outer diameter 32mm)
Printing Width	80mm 72mm 58mm
Number of Columns Printable *1	When paper width is 83mm: Font A: 53 columns (12×24 dots) Font B: 71 columns (9×24 dots) Font C: 80 columns (8×16 dots) Kanji Font A: 26 columns (24×24 dots) Kanji Font C: 40 columns (16×16 dots)
Character Size ※2	Font A: 1.5×3 mm Font B: 1.13×3 mm Font C: 1×2 mm Kanji Font A: 3×3 mm Kanji Font C: 2×2 mm
Character Types	Alphanumeric characters, international characters, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai code 18, Kanji (JIS first, second, third, and fourth level), Kana, JIS X0213
User Memory	384K bytes (user-made characters and logos can be registered)
Barcodes	UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE 93, CODE 128, CODABAR (NW-7), GS1　*3
2D Barcodes	PDF417, QR CODE
Interfaces	Serial (RS-232C compliant), Parallel (IEEE1284 compliant, Centronics compliant), USB (Full speed), Bluetooth (MFi certification acquired), Wired LAN, Wireless LAN
Operation Panel	LED Display: 3 colors, Operation Keys: 1 key
Input Buffer	4k bytes / 45 bytes
Power Supply Voltage	AC100 to 240V
Power Consumption	Approximately 45W (when printing) Standby: 3W
Drawer Kick-Out	Control of up to 2 drawers
Usage Environment	Operating Environment Temperature/Humidity: Temperature: 5 to 45°C; Humidity: 10 to 90% RH (no condensation) Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% RH (no condensation)
Mass	Approximately 2.1Kg
External Dimensions	145 (W) x 192 (D) x 148 (H) mm
AC Adapter Specifications	Input: AC100 to 240V 50/60Hz 120VA Output: DC24V 1.9A
Main Body Case Color	White, Black
Reliability	Head Life: abrasion-resistance 75 km, 100 million pulses (room temperature, room humidity, specified recommended paper) Auto cutter life: 1 million cuts (room temperature, room humidity, specified recommended paper)
Standards Compliance	VCCI Class A *The acquired standards apply when Citizen Systems AC Adapter (36AD2/36AD3) is used.
Utility Software	POS Printer Utility
Drivers	Windows, OPOS, POS for.NET, Java POS, Linux, CUPS
SDK	Android, iOS, Windows, Linux
Accessories	AC cord: ×1 Thermal Paper Roll for Testing: 1 roll AC adapter: ×1 *Only for AC adapter type Quick-start guide Power Switch Cover Cable Cover (for built-in AC Adapter type) Cable Cover (for external AC Adapter type)

*1: Number of columns for printing can be changed with the memory switch.
*2: Actual characters may appear smaller, as the listed dimensions include the space within the font.
*3: Please contact us for details regarding GS1.

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

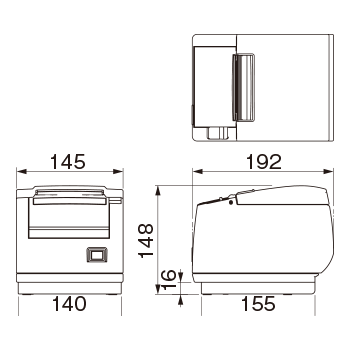

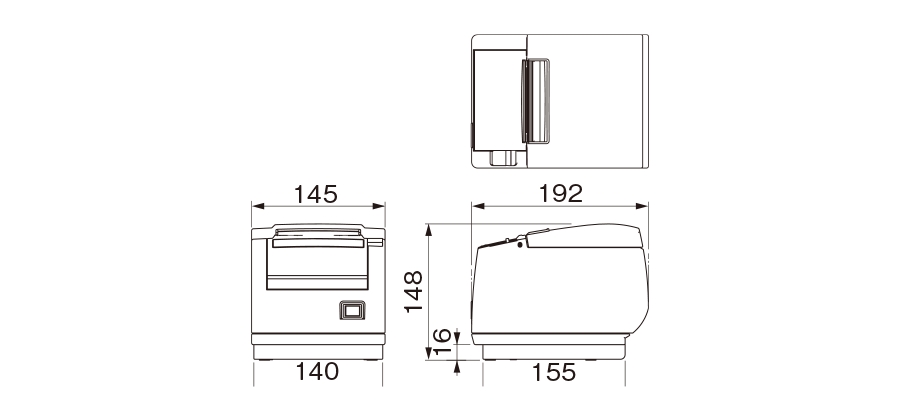

Dimensions

(Unit: mm)

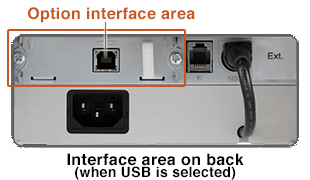

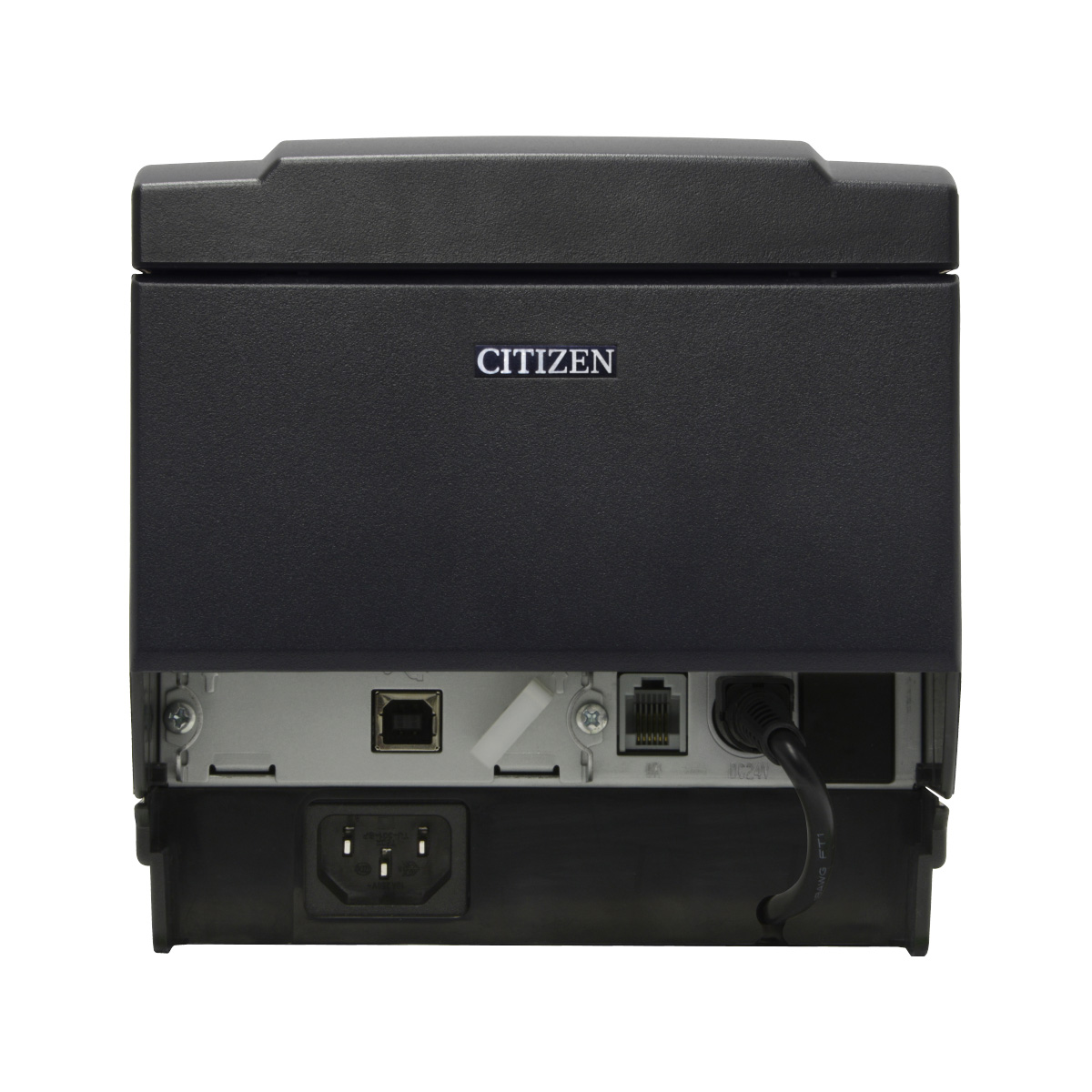

Interfaces

For the interface, select one connection method from the available factory options: USB, Serial, Parallel, Wired LAN, Wireless LAN, or Bluetooth + USB.
Other options sold separately.
