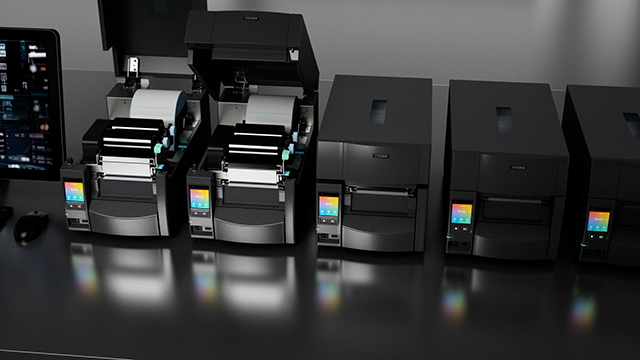

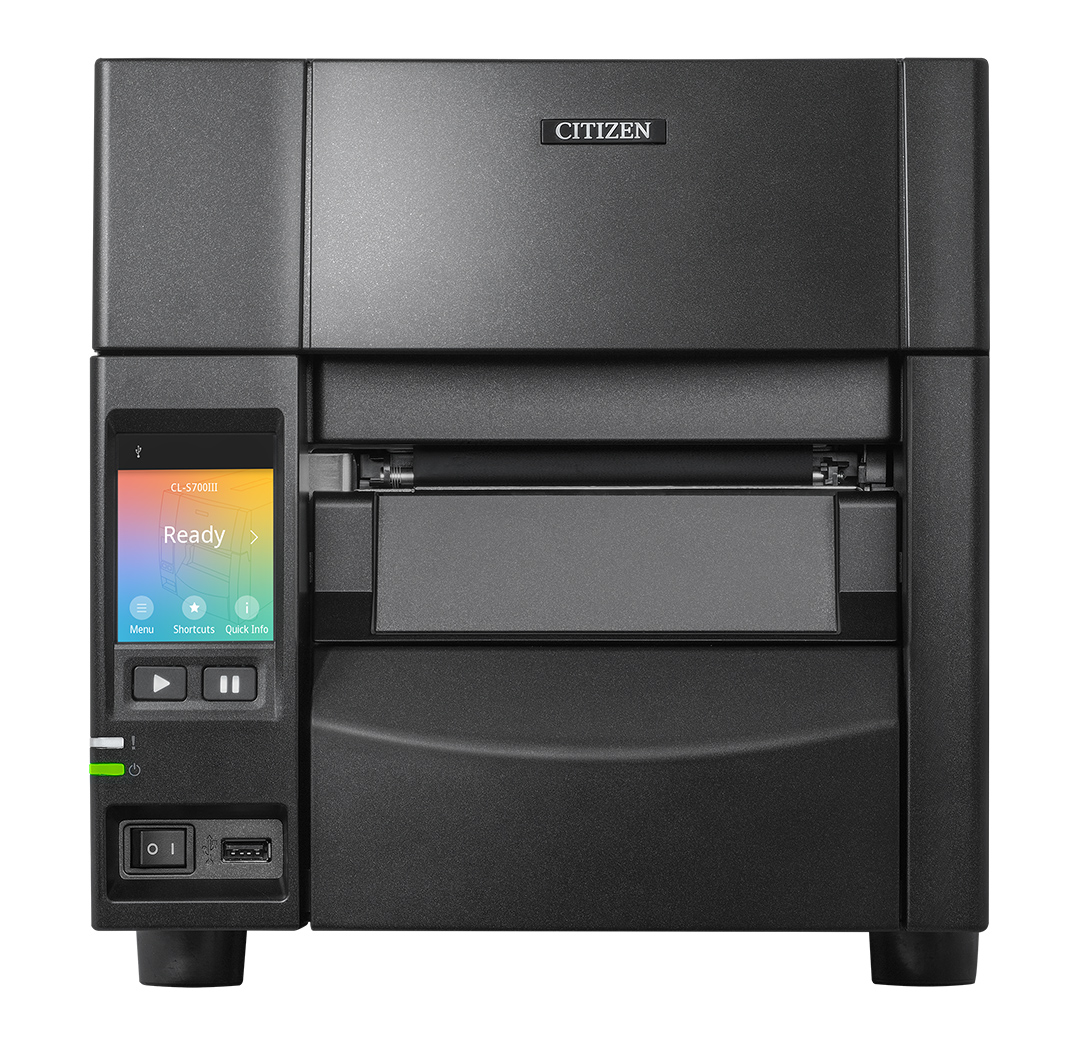

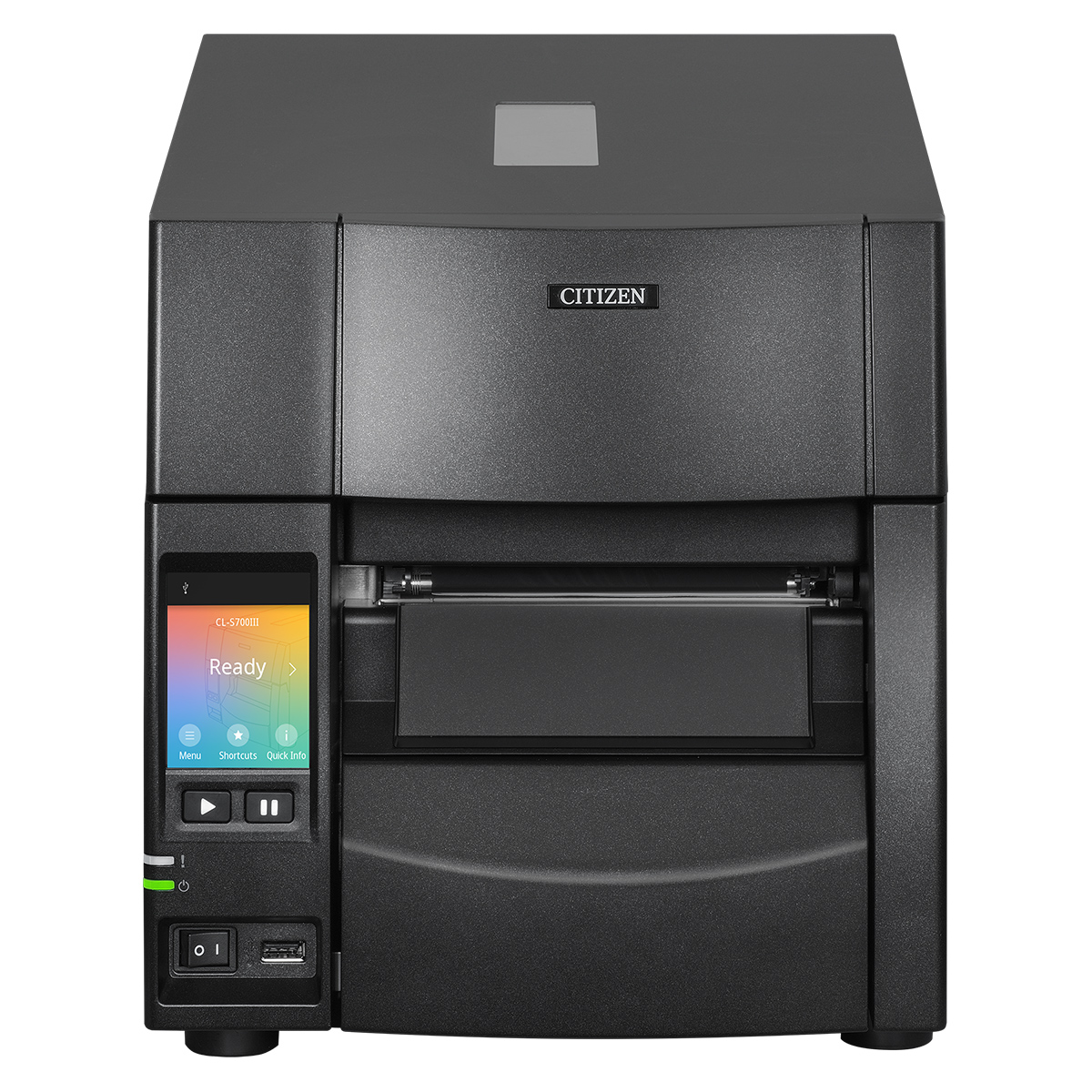

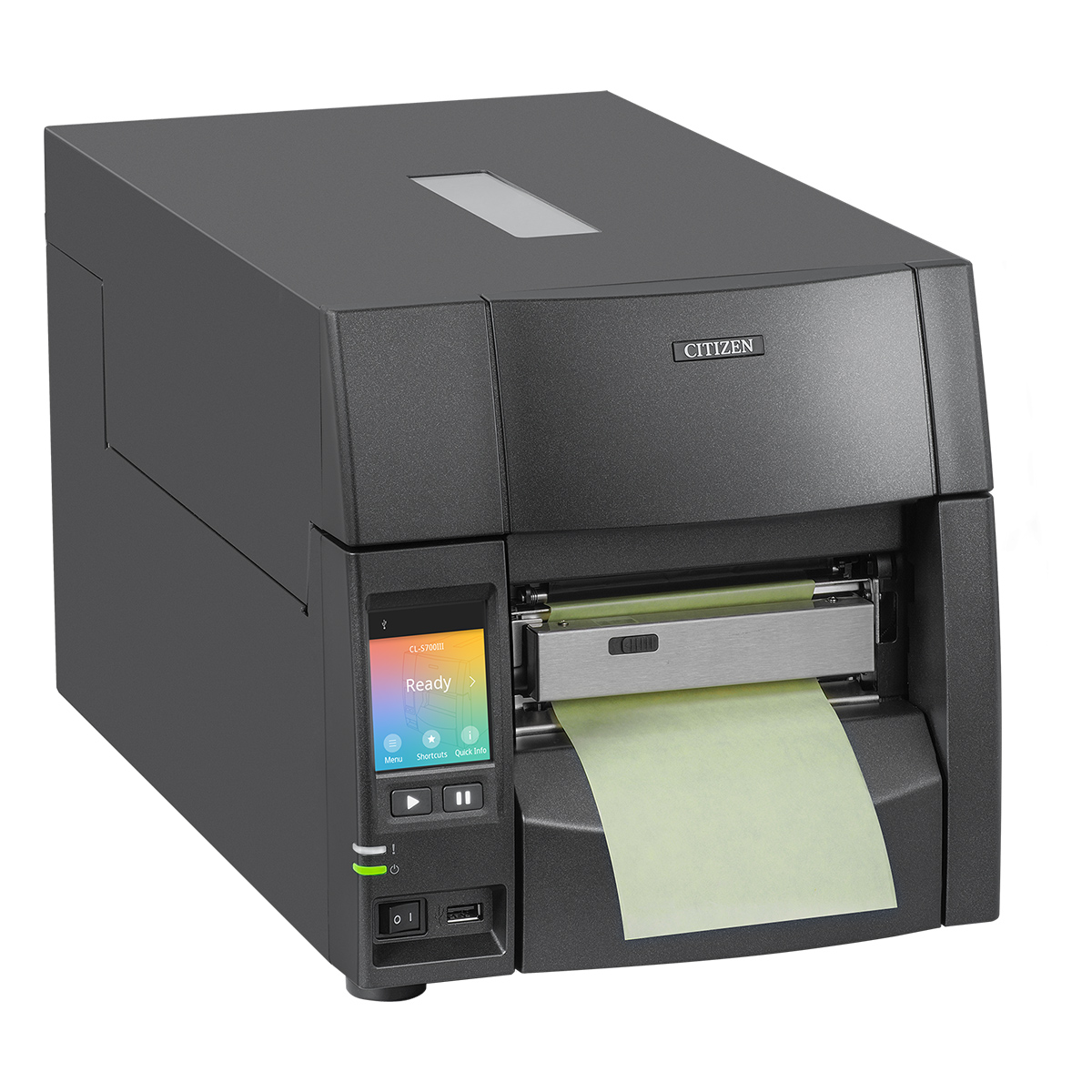

Label PrintersCL-S700III/CL-S703III

Features

• High-Speed Printing

  Capable of high-speed printing at MAX 305mm/sec.＊1

  32bit RISC CPU provide high speed and high quality print.

  Compare to CL-S700II, Reduce printing time by 17%(CL-S700Ⅲ)～20%(CL-S703Ⅲ)

  ＊1: Fast print mode:CL-S700Ⅲ, Max254mm/sec. for CL-S703Ⅲ

• Great specification for industrial printer

  Large Media and Print capacity: Max roll diameter 203mm, Ribbon length 450m.

  LAN, USB and USB Host are standard. Wireless LAN is available as an option.

  User memory: ROM 24MB, Increase storage capacity for ROM(ex. Font)

  High quality scalable Font by command. Support Japanese, Chinese and Korea (2 bytes characters) and English.

• Scalability | Various fields/development theme

  Supports Windows, Linux(CUPS)and mac(CUPS) drivers.
  (BarTender barcode generation software is recommended)

  Set the Four language from the touch panel
  Support Japanese, Chinese and Korea and English.

  Support XML printing, Request printing (Support by optional Interface)

• Robust and Durability

  Outer case : Full metal chassis(Main components)

  Metal construction provides strength and durability for a reliable performance.

  Reliable design with 20 years experience.

• Original color for CITIZEN

  Metallic Matte Black
  Coloring has been selected more than 20 prototypes testing

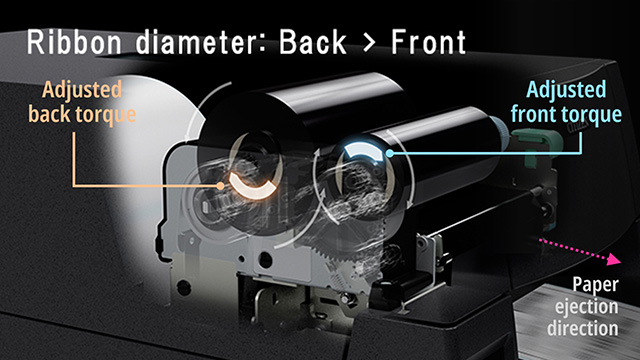

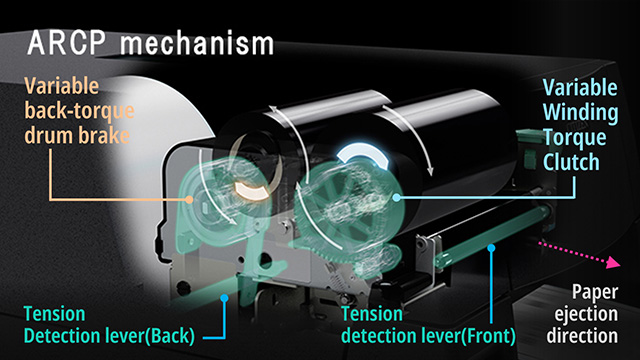

• ARCP mechanism: High stability, High quality Print

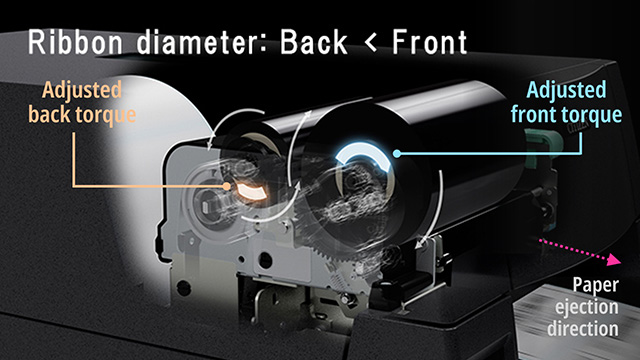

  Equipped with an ARCP mechanism to maintain the level of ribbon tension regardless of changes in ribbon diameter.

  (ARC mechanism improves printing position and suppresses the occurrence of ribbon slippage and ribbon wrinkles.)

  Good for small label, severe print positionlabel

  Support to use variety of ribbon & paper

  ARCP: Active Ribbon Control & Positioning

  Mechanism adjusts ribbon tension constantly



  Label : Pulling ⇒ Constant adjustment



  Label : Forwarding ⇒ Constant adjustment



• Front-Open Structure：Top class usability in industrial category

  All operations are possible from the front face of the printer.
  Setting, adjustment, and replacement can be done quickly, reducing total work time.

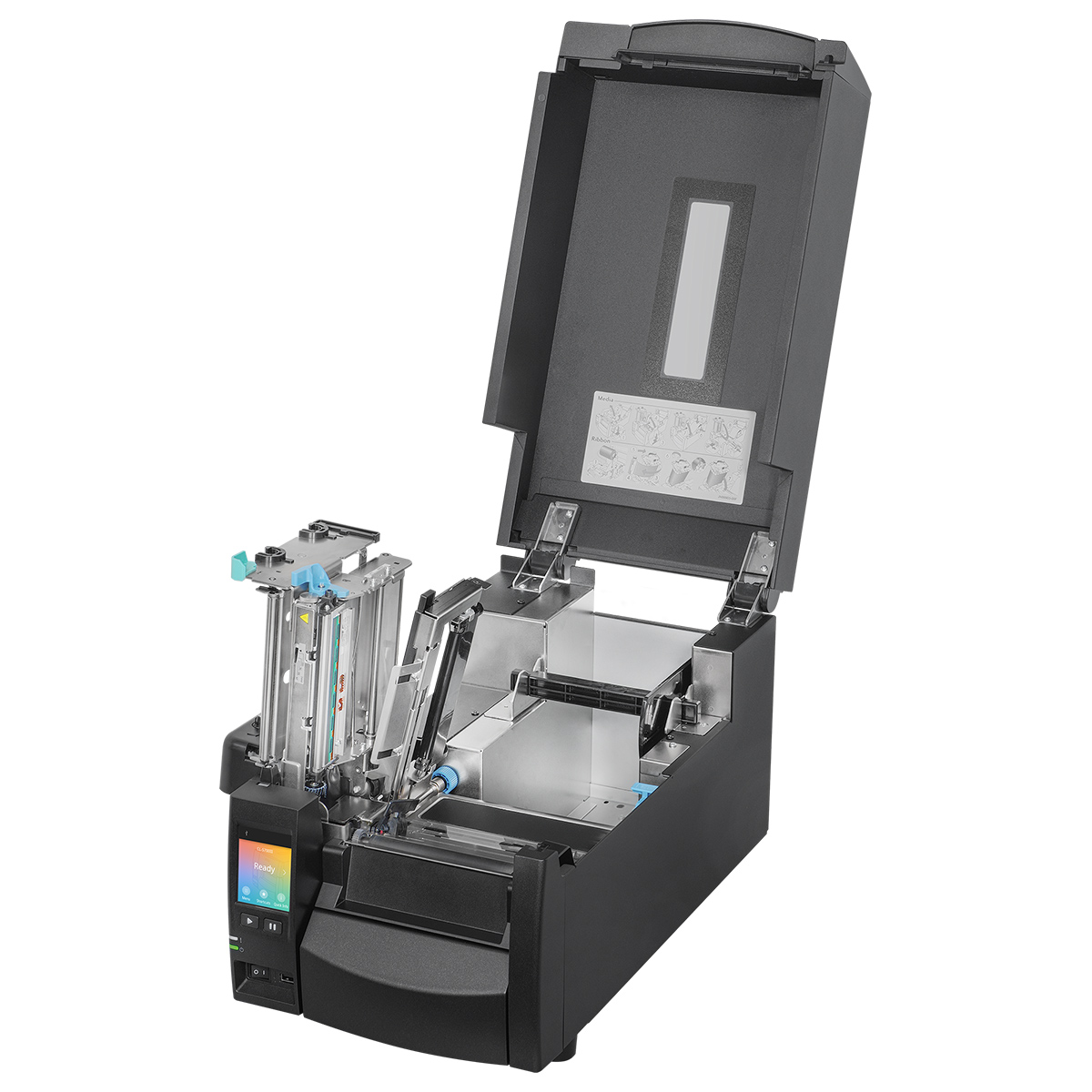

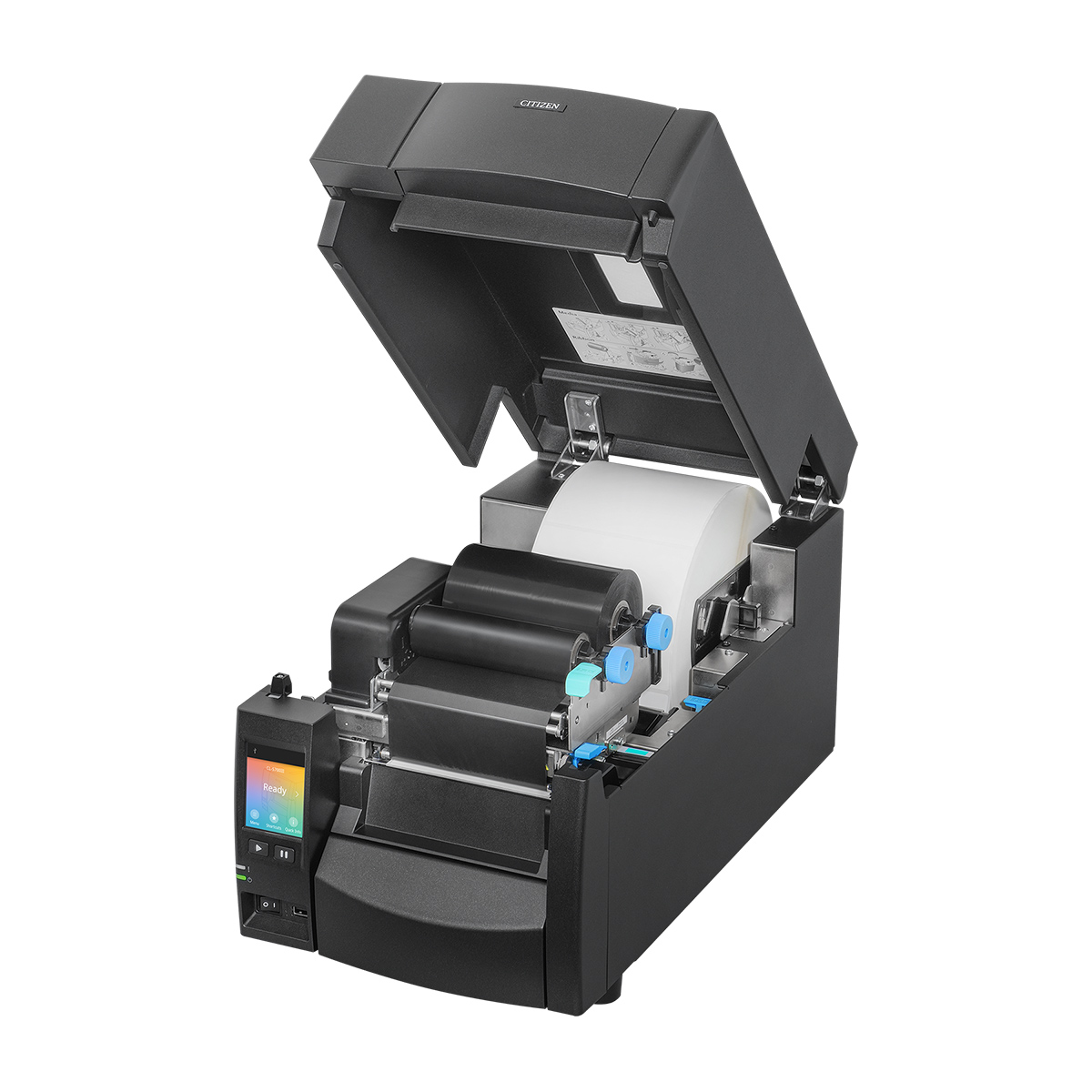

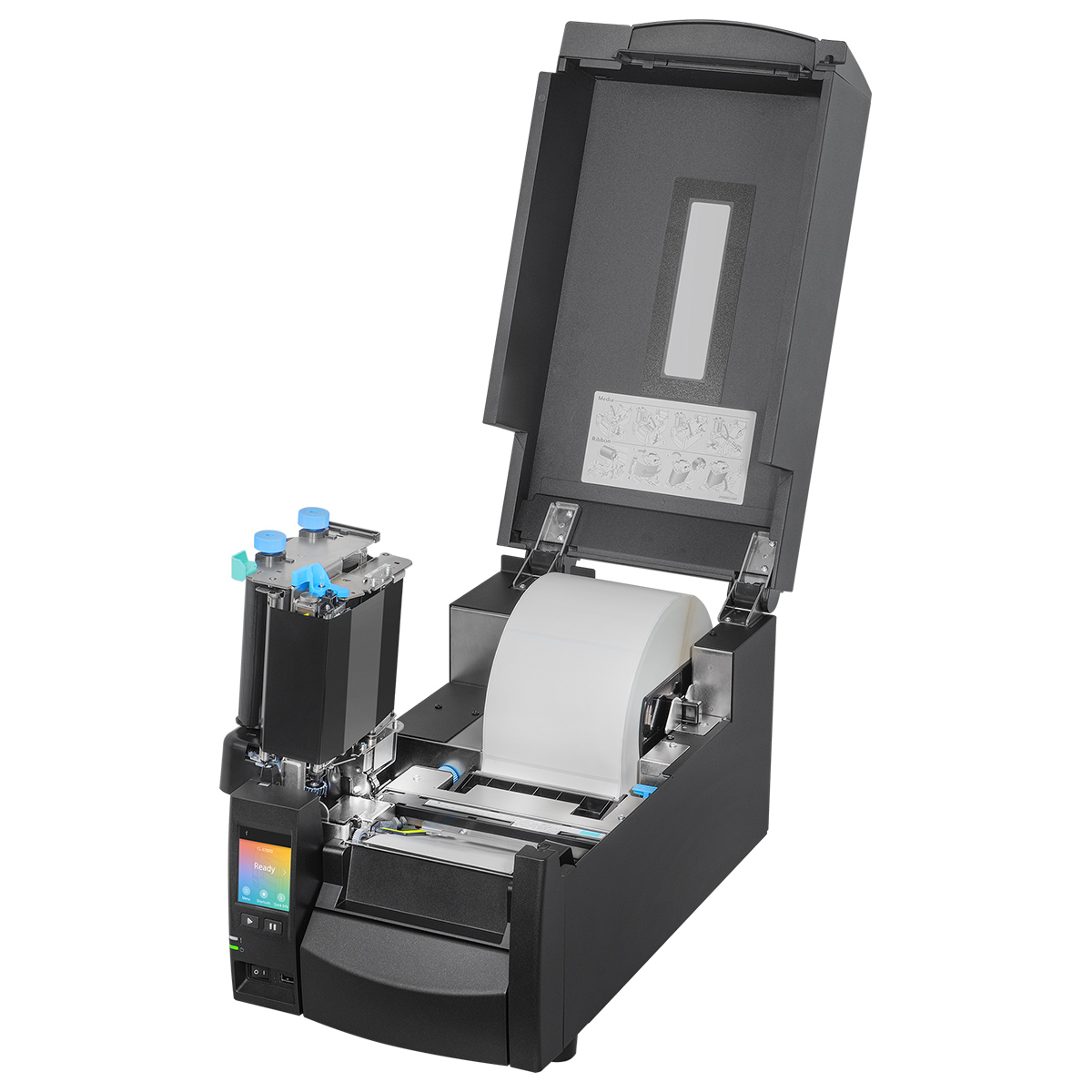

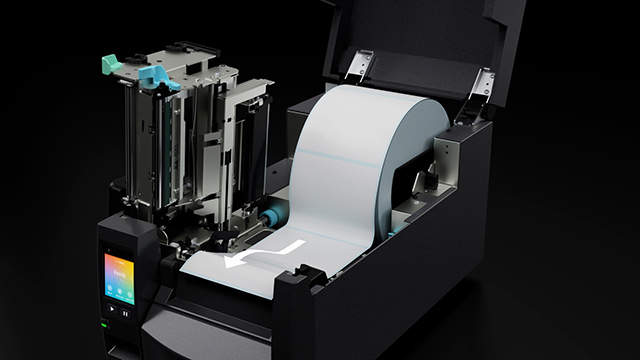

  Wide open head, Flat Media Path:
  Setting is extremely easy as the head opens wide with simple paper path.



  Small Actual Footprint:
  Printers can be installed side-by-side since no need to open in the side.

  Safety＆Smooth Cover:
  Cover can be fixed any position.
  Check mechanism and paper status and operate the touch panel during the cover open.

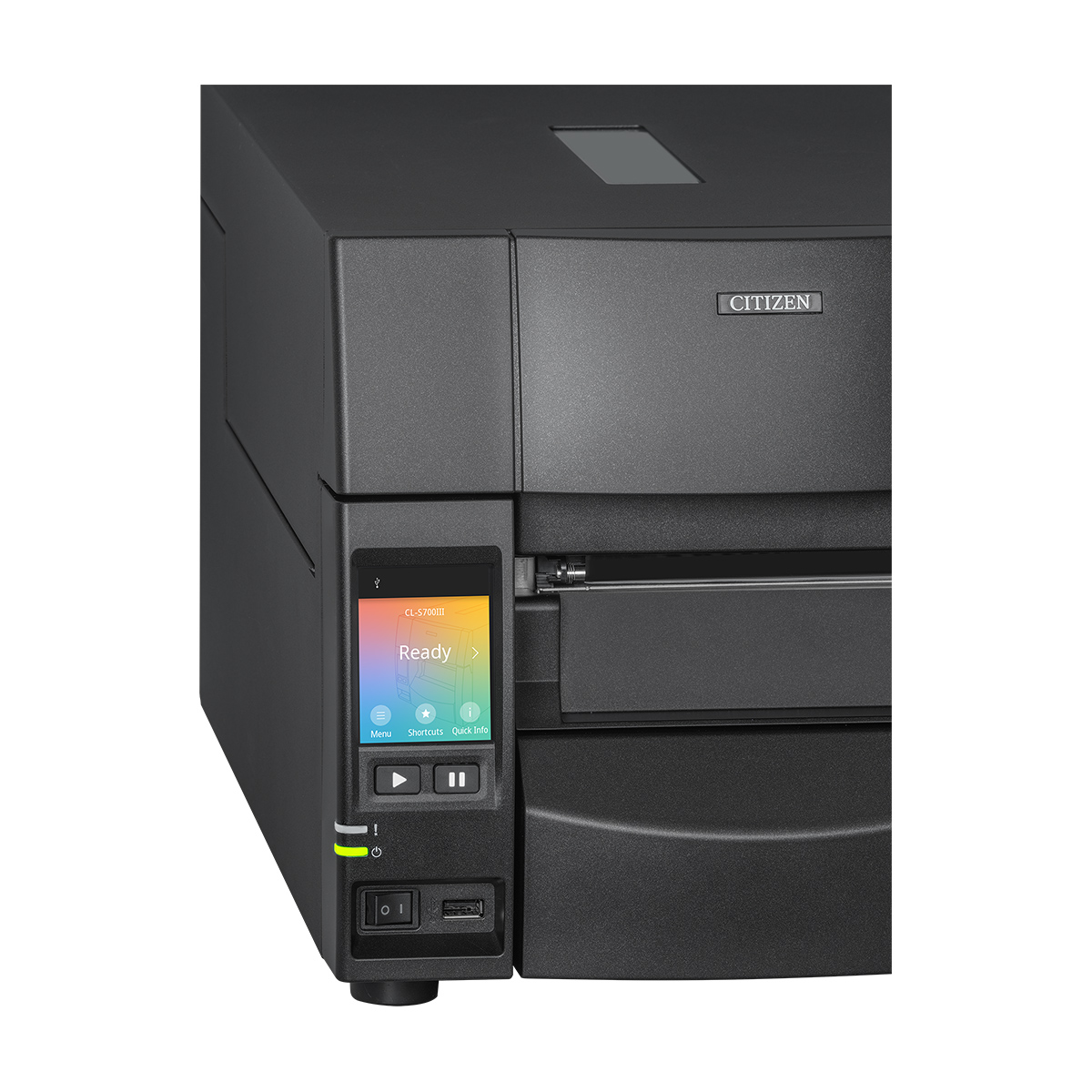

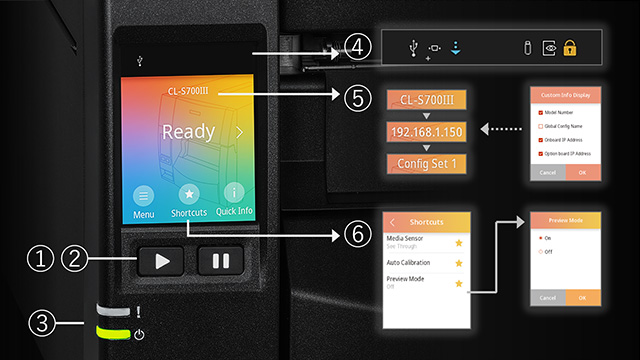

• Intuitive and Useful operation panel

  ●Significant improvement in visibility

  Hard key prepared for frequent use button such as FEED and STOP.

  Backlit button: Easy to see in dark environment

  Corner LED: Printer status visible from the side. Power/Error.

  Easy to see and use operation panel
  Main Menu: Easily check current settings

  Header Info: Network status, Standard I/F, Option I/F, Keyboard Lock etc.

  Custom Info: Model No., IP address, Global Config Number at all times.

  Shortcuts: Quickly change settings.



  Increased efficiency in label printing.

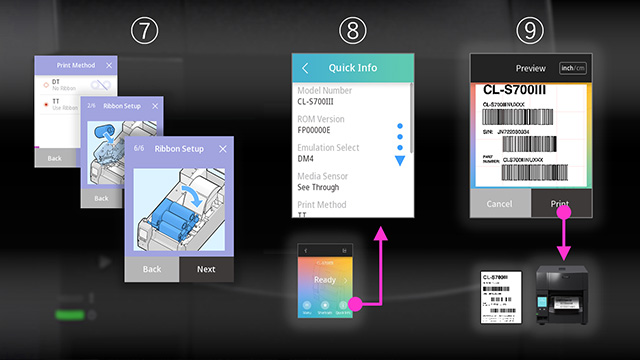

  Setup Wizard: Easy to set up by looking guide and wizard.

  Quick Info: Quickly check main specifications and settings.

  Preview: Quickly check jobs and process tasks.

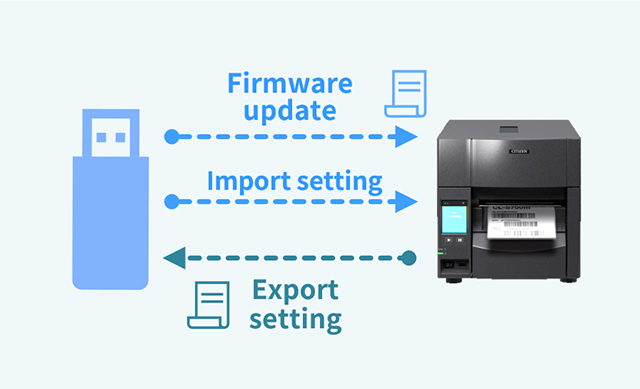

• Easy to set by USB flash drive

  Setting Import, Export: Settings can be imported and exported using USB Flash drive without computer.
  For exporting you can attach explanation to the settings.

  Firmware Update: Efficiency for kitting works.

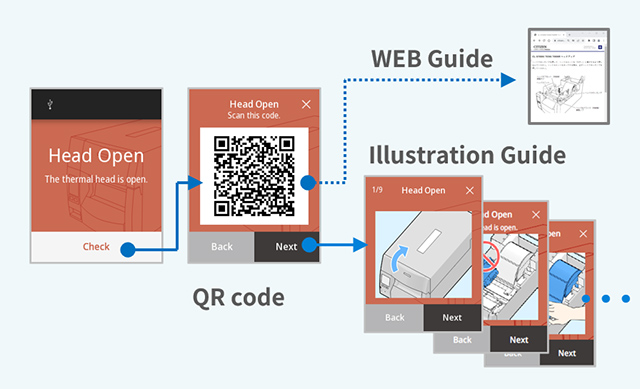

• Troubleshoot: reducing loss time

  WEB Guide: resolve errors by referring to the web page from the QRcode®.

  Illustration Guide: Illustrate help you to understand procedures.



• STANDALONE PRINTING:
  Enable to print without the computer.
  Stand alone function without programming

  "Standalone Forms Print" function:

  Easy standalone operation without programming*1

  By installing Standalone Forms, Enable to print without the computer*2

  Execute the print into label format stored.

  Standalone Forms can be imported using USB Flash drive.

  Supports three different formats.

  Scan data printing: Input data ⇒Print on label format stored in the printer*3

  CSV File Conversion Printing: Input data ⇒Print the data that look for the data in CSV file*3

  CSV File printing by batch: CSV in USB flash drive⇒Print all data in CSV file by batch

  *1: Create Standalone Forms with Layout Editor.
  *2: Standalone Forms can be installed on multiple devices
  *3: Data source: Scanner, other interface.

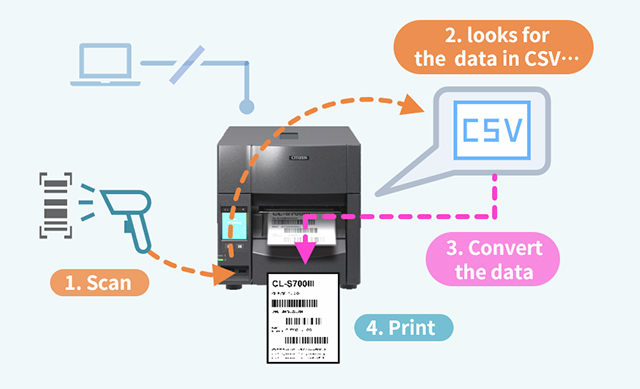

  ② CSV File Conversion Printing:

  Scan the barcode to read the data.

  Look for the data in CSV and matched data will be used for printing.

  Convert the data.

  Print the label.



• Remote Maintenance: Manage multiple printers remotely*1

  Increased management & support efficiency

  Remote monitoring

  Counter: print distance, cut times

  Confirm Firm Ver.

  Printer status

  Jobmanagement & history

  Remote Maintenance

  Firmware Update

  Printer setting Backup/Restore

  Send files: Com1mand, LOGO, Printing data

  *1: When us Using the Option Interface board.

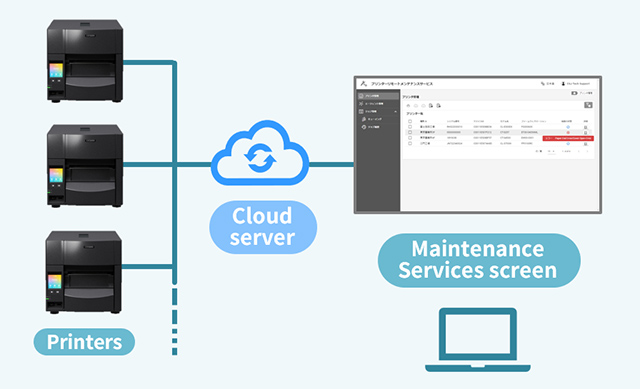

  Manage multiple printers from Citizen’s cloud server remotely.
  Printer registration, Search and filter by criteria.
  FW can be updated at specified times



• Easy Maintenance: Reduce maintenance time

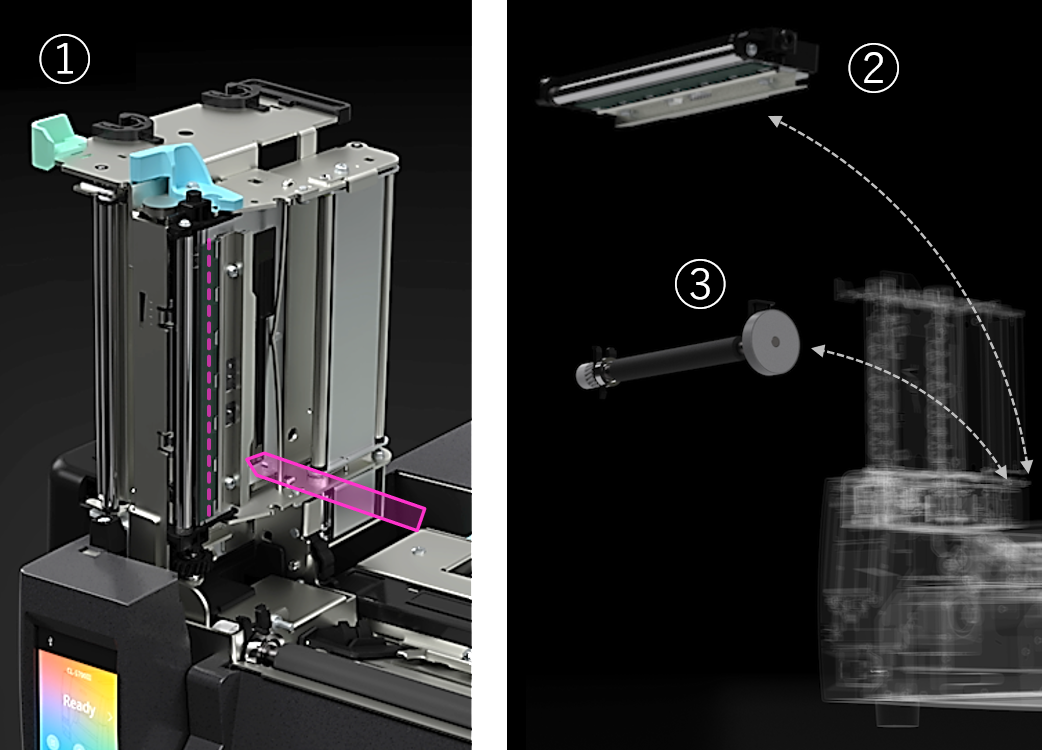

  Head/Platen:

  Easy parts replacement and cleaning
  ①Head opens 85 degrees. Coveropens90 degrees more.

  Easy disassembly and installation
  ②Head: Screwdriver only ③Platen: No tool required



  Option Parts: Easier to install than previous model.

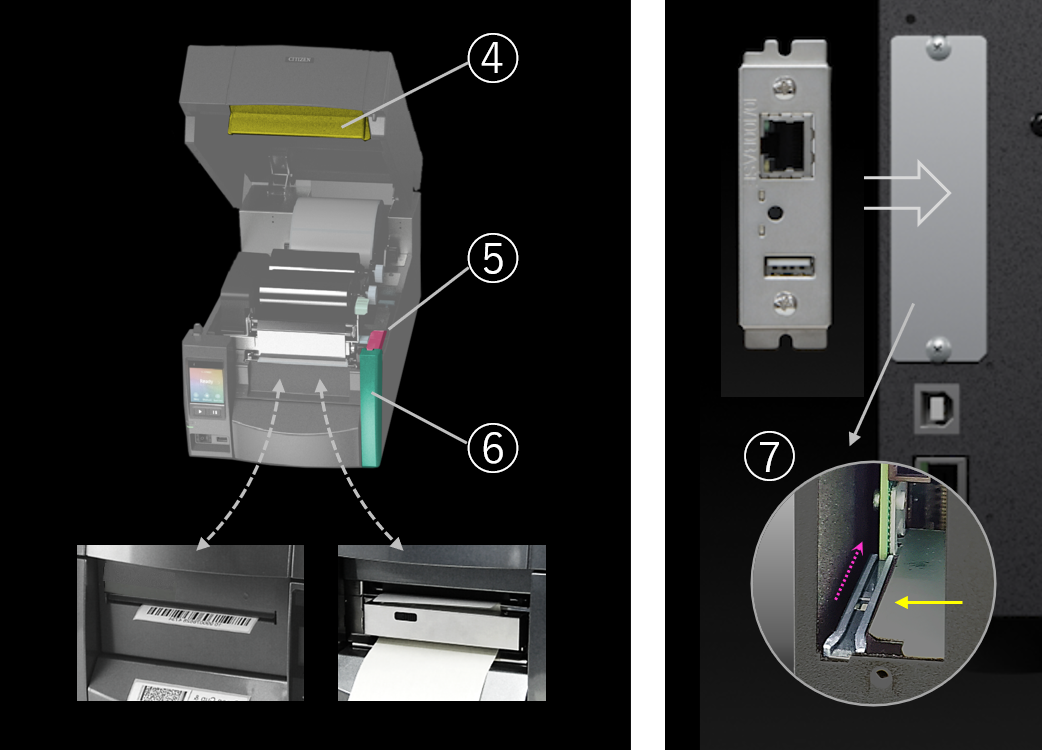

  Cutter/Peeler:
  ④ ⑤Tool free ⑥From 2 screws to just 1 screw at upper position.

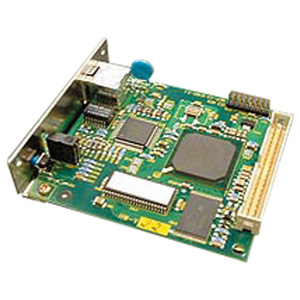

  Option Interface Board:
  ⑦new insertion guide has been added to make positioning easier. Click in interfaces: no cable folding required.

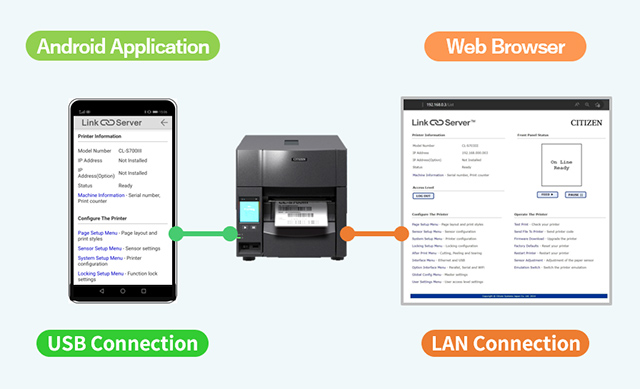

• CITIZEN LinkServer：

  CITIZEN LinkServer for Android:

  by USB connection/Android Application/For smartphones and stablets

  Management functions can be utilized by connecting the supported label printer via a USB cable with the Android terminal on which the Android App "Citizen LinkServer" is installed.

  CITIZEN LinkServer(Web Monitor):

  by LAN connection/Platform(OS) Free/Web browser Utility

  For this Product, settings related to the printer unit and network can be changed and printer operations such as restart can be performed via web browser.



• Standard Support for SAP ERP* System

  *ERP: Enterprise Resource Planning



• Standard Support for rMQR Code®

  New QR Code® "rMQR Code®" is supported.

  This code is ideal for narraw and long spaces.

  Larger capacity than Micro QR Code, max. 361 characters.

  Sample size: 3.75×14.8mm, 15x59cells(0.25mm/cell)*Excluding margin

  *Please contact us for details regarding rMQR Code®.



  *QR Code® and rMQR Code® are registered trademarks of DENSO WAVE INCORPORATED.

• Support to use variety of paper

  Adjustable sensor:

  Equipped with Adjustable sensorand Front Fix sensor

  Gap and Black Mark detect positions can be adjusted in the paper width direction.

  Support fan-fold paper:

  Support fan-fold paper by insertingfrom the back from the main unit.

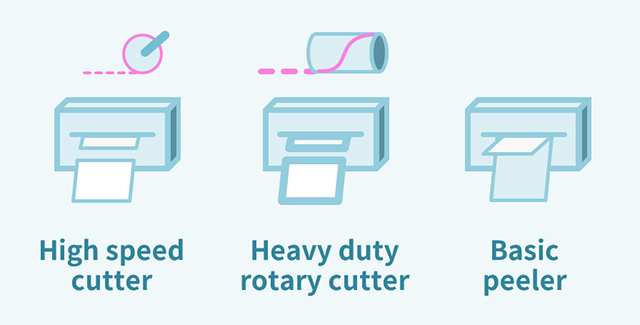

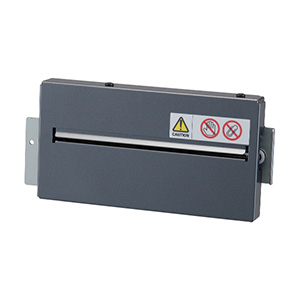

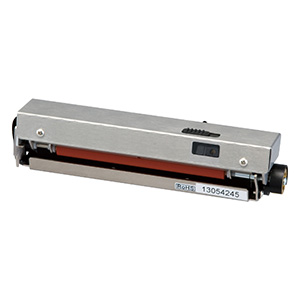

  Option Cutter, Peeler Unit:

  Ready for rotary cutter, pizza cutterand peeler. ＊Not factory option



Introductory Video

Main Applications

• Tickets

• Labels

• Barcode Printing

Used in the following industries

• Manufacturing

• Food

• Distribution

Basic Functions

Features

• Auto Cutter
• Buzzer
• Internal Power Supply (with extended base option)
• Metal Chassis
• Thermal Transfer
• Thermal
• Standalone Printing
• Color LCD touchscreen

Supported Interfaces

See Interface Details

• Standard USB
• Standard Wierd LAN
• Wierd LAN/WirelessLAN
• Serial
• Parallel
• Wired LAN
• Wierd LAN + USB Host

Available Drivers

• Windows
• Linux(CUPS)
• macOS(CUPS)

Supported Platform by SDKs

• Windows
• Android
• iOS
• javaScript

Downloads

CL-S700III

• Catalogs
• User's Manual
• Drivers

• SDKs
• Utility Tools
• Network Tool

CL-S703III

• Catalogs
• User's Manual
• Drivers

• SDKs
• Utility Tools
• Network Tool

Consumables/Options

Specifications

*1:
*2:
*3:
*4:
*5:
*6:

Fast print mode.
When a media pitch of less than 1 inch is used, enable the “Small Media Adjustment” setting.
Please contact us for details regarding GS1.
depending on applicable region
Please contact us for information on other regions and the latest status such as standard numbers.
Coming soon.

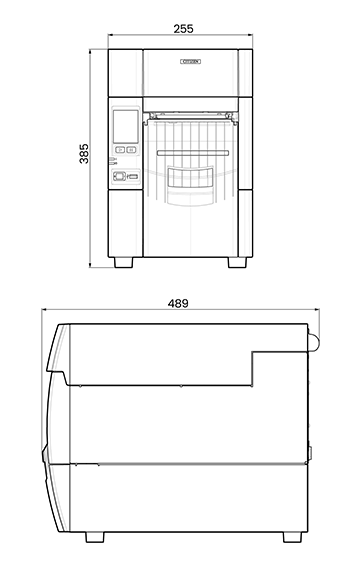

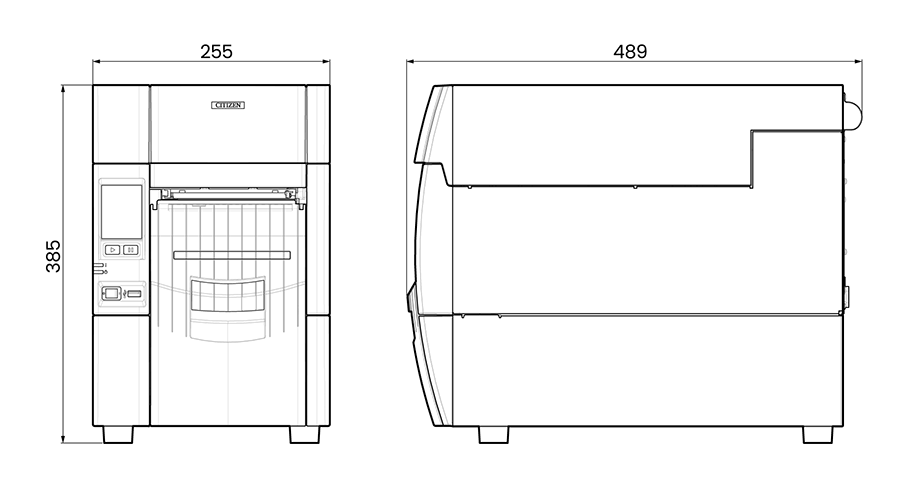

Dimensions

(Unit: mm)

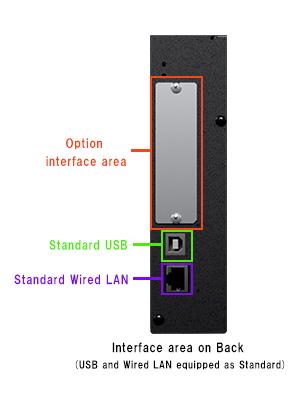

Interfaces

Equipped as standard with USB, and Wired LAN interfaces.
