  3. Label Printers CL-E720/CL-E730
Print

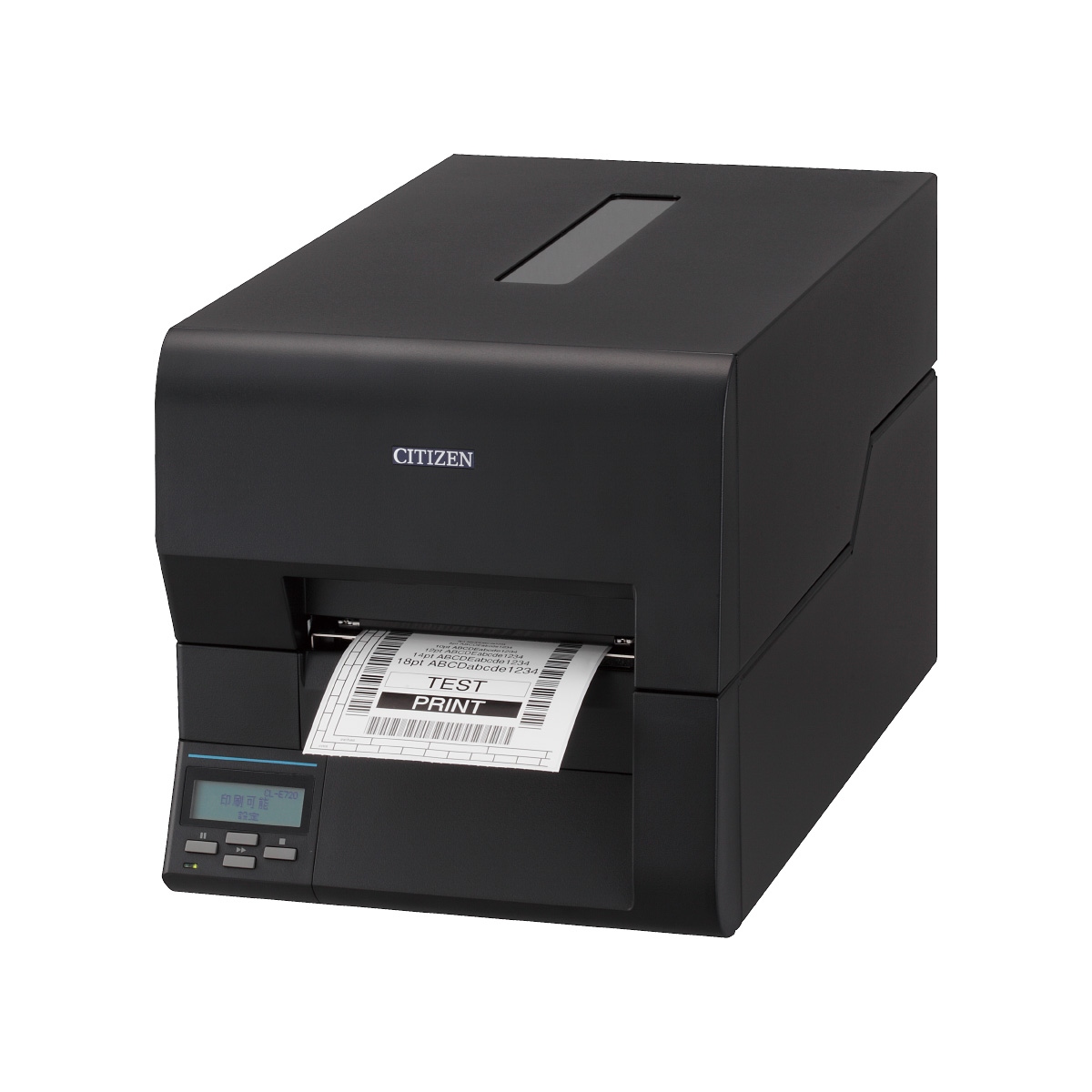

Label PrintersCL-E720/CL-E730

New standard model based on a new platform. Wired LAN is also equipped as standard.

  • ENERGY STAR
Paper Width
19.5 to 118mm
Print Method
Thermal/Thermal Transfer Method
Functions
  • Printing Speed: up to 150mm/sec.
  • Metal Chassis
  • Thermal Transfer
  • Thermal
Applications
  • Tickets
  • Barcodes
  • 2D Barcodes
  • Labels
  • Tags
  • Fanfold Paper

Features

  • High Quality Printing

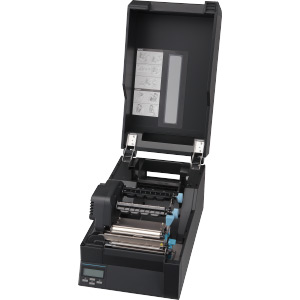

    Equipped with an ARC mechanism to maintain the level of ribbon tension regardless of changes in ribbon diameter.
    (ARC mechanism improves printing position and suppresses the occurrence of ribbon slippage and ribbon wrinkles.)

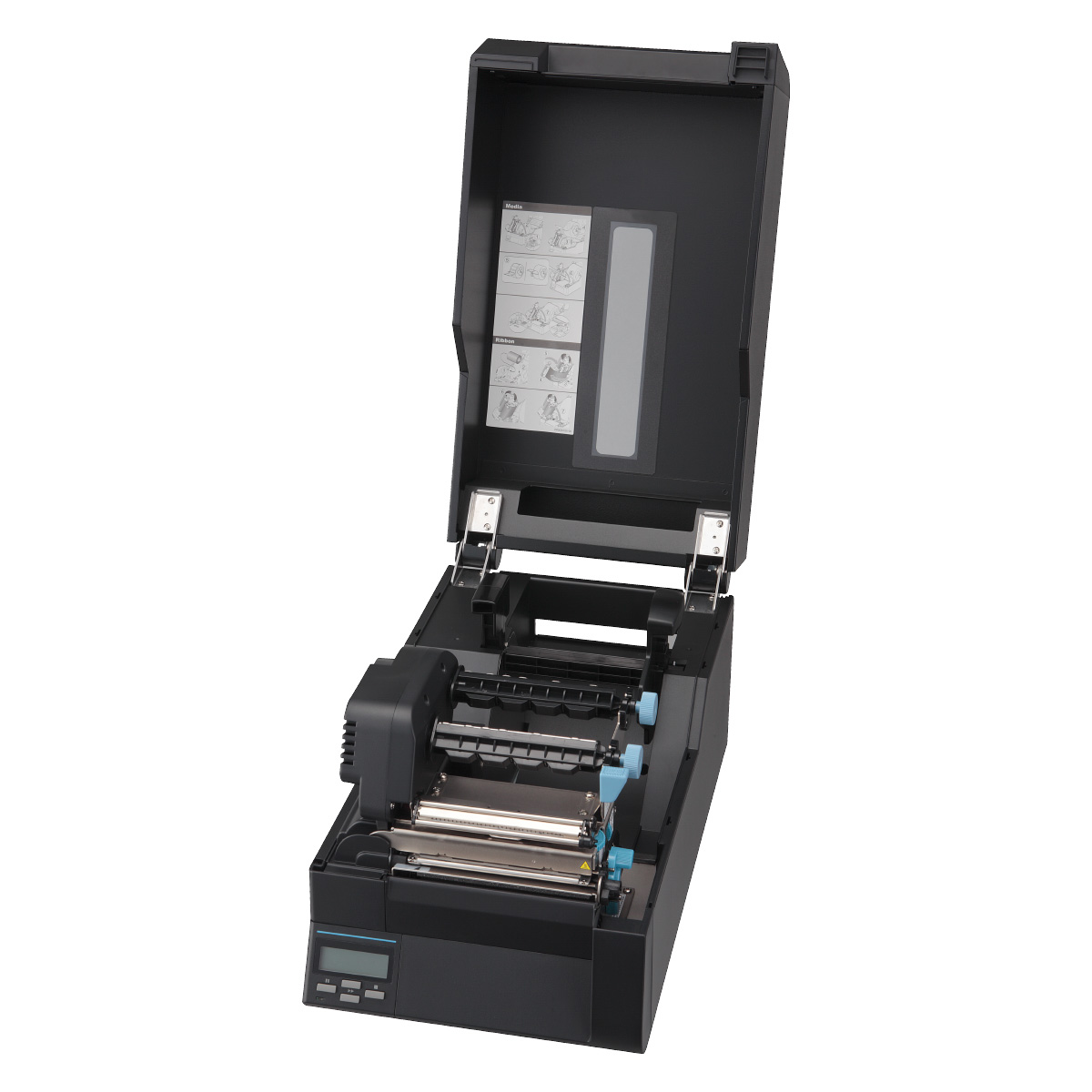

  • Front-Access Structure

    All operations are possible from the front face of the printer.

  • Equipped with a High-Speed CPU

    Features a 32-bit 400MHz high-speed CPU

  • Software

    Supports Windows drivers. (BarTender barcode generation software is recommended)

  • Wired LAN equipped as standard

  • In addition to USB, wired LAN is equipped as standard.
    Serial and wireless LAN can also be equipped as options.

  • Features a paper holder that makes it easy to change heavy paper

  • Acquired Energy Star certification (power-saving design)

Main Applications

  • Tickets

  • Labels

  • Barcode Printing

Used in the following industries

  • Manufacturing

  • Food

  • Distribution

  • Logistics

Basic Functions

Features

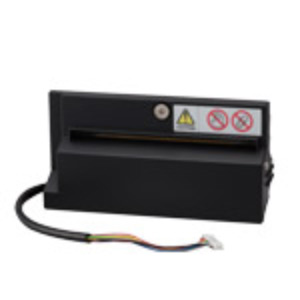

  • Auto Cutter
  • Buzzer
  • Internal Power Supply (with extended base option)
  • Thermal Transfer
  • Thermal
Supported Interfaces
See Interface Details
  • USB
  • Serial
  • Wired LAN
  • Wireless LAN
  • Bluetooth
Available Drivers
  • Windows
  • Linux (CUPS)
Supported Platform by SDKs
  • Windows
  • Windows CE
  • Android

Specifications

Print Method Thermal/Thermal Transfer Printing
Printing Speed 51 to 150mm/sec.
Resolution CL-E720 : 203dpi
CL-E730 : 300dpi
Paper Width CL-E720: 19.5 to 118mm
CL-E730: 19.5 to 118mm
(Effective Printing Width: up to 104mm)
Paper Pitch CL-E720: 6.35 to 2,539mm
CL-E730: 6.35 to 1,879mm
(When using fixed sensor)
Paper Diameter Exterior Diameter: up to 203φ Paper Core Diameter: 38 to 76mm
Paper Thickness 0.0635 to 0.254mm
Paper Detection Sensor Adjustable sensor
Barcodes One Dimensional:
Code 39/93/128, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, HIBC (Code 39 using Modulus 43), CODABAR (NW-7), Int 2 of 5 (Interleaved 2 of 5 using Modulus 10), Plessey, CASE CODE, UPC2DIG ADD, UPC5DIG ADD, Telepen, ITF14, ITF16, Industrial 2 of 5, COOP 2 of 5, GS1*1
Two Dimensional:
UPS Maxi Code, PDF-417, Data Matrix, QR code
Equipped Font Fixed Pitch Font, OCR Font, Proportional Font
Command Datamax Emulation, Zebra Emulation
Interfaces Standard: Wired LAN, USB (Rev 2.0)
Options: Serial (RS-232C), Wireless LAN (IEEE802.11a/b/g/n)
Power Supply Voltage AC100V, 50/60Hz
Mass Approx. 11kg
External Dimensions 250 (W) x 458 (D) x 261 (H) mm
Reliability MCBF:500km or 5years(Recommended media), Print head life:50km(Recommended media), Platen life:100km(Recommended media)
Safety Standards UL, CSA, VCCI: Class A, FCC: Class A
Accessories Labels for Testing
AC Cord
Quick Start Guide
Paper Holder Guide *Type with mounted Paper Holder only
Paper Holder *Type with mounted Paper Holder only
Head Cleaner
*1
Please contact us for details regarding GS1.

*Compliant with ENERGY STAR®. (Some specifications are non-compliant; inquire for details)

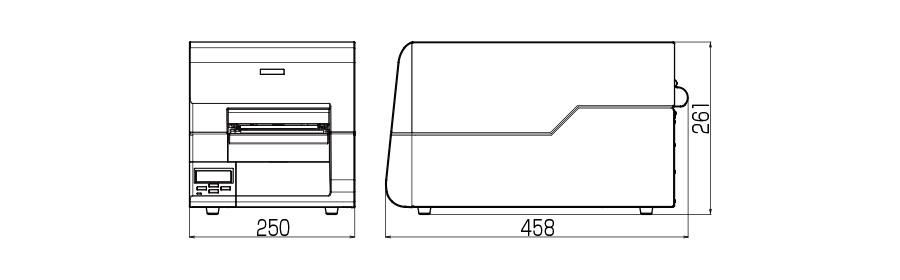

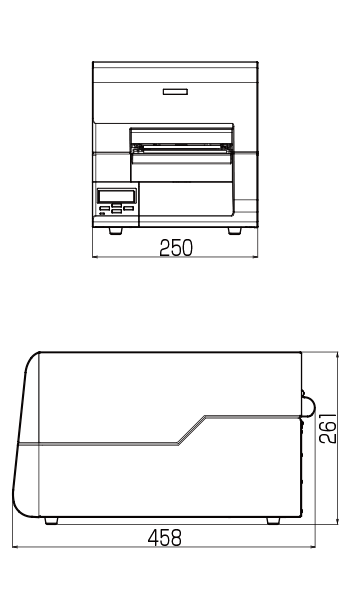

Dimensions

DimensionsDimensions

(Unit: mm)

Interfaces

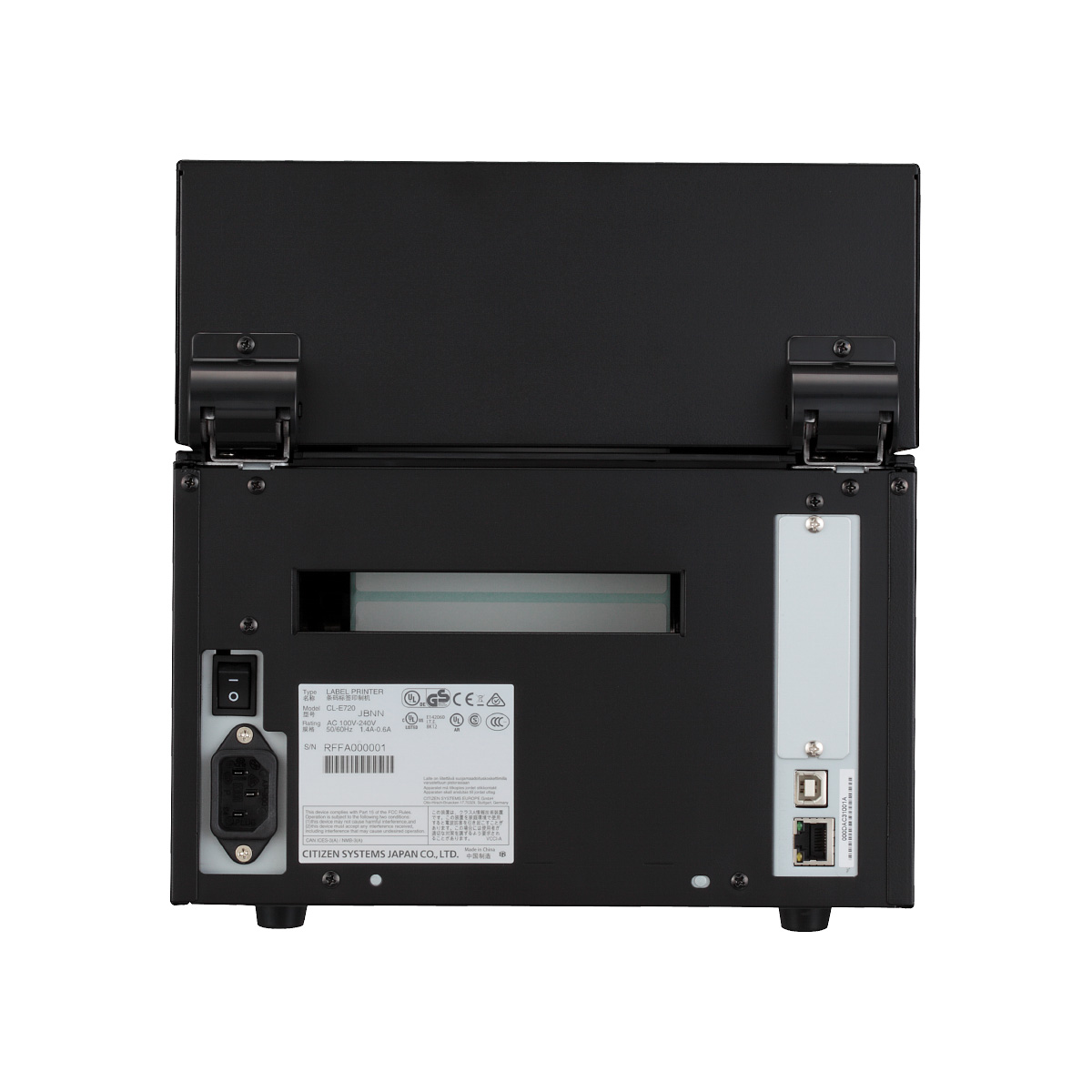

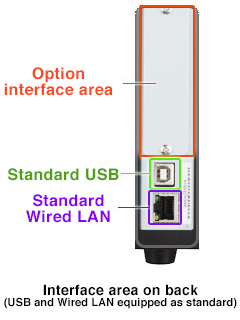

Interface area on back (when USB is selected)

Equipped as Standard

  • USB
  • Wired LAN

Options

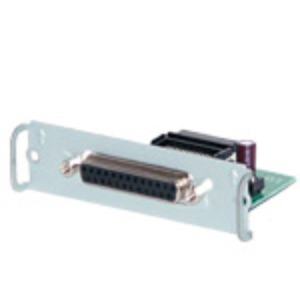

  • Serial

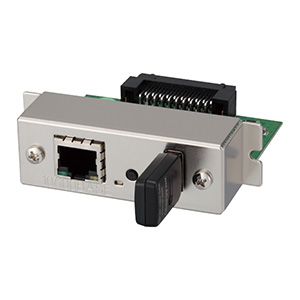

  • Wireless LAN
  • Bluetooth

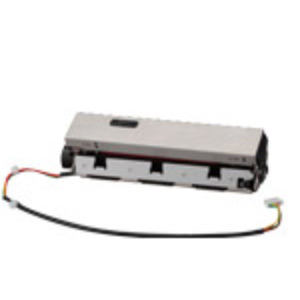

    Factory pre-shipment options
