  3. Label Printers CL-S700/CL-S703
Print

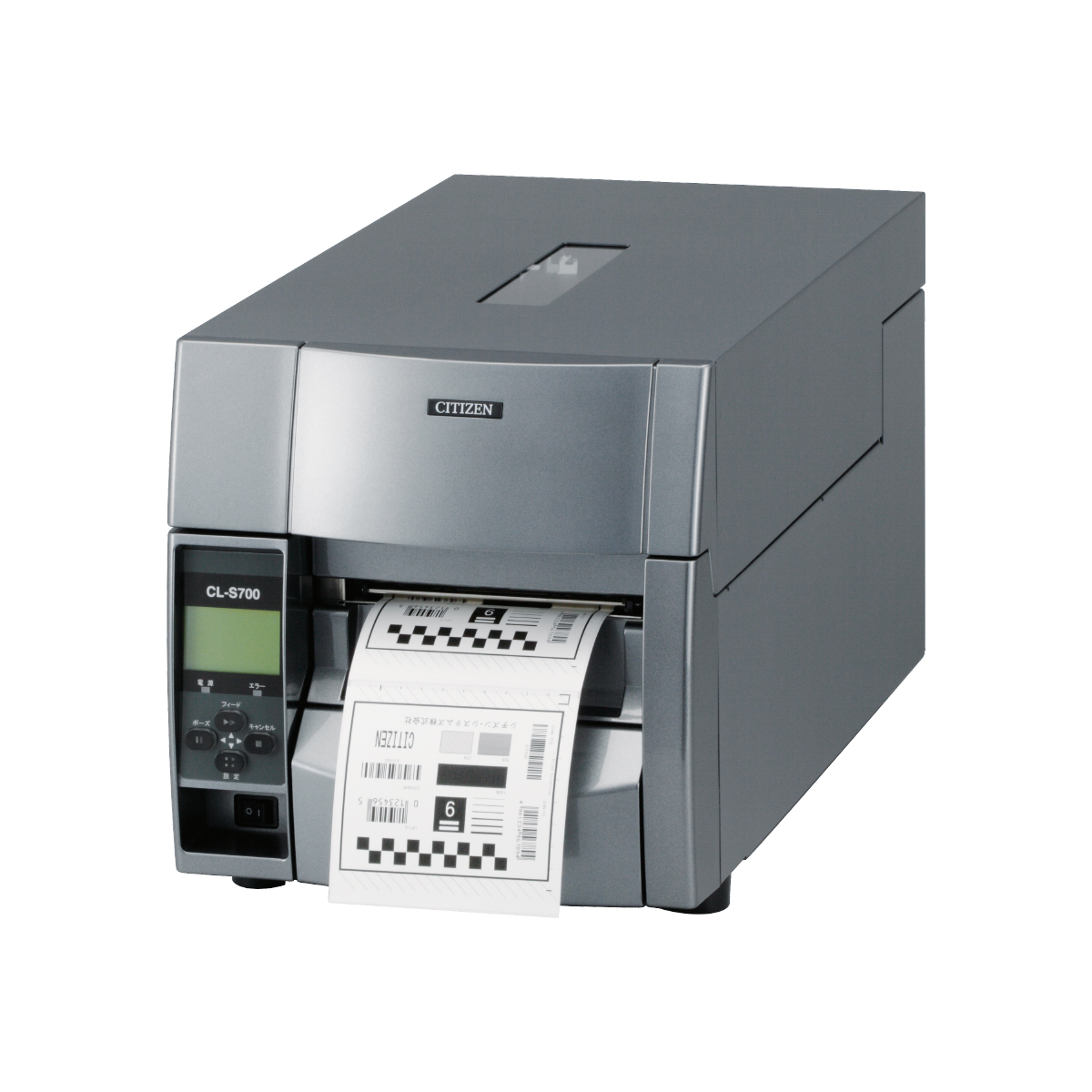

Label PrintersCL-S700/CL-S703

Large Volume, High-Speed Printing at up to 250mm/second.

Paper Width
25.4 to 118mm
Print Method
Thermal/Thermal Transfer Method
Functions
  • Printing Speed: up to 254mm/sec.
  • Metal Chassis
  • Thermal Transfer
  • Thermal
Applications
  • Tickets
  • Barcodes
  • 2D Barcodes
  • Labels
  • Tags
  • Fanfold Paper

Features

  • High Quality Printing

    Equipped with an ARC mechanism to maintain the level of ribbon tension regardless of changes in ribbon diameter.
    (ARC mechanism improves printing position and suppresses the occurrence of ribbon slippage and ribbon wrinkles.)

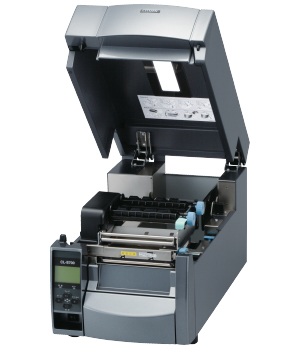

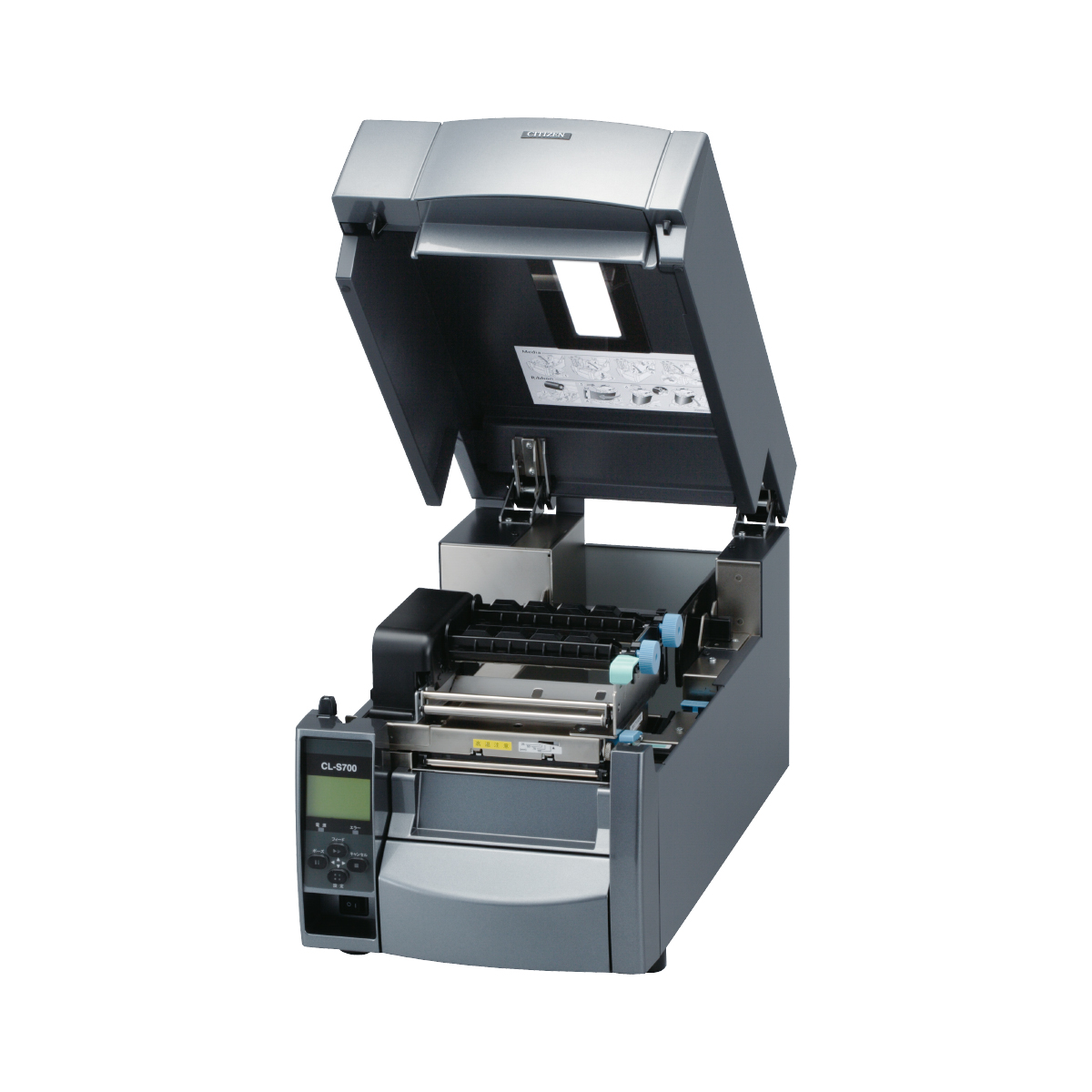

  • Front-Open Structure

    All operations are possible from the front face of the printer.

  • High-Speed Printing

    Capable of high-speed printing at MAX 254mm/sec.

  • Interfaces

    Equipped as standard with Serial, Parallel, and USB interfaces. Wired LAN is available as an option.

  • Software

    Supports Windows drivers. (BarTender barcode generation software is recommended)

Main Applications

  • Tickets

  • Labels

  • Barcode Printing

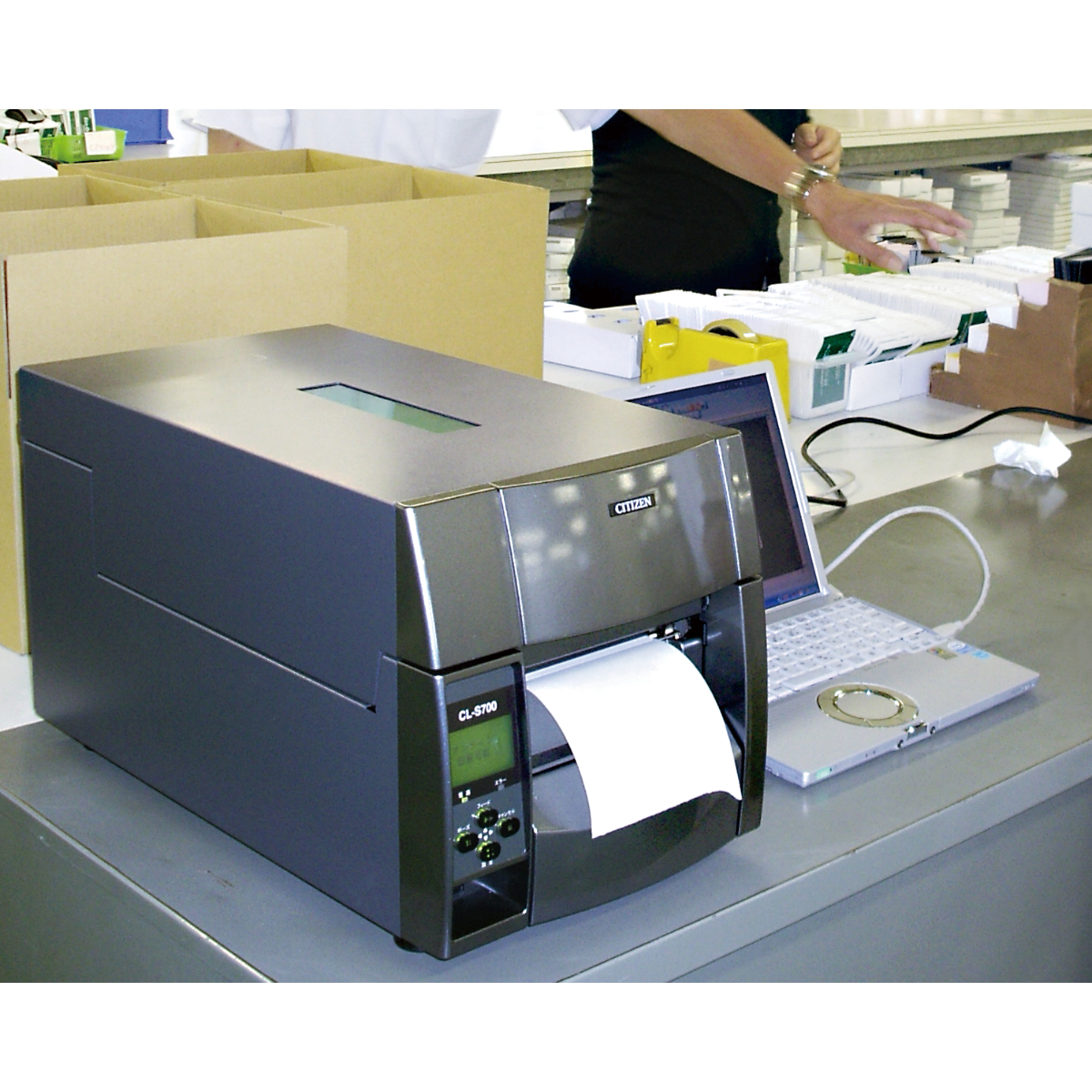

Used in the following industries

  • Manufacturing

  • Food

  • Distribution

Basic Functions

Features

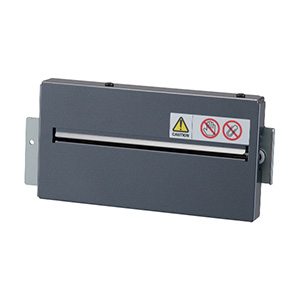

  • Auto Cutter
  • Buzzer
  • Internal Power Supply (with extended base option)
  • Metal Chassis
  • Thermal Transfer
  • Thermal
Supported Interfaces
See Interface Details
  • USB
  • Serial
  • Parallel
  • Wired LAN
  • Wireless LAN
Available Drivers
  • Windows
Supported Platform by SDKs
  • Windows
  • Windows CE
  • Android

Specifications

Print Method Thermal/Thermal Transfer Printing
Printing Speed 51 to 254mm/sec. (51 to 203mm/sec. for CL-S703)
Resolution 203dpi(CL-S703 is 300dpi)
Paper Width 25.4 to 118mm (Effective Printing Width: up to 104mm)
Paper Pitch 5.08 to 2539mm (When using fixed sensor)
Paper Diameter Exterior Diameter: up to 203φ Paper Core Diameter: 38 to 76mm
Paper Thickness 0.0635 to 0.254mm
Paper Detection Sensor Mobile and Fixed (Transmission/Reflection)
Barcodes One Dimensional:
Code 39/93/128, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, HIBC (Code 39 using Modulus 43), CODABAR (NW-7), Int 2 of 5 (Interleaved 2 of 5 using Modulus 10), Plessey, CASE CODE, UPC2DIG ADD, UPC5DIG ADD, Telepen, ITF14, ITF16, Industrial 2 of 5, COOP 2 of 5, GS1*1
Two Dimensional:
UPS Maxi Code, PDF-417, Data Matrix, QR code
Equipped Font Fixed Pitch Font, OCR Font, Proportional Font
Kanji Font Gothic (16x16, 24x24, 32x32, 48x48 dots)
Command Citizen Original Command
Interfaces Standard: Serial (RS-232C), Parallel (IEEE1284-ECP/Centronix standards), USB (Rev 1.1)
Options: Wired LAN, Wireless LAN
Power Supply Voltage AC100V, 50/60Hz
Mass Approx. 13.3kg
External Dimensions 255 (W) x 490 (D) x 265 (H) mm
Reliability Head Life: 50km
Safety Standards UL, CSA, VCCI: Class A, FCC: Class A
Accessories Thermal Transfer Ribbon
Labels for Testing
AC Cord
Quick Start Guide
Head Cleaner
*1
Please contact us for details regarding GS1.

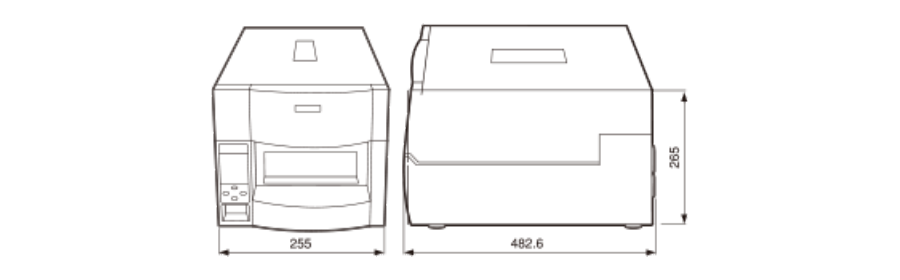

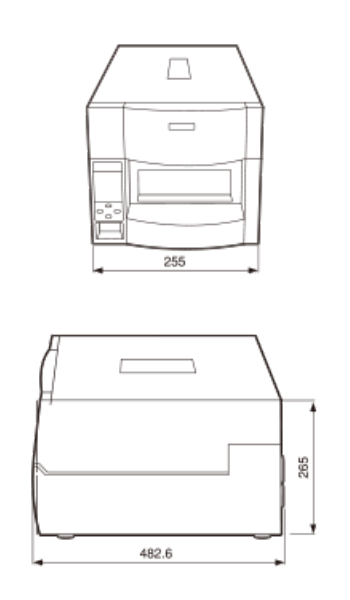

Dimensions

DimensionsDimensions

(Unit: mm)

Interfaces

Equipped as standard with USB, Serial, and Parallel interfaces.

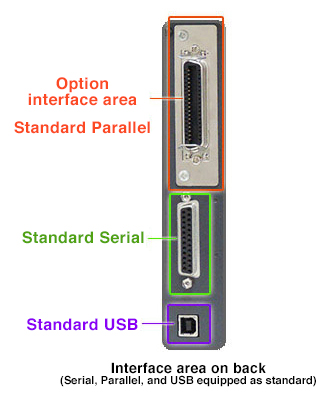

Interface area on back (Serial, Parallel, and USB equipped as standard)

Equipped as Standard

  • USB
  • Serial
  • Parallel

Options Sold Separately

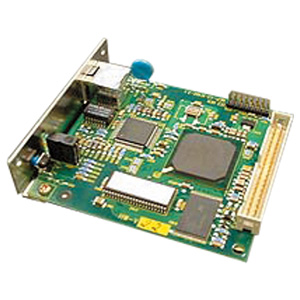

  • Wired LAN
  • Wireless LAN

* Company names and product names are trademarks or registered trademarks of their respective companies.
