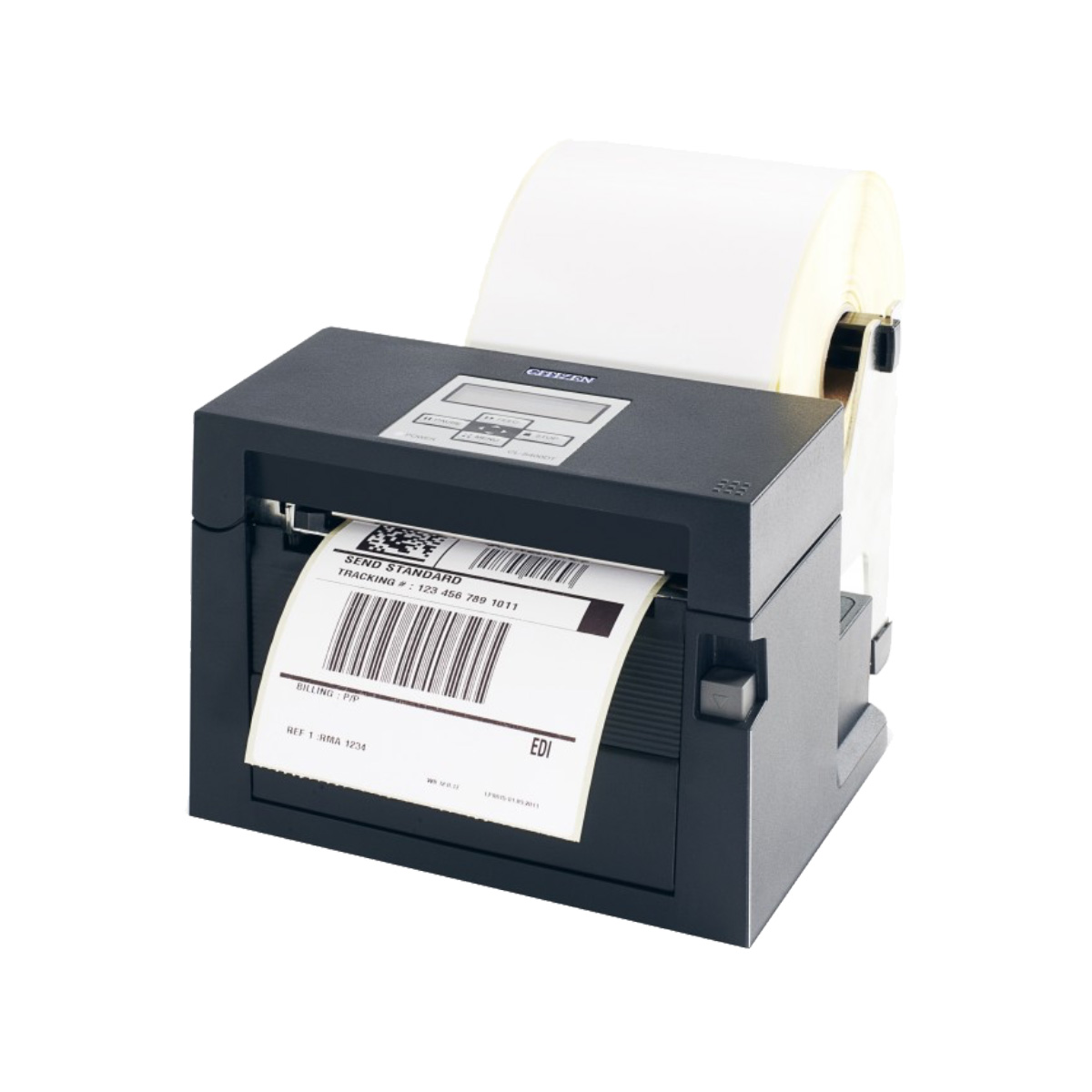

Label PrinterCL-S400DT

A business-use, compact label printer designed for easy operation.

  • ENERGY STAR
Paper Width
19.5 to 118mm
Print Method
Thermal/Thermal Transfer Method
Functions
  • Metal Chassis
  • Thermal Transfer
  • Thermal
Applications
  • Tickets
  • Barcodes
  • 2D Barcodes
  • Labels
  • Tags
  • Fanfold Paper

Features

  • Energy-Saving Design

    Conforms with Energy Star energy-saving and eco-friendly specifications.

  • Small-Footprint Design

    With its small size and built-in power source, it saves space and leaves plenty of room for working.

  • Improved Ease of Operation

    External paper supply method makes it easy to check the amount of paper remaining.

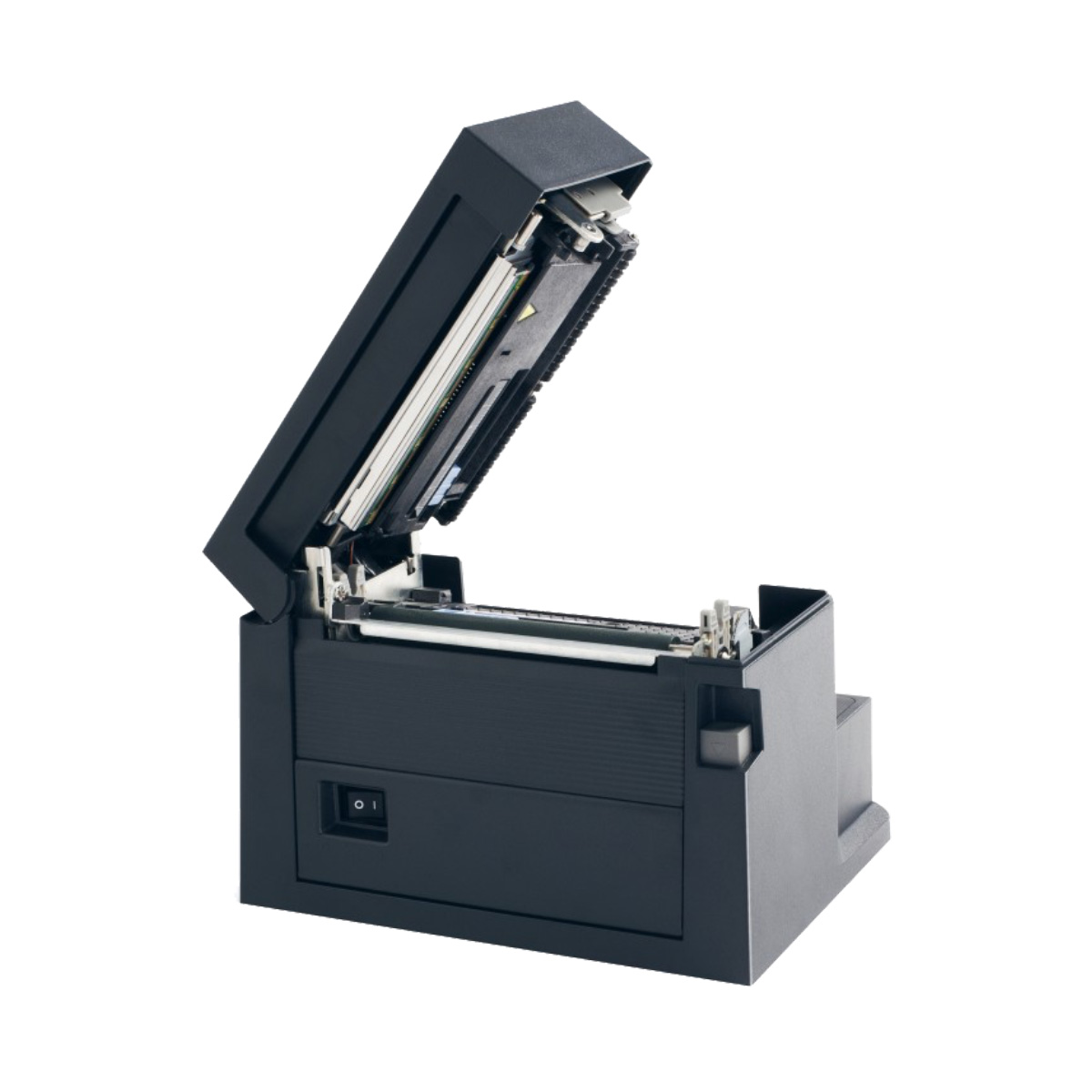

    LCD Panel dramatically improves visibility and operability. Prevents the decline of operation rate with a “Full Open Mechanism” that allows the opening and closing of the entire printer cover with head and control panel, which makes it easy to insert and position the paper and prevent paper jamming, as well as clean and maintain the head and avert paper powder clogging.

  • Various Options

    Handles paper rolls and fanfold paper.

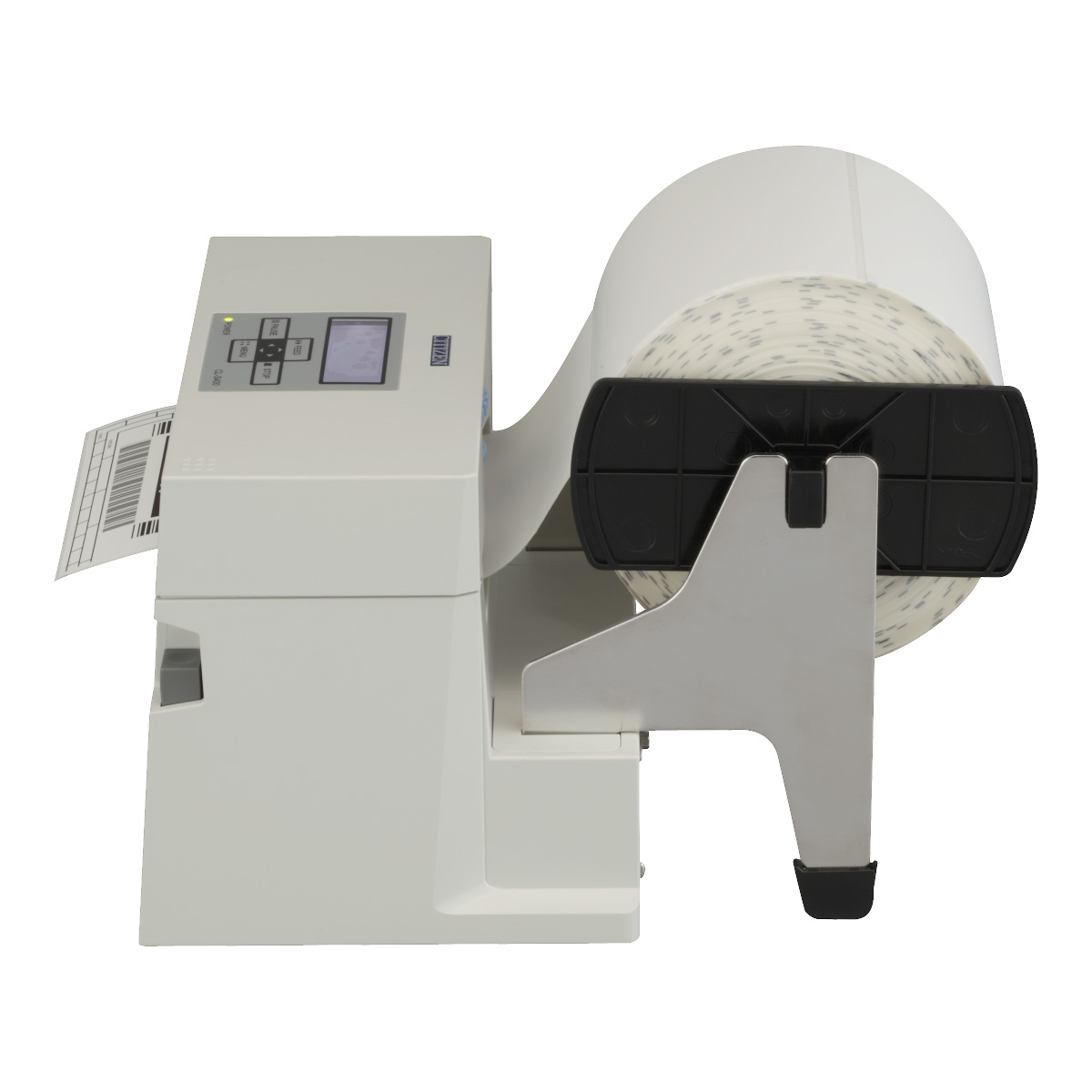

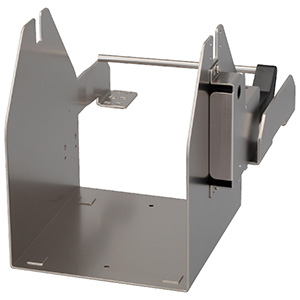

    For full-scale operation, an option is available for a large diameter (8-inch) paper roll holder.

Main Applications

  • Tickets

  • Labels

  • Tags

  • Receipts

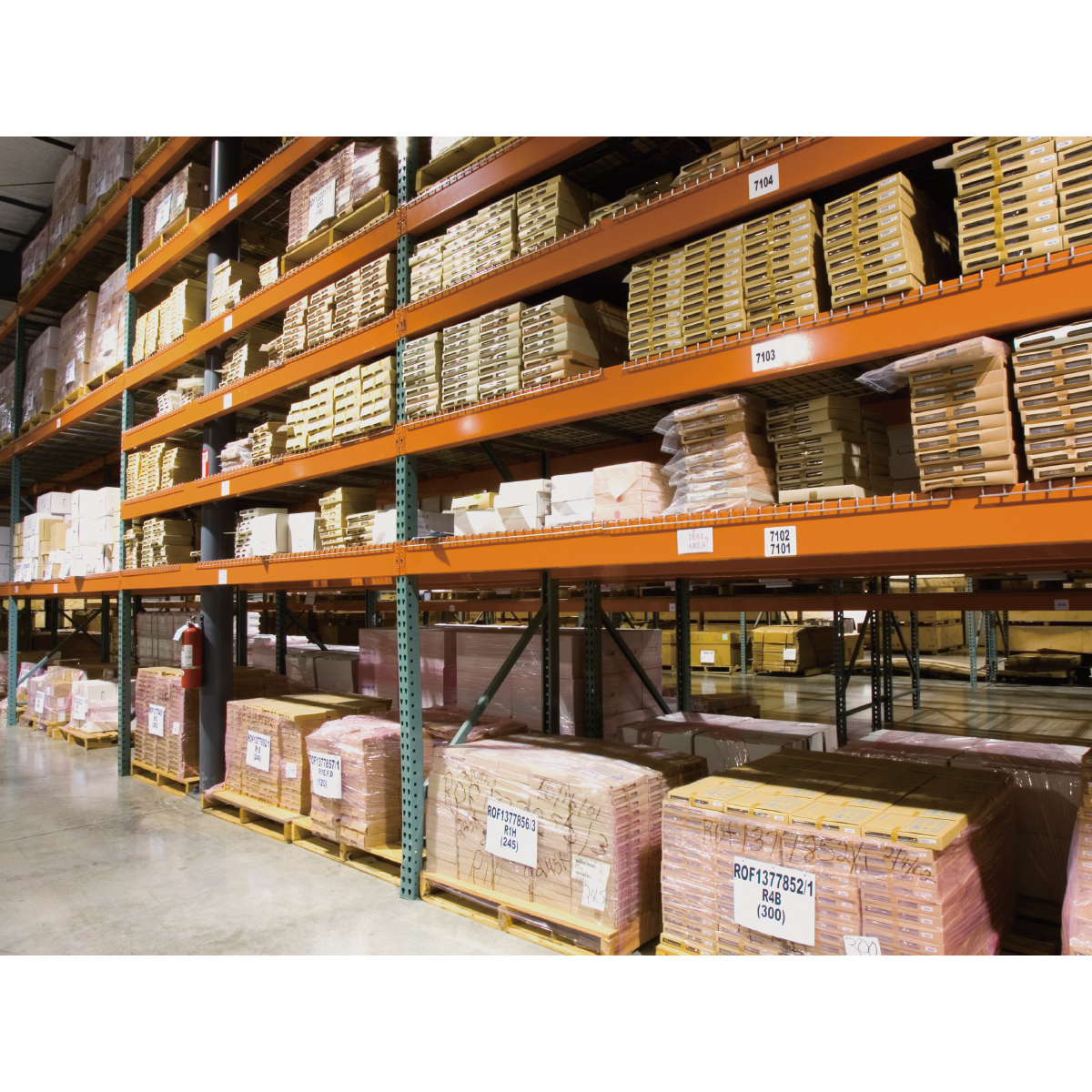

Used in the following industries

  • Manufacturing

  • Food

  • Distribution

Basic Functions

Features

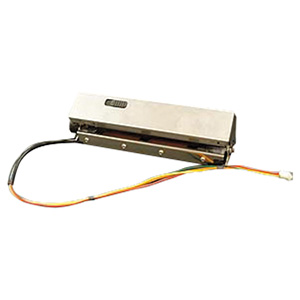

  • Auto Cutter
  • Buzzer
  • Internal Power Supply (with extended base option)
  • Thermal
Supported Interfaces
  • USB
  • Serial
  • Wired LAN
  • Wireless LAN
  • Bluetooth
Available Drivers
  • Windows
  • Linux (CUPS)
Supported Platform by SDKs
  • Windows
  • Windows CE
  • Android

Specifications

Print Method (Thermal) Direct Thermal Printing
Printing Speed 51 to 152mm/sec. (102mm/sec. when peeler is mounted)
Resolution 203dpi
Paper Width 19.5 to 118mm (Effective Printing Width: up to 104mm)
Paper Width 6.35 to 812.8mm
Paper Diameter Exterior Diameter: up to 127mm Paper Core Diameter: 25.4 to 76mm (when using standard paper roll holder)
Paper Thickness 0.0635 to 0.254mm
Paper Detection sensor Adjustable sensor
Barcode Types One Dimensional:
Code 3 of 9, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8 (JAN-8), Industrial 2 of 5, HIBC (Code 3 of 9 using Modulus 43), CODABAR (NW-7), Int 2 of 5 (Interleaved 2 of 5 using Modulus 10), Plessey, Case Code, UPC2DIG ADD, UPC5DIG ADD, Code 93, Telepen, ITF14, ITF16, Matrix 2 of 5, COOP 2 of 5, GS1*1
Two Dimensional:
UPS Maxi Code, PDF-417, Data Matrix, QR code, Aztec, RSS
Equipped Font Fixed Pitch Font, OCR Font (OCR-A, OCR-B), Proportional Font, TrueType rasterizer
Command Datamax Emulation, Zebra Emulation
Interfaces Serial (RS-232C), USB (Rev 2.0), Bluetooth
Options: Wired LAN, Wireless LAN (1EEE802.11b/g/n)
Power Supply Voltage AC100V, 50/60Hz
Power Consumption Operation: 60W (12.5% Printing Rate)
Standby: 2.5W (Normal)/1.5W (Power Save Mode)
Environmental Conditions Temperature and Humidity During Operation: 0 to 40°C, 30 to 80%
Temperature and Humidity in Storage: -20 to 60°C, 5 to 85%
Mass Approx. 2.6kg
External Dimensions 206 (W) x 148 (D) x 150 (H) mm
Reliability MCBF:250km or 5years(Recommended media), Print head life:50km(Recommended media), Platen life:100km(Recommended media)
Safety Standards UL, CSA, VCCI: Class A
Accessories Labels for Testing
Power Supply Cord
Quick Start Guide
CD-ROM (User's Manual/Printer Driver)
Paper Holder Guide *Type with mounted Paper Holder only
Paper Holder *Type with mounted Paper Holder only
Head Cleaner
*1
Please contact us for details regarding GS1.

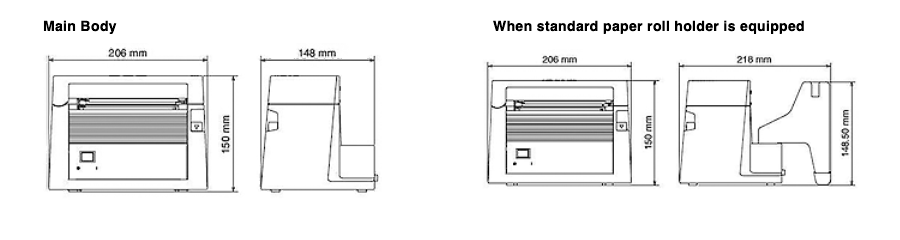

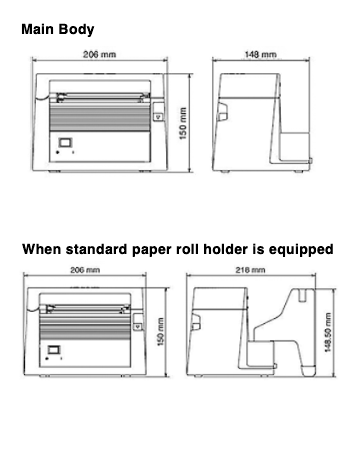

Dimensions

DimensionsDimensions

(Unit: mm)

Interfaces

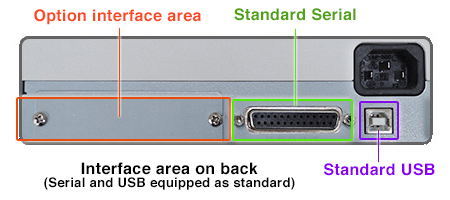

Interface area on back (Serial and USB equipped as standard)

Equipped as Standard

  • USB
  • Serial

Options

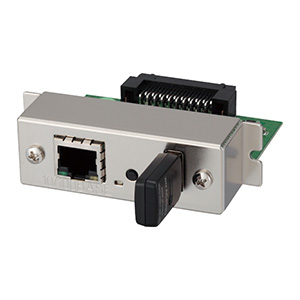

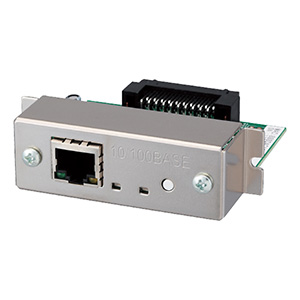

  • Wired LAN
  • Wireless LAN
  • Bluetooth

    Factory pre-shipment options

* Company names and product names are trademarks or registered trademarks of their respective companies.
