The new dimension in desktop label printing
Half size, half price
Our unique 6-inch CL‑S6621 label printer sets a new standard for desktop machines. Smaller and more efficient than any other comparable printer, the CL‑S6621 offers automatic Cross-Emulation, for easy integration and compatibility, and features our advanced Hi‑Lift™ Mechanism. The CL‑S6621 delivers precision printing with fast media loading and ease of use, making it the perfect solution for tough, reliable and high volume label printing.
Paper load: Durable design

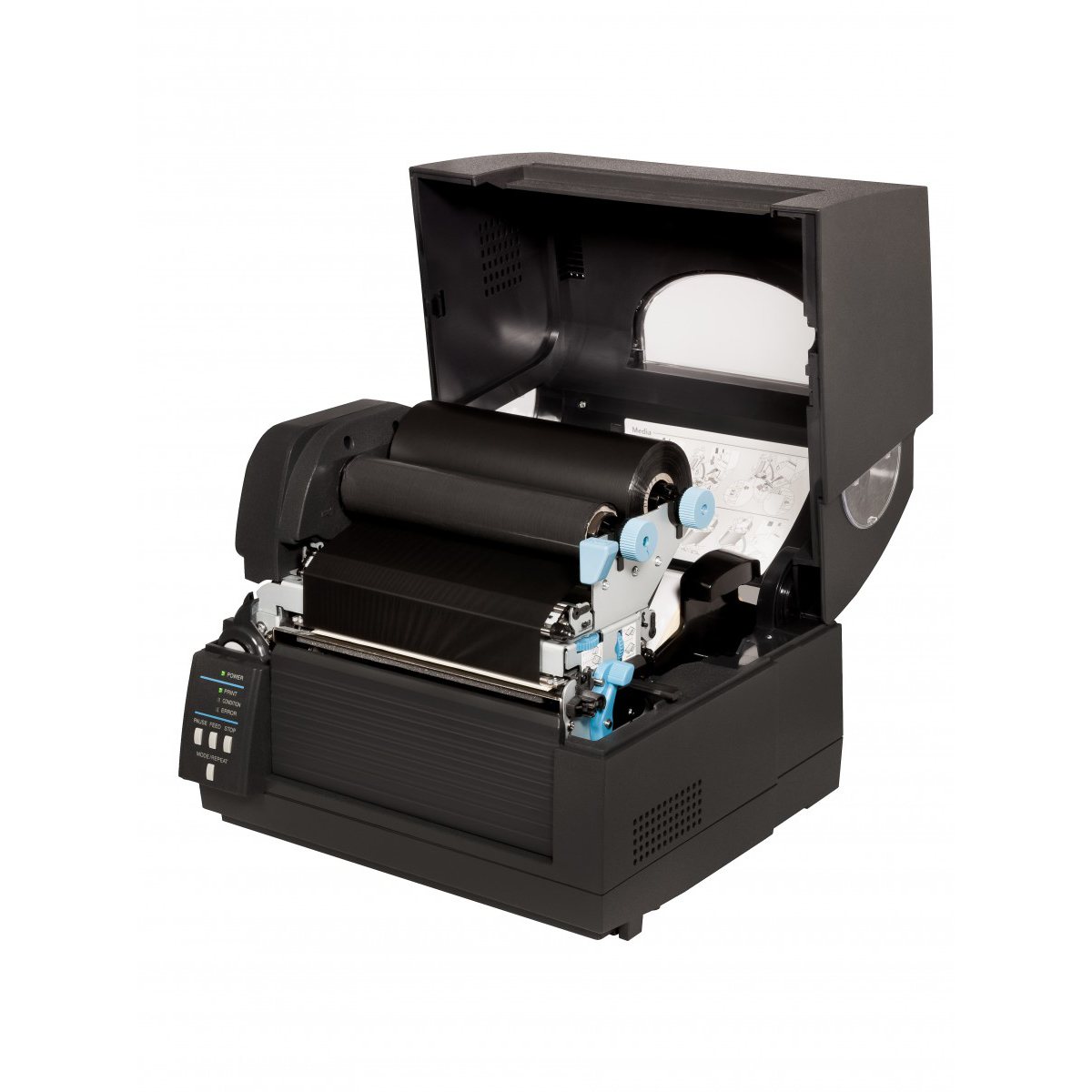

Citizen's proven Hi-Lift™ all-metal mechanism
Printing Speed: Fast print out
150 mm per second
Media support: Large media capacity
Holds rolls up to 125 mm
Ribbon options: Wide range of ribbon options
Uses up to 360 metres inside and outside wound ribbons
Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
No more unreadable labels
The ARCP™ ribbon control technology assures clear prints.
Paper-saving function (ECO Printing)
Saves paper by means of top margin deletion, line space compression, and letter size reduction.
Low space requirement
Integrated power supply keeps work area tidy.
Energy
Internal power supply for reliability
Media sensor
Adjustable media sensor
Tear bar
Standard tear-bar for perforated tags
Courier
Logistic / Transport
Manufacturing
Warehousing
| Printing Method | Thermal Transfer + Direct Thermal |
|---|---|
| Maximum Printing Speed | 150 mm/sec. |
| Print Width | 168 mm |
| Media Width (min to max) | 50 to 178 mm |
| Media Thickness (min to max) | 63.5 to 254 μm |
| Media Sensor | Fully adjustable gap, notch, reflective black mark and media low |
| Media Length (min to max) | 6.35 to 812.8 mm |
| Roll Size (max), Core Size | Inside diameter 125 mm, Core size 25.4 to 76 mm |
| Case | Hi-Open™ industrial ABS case with safe close |
| Mechanism | Hi-Lift™ metal mechanism with wide opening head |
| Control panel | 4 buttons and 4 LEDs |
| Flash (Non-Volatile Memory) | 8 MB total, 1 MB available for user |
| Drivers and software | Free-of-charge on CD with printer, including support for various platforms |
| External Dimensions | 303(W) x 290(D) x 273(H) mm |
| Mass | Approx. 7.9 Kg |
| Warranty | 2 years on printer. 6 months or 50 Kms printhead |
| Emulations (Languages) | Full Datamax® W-Class®, DMX800® Cross-Emulation™ - automatic switching between Zebra® ZPL-II® and Datamax® I-Class®, DMX400 Zebra® ZPL-II® BASIC interpreter for data stream processing and ticketing emulations |
| Ribbon size | 74mm maximum outside diameter. 360 metres length. 25mm core |
| Ribbon winding & type | Ink side in or out, switch selectable. Wax, Wax/Resin or Resin Type |
| Ribbon system | ARCP™ automatic ribbon tension adjustment |
| RAM (standard Memory) | 32 MB total, 1 MB available for user |
| Cutter | Guillotine type, Dealer Installable |
| Resolution | 203 dpi |
| Main Interface | Dual Interface Serial (RS-232C), USB (version 2.0, full speed) |
| Interfaces | Wireless LAN 802.11b and 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps Ethernet (10/100 BaseT) Parallel (IEEE 1284 compliant) |
* Company names and product names are trademarks or registered trademarks of their respective companies.
