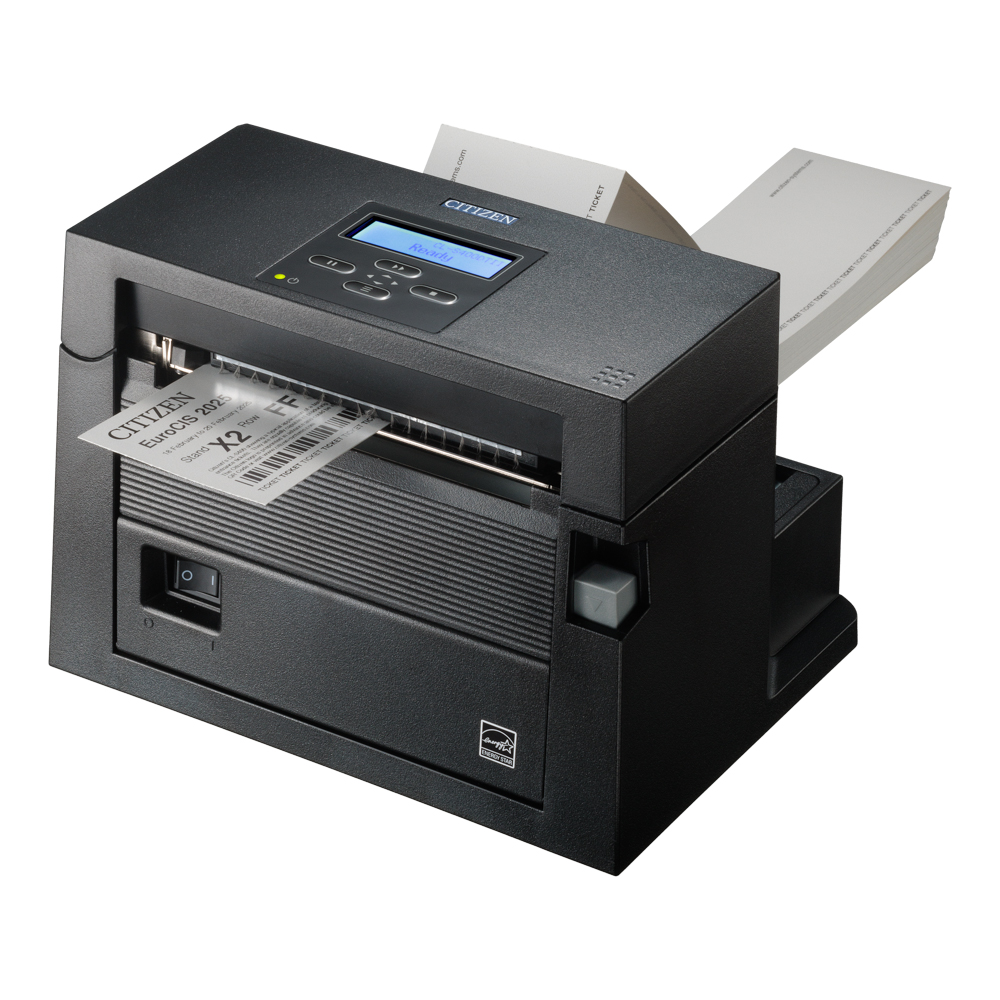

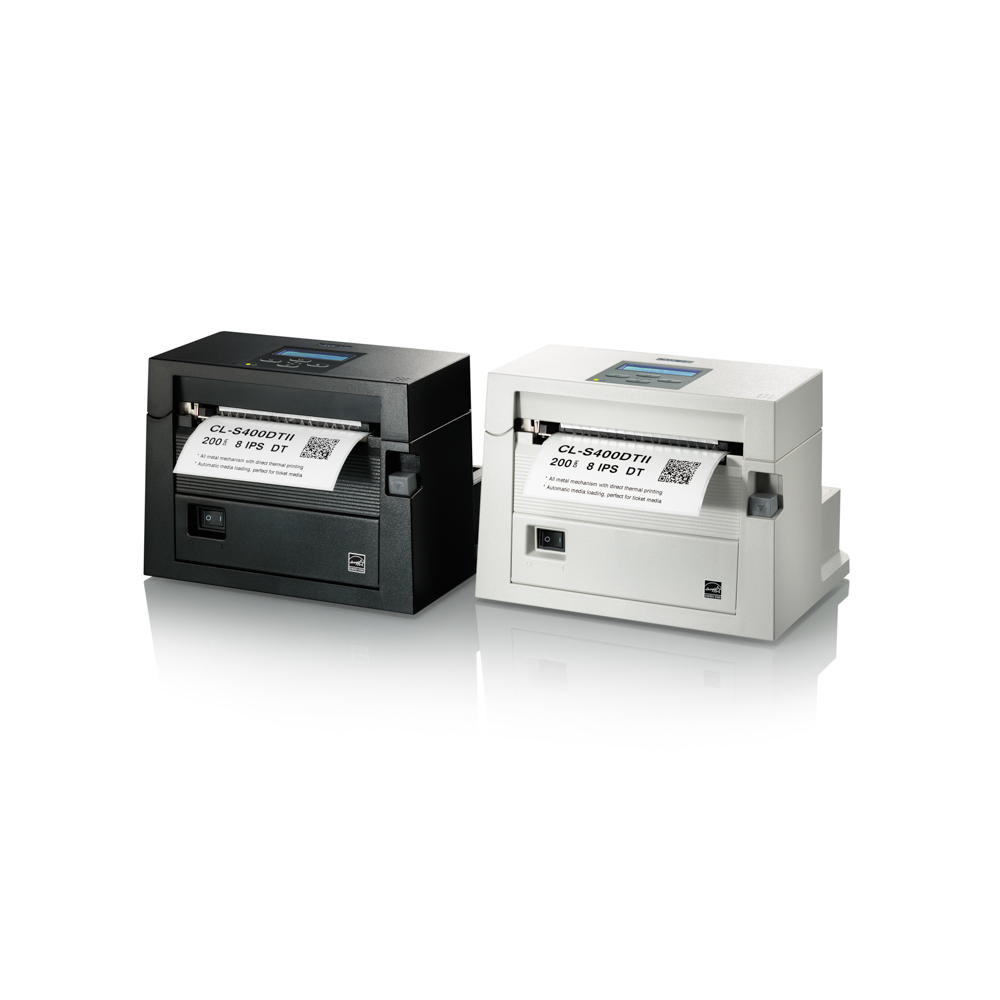

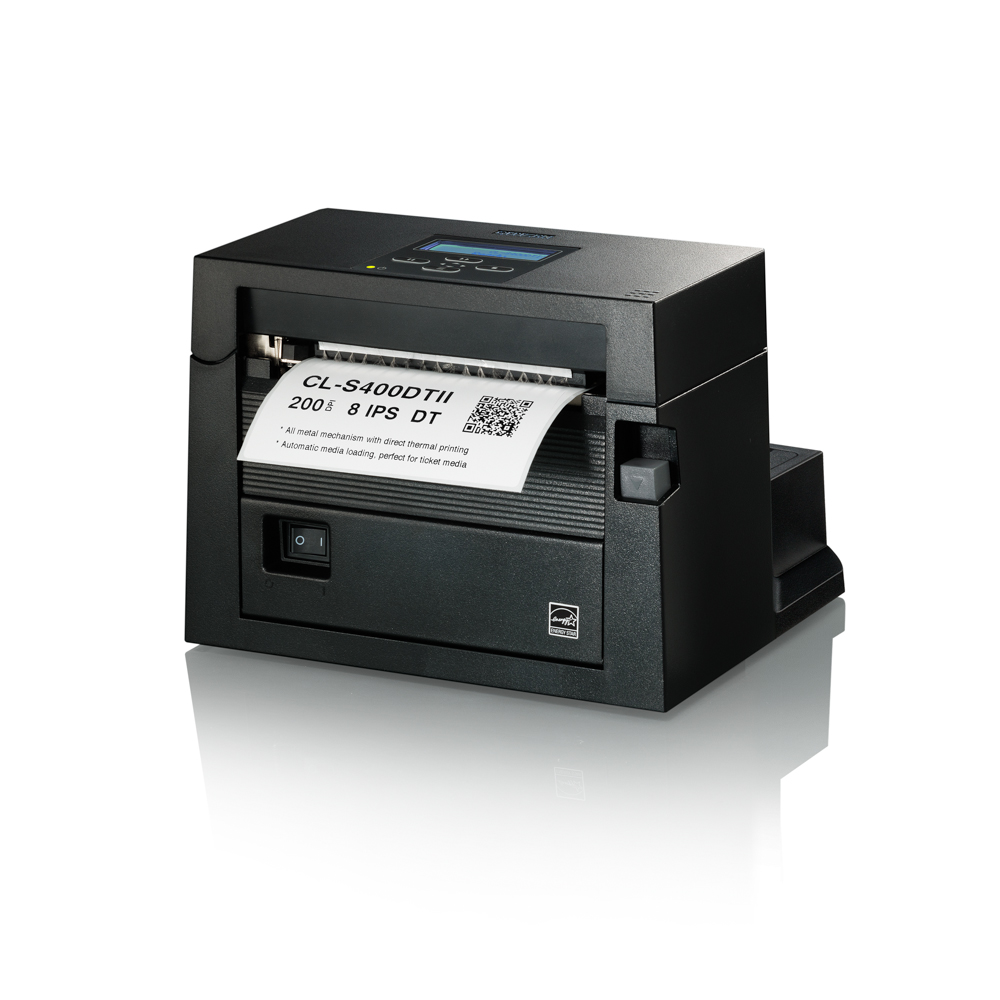

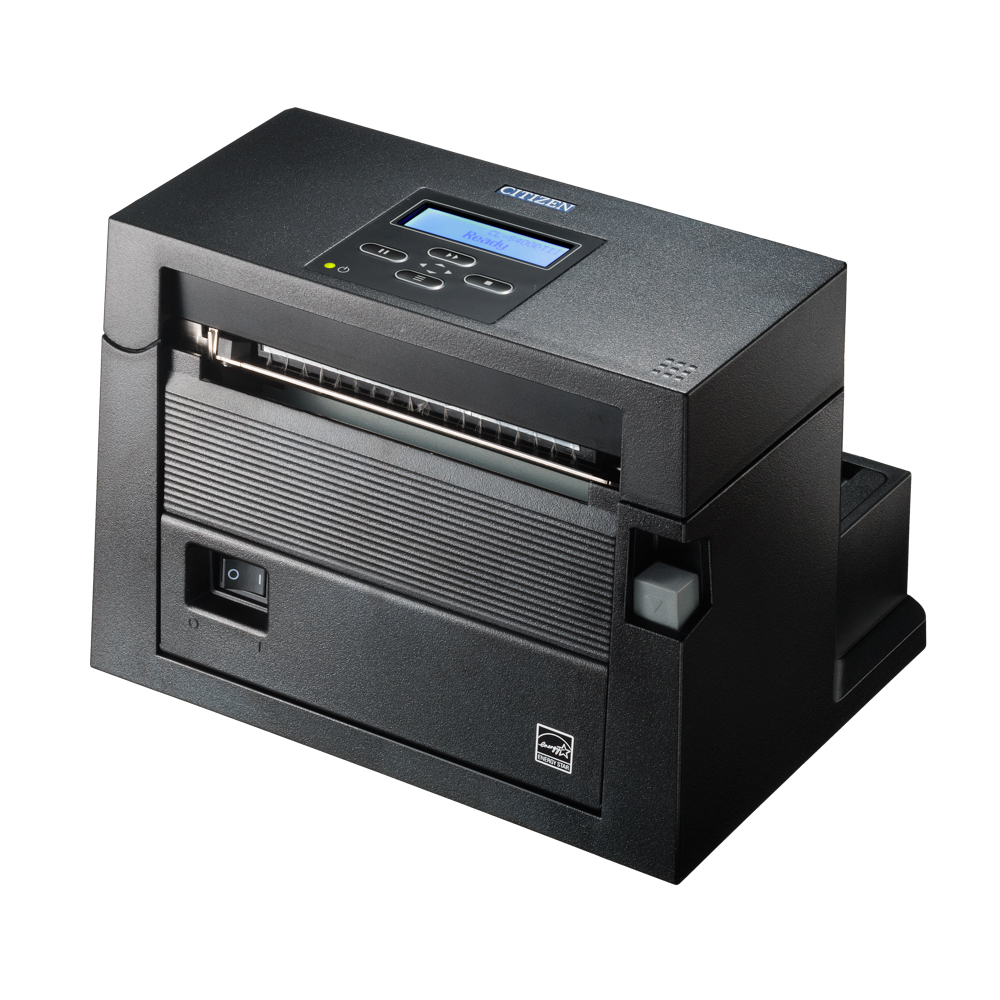

Compact model label printer with auto-loading and easy to use
Tickets
Barcodes
2D Barcodes
Labels
Tags
Fanfold Paper- Key Features -
●Print Speed: MAX 203mm/sec(with piller: MAX 203mm/sec)
●External paper supply method:
Roll pepar and, a large diameter (8-inch) paper
Fanfold paper
●Compact footprint, internal power supply(universal)
●Full Open Mechanism for easily maintenance
●Reliable metal print Mechanism
●Backlight, 2-colour LCD display
●Energy-Saving Design, Eco-friendly specifications.
ENERGY STAR® compliant
Sleep and standby functions
Recyclable packaging
●Adjustable Mechanism for easily setting
Media sensor, head blance/head offset
●Auto Feed Function
●Anti-Media Wated Function
●USB Flash Drive Function
Updateing printer firm ware
Saving and Resoring printer settings

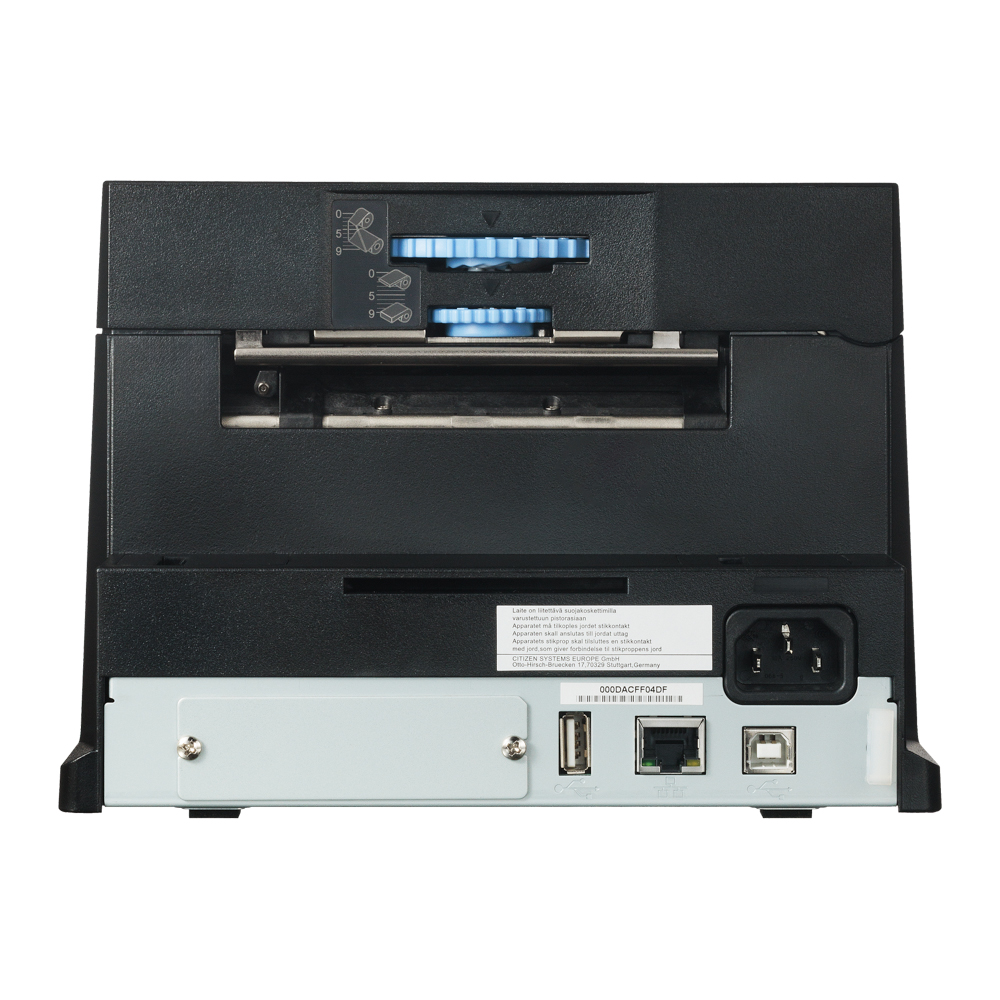

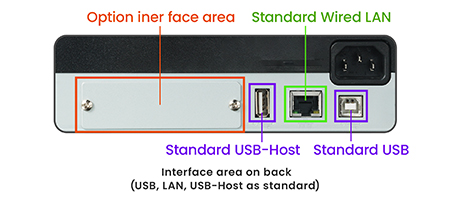

●USB, LAN, USB-Host as standard
●User memory: ROM 8MB
●Remote Maintenance (via Ethernet)
●Option
Interfaces: RS-232C, parallel, wired/wirless LAN, and Bluetooth®
Auto cutter unit, peeling unit
Large diameter (Φ203ｍｍ) paper holder
Energy-Saving Design
Conforms with Energy Star energy-saving and eco-friendly specifications.
Sleep and standby functions for energy efficiency
Small-Footprint Design
With its small size and built-in power source, it saves space and leaves plenty of room for working.
The footprint is A5 size or smaller for the main unit alone, and remains A5 size or smaller even when the roll paper holder is attached.

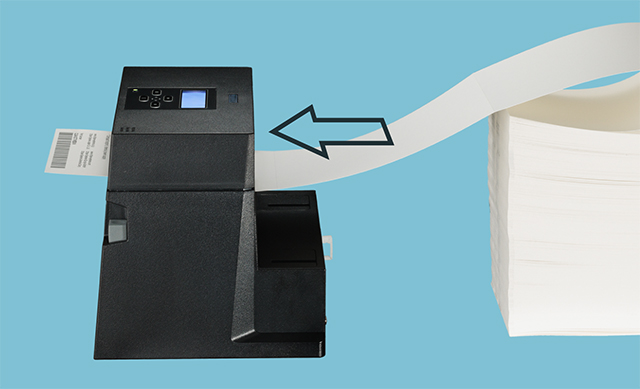

Auto-loading(Auto Feed Function) / Anti-Media Wated Function
●Added a funtction that prevents the waste of paper by enabling printing from the first label of the set labels
●Added an automatic paper feeding function that allows paper to be set even while the cover is closed

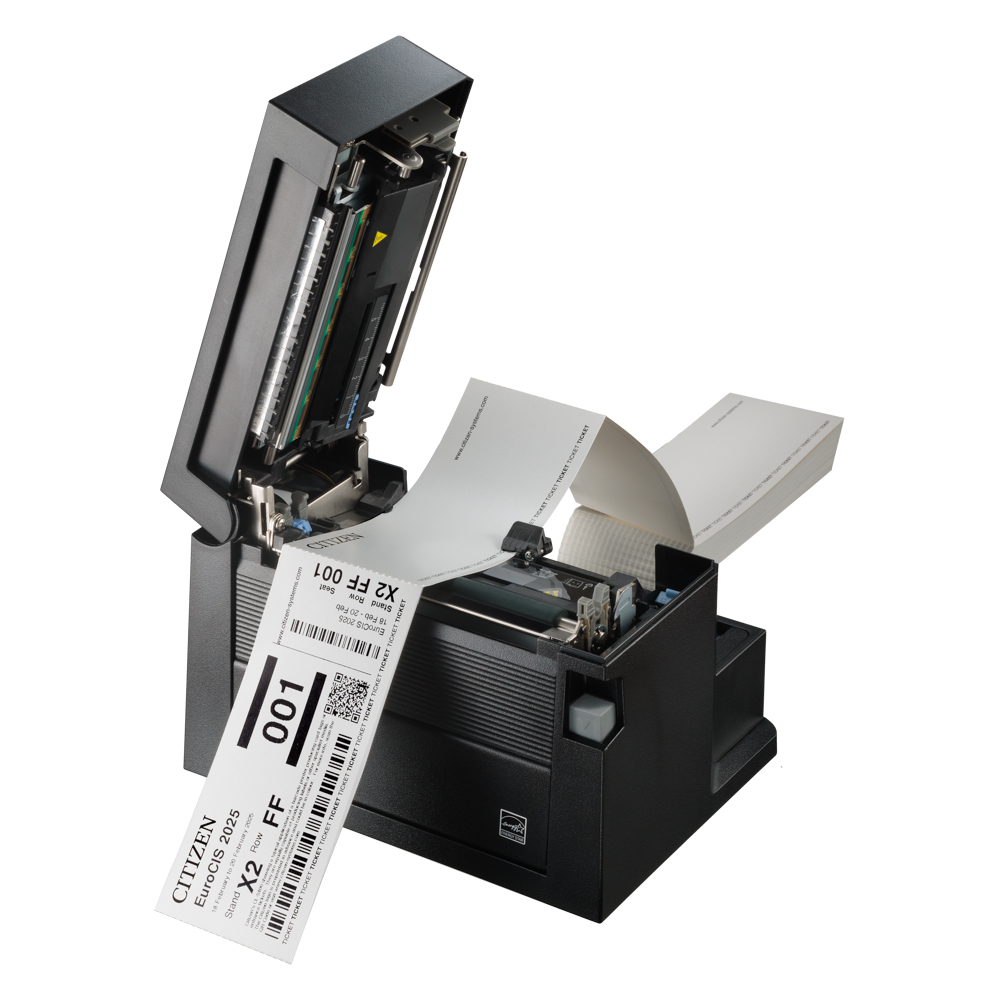

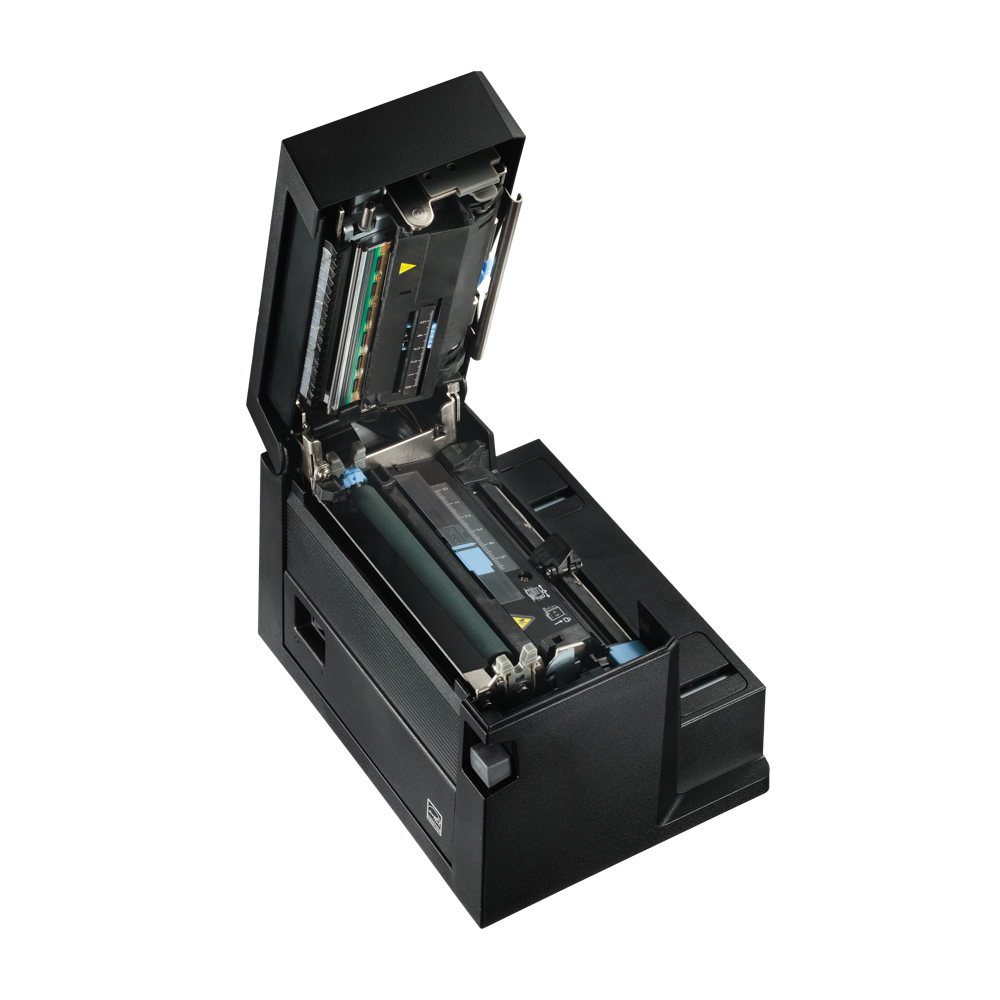

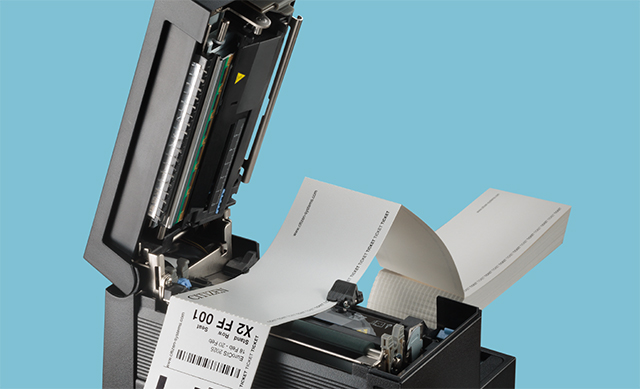

Full Open Mechanism/Metal print Mechanism unit
●LCD Panel dramatically improves visibility and operability. Prevents the decline of operation rate with a “Full Open Mechanism” that allows the opening and closing of the entire printer cover with head and control panel, which makes it easy to insert and position the paper and prevent paper jamming, as well as clean and maintain the head and avert paper powder clogging.
●Metal Print construction provides strength and durability for a reliable performance.

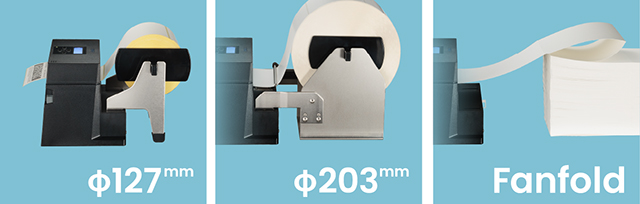

Support to use variety of paper

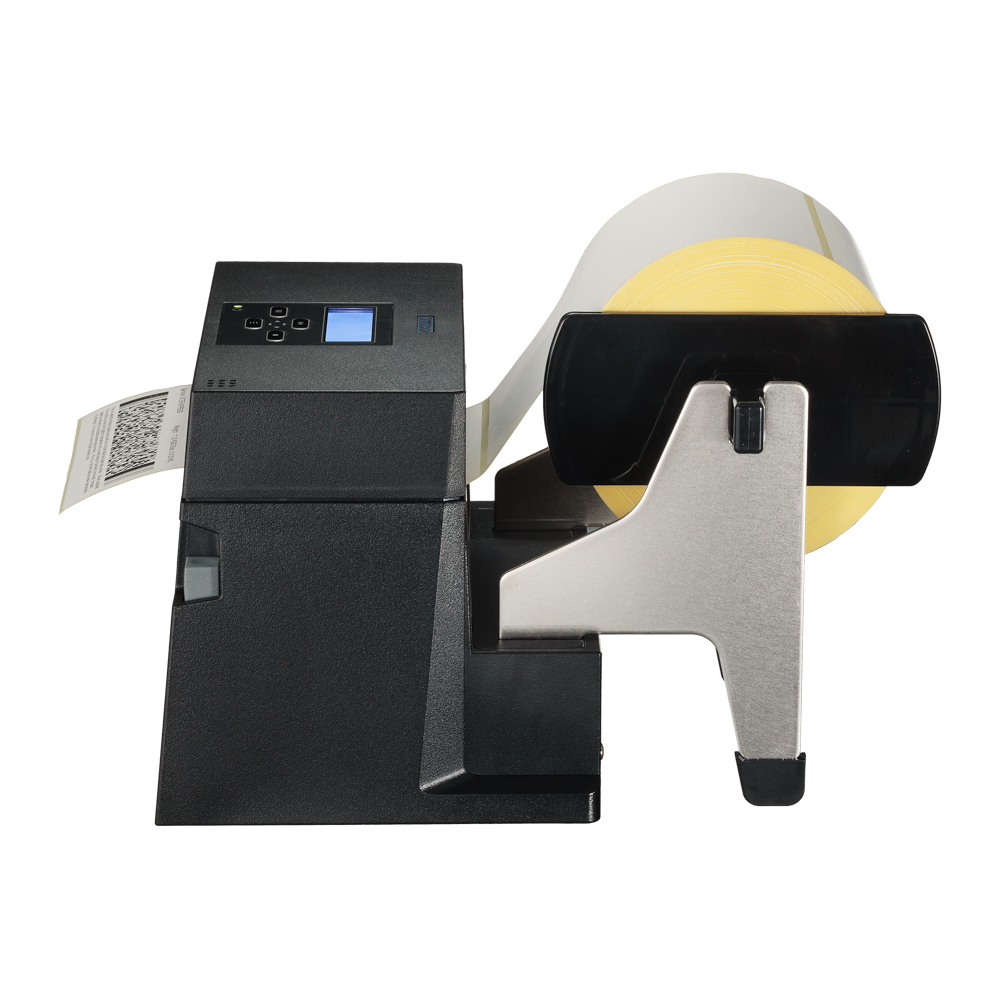

●Handles a large diameterpaper rolls and fanfold paper.
Adjustable sensors that allow the sensor position to be adjusted in the media width direction are provided as standard for media position detection
Mechanisms are included to allow you to make head blance, head offset, and media sensor adjustmens easliy
Can accommodate extra size and thickness fanfold card paper media.
Paper thickness up to 0.254mm
Cass-leading minimal media requirements (in the external supply category)

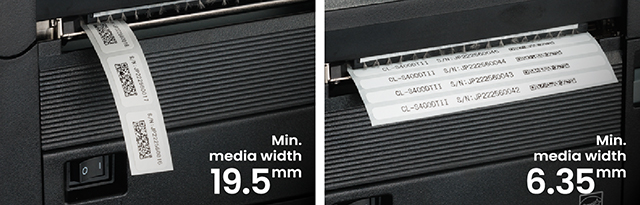

Min. label width19.5mm, Min. media length6.35mm
Excellent usability
External paper supply method makes it easy to check the amount of paper remaining.

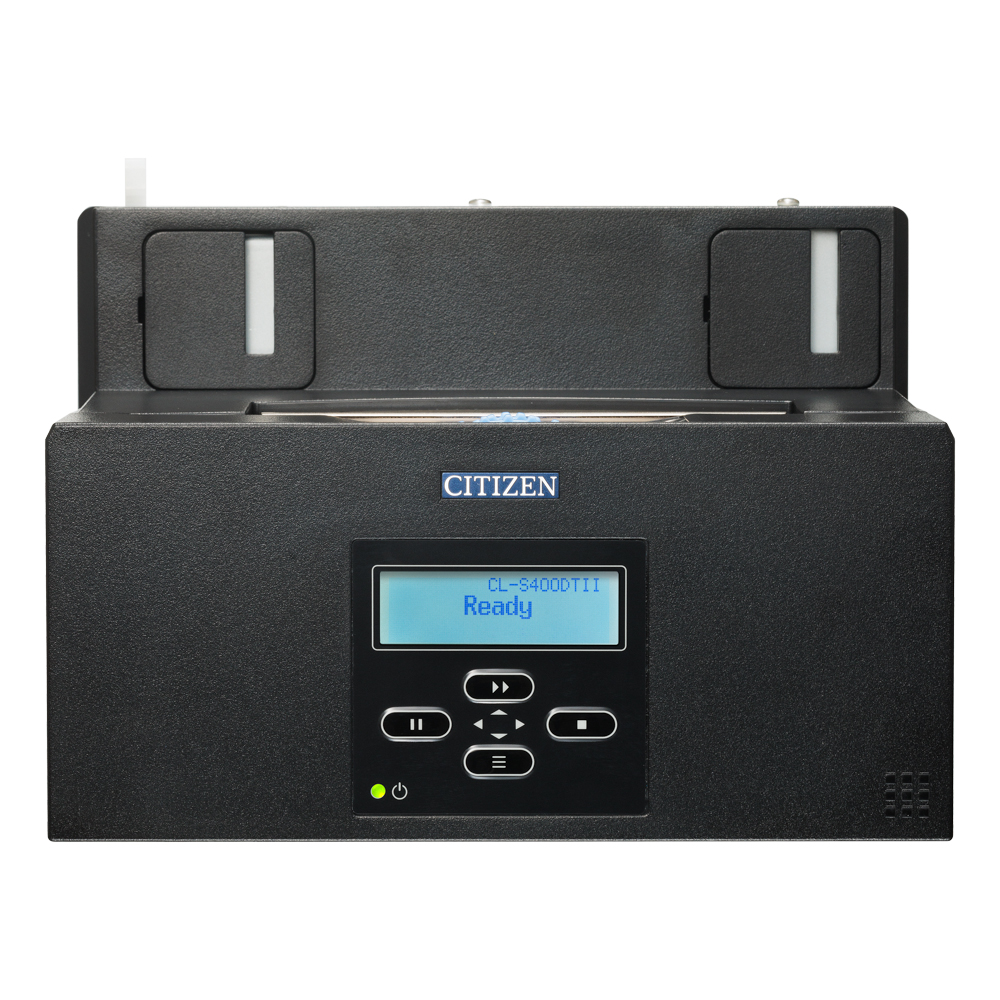

2-colour LCD displa ywith backlight enables intuitive operation

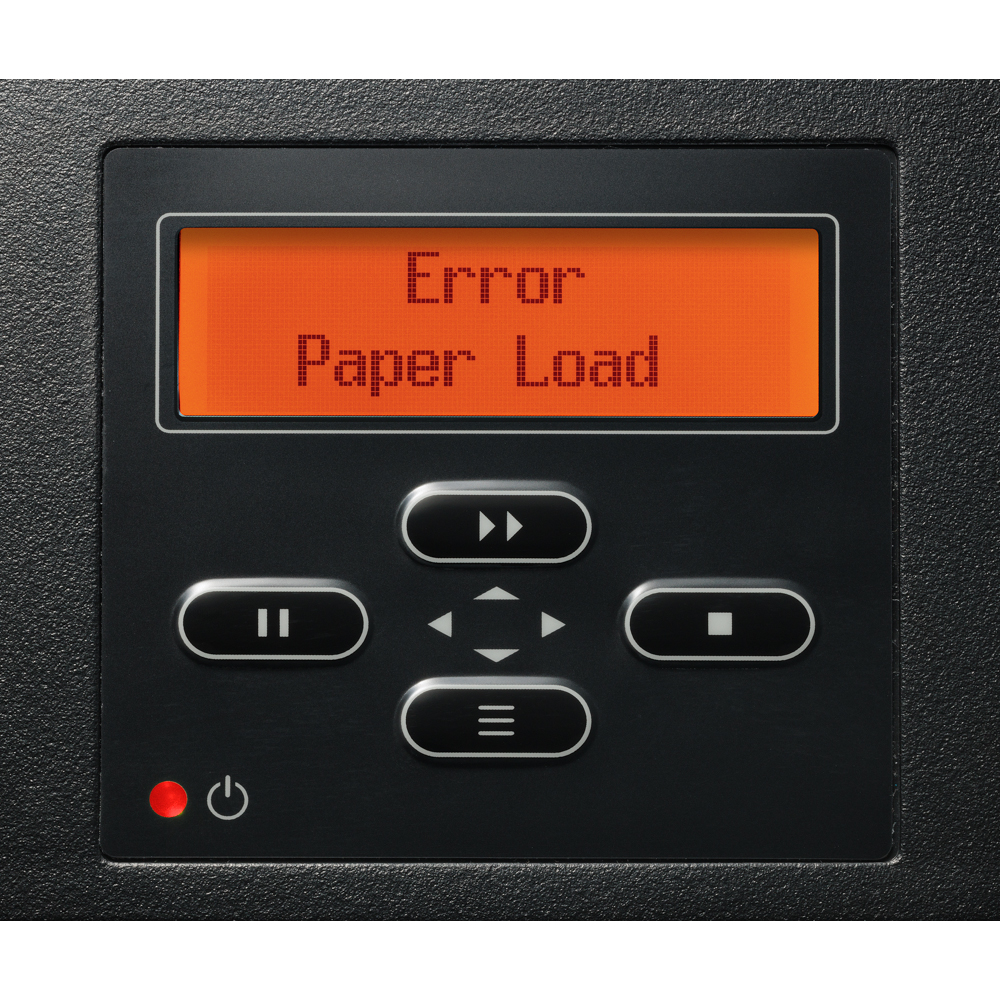

In case of an error, it will light up red to notify you.
IP addresses can be displayed as desired
Easy Maintenance: Reduce maintenance time
Easliy replaceble Head, Platen and Optional unit
※Auto cutter unit and peeling unit：Easier to install than previous model.

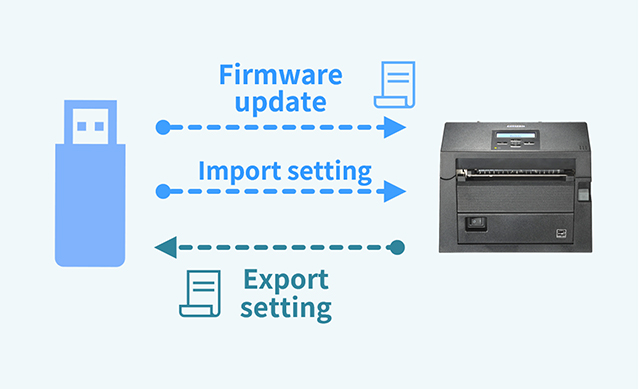

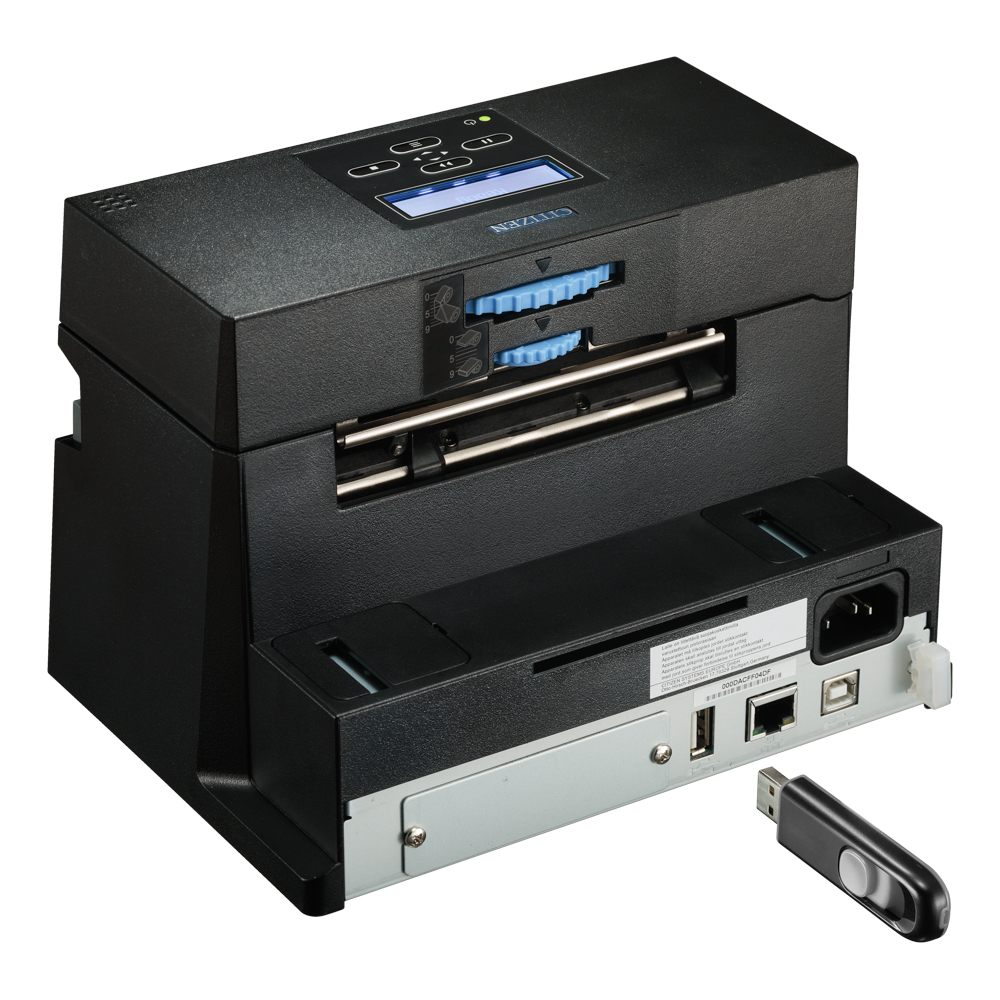

Easy to set by USB flash drive
Setting Import, Export: Settings can be imported and exported using USB Flash drive without computer.
For exporting you can attach explanation to the settings.
Firmware Update: Efficiency for kitting works.
Remote Maintenance: Manage multiple printers remotely*1
Increased management & support efficiency
Remote monitoring
Counter: print distance, cut times
Confirm Firm Ver.
Printer status
Jobmanagement & history
Remote Maintenance
Firmware Update
Printer setting Backup/Restore
Send files: Com1mand, LOGO, Printing data
*1: When us Using the Option Interface board.

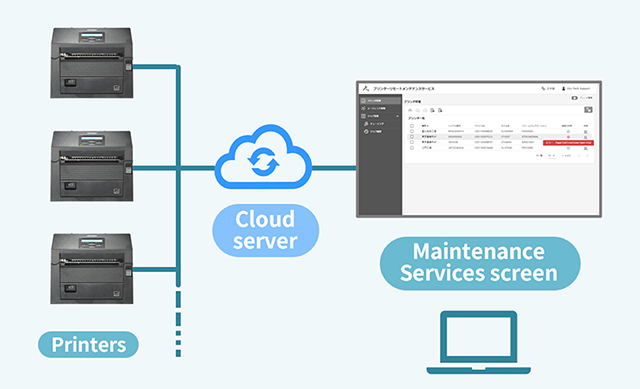

Manage multiple printers from Citizen’s cloud server remotely.
Printer registration, Search and filter by criteria.
FW can be updated at specified times

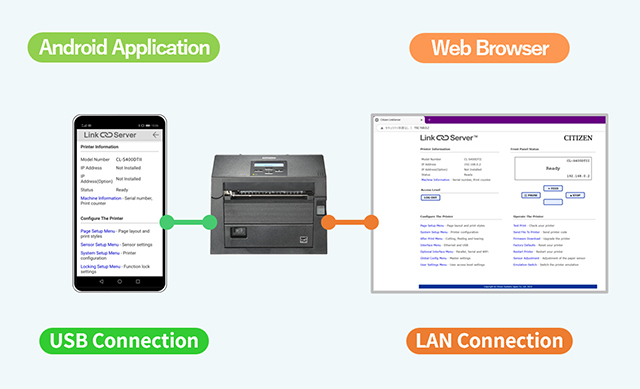

CITIZEN LinkServer：
CITIZEN LinkServer for Android:
by USB connection/Android Application/For smartphones and stablets
Management functions can be utilized by connecting the supported label printer via a USB cable with the Android terminal on which the Android App "Citizen LinkServer" is installed.
CITIZEN LinkServer(Web Monitor):
by LAN connection/Platform(OS) Free/Web browser Utility
For this Product, settings related to the printer unit and network can be changed and printer operations such as restart can be performed via web browser.
Standard Support for rMQR Code®
New QR Code® "rMQR Code®" is supported.
This code is ideal for narraw and long spaces.
Larger capacity than Micro QR Code, max. 361 characters.
Sample size: 3.75×14.8mm, 15x59cells(0.25mm/cell)*Excluding margin
*Please contact us for details regarding rMQR Code®.
*QR Code® and rMQR Code® are registered trademarks of DENSO WAVE INCORPORATED.
Various Options

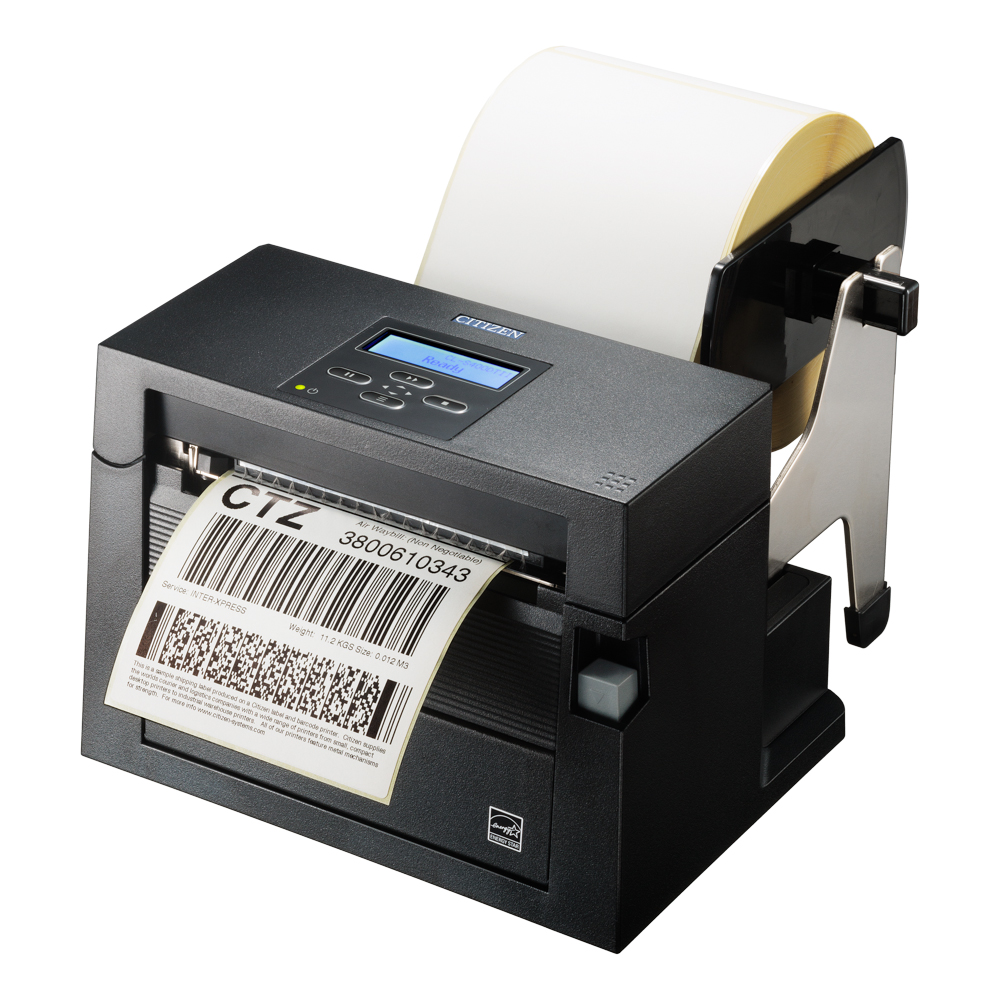

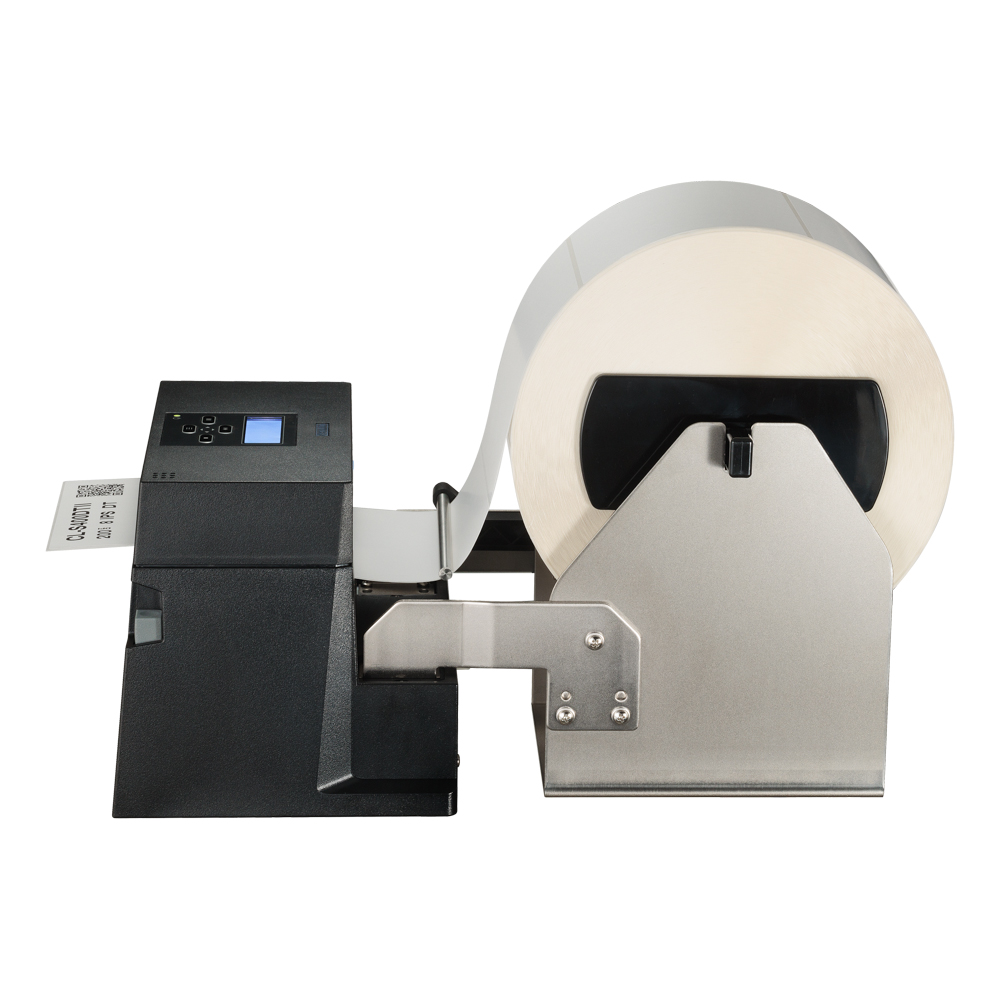

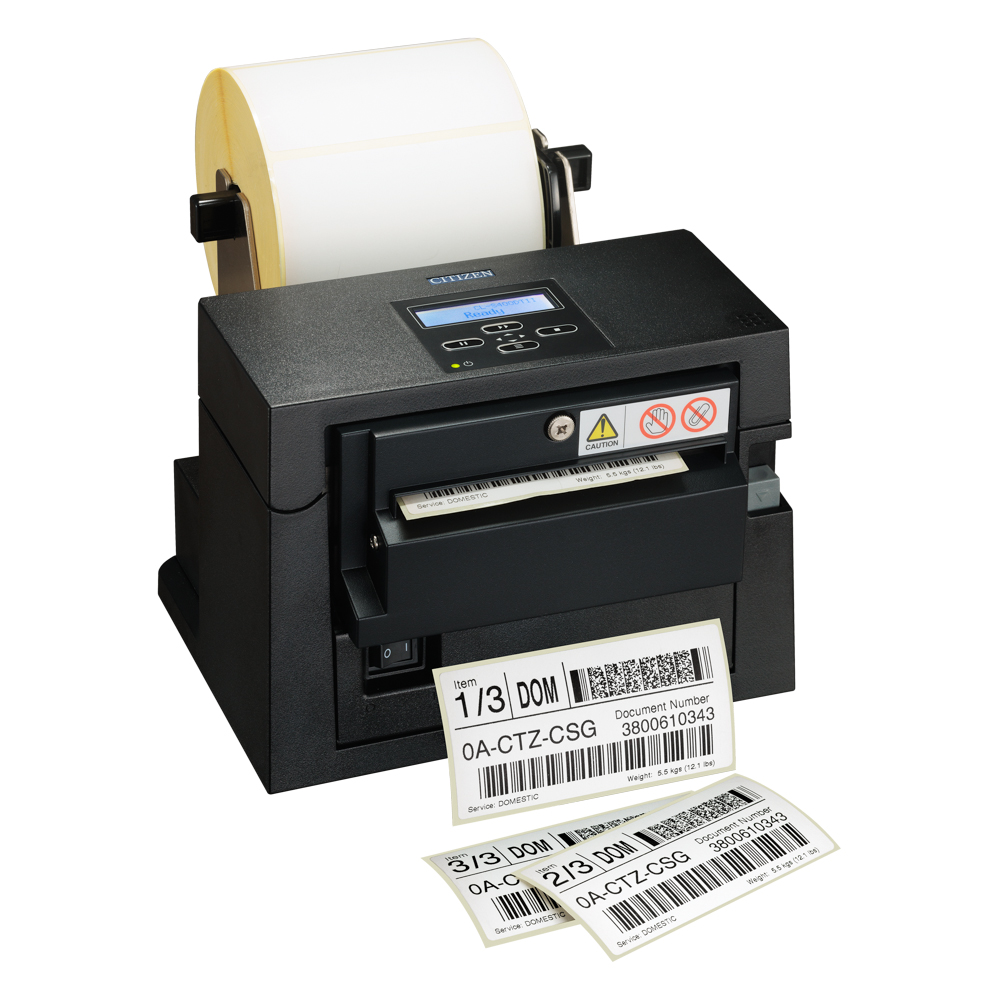

For full-scale operation, Aa large diameter (8-inch) paper roll holder.

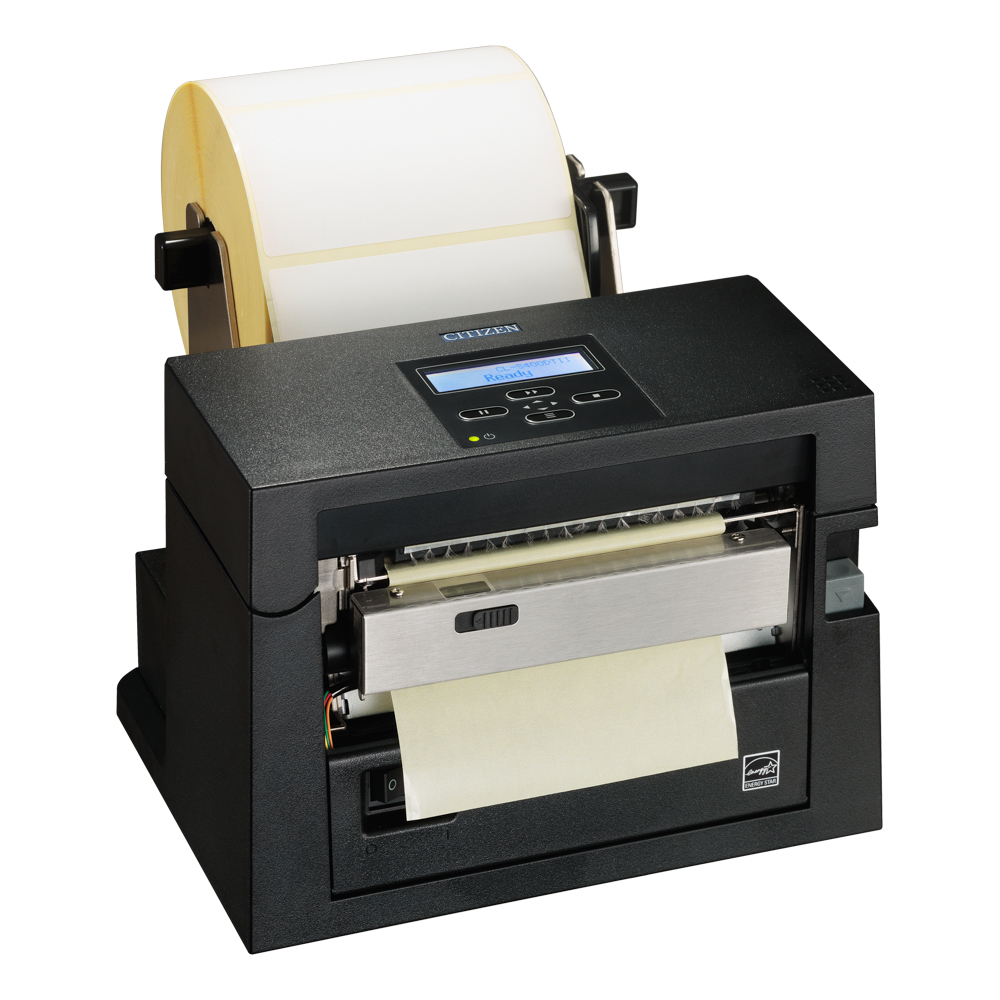

Easliy replaceble auto cutter unit and peeling unit
※Not factory option
RS-232C parallel, wired/wirless LAN, and Bluetooth optional interfaces are available
Support XML printing(by JavaScript), Request printing (Support by optional Interface)
※Bluetooth®: factory option
Tickets
Labels
Tags
Receipts
Manufacturing
Food

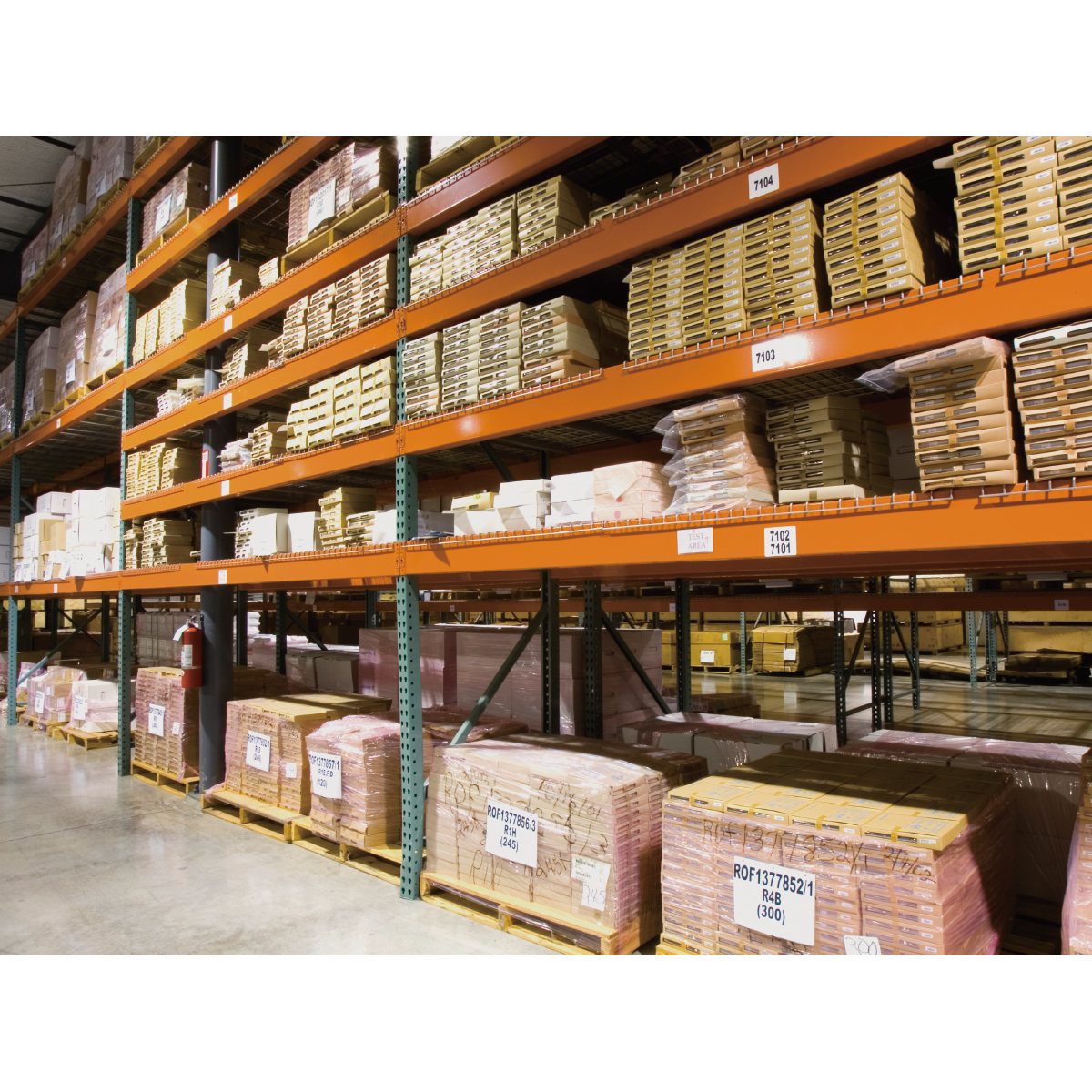

Distribution
| Print Method | (Thermal) Direct Thermal Printing |
|---|---|
| Printing Speed | 51 to 203mm/sec. ( 203mm/sec. when peeler is mounted) |
| Resolution | 203dpi |
| Paper Width | 19.5 to 118mm (Effective Printing Width: up to 104mm) |
| Paper Width | 6.35 to 812.8mm |
| Paper Diameter | Exterior Diameter: up to 127mm Paper Core Diameter: 25.4 to 76mm (when using standard paper roll holder) |
| Paper Thickness | 0.0635 to 0.254mm |
| Paper Detection sensor | Adjustable sensor(Transmissive type,Reflective type), Media leading edge detection sensor (transmissive type) |
| Barcode Types | One Dimensional: Code 3 of 9, UPC-A, UPC-E, EAN-13 (JAN-13), EAN-8 (JAN-8), Industrial 2 of 5, HIBC (Code 3 of 9 using Modulus 43), CODABAR (NW-7), Int 2 of 5 (Interleaved 2 of 5 using Modulus 10), Plessey, Case Code, UPC2DIG ADD, UPC5DIG ADD, Code 93, Telepen, ITF14, ITF16, Matrix 2 of 5, COOP 2 of 5, GS1*1 Two Dimensional: UPS Maxi Code, PDF-417, Data Matrix, QR code, Aztec, RSS, rMQR code® |
| Equipped Font | Fixed Pitch Font, OCR Font (OCR-A, OCR-B), Proportional Font, TrueType rasterizer |
| Command | Datamax® Emulation, Zebra® Emulation, Eltron® Emulation |
| Memory | ROM: 32MByte, RAM: 64MByte, (User memory: ROM 8MByte) |
| Interfaces | Standard: USB 2.0 compliant (High-speed 480 Mbps), Wired LAN, USB Host Options: Serial (RS-232C), Parallel (IEEE1284-ECP/Centronix standards) Supports XML(by JavaScript): Wired LAN Supports XML(by JavaScript), request printing: Wired LAN+USB host x2, Wired LAN/Wireless LAN Supports Multi Function: Wired LAN/Wireless LAN Bluetooth® |
| Power Supply Voltage | AC100V-240V, 50/60Hz |
| Power Consumption |
100V Operation: 60W (12.5% Printing Rate) 220V Operation: 58W (12.5% Printing Rate) |
| Environmental Conditions | Temperature and Humidity During Operation: 0 to 40°C, 30 to 80％ Temperature and Humidity in Storage: -20 to 60°C, 5 to 85％ |
| Mass | Approx. 3.2kg |
| External Dimensions | 206 (W) x 148 (D) x 150 (H) mm |
| Reliability | MCBF:250km or 5years(Recommended media), Print head life:50km(Recommended media), Platen life:100km(Recommended media) |
| Safety Standards | UL, CSA, VCCI: Class A, FCC: Class A, cUL,IC, CE, UKCE, CCC, CB |
| Accessories | Power Supply Cord Quick Start Guide Paper Shaft, Paper Shaft Guide *Type with mounted Paper Holder only Paper Holder *Type with mounted Paper Holder only |
(Unit: mm)
*Supports XML: Wired LAN
*Supports XML, request printing
*Supports XML, request printing
*Supports Multi Function
*Factory pre-shipment options
* Company names and product names are trademarks or registered trademarks of their respective companies.
