Control Board

Lineup of Control Boards

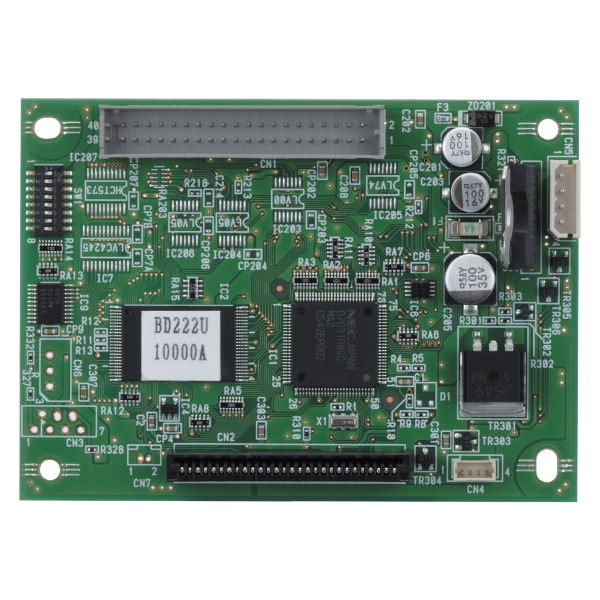

BD2-2220
BD2-2221

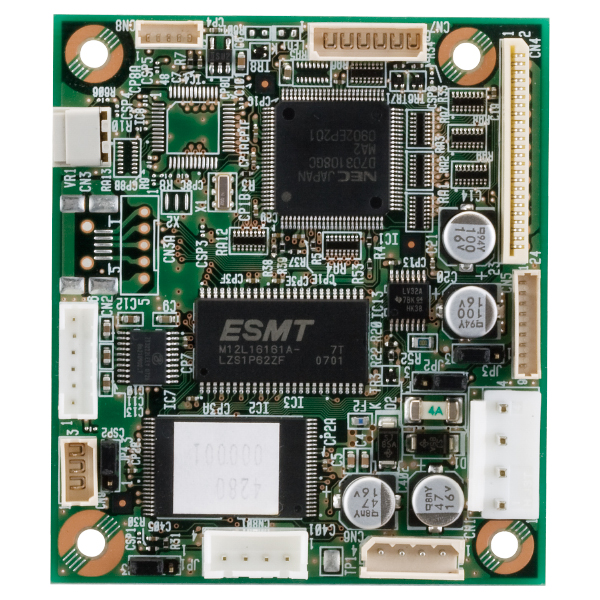

BD2-4280K
BD2-4281K

Model Number BD2-2220/2221 BD2-4280K/4281K
Compatible Models LT-2220/2320/2221/2321 MLT4280/4281
Interfaces Parallel, RS-232C, USB Parallel, RS-232C, USB
Character Types Alphanumeric and kana, kanji 1st level and 2nd level, international characters, symbols Alphanumeric and kana, kanji 1st level and 2nd level, international characters, symbols
Emulation ESC/POSTM ESC/POSTM
Number of Columns LT-2220/21 Font A: 36
LT-2320/21 Font A: 48
LT-2220/21 Font B: 48
LT-2320/21 Font B: 64
LT-2220/21 Font C: 54
LT-2320/21 Font C: 72
LT-2220/21 Kanji Font A: 18
LT-2320/21 Kanji Font A: 27
LT-2320/21 Kanji Font C: 24
LT-2320/21 Kanji Font C: 36
MT4280/81 Font A: 32
MT4280/81 Font B 32
MT4280/81 Font C 32
MT4280/81 Kanji Font A: 16
MT4280/81 Kanji Font C: 24
Font A: 12 × 24 dots
Character Size (1.50 × 3.00mm)
B: 9 × 24 dots
Character Size (1.13 × 3.00mm)
C: 8 × 16 dots
Character Size (1.00 × 2.00mm)
Kanji A: 24 × 24 dots
Character Size (3.00 × 3.00mm)
Kanji C: 16 × 16 dots
Character Size (2.00 × 2.00mm)
A: 12 × 24 dots
Character Size (1.50 × 3.00mm)
B: 9 × 24 dots
Character Size (1.13 × 3.00mm)
C: 8 × 16 dots
Character Size (1.00 × 2.00mm)
Kanji A: 24 × 24 dots
Character Size (3.00×3.00mm)
Kanji C: 16 × 16 dots
Character Size (2.00×2.00mm)
Buffer 4k bytes or 72 bytes 4k bytes
Device Control Auto Cutter, Paper Sensor, Head Up Sensor, LF Switch, Error LED, Paper End LED Sensor ASSY, Options
External Dimensions 90×65mm 69×60mm
Power Supply 5.0 ± 5% and 24V ± 5% 4.2V to 8.5V
Custom Control Chip -
Gate Array -
