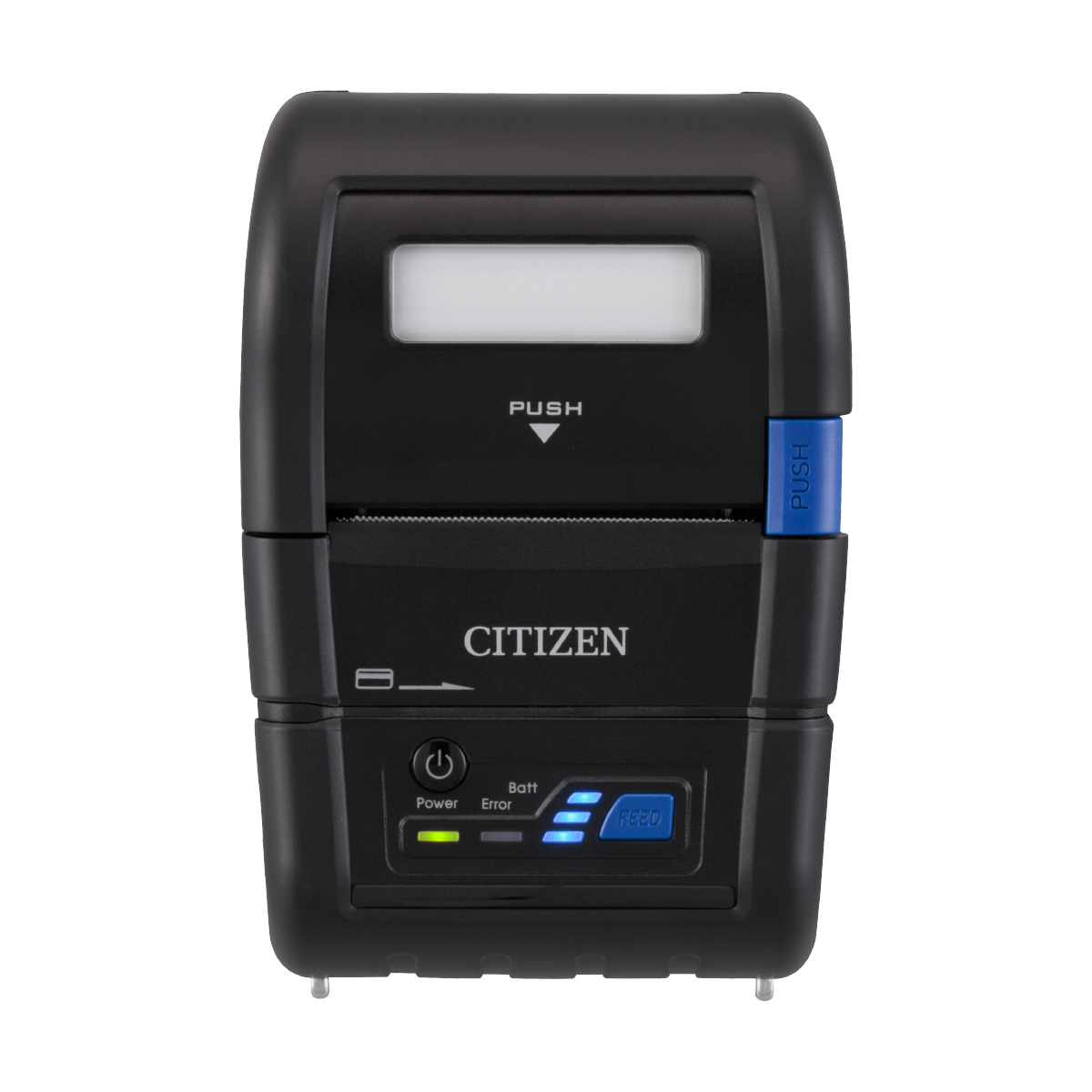

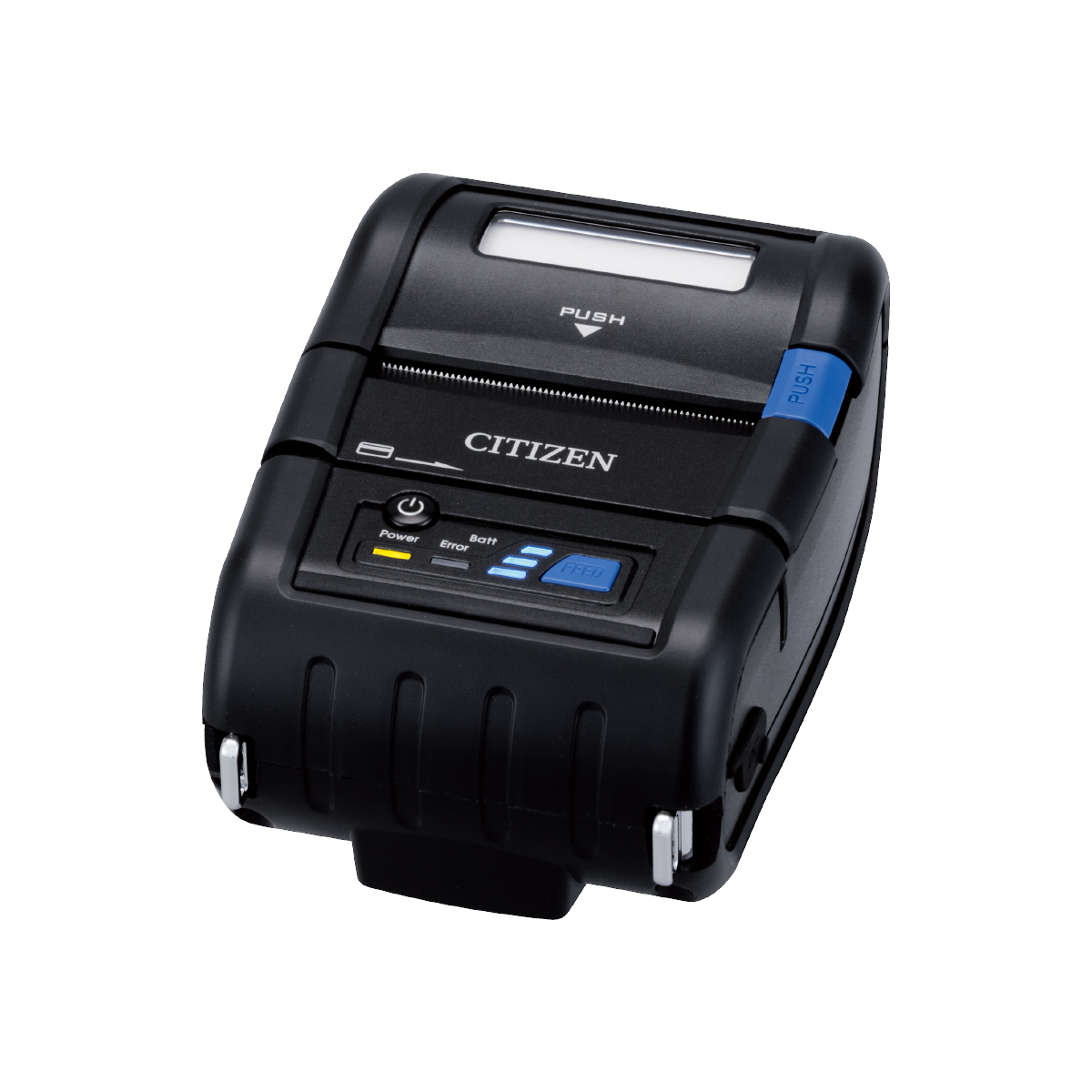

Mobile PrinterCMP-20Ⅱ

Can be operated with smartphones and tablets.

Paper Width
58mm
Print Method
Direct Thermal Printing
Functions
  • Auto Cutter
  • Buzzer
  • Cash Drawer Kicker
  • Drop-in Paper Loading
  • Battery
Applications
  • Receipts
  • Tickets
  • Barcodes
  • 2D Barcodes
  • Mobile

Features

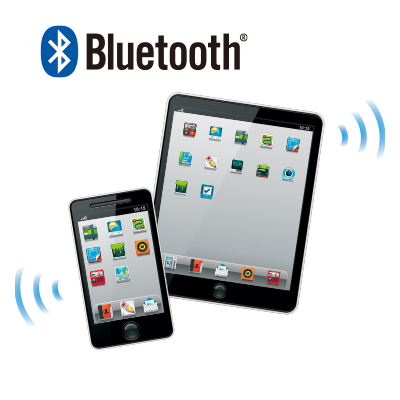

  • Wireless Compatible Model

    Can be operated with a smartphone or tablet (using Bluetooth), for doing business in wider areas and more places.

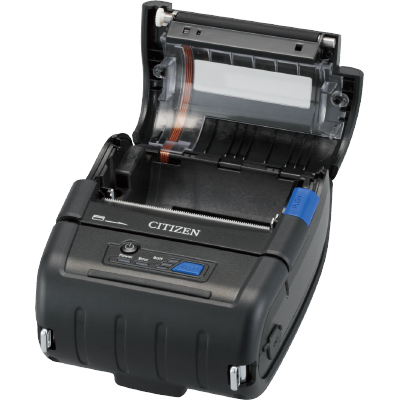

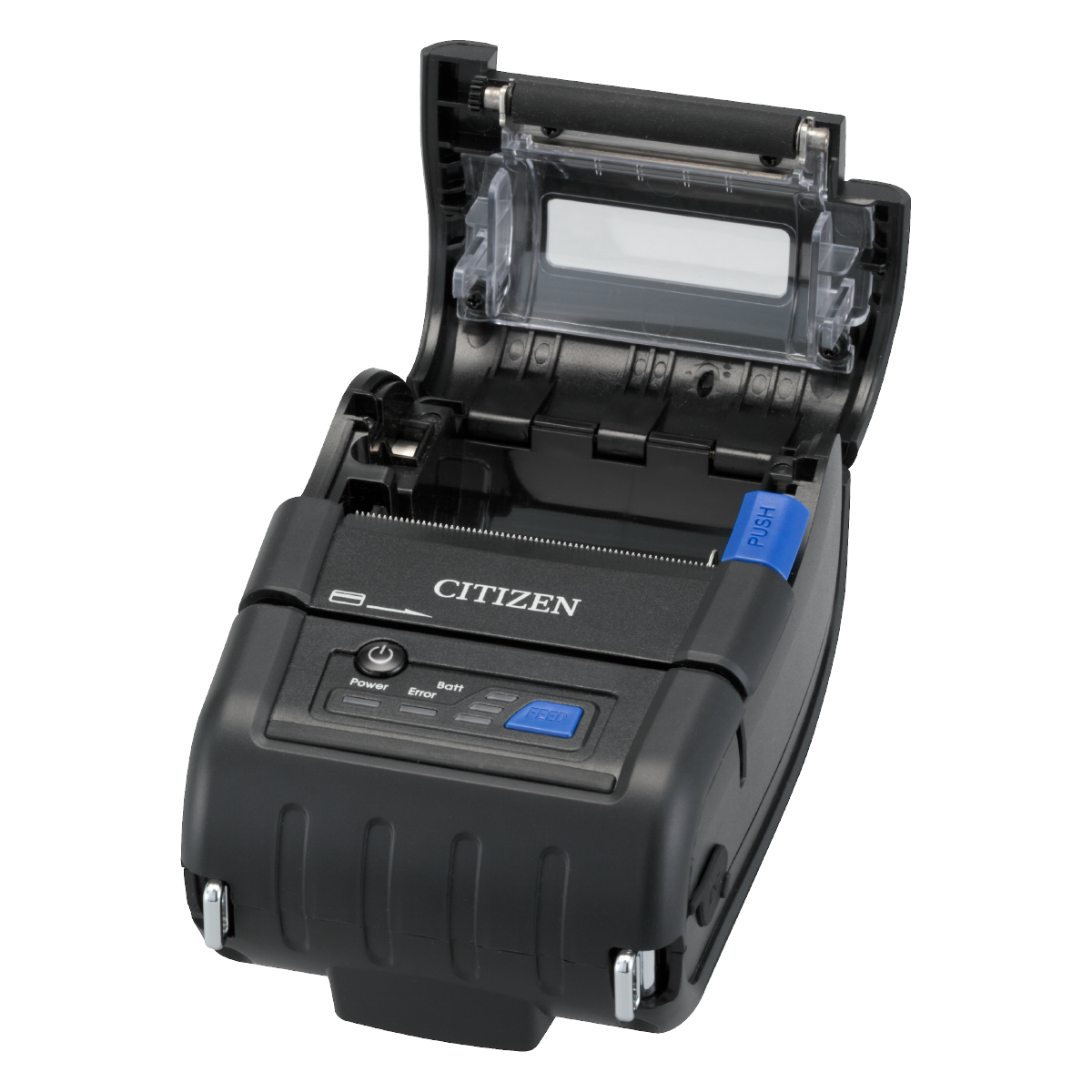

  • Easy to open

    Easy maintenance of head and cutter.
    * Image is CMP-30Ⅱ

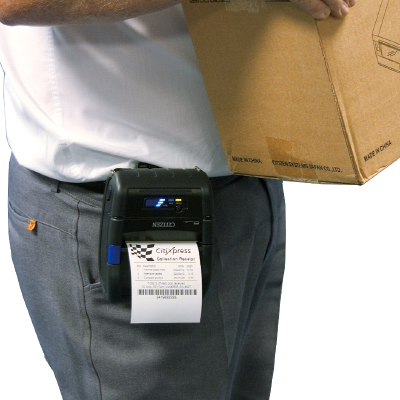

  • Belt clip available for easy attachment to a belt.
    * Image is CMP-30Ⅱ

  • iOS Compatible (Acquired MFi Certification)

  • Software development kits (SDKs) for major platforms such as Android and iOS are available.

  • Features a drop-in paper loading mechanism for easy loading.

  • Large-capacity lithium-ion battery allows long hours of operation.

  • Features a power-saving mode and a 4-level LED battery indicator.

Main Applications

  • Healthcare/Clinical

  • Accounting

  • Distribution

  • Logistics

Used in the following industries

  • Financial

  • Retail

  • Food

  • Hospitality

  • Distribution

  • Restaurants

  • Healthcare/Clinical

Basic Functions

Features
  • Buzzer
  • Drop-in Paper Loading
  • Battery Drive
  • Thermal
Supported Interfaces
  • USB
  • Serial
  • Bluetooth
Available Drivers
  • Windows
Supported Platform by SDKs
  • Windows CE
  • Windows Mobile
  • Android
  • iOS
Smartphone/Tablet Compatibility
  • AndroidBluetoothUSB
  • iOSBluetooth

Consumables/Options

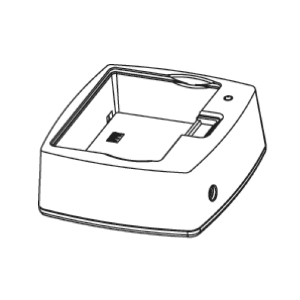

  • Charging Cradle

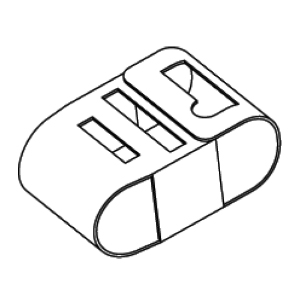

  • Leather Case

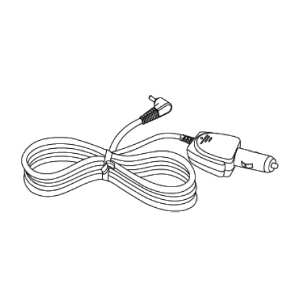

  • Car Charger

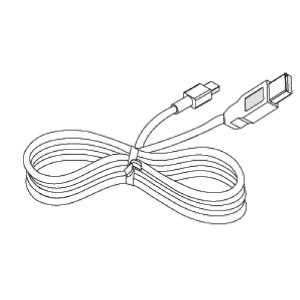

  • USB Cable

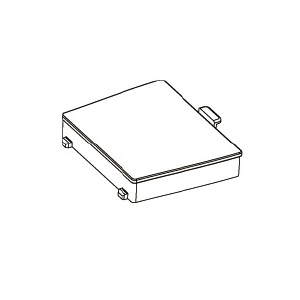

  • Battery

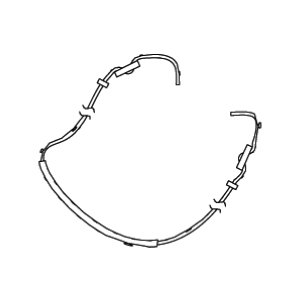

  • Strap

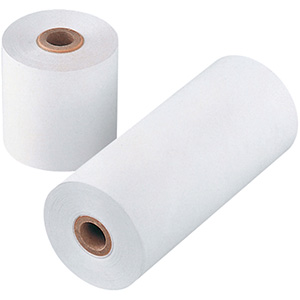

  • Thermal Paper Rolls

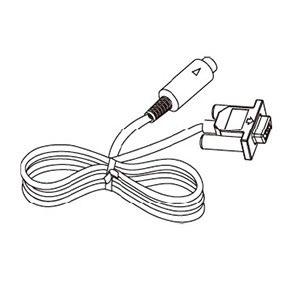

  • Serial Cable

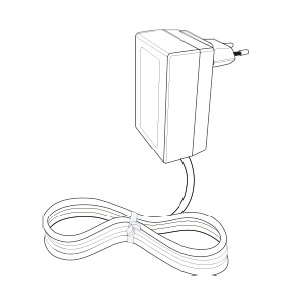

  • Battery Charger

Specifications

Model Name CMP-20Ⅱ
Print Method Direct Thermal Printing
Resolution 203dpi(8mm/dots)
Printing Speed Up to 80mm/sec.
Paper Roll Outer Diameter 48mm
Printing Width 48mm
Paper Width 58mm
Paper Thickness 65 to 90μm
Font Font A (12x24 dots), Font B (9x17 dots), Kanji (24x24 dots)
Number of Columns Printable 32 (FontA), 42 (FontB), 16 (Kanji)
Emulation ESC/POS, CPCL
Character Types ASCII, Katakana, Kanji
1D Barcodes EAN-8, EAN-13, Code39, ITF, UPC-A/E, Codabar, Code93, Code128
2D Barcodes QR Codes, PDF417
Interfaces Serial (RS-232C)/USB 2.0 (Full Speed)/Bluetooth (4.2)
OS Compatibility Drivers: Windows, CUPS
SDK:Windows CE 4.2/5.0/6.0, Windows Mobile 5.0/6.x , Android,iOS
Label Printing No
External Dimensions 93(W)×139(D)×62(H) mm
Mass Approx. 440g
Battery 2000mA, 7.4V (recharges in 150 min.)
PowerSave Mode Power Save Mode, Auto Power Off Mode
Dust, drip, and fall proof IP42 equivalent, 1.5m fall resistance (against concrete)
Environmental Conditions Temperature and Humidity During Operation: -10 to 50°C, 30 to 80%
Temperature and Humidity in Storage: -20 to 60°C, 10 to 85%
Head Life 50Km
Acquired Standards VCCI Class B
Accessories Battery
Battery Charger
CD-ROM
Belt Clip
Dedicated Serial Cable
Quick Start Guide
Sample Paper

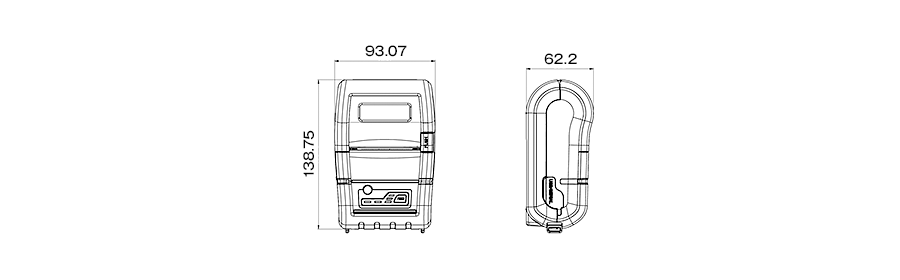

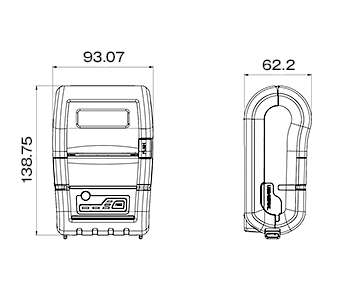

Dimensions

DimensionsDimensions

(Unit: mm)

Interfaces

Equipped as standard with USB, Serial, and Bluetooth interfaces.

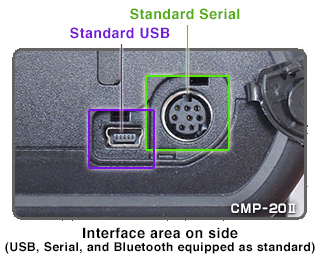

Interface area on side (USB, Serial, and Bluetooth equipped as standard)

Equipped as Standard

  • USB
  • Serial
  • Bluetooth

Lineup of Mobile Printers
