Photo PrinterCX-02/CX-02(S)

One of the world’s smallest and most lightweight* digital photo printers.
* As of June 2016 (in-house research)

Print Size
L PC 5”×5” 2L 6”×6” 2PC
Printing Methods
Dye Sublimation Thermal Transfer Method
Functions
  • 400screens/roll (PC)
  • 8.4
    sec./PC Media
  • Fine media
Applications
  • Event Photos
  • ID Photos
  • Photo Stickers

Features

Energy-Saving

  • Energy-saving functions

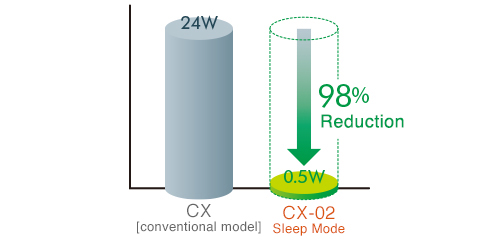

    Sleep mode function was added to keep electric power during standby under 0.5W. Standby electric power is reduced by 98% compared with the conventional model.

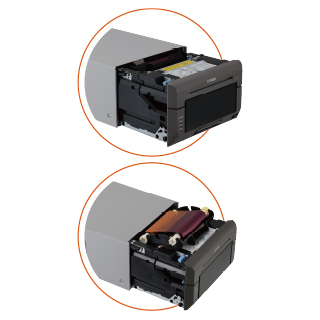

Developed for ease-of-use

  • Inheriting from and improving upon a conventional model

    While inheriting the style of media loading of a conventional CX model, this printer is improved and makes paper loading even easier.

  • Printer Driver’s Graphic Display

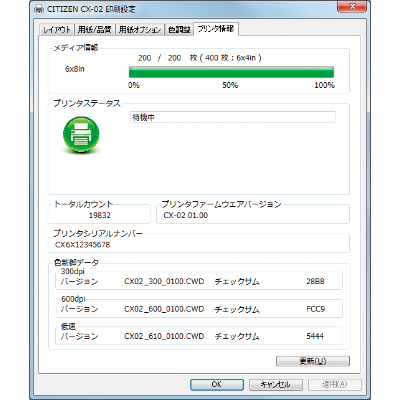

    A graphic display of the number of printable sheets allows checking of the remaining amount of media at a single glance.

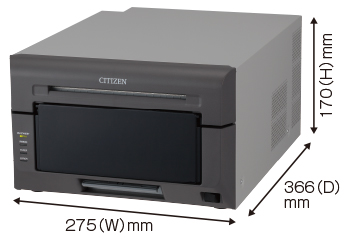

Compact & Lightweight

  • One of the World’s Smallest*

    One of the world’s smallest* dye sublimation printers that can hold 400 screens of printing media. A compact printer, the volume of space it occupies is approximately 85% of that of a conventional CX model.
    * As of June 2016 (in-house research)

  • Weight Reduction

    The weight of a CX-02 printer is 12kg (media excluded).
    This printer is 2kg lighter than the conventional model.

Installation Compatibility

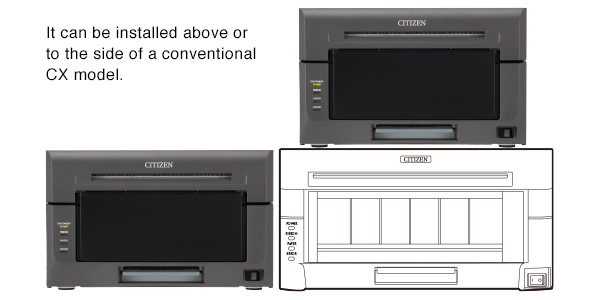

  • Capable of being installed and used together with a conventional CX model.

    The height and depth of the CX-02 printer are the same as those of the conventional CX model.
    The printer can be easily installed side-by-side with the conventional model.

FlexibilityCapable of printing each size from 2L and 2PC media

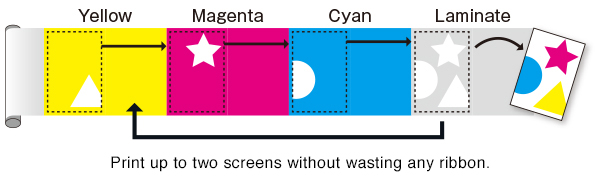

  • Ribbon Rewind Function

    The ribbon is rewound after printing an odd number of L and PC size sheets, allowing printing that doesn’t waste the 2L and 2PC media.

  • Multi-Cut

    Change the printing size freely between 6 x 2 and 6 × 8. (Supported by SDK)

High Resolution, High Throughput

  • Natural Definition

    With newly developed firmware, an even smoother printing gradation compared to conventional models has been made possible.

  • Fast Even During Continuous Printing

    Even during continuous printing, the printer’s mechanical structure minimizes time delay from a hot head.

Improved Usability

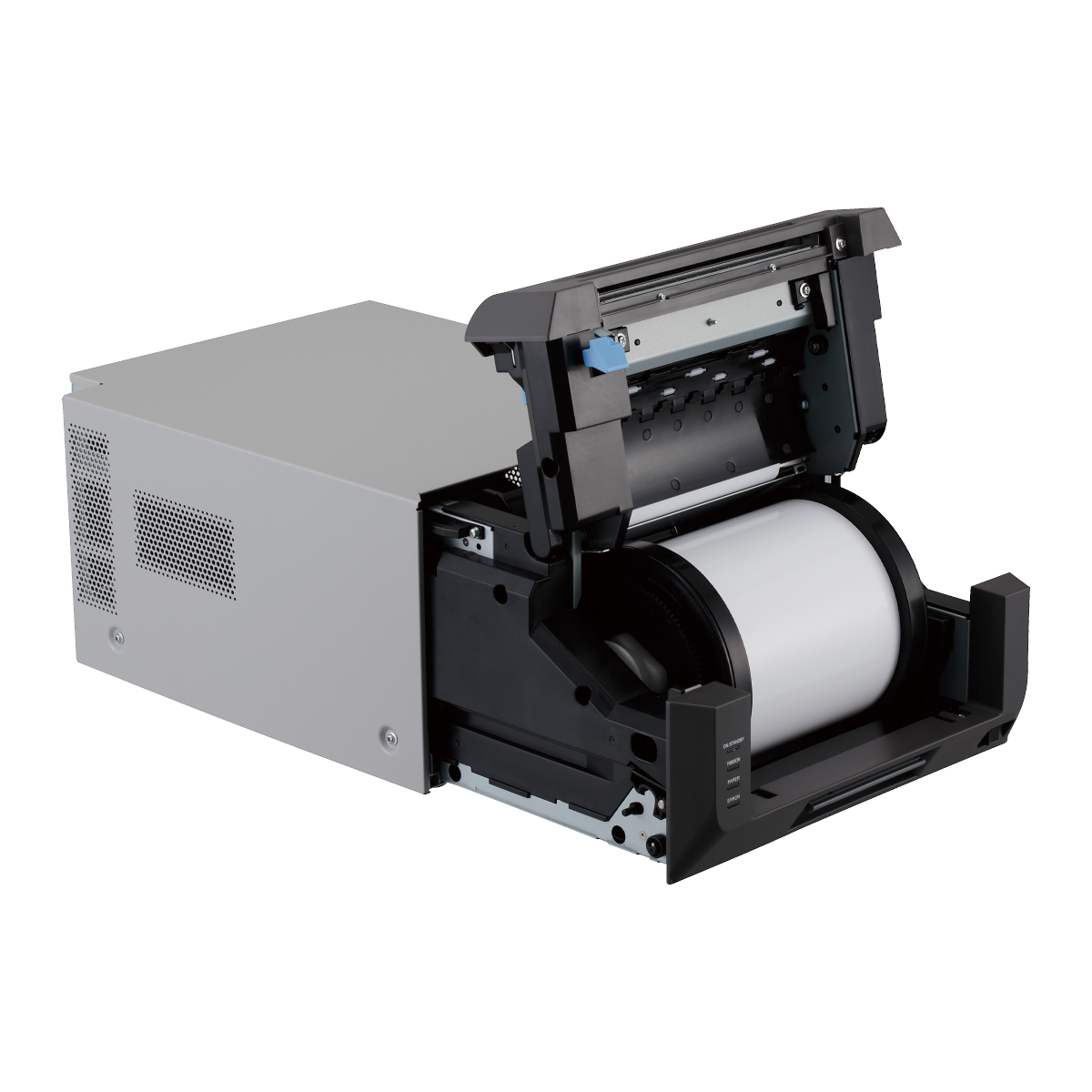

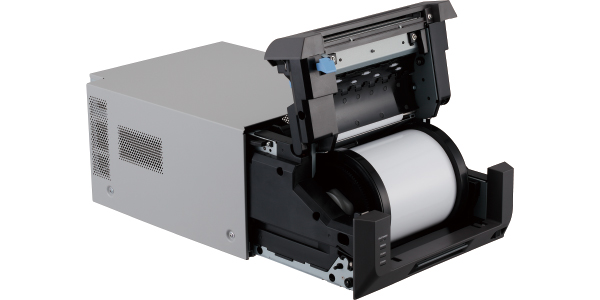

  • Full Front Access

    Since all operations can be conducted from the front, ordinary maintenance can be easily conducted without removing the printer from the kiosk setup.
    Furthermore, by utilizing paper auto-loading within the kiosk setup, usability has been significantly improved.

Consumables/Options

Size L/2L (for 5” x 7” L 2-page layouts) PC/2PC (for 6” x 8” PC2-page layouts)
Product Number (Photographic Paper) CX2-MS57-2L CX2-MS68-2PC
Product Number (Sticker) CX2-MS68-2PC(S)
Paper/Ink Ribbon 127mm 152mm
Maximum Print Size 127mm×178mm 152mm×203mm
460sheets / 230 sheets × 2 rolls 400 sheets / 200 sheets × 2 rolls

Specifications

Model Name CX-02 CX-02(S)
Printing Methods Dye Sublimation Thermal Transfer Printing
Resolution 300 x 300dpi (High Speed Mode) 300 x 600dpi (High Resolution Mode) 300 x 600dpi (High Resolution Mode)
Print Size L:89×127mm (3.5”×5”)
PC:101×152mm (4”×6”)
5”×5”:127×127mm (5”×5”)
2L:127×178mm (5”×7”)
6”×6”:152×152mm (6”×6”)
2PC:152×203mm (6”×8”)
Printing Capacity (max.) L: 460 sheets
PC: 400 sheets
2L:230 sheets
2PC:200 sheets
Print Time [High Speed Mode]
L 2-page layouts in approximately 7.6 seconds
PC 2-page layouts in approximately 8.4 seconds
5”×5” approximately 12.9 seconds
2L approximately 14.2 seconds
6”×6” approximately 13.3 seconds
2PC approximately 15.6 seconds
[High Resolution Mode]
L 2-page layouts in approximately 10.2 seconds
PC 2-page layouts in approximately 11.3 seconds
5”×5” approximately 16.6 seconds
2L approximately 19.2 seconds
6”×6” approximately 17.9 seconds
2PC approximately 21.3 seconds
[CX-02(S)]
L 2-page layouts in approximately 10.2 seconds
PC 2-page layouts in approximately 11.3 seconds
5”×5” approximately 16.6 seconds
2L approximately 19.2 seconds
6”×6” approximately 17.9 seconds
2PC approximately 21.3 seconds
Ribbon Form YMC + Overcoat
Interfaces USB 2.0 (up to 480Mbps), Type B Connector
Driver-compatible OS WindowsXP/Vista/7/8/10
External Dimensions 275(W) × 366(D) × 170(H) mm
Weight Approx. 12kg (printer only, excluding media,)
Power Supply AC100V-240V 50/60Hz
Operating Environment Temperature: 5 to 35°C (with natural convection)/ Humidity 35 to 80% (no condensation)
Current Consumption Maximum: 100V, approximately 3.9A / 240V, approximately 1.6A
Standby: 100V, approximately 0.5W or less / 24V, approximately 0.5W or less

PC: Postcard Size
* When using Windows 10, separate settings will be necessary after driver installation.

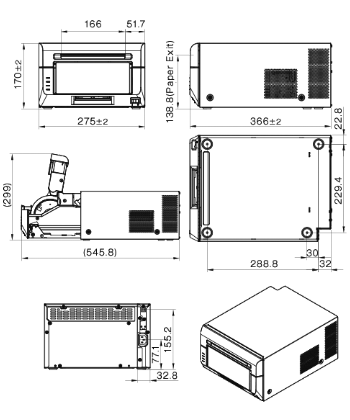

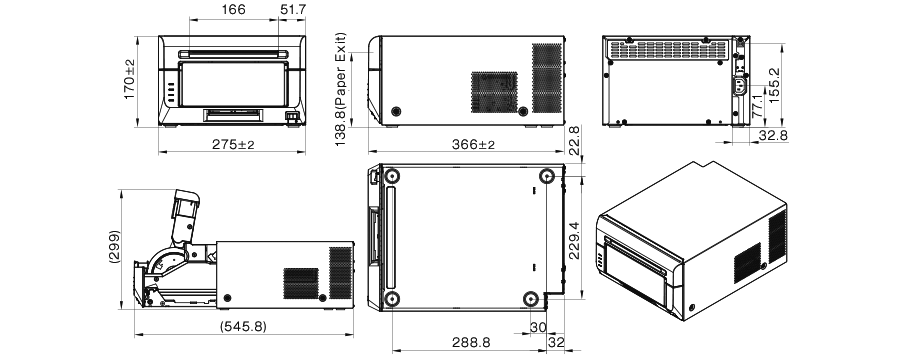

Dimensions

DimensionsDimensions

(Unit: mm)
