Print

Photo PrinterCY

Digital photo printer offering excellent cost performance

Print Size
PC  2L  2PC
Printing Methods
Dye Sublimation Thermal Transfer Method
Functions
  • 700screens/roll (PC)
  • 14.9
    sec./PC Media
  • Standard Media
Applications
  • Event Photos
  • ID Photos
  • Photo Stickers

Features

  • High Resolution

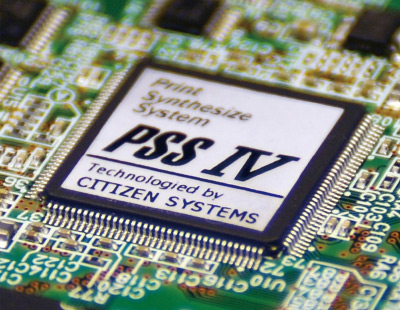

    Equipped with PSSIV, a 4th generation control chip.
    The control chip that has made our printers’ high resolution possible, through its high speed processing of image and head-control data, has further evolved.
    Capable of matte printing, the printer can even print gloss or matte on the same medium.

  • Reduces Running Cost, Saves Energy

    Uses next generation media to reduce running cost.
    Citizen’s proprietary power-saving design allows a 50% reduction in standby power compared with conventional models.

  • Compact, Large Capacity

    The world’s smallest and most lightweight* printer in the 700-sheet class.

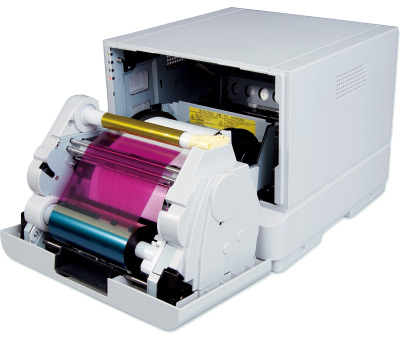

    All of the normal maintenance can be conducted from the front, making it well suited for kiosk use.
    *As of November 2015 (in-house research)

  • High Speed, High Durability

    Inherits the high speed and high durability of its trusted predecessor, allowing it to handle high-volume output applications.

Consumables/Options

Size PC(4”×6”) 2L(5”×7”) 2PC(6”×8”)
Product Number (Photographic Paper) CY-MS46-PC CY-MS57-2L CY-MS68-A5
Paper/Ink Ribbon 127mm 152mm 127mm
Maximum Print Size 127mm×178mm 152mm×203mm 127mm×178mm
700 sheets × 2 rolls 350 sheets × 2 rolls 350 sheets × 2 rolls

Specifications

Printing Methods Dye Sublimation Thermal Transfer Printing
Resolution 300 x 300dpi (High Speed Mode) 300 x 600dpi (High Resolution Mode)
Print Size PC:101×152mm (4 ”×6 ”)
2L:127×178mm (5 ”×7 ”)
2PC:152×203mm (6 ”×8 ”)
Printing Capacity (max.) PC: 700 sheets
2L:350 sheets
2PC:350 sheets
Print Time PC: approximately 12.4 sec.
2L:approximately 19.9 seconds
2PC:approximately 21.9 seconds
PC: approximately 19.2 sec.
2L:approximately 29.8 seconds
2PC:approximately 33.4 seconds
Ribbon Form YMC + Overcoat
Interfaces USB 2.0 (up to 480Mbps), Type B Connector
Driver-compatible OS WindowsXP/Vista/7/8/10
External Dimensions 322(W) × 351(D) × 281(H) mm
Weight Approx. 13.8kg (printer only, excluding media,)
Power Supply AC100V-240V 50/60Hz
Operating Environment Temperature: 5 to 35°C (with natural convection)/ Humidity 35 to 80% (no condensation)
Current Consumption Maximum: 100V, approximately 2.9A / 240V, approximately 1.2A
Standby: 100V approximately 0.14A / 240V approximately 0.11A

PC: Postcard Size
* When using Windows 10, separate settings will be necessary after driver installation.

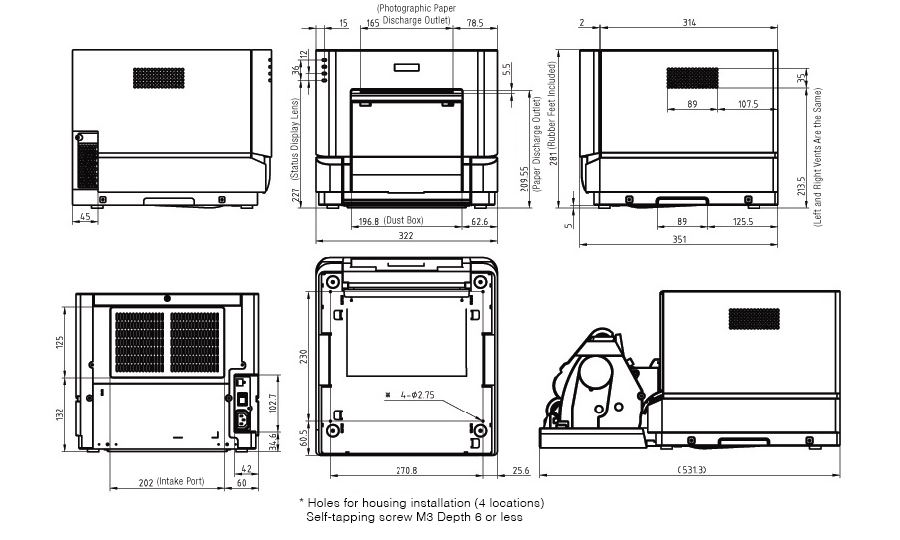

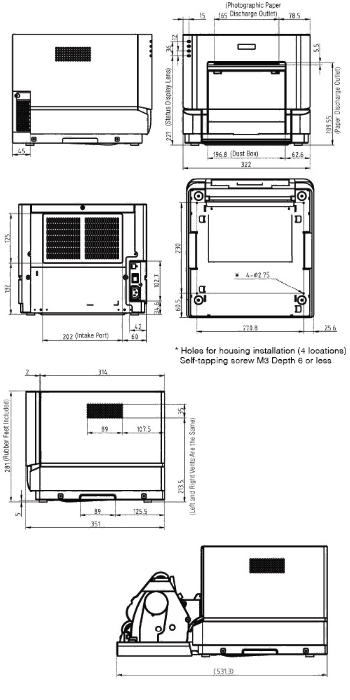

Dimensions

DimensionsDimensions

(Unit: mm)

Lineup of Photo Printers

* Company names and product names are trademarks or registered trademarks of their respective companies.
