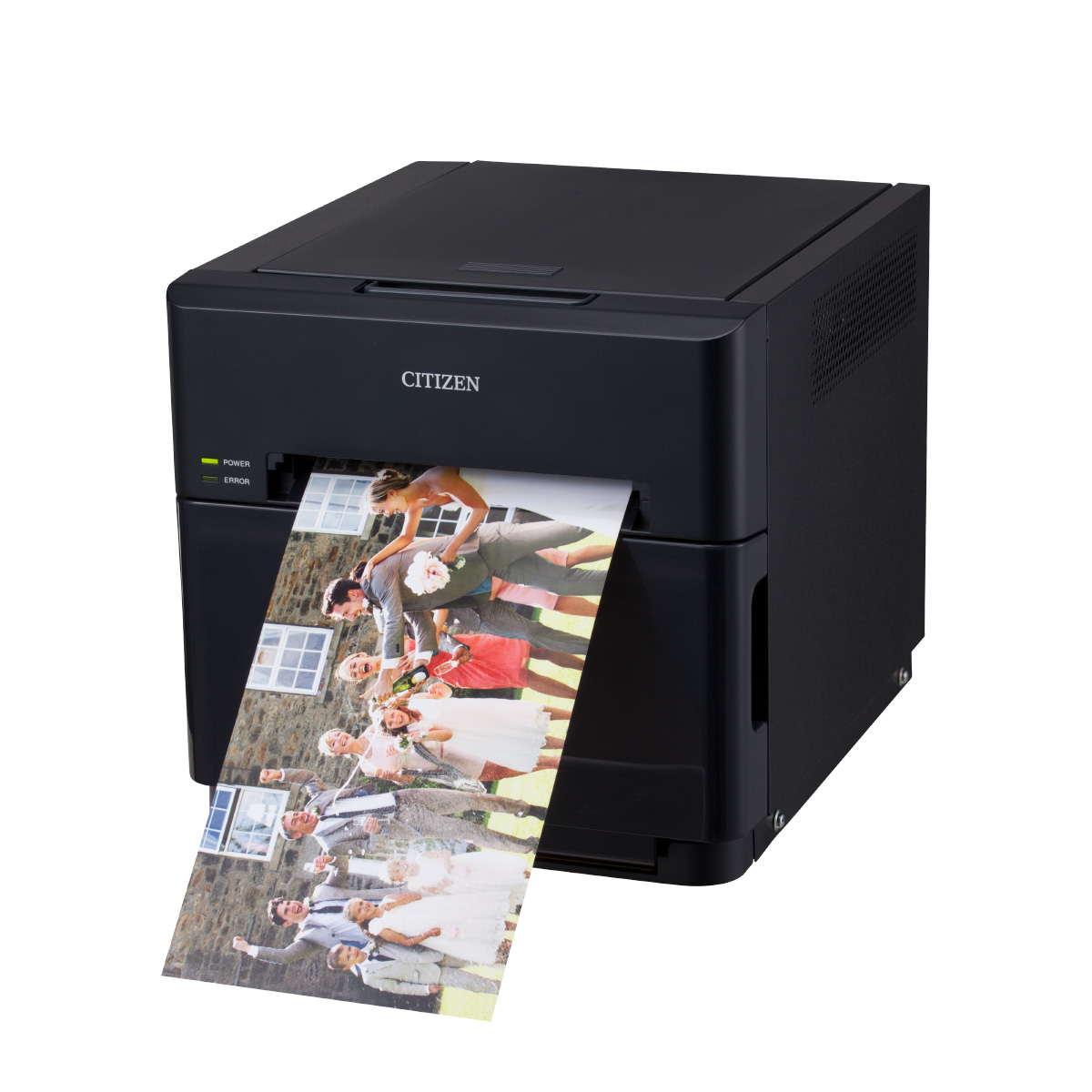

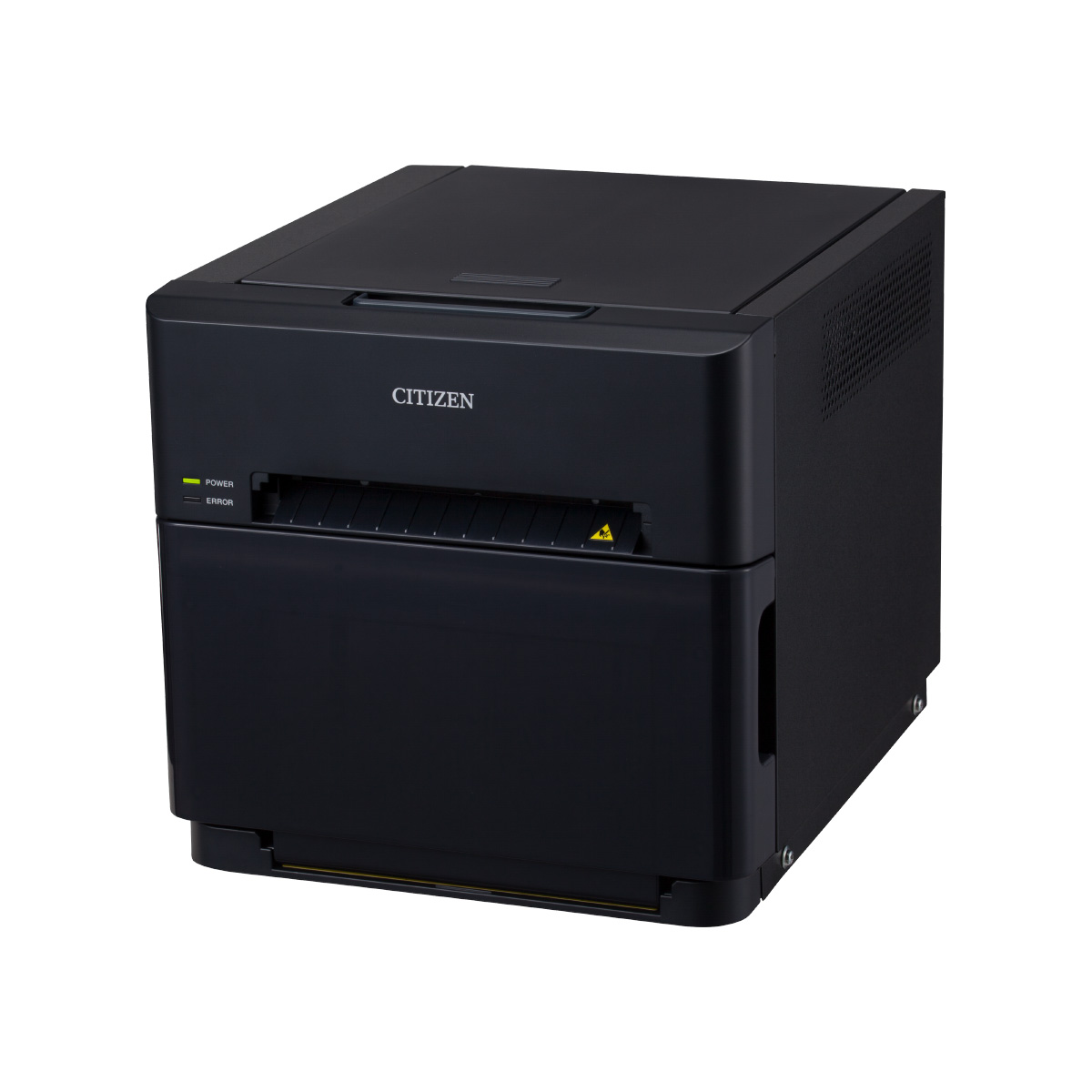

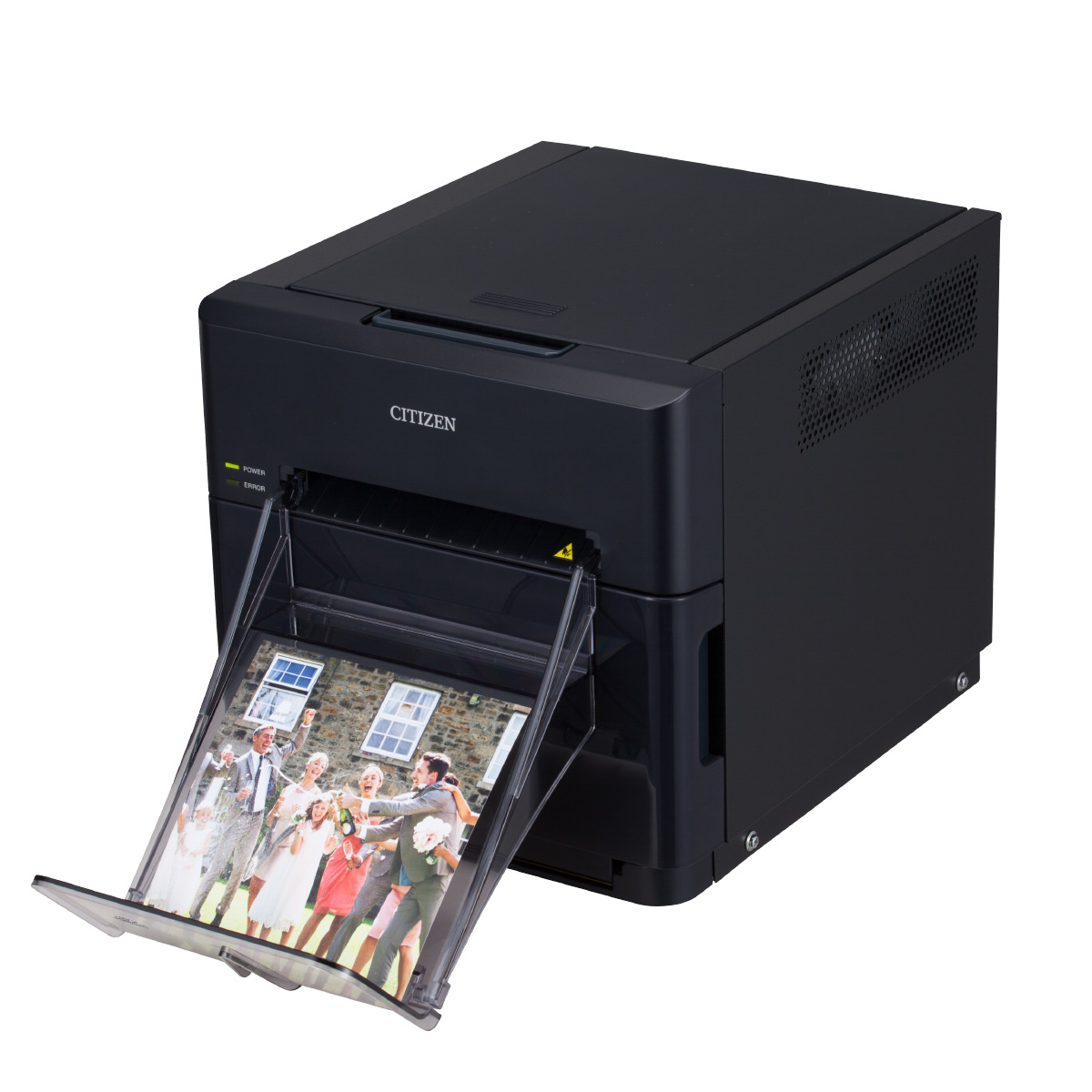

Photo PrinterCZ-01

Easy to carry, Ultra-compact size digital photo printer

Print Size
PC(4”x6”)  4.5”×4.5”  4.5”×8”
Printing Methods
Dye Sublimation Thermal Transfer Method
Functions
  • 150 screens/roll (PC)
  • 18.8 sec./PC Media
  • Standard Media
Applications
  • Event
    Photos
  • ID
    Photos

Features

  • Compact

    Compact design featuring 70% reduction in volume and 60% reduction in weight from conventional printers.

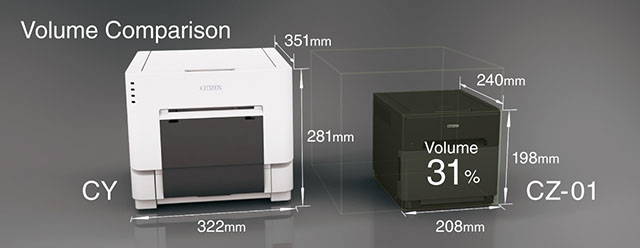

    Volume Comparison

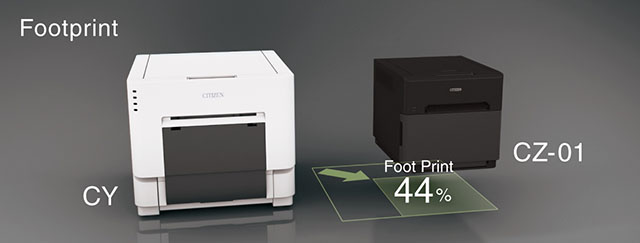

    Footprint

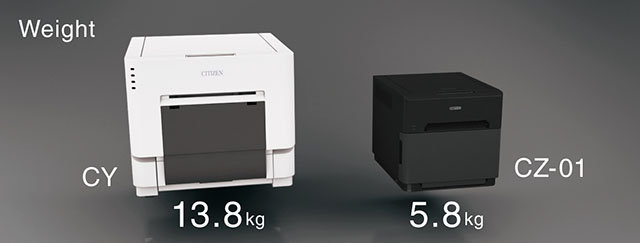

    Weight

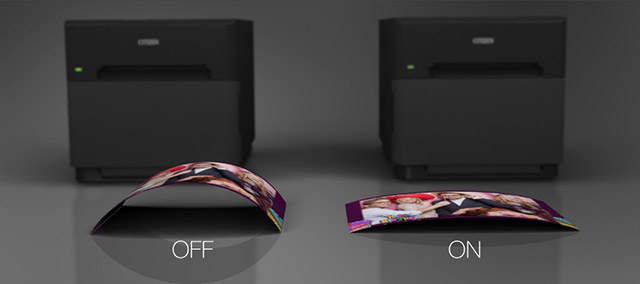

  • New Anti-Curl Function

    Features a new function that minimizes the amount of curling when printing photos. (Anti-Curl Function)

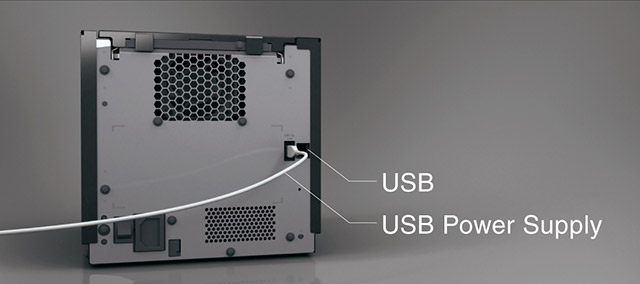

  • USB Power Supply Interface

    Equipped with a USB power supply interface for supplying electric power when a tablet-style device is connected for use.

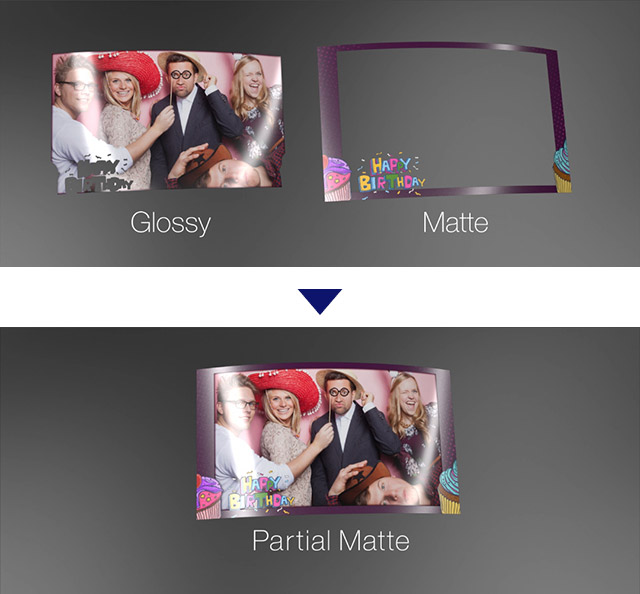

  • Choose between Glossy and Matte

    Select the surface processing to produce a glossy or matte finish, to suit your preferences.

  • Partial Matte

    Using overcoats to produce glossy and matte portions, watermarks can be printed in the form of patterns or text.

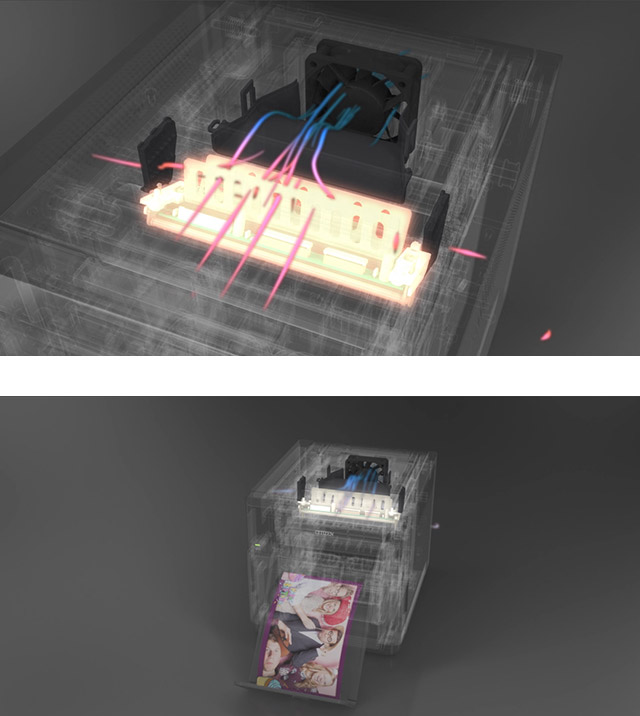

  • New Cooling Design

    A new cooling design controls the temperature within the printer. Keeping the head cool reduces interruptions in the printing and allows high-volume output.

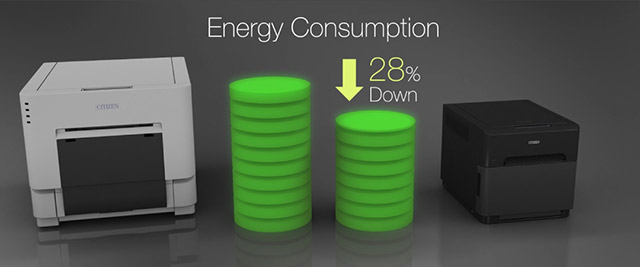

  • Energy Saving

    Power consumption is reduced by 28% compared to conventional models.

Introductory Video

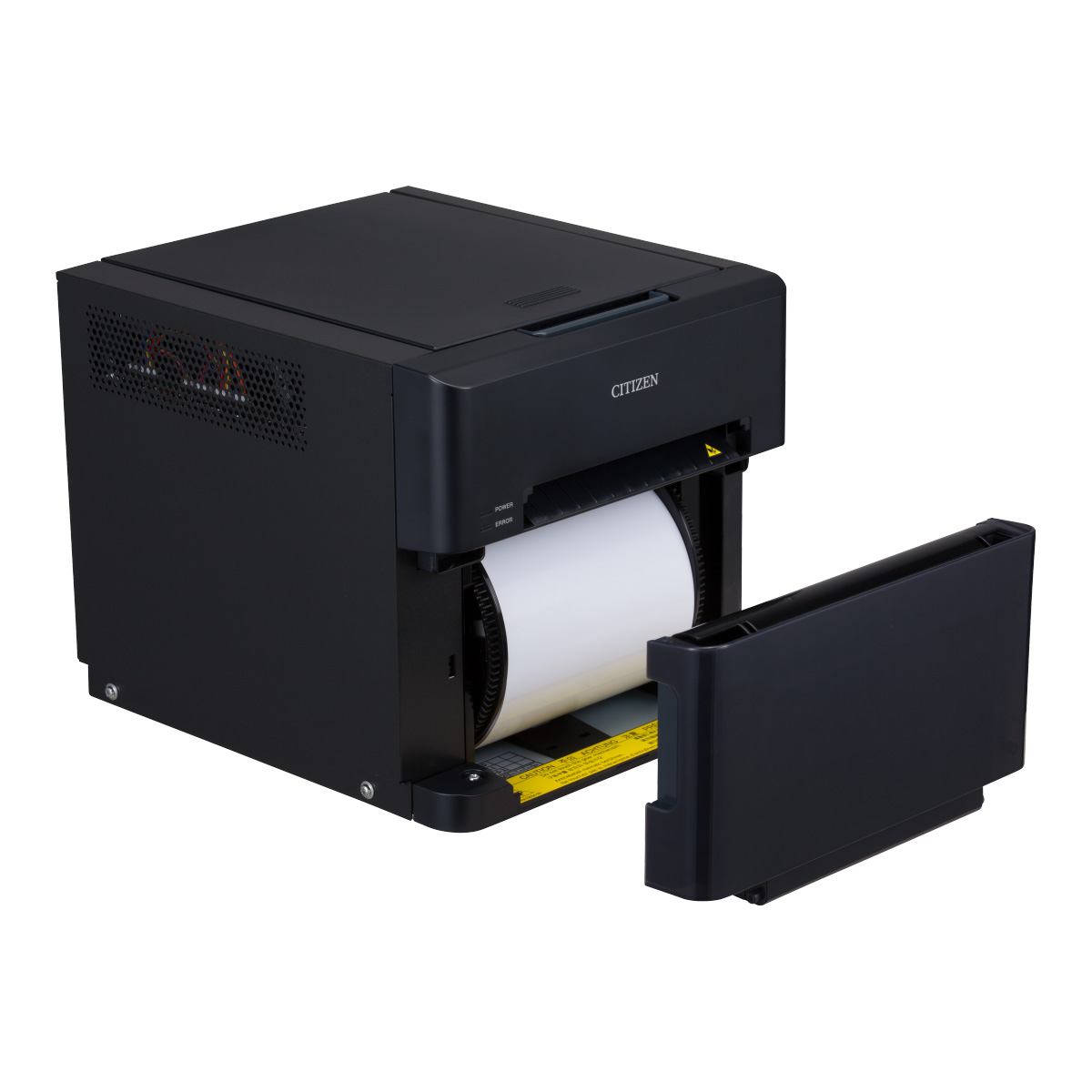

Consumables/Options

Size PC (4” × 6”) 4.5”×8”
Product Number (Photographic Paper) RZ-MS46-PC RZ-MS458
Paper/Ink Ribbon 102mm 114mm
Maximum Print Size 102mmx152mm 114mmx203mm
150 sheets × 2 rolls 110 sheets × 2 rolls

Specifications

Printing Methods Dye Sublimation Thermal Transfer Printing
Resolution 300 x 300dpi (High Speed Mode) 300 x 300dpi (High Resolution Mode)
Print Size PC (4”×6”): 102×152mm
4.5”×4.5”: 114×114mm
4.5”×8”: 114×203mm
Printing Capacity (max.) PC (4”×6”): 150 sheets
4.5”×8”: 110 sheets
Print Time 4”×4” in approximately 16.3 seconds
PC in approximately 18.8 seconds
4.5”×4.5” in approximately 19.5 seconds
4.5”×8” in approximately 23.1 seconds
※Without Anti-curl/Glossy Printing
4”×4” in approximately 19.8 seconds
PC in approximately 23.7 seconds
4.5”×4.5” in approximately 23 seconds
4.5”×8” in approximately 29.5 seconds
※Without Anti-curl/Glossy Printing
Ribbon Form YMC + Overcoat
Interfaces USB 2.0 (up to 480Mbps), Type B Connector
Driver-compatible OS Windows 7/10
External Dimensions 208 (W) x 240 (D) x 198 (H) mm
Weight Approx. 5.8kg (printer only, excluding media)
Power Supply AC110V-240V 50/60Hz
Operating Environment Temperature 5 to 35°C (with natural convection) / Humidity 35 to 80% (no condensation)
Current Consumption Maximum: 100V, approximately 1.7A / 240V, approximately 0.8A
Standby: 100V, approximately 0.15A / 240V, approximately 0.15A

PC: Postcard Size

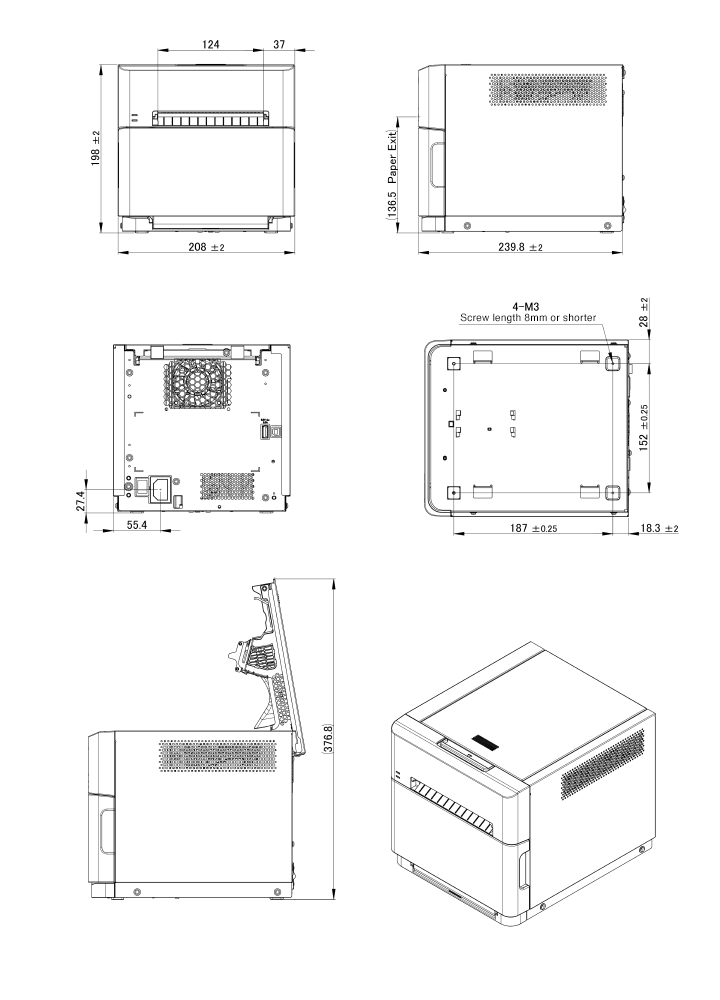

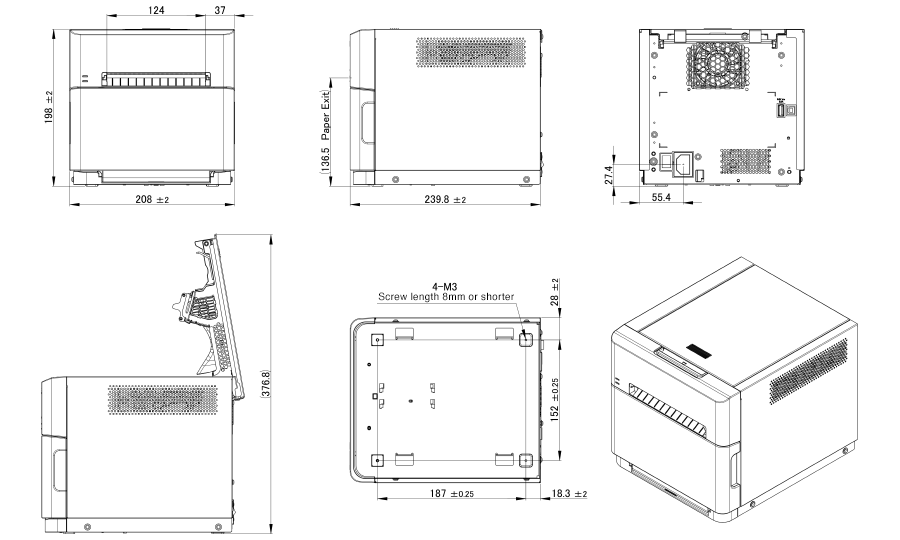

Dimensions

DimensionsDimensions

(Unit: mm)
