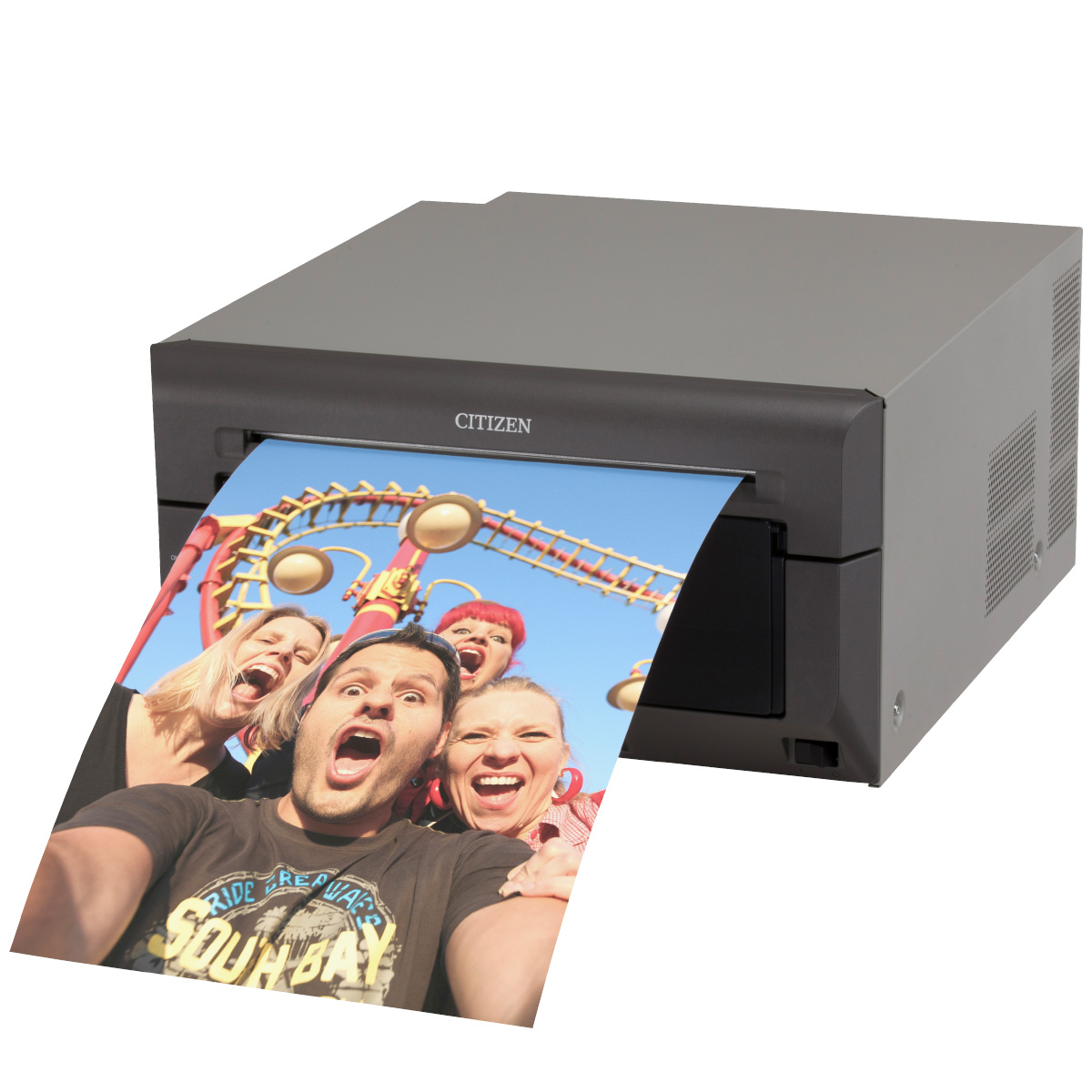

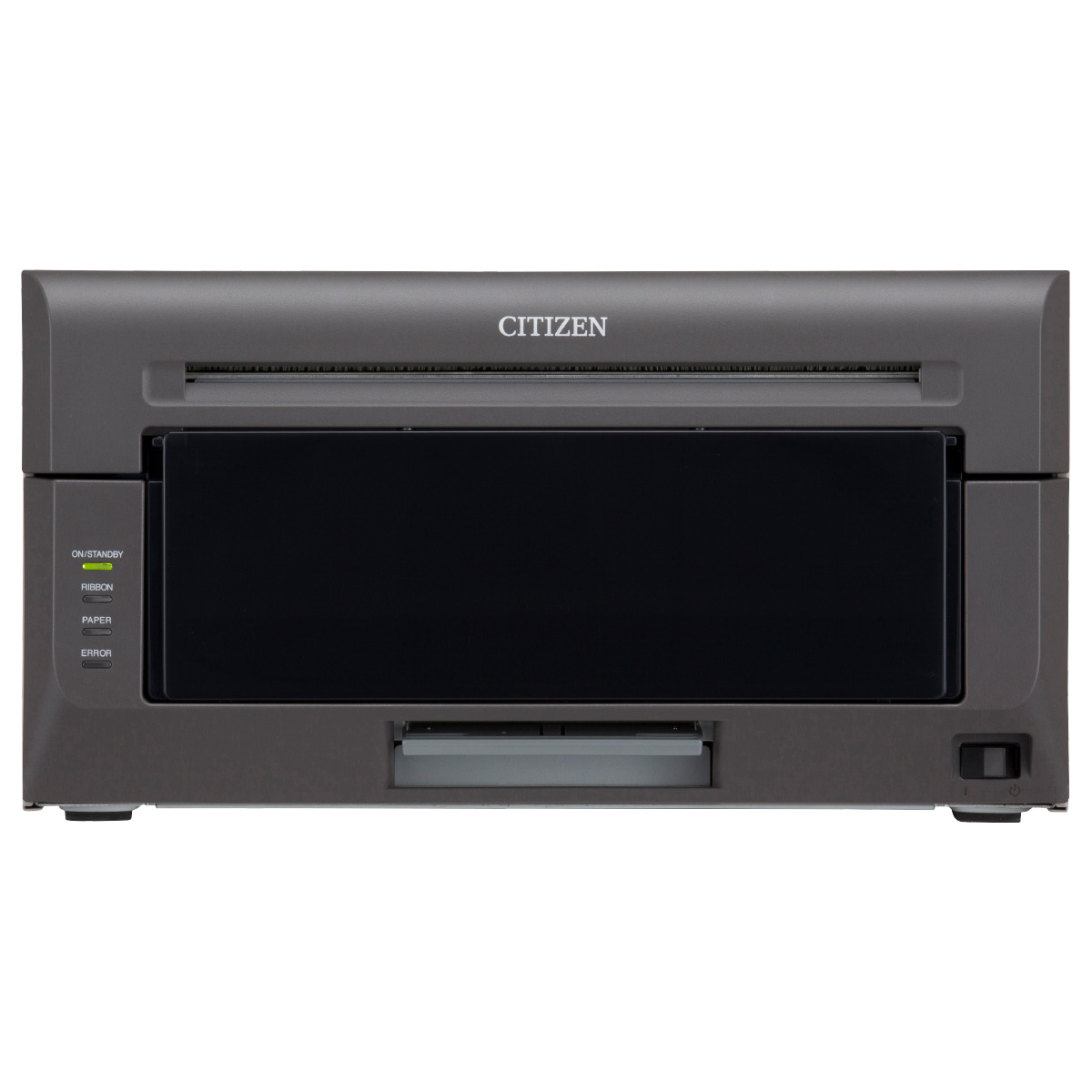

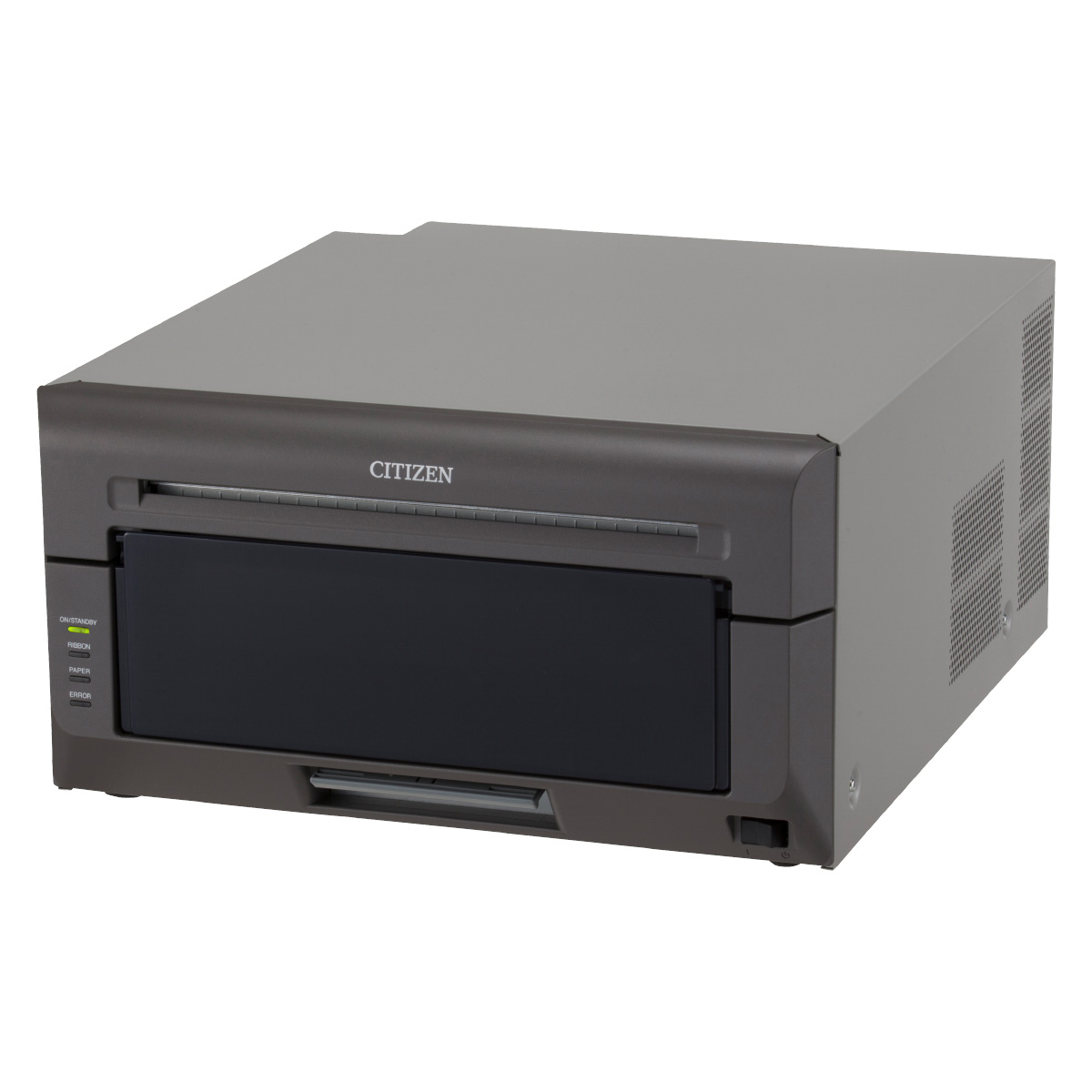

Photo PrinterCX-02W

Energy-saving and capable of A4 large-size printing

Print Size
8”×4”8”×5”2PC(8”×6”)8”×8”8”×10”8”×12”A5A4
Printing Methods
Dye Sublimation Thermal Transfer Method
Functions
  • 110 screens/roll (A4)
  • 38.4 sec./A4 Media
  • Standard media
Applications
  • Event
    Photos
  • Studio
    Photos

Features

Energy-Saving

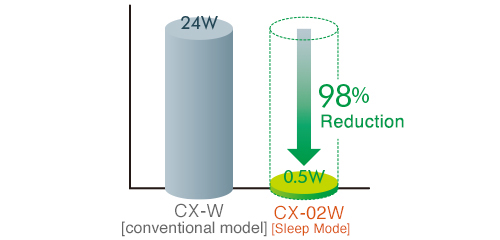

  • Sleep mode Function

    The sleep mode saves electricity during standby under 0.5W. Electricity is reduced by 98% compared with the conventional model.

Developed for Ease-of-Use

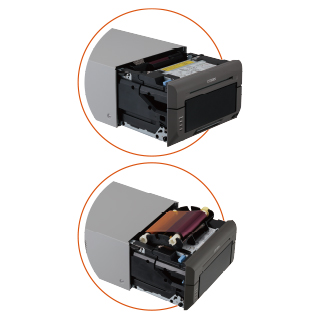

  • Inheriting and improving.

    While inheriting the style of media loading of a conventional CX-W model, this printer has been improved to make paper loading easier.

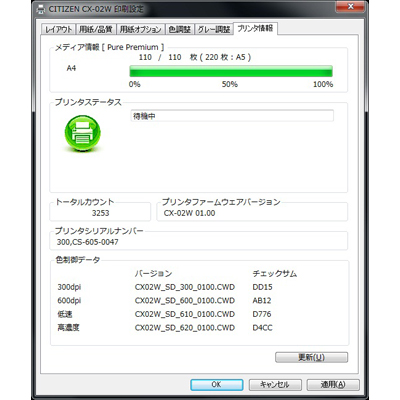

  • Printer Driver’s Graphic Display

    The graphic display shows number of print sheets and remaining media at a glance.

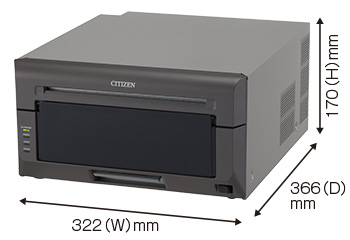

Compact

  • One of the World’s Smallest*

    One of the world’s smallest dye sublimation printers that can hold 110 screens of 8”×12” printing media.

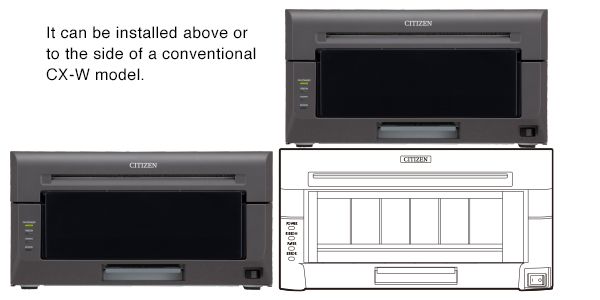

Installation Compatibility

  • Capable of being installed and used together with a conventional CX-W model.

    The height and depth of the CX-02W printer are the same as those of a conventional CX-W model.
    The printer can be easily installed side-by-side with a conventional CX-W model.

FlexibilityCapable of printing each size from 8”×12” to 8”×32”

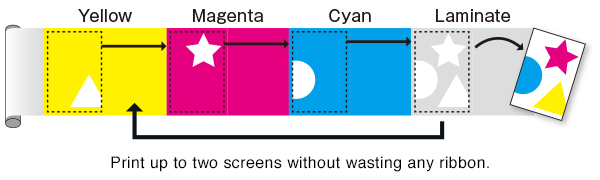

  • Ribbon Rewind Function

    The ribbon is rewound after printing an odd number of 8”×6” and A5 size sheets, allowing printing that doesn’t waste the half of 8”×12” and A4 media.

  • An Assortment of Print Sizes

    Printing size can be freely changed between 8”×2” and 8”×32”, panoramic picture. (Supported by SDK)

High Resolution, Continuous Printing

  • Natural Definition

    With newly developed firmware, an even smoother printing gradation compared to conventional CX-W models has been made possible.

  • Fast Even During Continuous Printing

    Effective heat dissipation minimizes time delay from a hot head, allowing smooth continuous printing.

Improved Usability

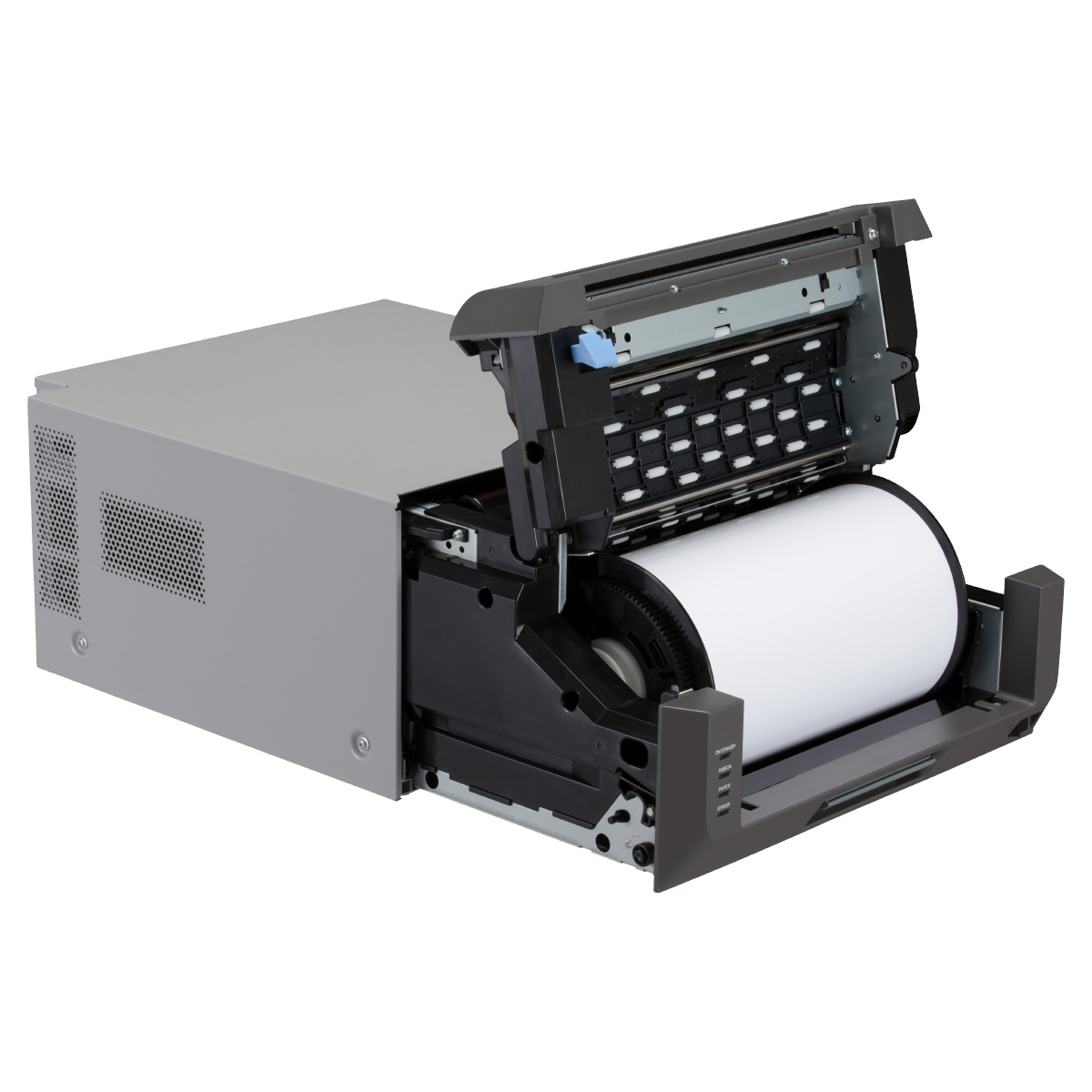

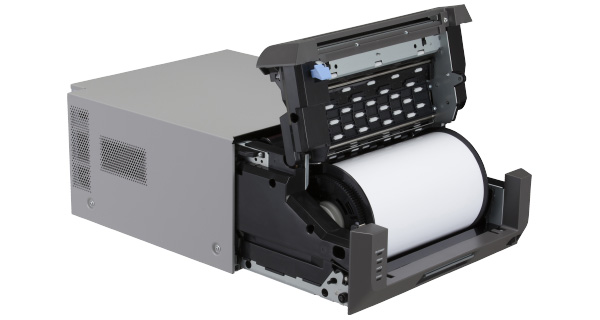

  • Full Front Access

    Since all operations can be conducted from the front, ordinary maintenance can be easily conducted without removing the printer from the setup place.
    Furthermore, by utilizing paper auto-loading within the kiosk setup, usability has been significantly improved.

Consumables/Options

Size 8” x 12” (for 8”×6” 2-page layouts) A4 (for A5 2-page layouts)
Product Number (Photographic Paper) CX2W-812 CX2W-A4
Paper/Ink Ribbon 203mm 210mm
Maximum Print Size 203mmx305mm 210mmx297mm
110 sheets × 2 rolls 110 sheets × 2 rolls

Specifications

Model Name CX-02W
Printing Methods Dye Sublimation Thermal Transfer Printing
Resolution 300×300dpi (High Speed Mode) 300×600dpi (High Resolution Mode)
Print Size 8”×4”: 203×102mm
8”×5”: 203×127mm
2PC (8”×6”): 203×152mm
8”×8”: 203×203mm
8”×10”: 203×254mm
8”×12”: 203×305mm
A5: 210×148mm
A4: 210×297mm
Printing Capacity (max.) 8”×12”: 110 sheets
A4: 110 sheets
Print Time [High Speed Mode]
8”×10” approximately 33.7 seconds
8”×12” approximately 39.2 seconds
A4 approximately 38.4 seconds
※Glossy print
[High Resolution Mode]
8”×10” approximately 43.1 seconds
8”×12” approximately 50.5 seconds
A4 approximately 49.4 seconds
Ribbon Form YMC + Overcoat
Interfaces USB 2.0 (up to 480Mbps), Type B Connector
Driver-compatible OS Windows 7/8/10
External Dimensions 322 (W) x 366 (D) x 170 (H) mm
Weight Approx. 14kg (printer only, excluding media)
Power Supply AC100V-240V 50/60Hz
Operating Environment Temperature 5 to 35°C (with natural convection)/Humidity 35 to 80% (no condensation)
Current Consumption Maximum: 100V, approximately 3.9A / 240V, approximately 1.6A
Standby: 100V, approximately 05W or less / 240V, approximately 0.5W or less

PC: Postcard Size

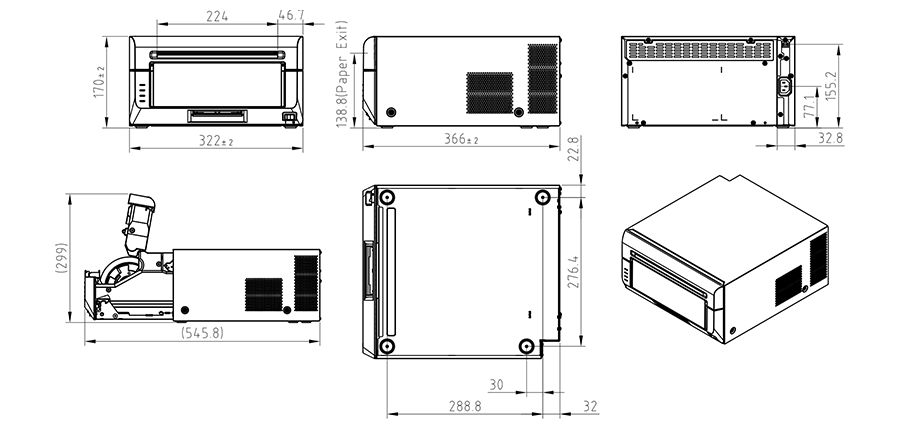

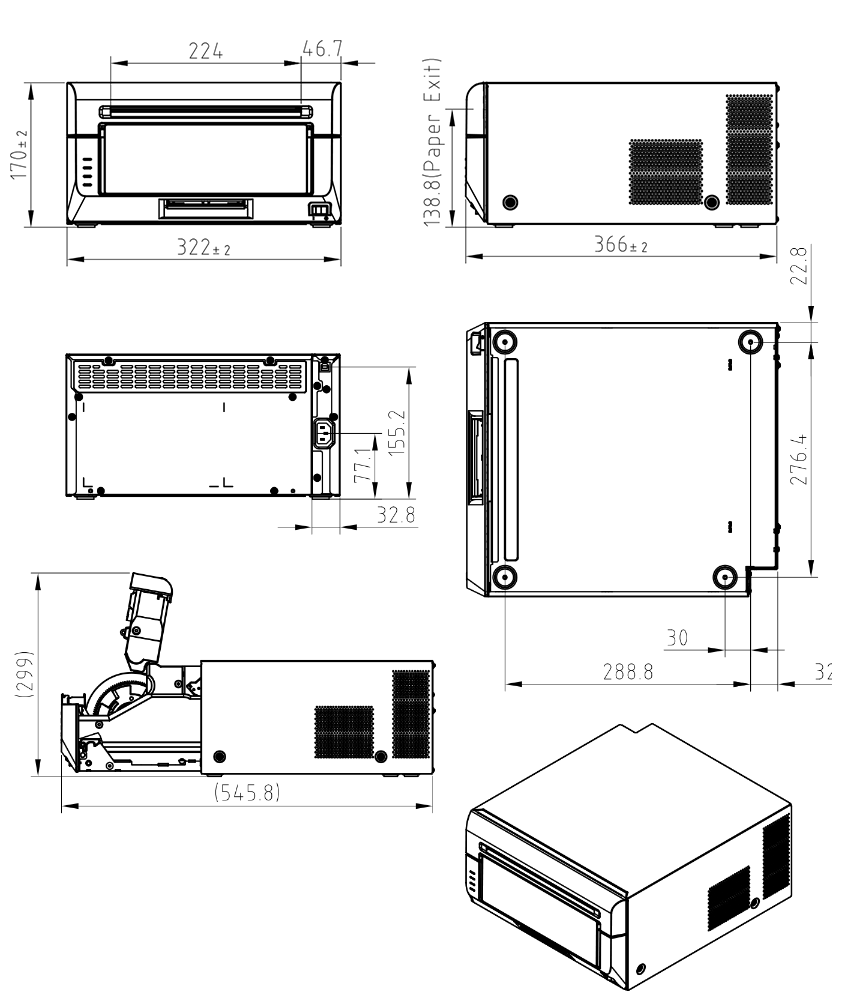

Dimensions

DimensionsDimensions

(Unit: mm)
