24V drive panel printer that can be set up with measurement and automatic equipment to meet any kiosk printing needs.
Receipts
Tickets
Barcodes
2D Barcodes

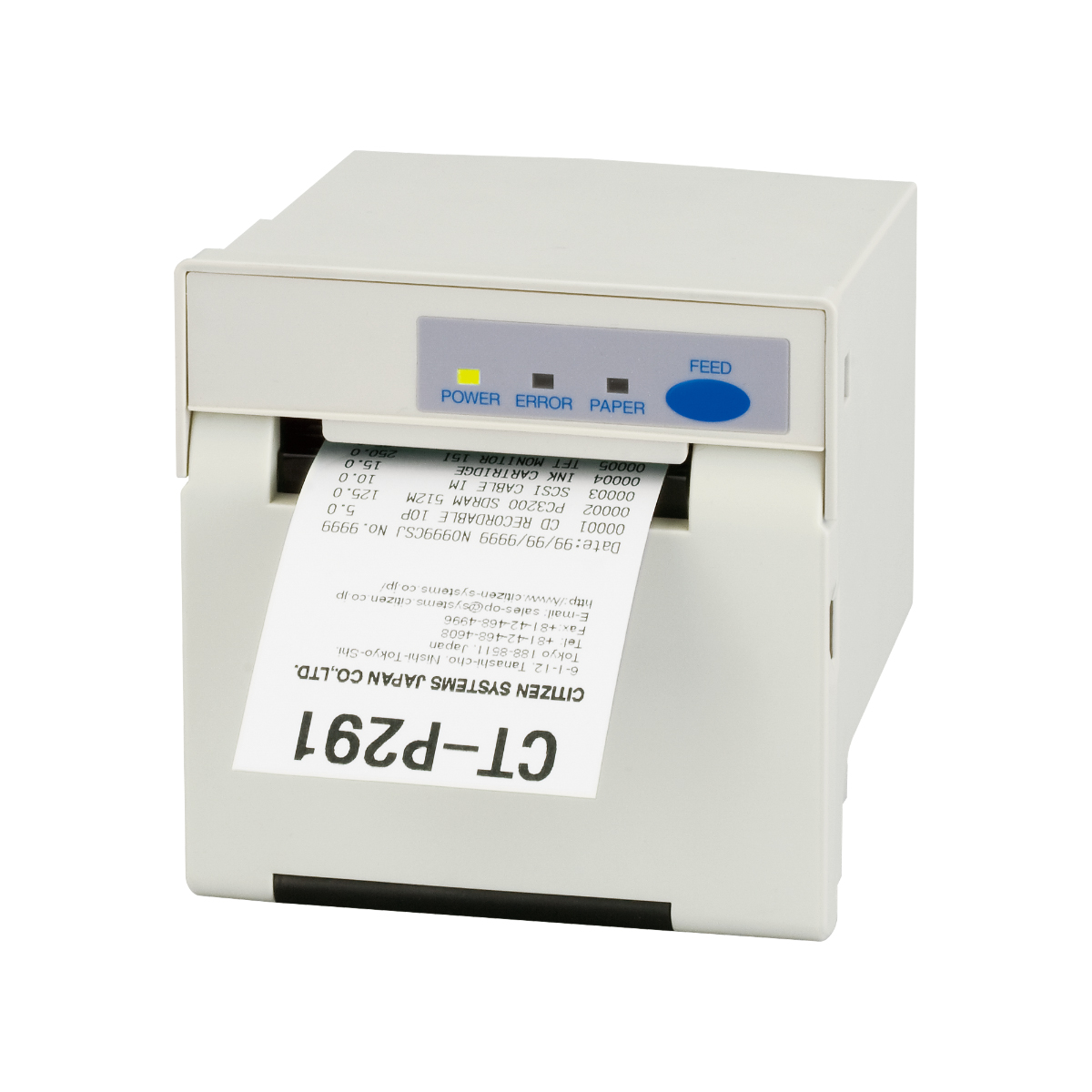

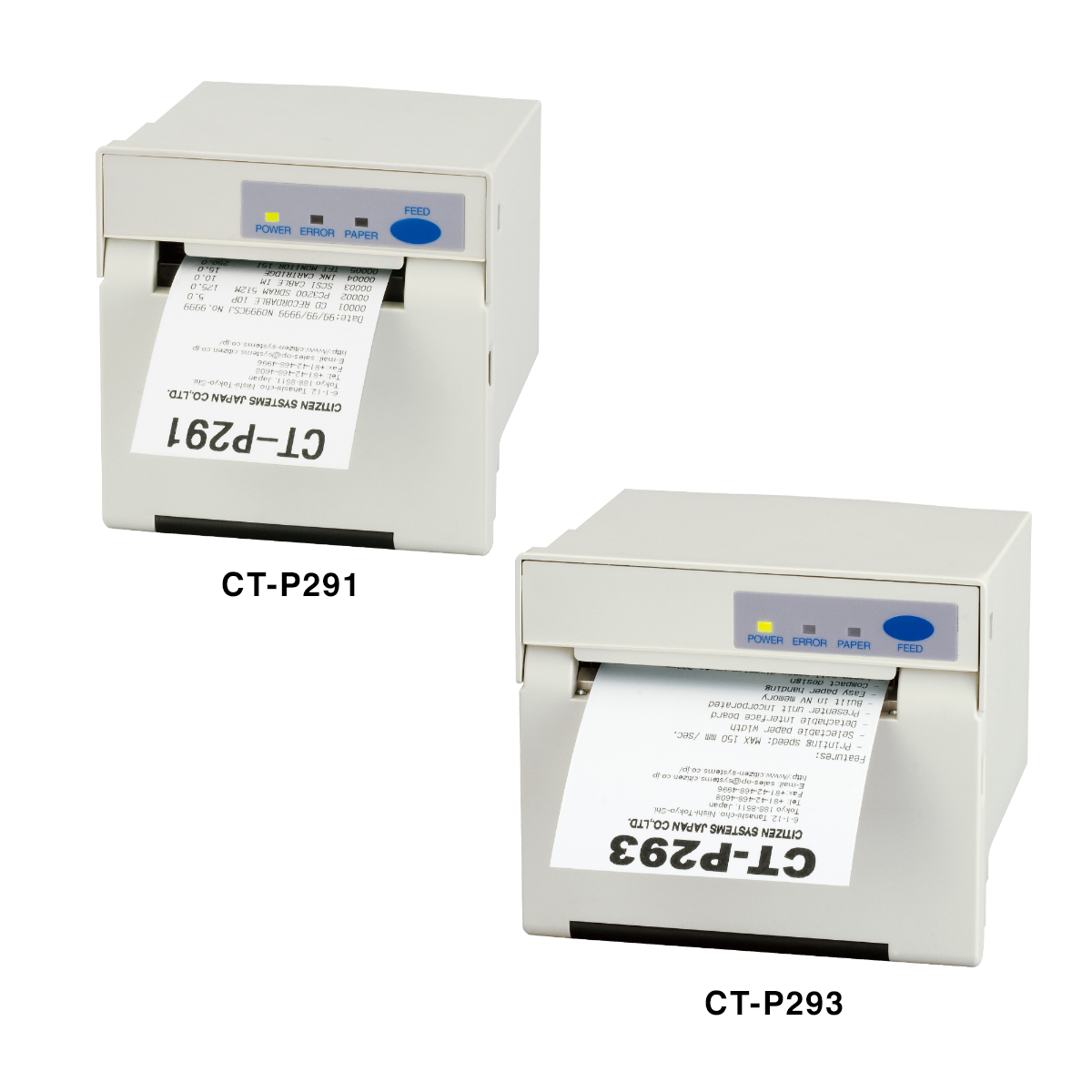

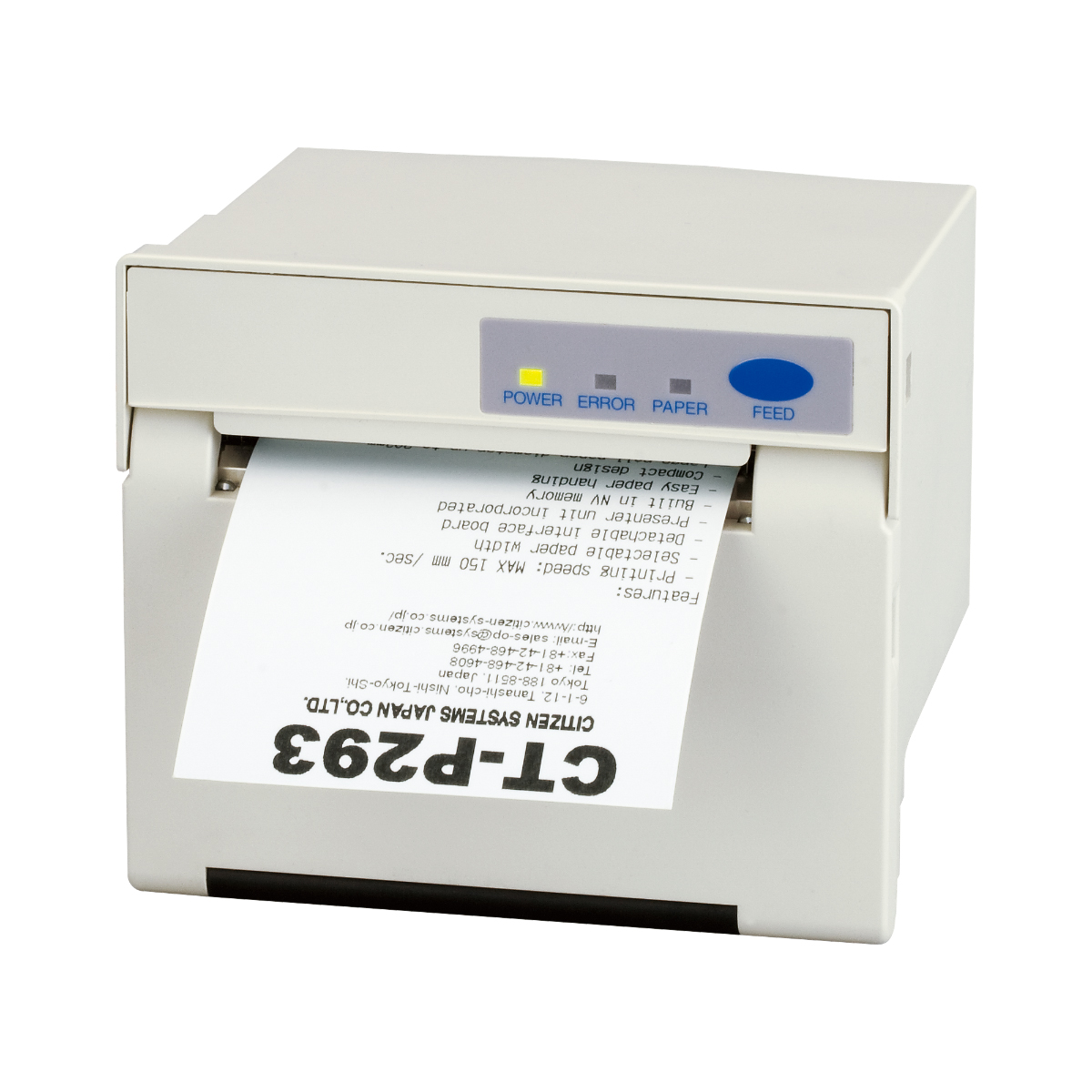

KioskThese printers for 2-inch and 3-inch paper widths are each available in models equipped with auto cutters (CT-P291/293). Depending on your needs, you can select the auto cutter as well as choose between full cut/partial cut.

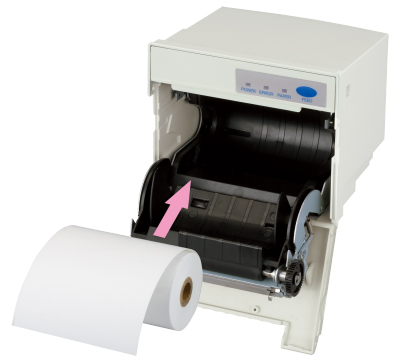

Drop-in paper loading mechanism
Uses a clamshell mechanism to make paper loading easy
Reduce your waiting time with 150mm/second high-speed printing
Features a Page Mode which allows printing layout freedom, Memory Switch for easy selection of various functions, and more
Compact, lightweight structure that is perfect for kiosk applications
In addition to Parallel and Serial, USB interface is also equipped as standard
Uses drip-proof (IEC60529 IPX1) structure for the front panel
Designed for low-temperature operation down to -20°C (Main unit of printer only)
Compatible with Barcodes/2D Barcodes
POS/ECR Equipment
Measuring equipment/medical equipment
Printing from various instruments, terminals and machines
Manufacturing
| Model Name (Type) | CT-P291ALJ-WH-NN | CT-P293ALJ-WH-AT |
|---|---|---|
| Print Method | Direct Thermal Printing | |
| Printing Width (Total Dot Number) | 51mm/408 dots | 72mm/576 dots |
| Dot Density | 8 dots/mm | |
| Maximum Printing Speed（*1） | Up to 150mm/sec. (1200 dot-lines/sec.) | |
| Line Spacing | 4.25mm (1/6 inch); configurable by command | |
| Paper | Paper Width: 58mm Paper Thickness: 60 to 75μm |
Paper Width: 58 to 80mm Paper Thickness: 60 to 75μm |
| Paper Feed | 0.125mm | |
| 最大印字桁数 | Font A: 34 columns Font B: 45 columns Font C: 51 columns |
Font A: 48 columns Font B: 64 columns Font C: 72 columns |
| 文字寸法 ※2 | Font A: 1.5×3mm Font B: 1.13×3mm Font C: 1×2mm Kanji Font A: 3×3mm Kanji Font C: 2×2mm |
|
| Character Types | Alphanumeric characters, international characters (12 character types × 16 countries), Code 437, 850 (858), 852, 857, 858, 860, 863, 864, 865, 866, WPC1252, Katakana, Thai code 18, Kanji (JIS first, second, level), Kana, JIS C 6226-1983 | |
| User Memory | 256KB (user-made characters and logos can be registered) | |
| Barcodes | UPC-A/E, JAN (EAN) 13 digits/8 digits, ITF, CODE39, CODE 128, CODABAR, CODE93, PDF417, QR CODE | |
| Interfaces | Serial (RS232C compliant), Parallel (Centronix or IEEE1284 nibble mode compliant), USB | |
| Input Buffer | 4K/45 bytes (parallel is 4K setting only) | |
| Auto Cutter | Yes | |
| Input Power Source | Input Voltage DC24V±10% Current Consumption 1.9A (Peak 9A) | |
| Power Use | Input: DC24V±10% Requires external power source capable of supplying peak of 9A or higher |
When using included AC adapter Input AC100V |
| Mass (Main Unit) | Approx. 710g | Approx. 800g |
| External Dimensions | 107(W) ×120.5(D) ×109(H) mm | 127(W） ×120.5(D) ×109(H) mm |
| Usage Environment（*3） | Operating Environment Temperature/Humidity: -20 to 50°C (0 to 45°C when using 36AD2); 35 to 85% (no condensation) Storage Environment Temperature/Humidity: -20 to 60°C; 10 to 90% (no condensation) |
|
| Reliability | Head Life: 100 km, 100 million pulses (room temperature, room humidity, specified recommended paper) Auto Cutter Life: 1 million cuts (room temperature, room humidity, 65 μm paper, at full cut) |
|
| Standards Compliance (*4) | VCCI Class A | |
| Utility Software | Printer Customization, POS Printer Utility | |
| Drivers | Windows, OPOS, Linux, CUPS | |
| Accessories | [Accessories Common to All Models] Paper Roll Quick Start Guide Mounting Bracket Core Fastening Screw for Mounting Bracket Wire Clamp CD-R (User Manual, Printer Driver) |
|
| [NN Type Accessories] Distribution Cable |
[AT Type Accessories] Distribution Cable Power Supply Connector Board Power Supply Connector Board Cover AC Adapter Type 36AD2 AC Power Supply Cord Fastening Screw for Power Supply Connector Board |
|

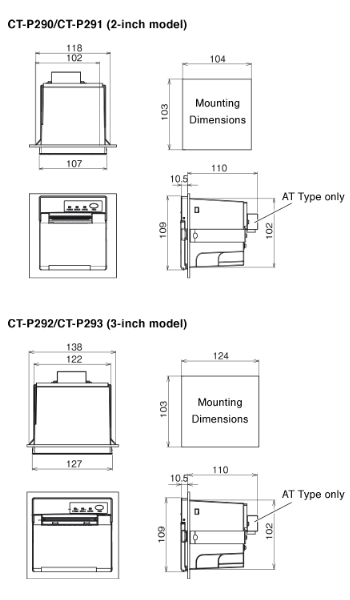

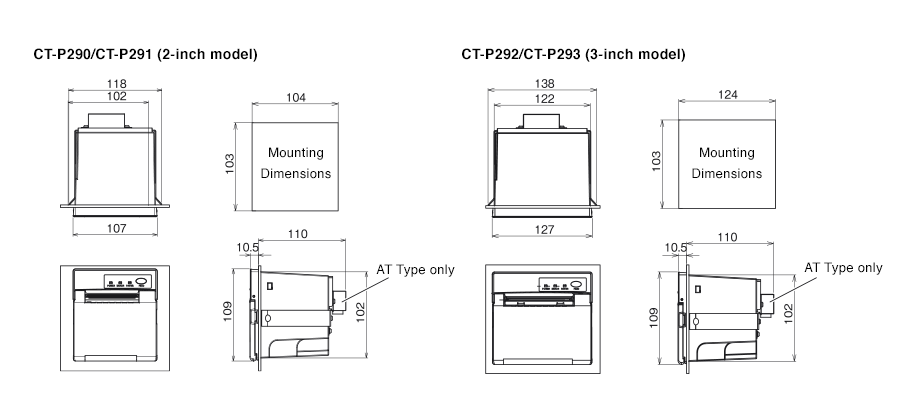

(Unit: mm)
Interfaces are standard-equipped USB, and Serial or Parallel using a dedicated cable.
