Kiosk PrintersLT2221/LT2321

Printing speed of 150mm/sec., with DC24V drive.

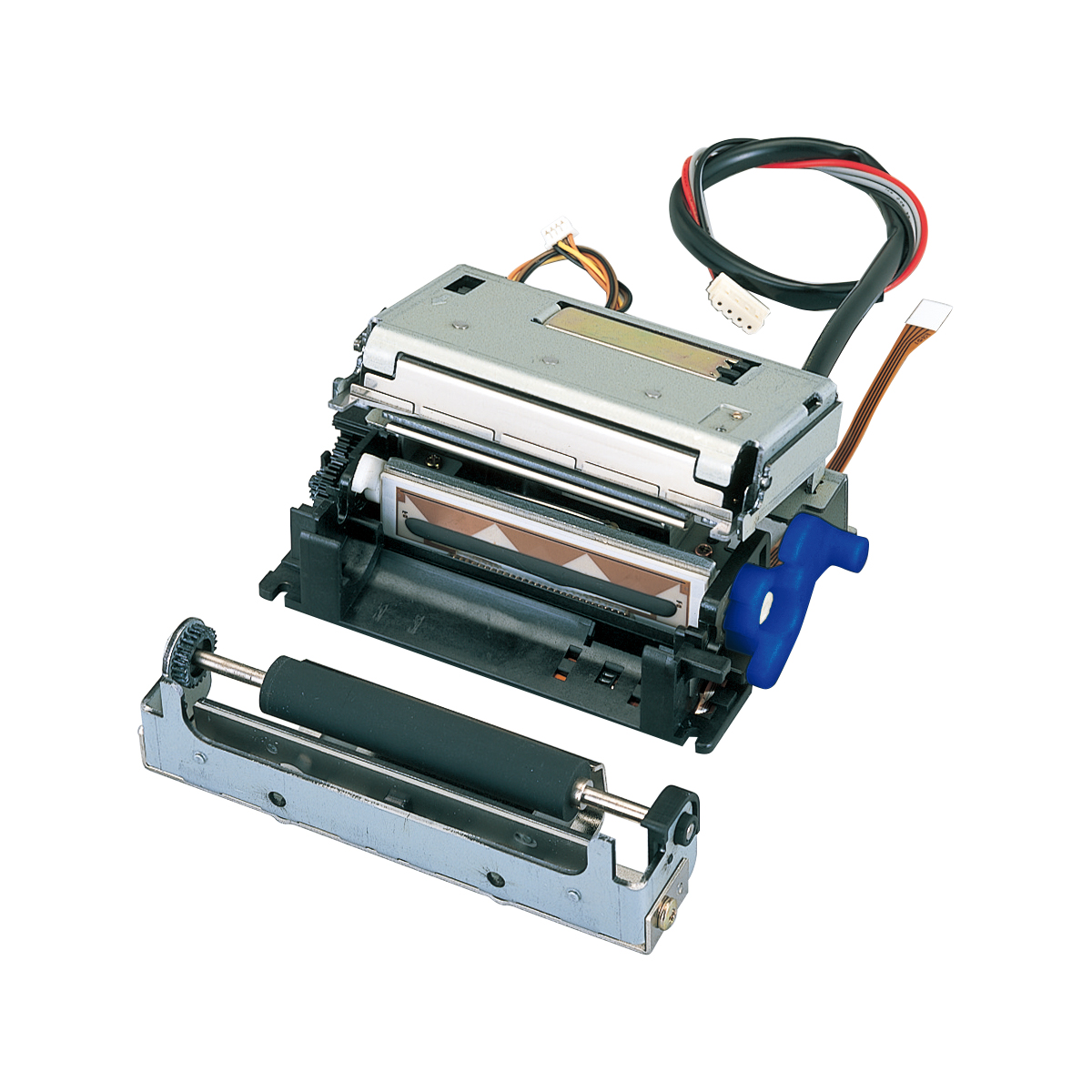

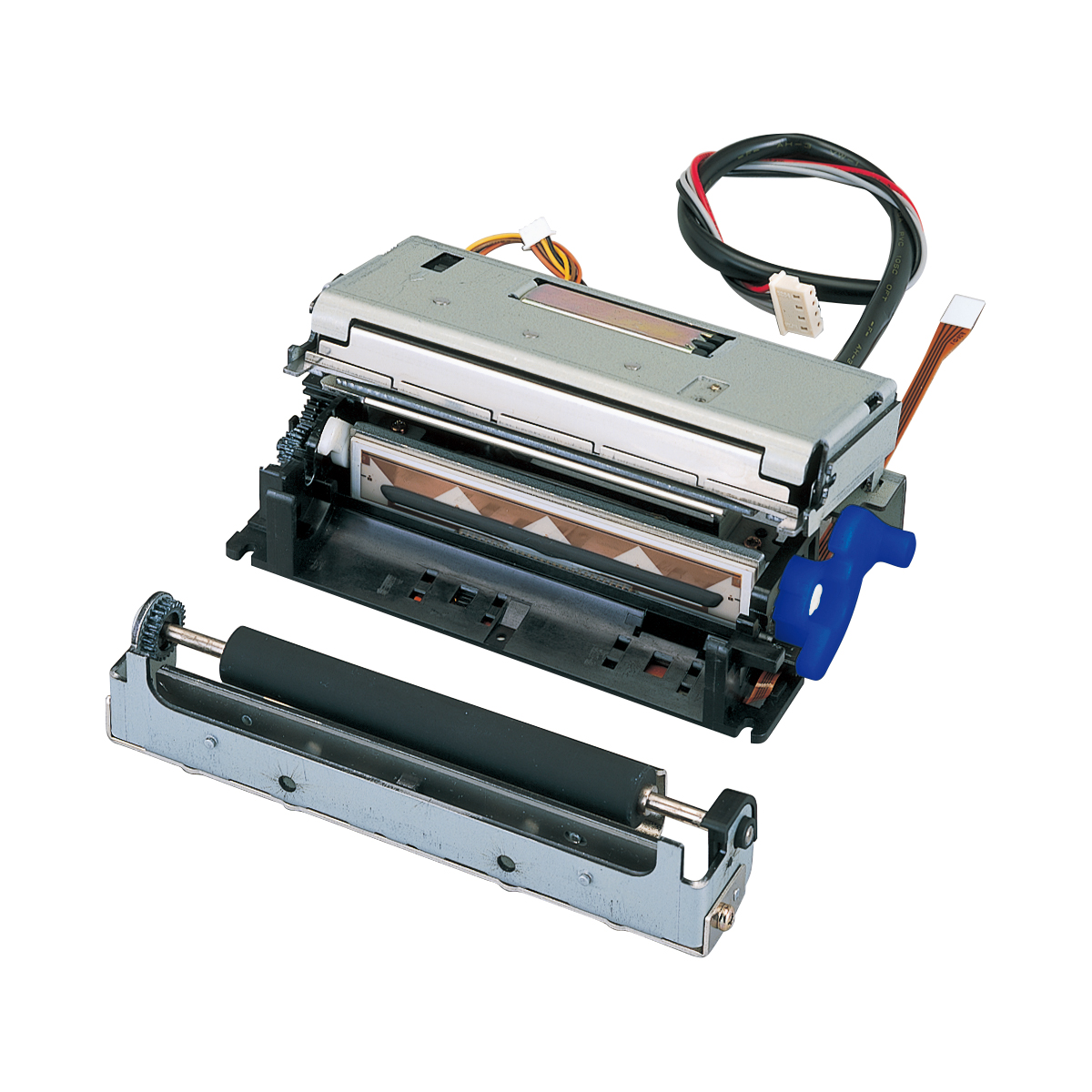

Featuring a detachable platen system.

Paper Width
58mm
80mm
Print Method
Direct Thermal Printing
Functions
  • Dedicated Control Board

Features

  • Achieves high speed printing at up to 150mm/sec.

  • Platen can be detached

  • High reliability and outstanding maintainability due to simplicity of mechanisms

  • Can handle thick paper (0.15mm)

  • High speed and high quality printing

  • Selectable paper insertion port (straight path/curl path)

  • Capable of Barcode label printing (when using specified paper)

Main Applications

  • POS/ECR Equipment

  • Measuring equipment/medical equipment

  • Printing from various instruments, terminals and machines

  • KIOSK Terminal Equipment

  • Various Bank Terminals (ATM, etc.)

Specifications

Model Name LT2221 LT2321
Print Method Direct Thermal Dot Printing
Total Number of Dots 432-dot line 576-dot line
Dot Density 8 dots/mm
Printing Width 54mm 72mm
Printing Speed Up to 1,200 dot lines/sec. (150mm/sec.)
Paper Feed Pitch Minimum 0.125mm
Detection Functions Head Temperature Detection: Thermistor Paper Detection: Photosensor
Head-up Detection: Photosensor
Operating Voltage Range Vp system: DC21.6 to 26.4V
Vdd: DC4.75 to 5.25V
Print Head Up to approximately 4.9A (during 288 dot color output)
Print Motor Constant current chopper drive
Current Setting: Approx. 0.3A/phase
Recording Paper 58mm × 83mm diameter or less
Thermal Paper Roll (Nippon Paper Industries TF50KS-E2D) (recommended paper)
80mm × 83mm diameter or less
Thermal Paper Roll (Nippon Paper Industries TF50KS-E2D) (recommended paper)
Head Life Pulse Resistance: 100 million pulses (12.5% print rate) Wear Resistance: 100km or more
Usage Environment Operating Environment: Temperature: 0 to 50℃, Humidity: 35 to 85% RH
Storage Environment: Temperature: -20 to 60℃, Humidity: 10 to 90% RH
External Dimensions (Protruding portions not included)
91.5 (W) × 58 (D) × 20 (H) mm
(Protruding portions not included)
108 (W) × 58 (D) × 20 (H) mm
Weight Approx. 85g Approx. 97g

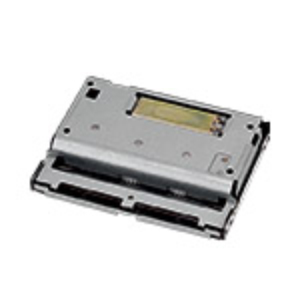

Accessories Control Board (BD2-2221 : LT2221, LT2321)
Gate Array (202LA-00: LT2221, LT2321)

* Company names and product names are trademarks or registered trademarks of their respective companies.
