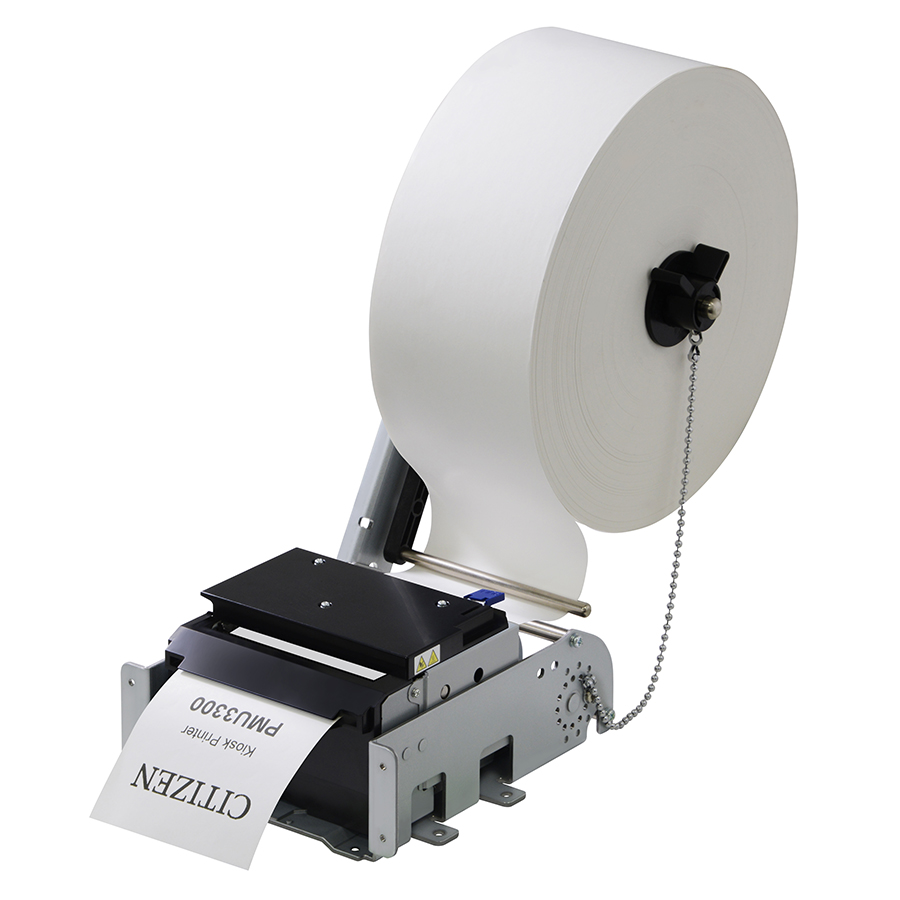

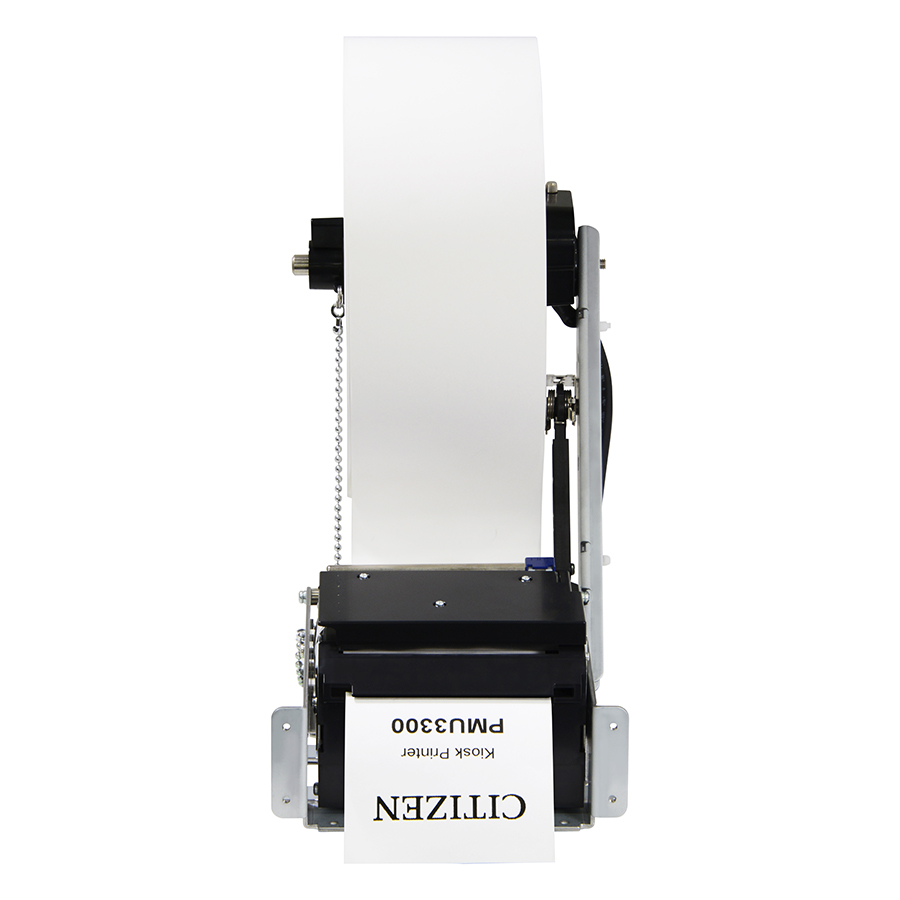

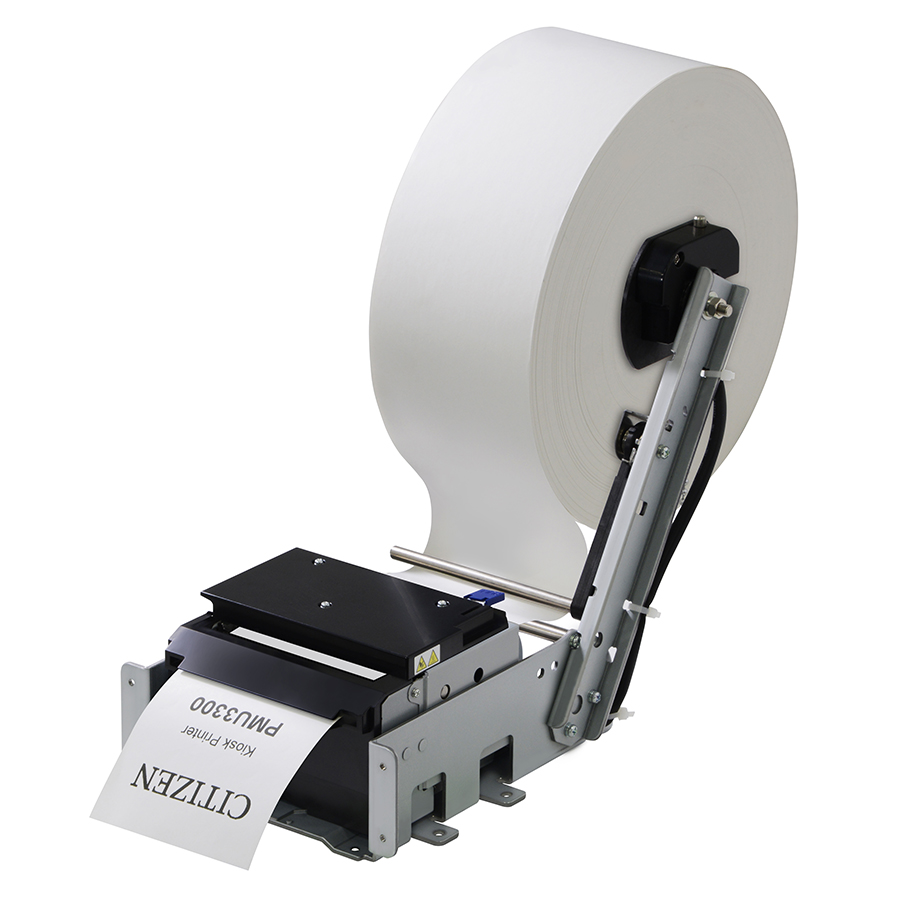

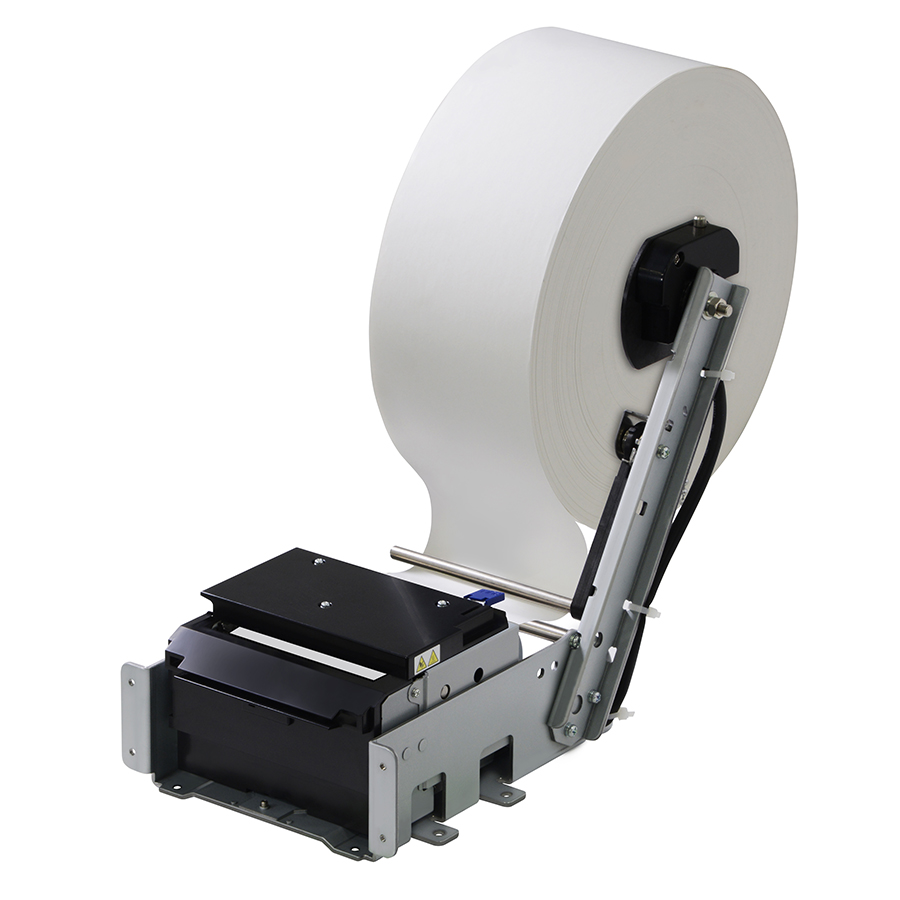

Kiosk PrinterPMU3300

The high performance printer for heavy duty use.

Paper Width
Print Method
Direct Thermal Printing
  • Receipts
  • Tickets


  • Wide range of operating temperature:-15℃ to 65℃

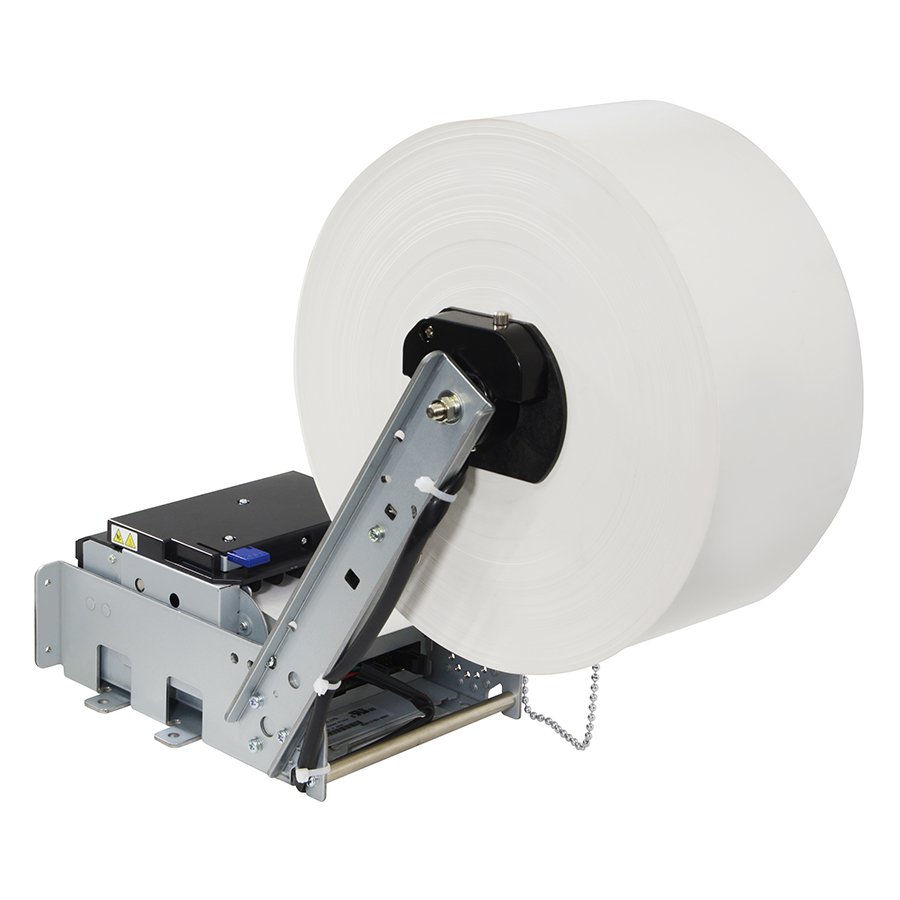

  • φ203mm big roll capability

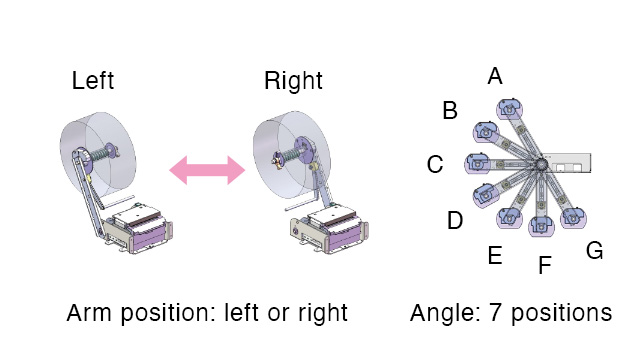

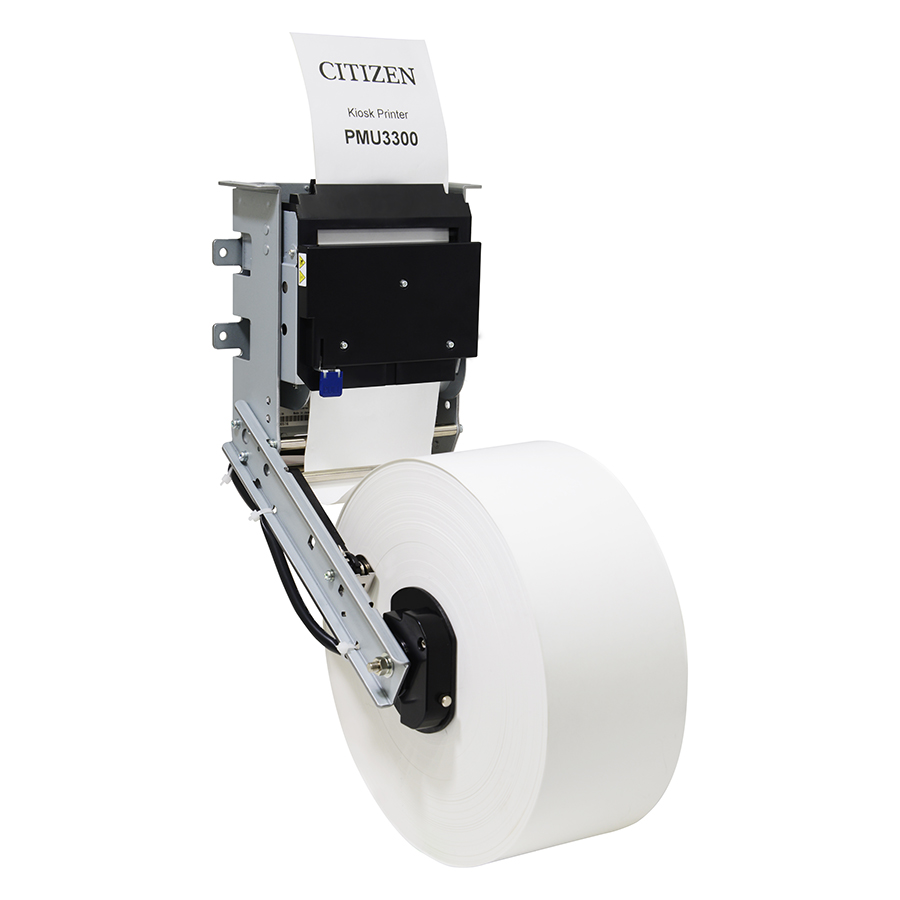

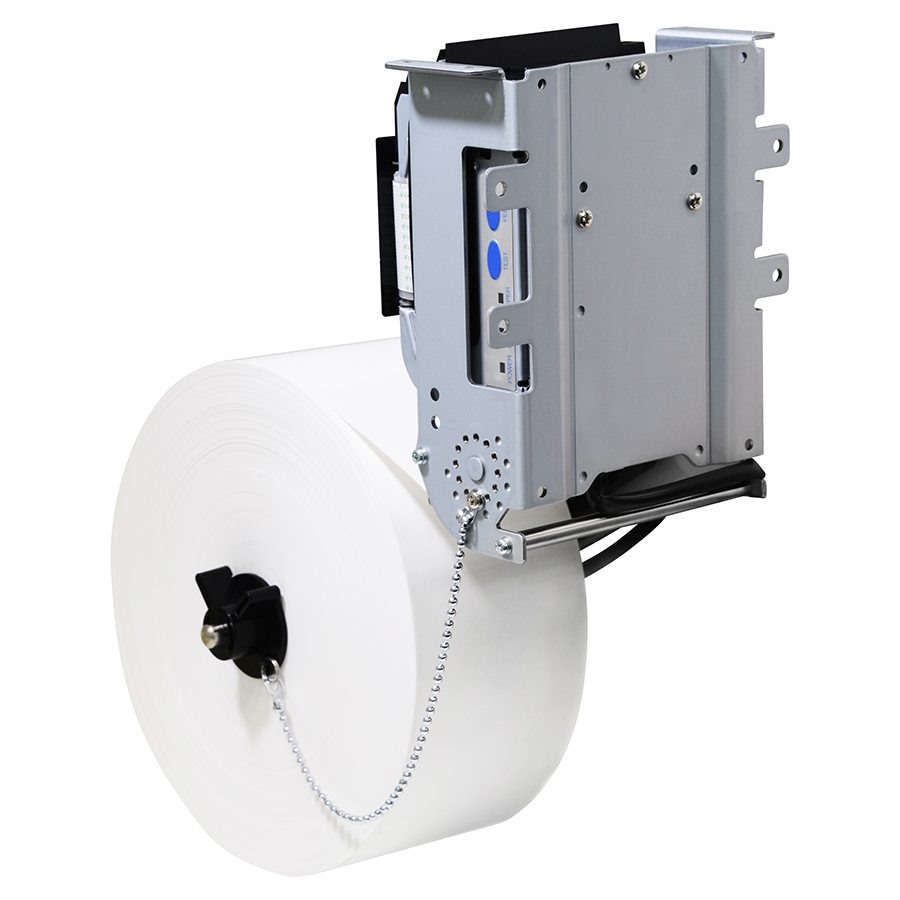

  • Flexible paper roll positions

    7 positions selectable for the paper roll

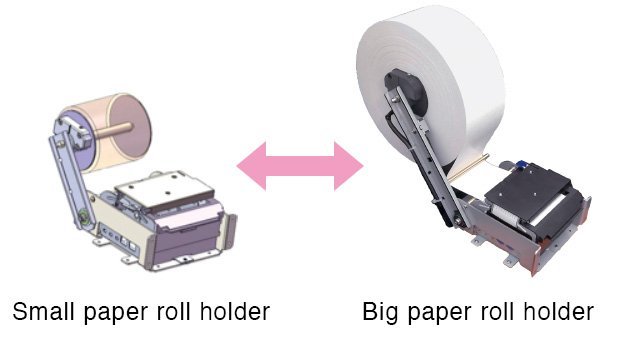

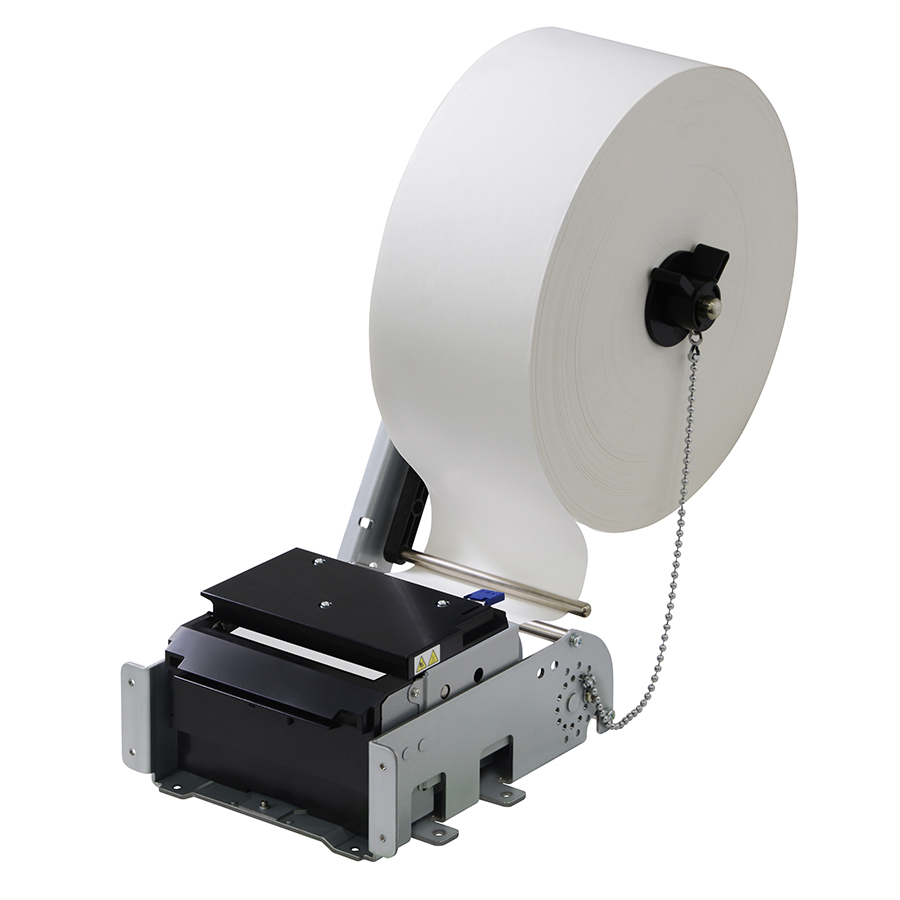

  • Two types of paper holders

    The small paper roll holder is not standard option.
    Please contact us if you are interested.

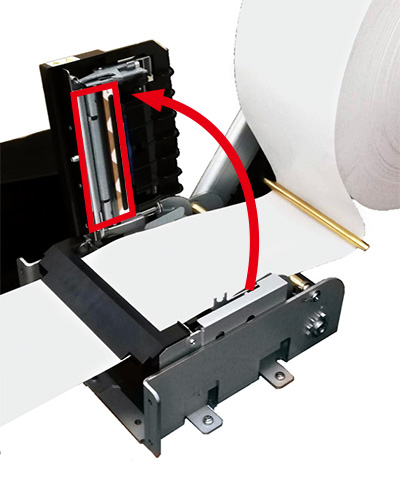

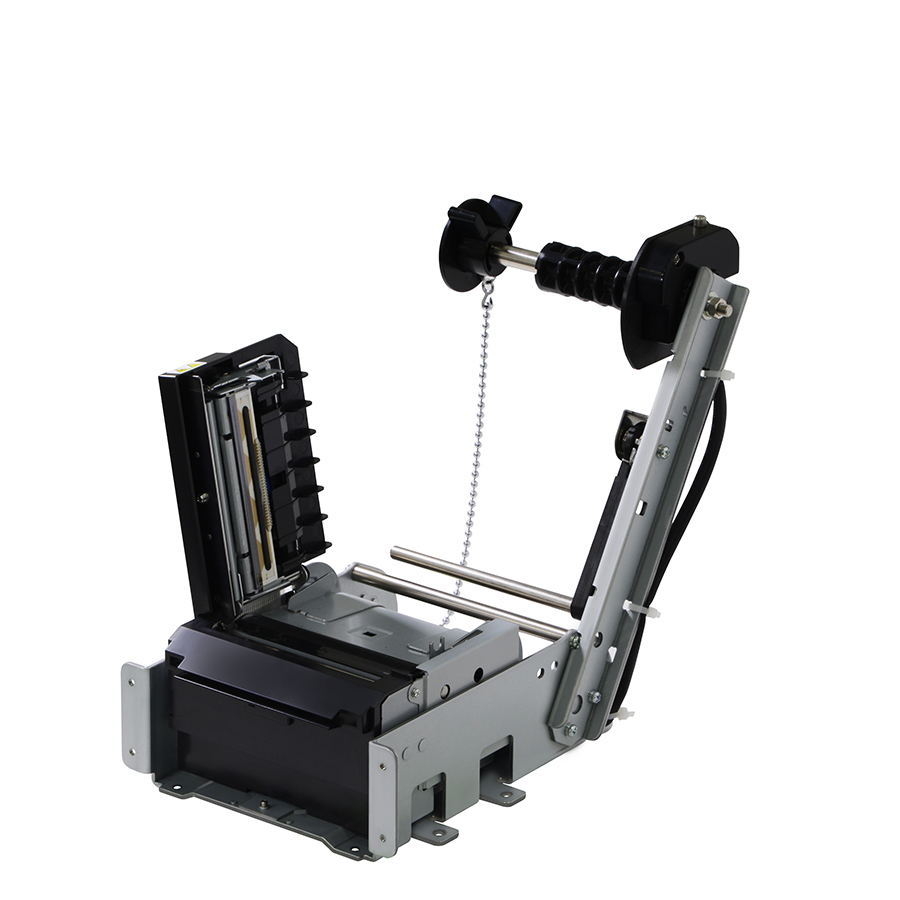

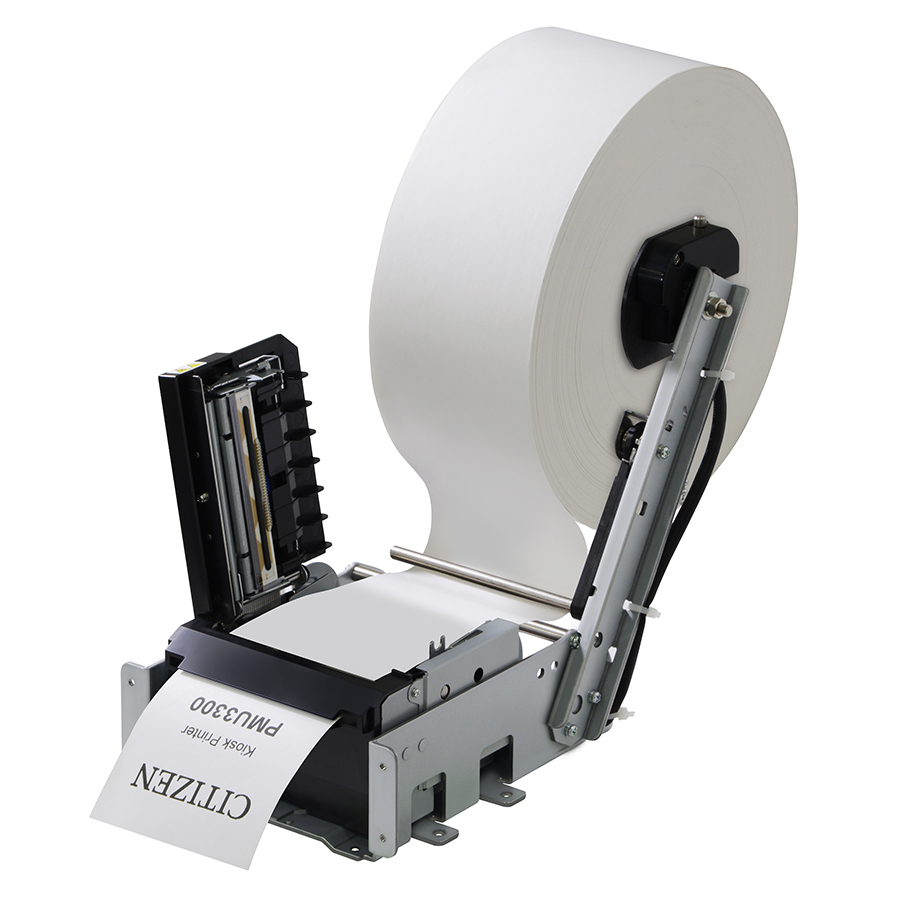

  • High-lift mechanism

    Easy media loading

Main Applications

  • Gas Station POS Equipment

  • Queue Management System

  • Printing from various data communication output terminals

  • KIOSK Terminal

  • Ticket Vending Machine


Model Name PMU3300
Print Method Direct Thermal Dot Printing
Printing Width 3-inch = 72mm
2-inch = 48mm
Dot Density 8dots/mm(203dpi)
Paper 3-inch width= 80mm
2-inch width = 58/60mm
Maximum Printing Speed 150mm/sec.
Paper Feed Pitch Minimum 0.125mm
Detection Functions Head Temperature Detection
Platen Presence Detection
Paper End Detection
Drive Voltage Input Voltage: DC24V±10%
Logic System Power Supply Voltage DC24V±10%
Power Consumption Approx. 1.9A (up to 9A)
Head Life Pulse Resistance: 50 million pulses or more (12.5% print rate)
Wear Resistance: 50km or more (room temperature, room humidity, specified recommended paper)
Operating Temperature/Humidity Temperature: -15 to 65℃ (printing guaranteed for 5 to 45℃), Humidity: 10 to 85% RH (no condensation)
Storage Temperature/Humidity Temperature: -40 to 85℃, Humidity: 10 to 85% RH (no condensation)

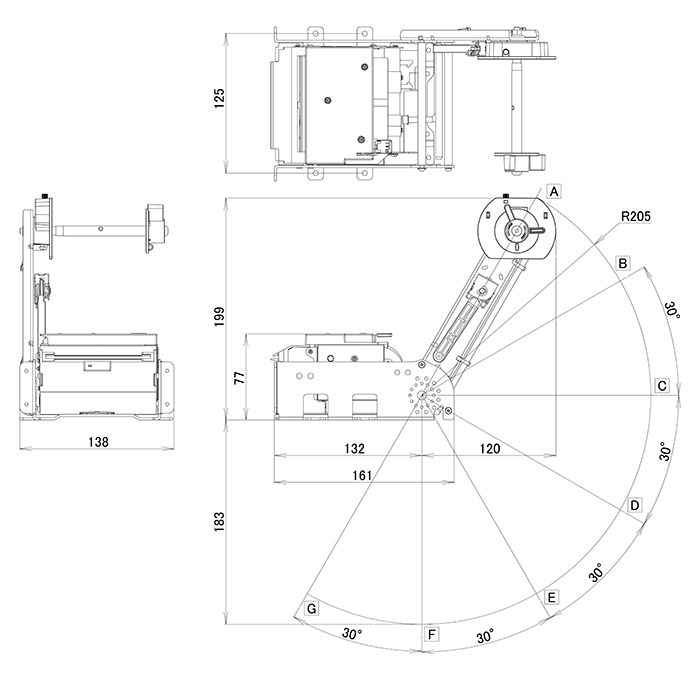

External Dimensions Main Body: 108 (W) × 138.3 (D) × 72.6 (H) mm (excluding paper holder)
Mass 700g (excluding paper holder)

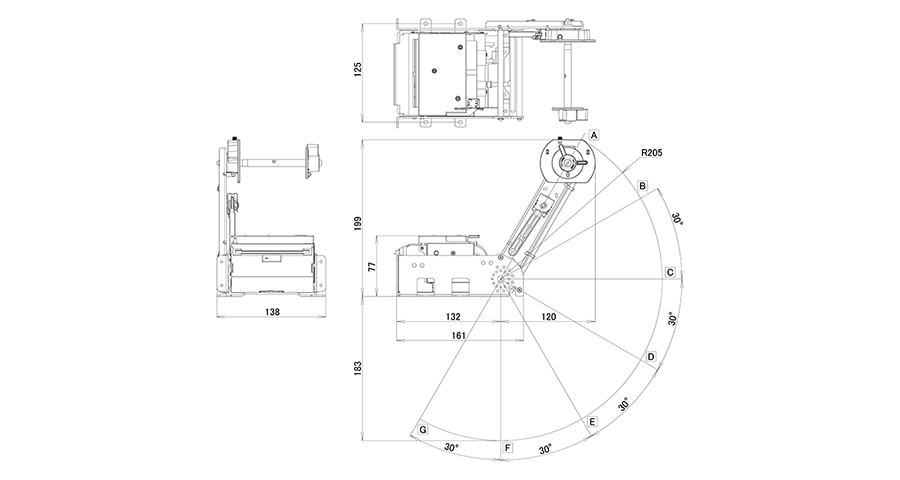

(Unit: mm)
