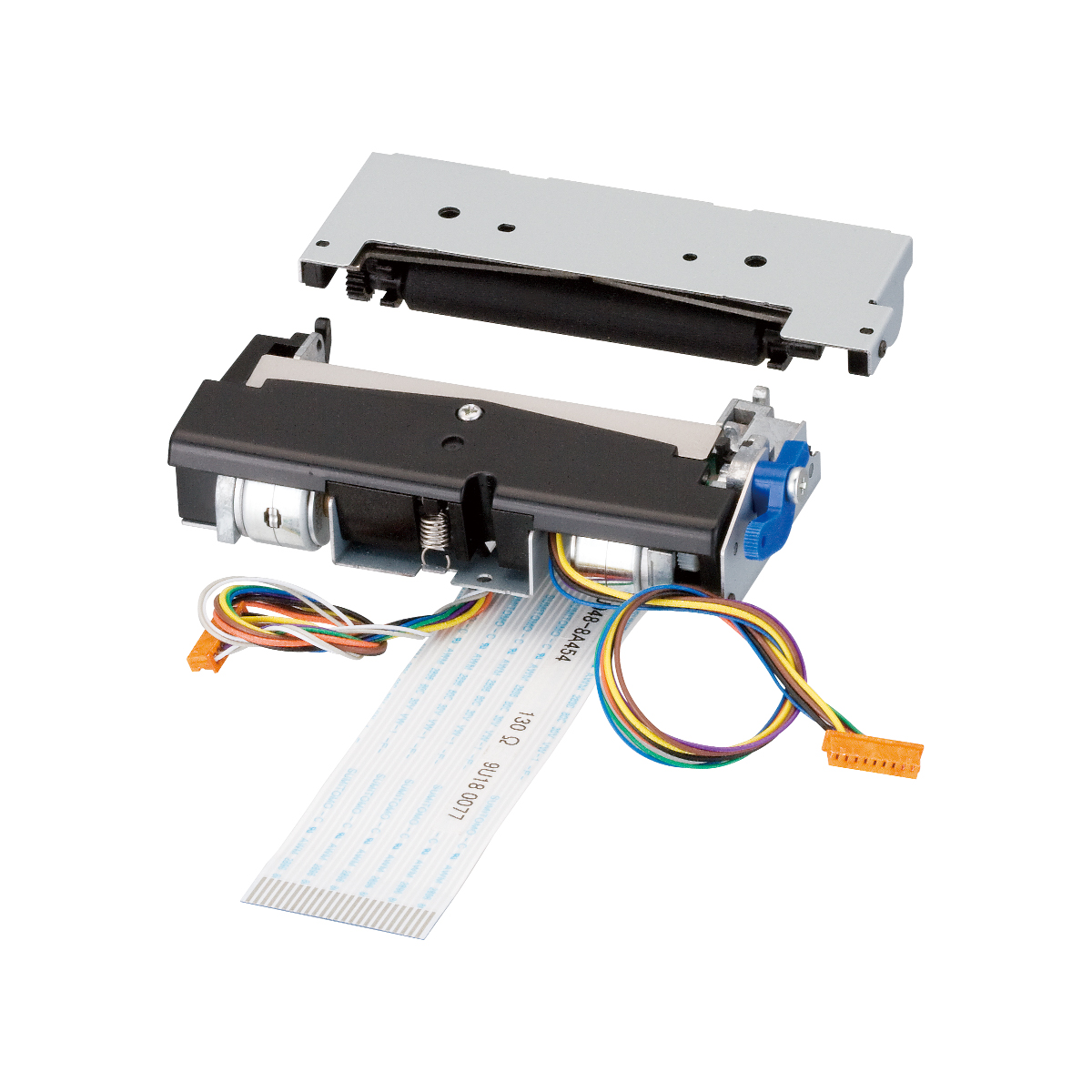

Kiosk PrinterMLT4281

Equipped with a thin auto cutter. Allows kiosk printing even in small devices.

Paper Width
Print Method
Direct Thermal Printing
  • Dedicated Control Board

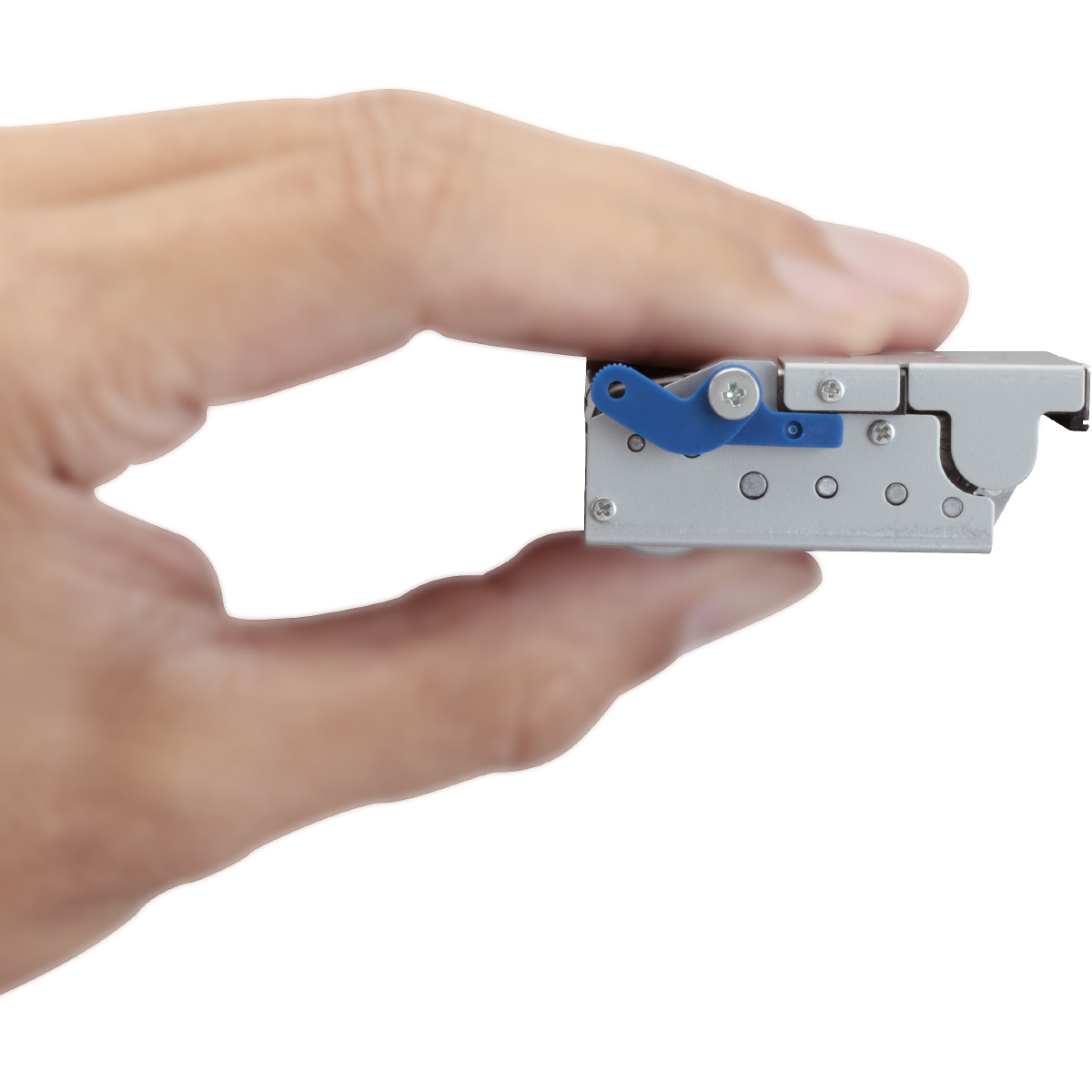

  • Ultra-compact design

  • Equipped with a unique 5V thin cutter

  • Expands design flexibility by using a detachable platen.

  • Zinc die cast to ensure both thinness and sturdiness

  • Features various built-in sensors (head temperature, paper detection, platen detection, cutter position detection)

  • Uses a detachable platen that makes paper loading easy

  • High Speed Printing at up to 80mm/sec.

Main Applications

  • POS/ECR Equipment

  • Measuring equipment/medical equipment

  • Printing from various instruments, terminals and machines

  • KIOSK Terminal Equipment

  • Various Bank Terminals (ATM, etc.)


Model Name MLT4281
Print Method Direct Thermal Dot Printing
Printing Width (Total Dot Number) 48mm(384dots)
Dot Density 8dots/mm(203dpi)
Paper Paper Width: 58mm / Paper Thickness: 59 to 75μm
Maximum Printing Speed 80mm/sec. (640 dot line)
(DC8.5V within 64 dots)
Paper Feed Pitch Minimum 0.125mm
Detection Functions Head Temperature Detection
Paper Detection
Platen Detection
Cutter Position Detection
Operating Voltage Range VH system: DC4.2 to 8.5V
Vdd system: DC3.0 to 5.5V
Current Consumption Head (VH): up to 2.2A (VH=5V), up to 3.7A (VH=8.5V)
Paper Feed Motor (VH): up to 0.9A
Cutter Drive Motor (VH) : up to 0.6A
Head Life Pulse Resistance: 100 million pulses or more
Wear Resistance: 50km or more (room temperature, room humidity, specified recommended paper)
Operating Temperature/Humidity Temperature: 0 to 45℃, Humidity: 35 to 85%RH (no condensation)
*Printing Assurance Temperatures: 5 to 40℃
Storage Temperature/Humidity Temperature: -20 to 60℃, Humidity: 10 to 90% RH (no condensation)
External Dimensions 79.0 (W) x 48.3 (D) x 18.0 (H) mm
Mass Approx. 110g

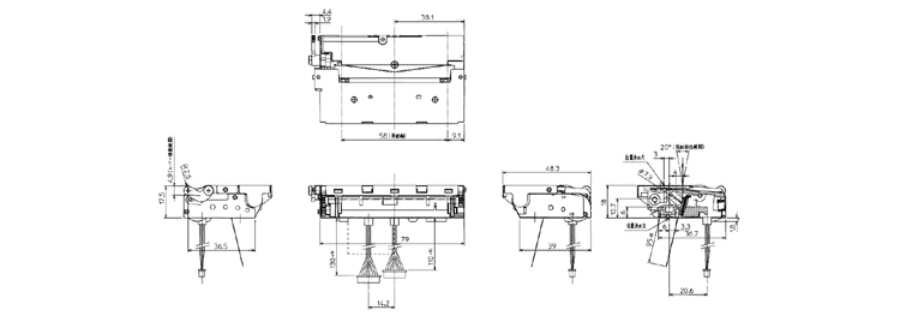

(Unit: mm)

* Company names and product names are trademarks or registered trademarks of their respective companies.
